Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
UPX-EXPANRUN-20
Category
General Purpose UPS
Overview

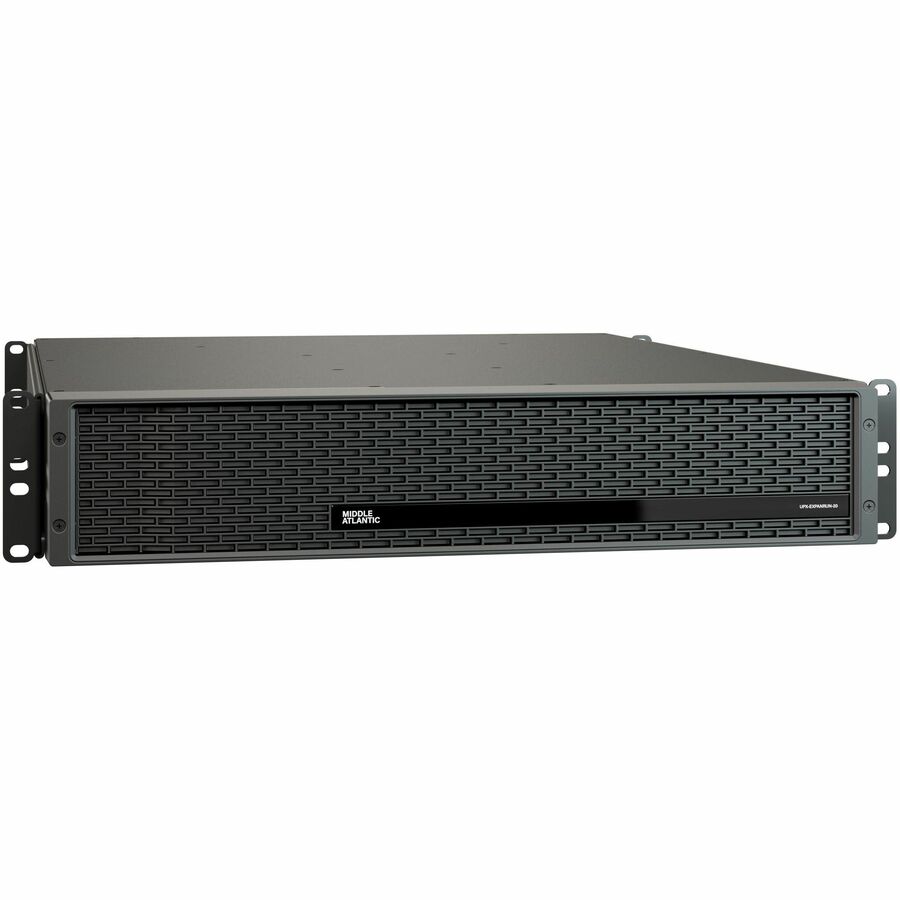

The Middle Atlantic UPX-EXPANRUN-20 is an expandable runtime battery unit compatible with line interactive UPS systems. It operates at a nominal voltage of 120VAC. The unit has a manual DC breaker to disable DC output to the battery main connector and features a sealed, maintenance-free lead-acid battery with a recharge time of 6-8 hours. The dimensions are 22in depth x 3.5in height x 19in width, and it weighs 70.1 lbs (31.8kg). The product is cTUVus tested to UL 1778 & CAN CSA-C22.2 standards and is RoHS REACH compliant. It comes with a three-year limited warranty (two years for the battery).
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
Works adequately in situations where the supply is prone to sags and surges
200 VA load capacity - work without any interruption during power outages
NEMA 5-15P plug/connector type for maximum usability with added reliability
NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
120 V AC input voltage for maximum feasibility and added productivity
110 V AC output voltage for maximum dependability and added productivity
Rack-mountable line-interactive ups allows maximum space utilization with easy and convenient access to the keyboard
Specifications
Battery Information
DC System Voltage
48 V DC
Hot Swappable
Yes
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
UPX-EXPANRUN-20
Brand Name
Middle Atlantic
Product Name
Middle Atlantic NEXSYS Series UPS Expandable Run Time Unit for 2000VA UPS Units
Product Type
Line-interactive UPS
Physical Characteristics
Product Color
Black
Height
3.50"
Width
22"
Depth
19"
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
70.11 lb
Power Description
Load Capacity (VA)
200 VA
Input Voltage
120 V AC
Output Voltage
110 V AC, 120 V AC, 127 V AC
Waveform Type
Pure Sine Wave
Technical Information
AVR
Yes
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Miscellaneous
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
