Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Rack Equipment
Country of origin
Thailand
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

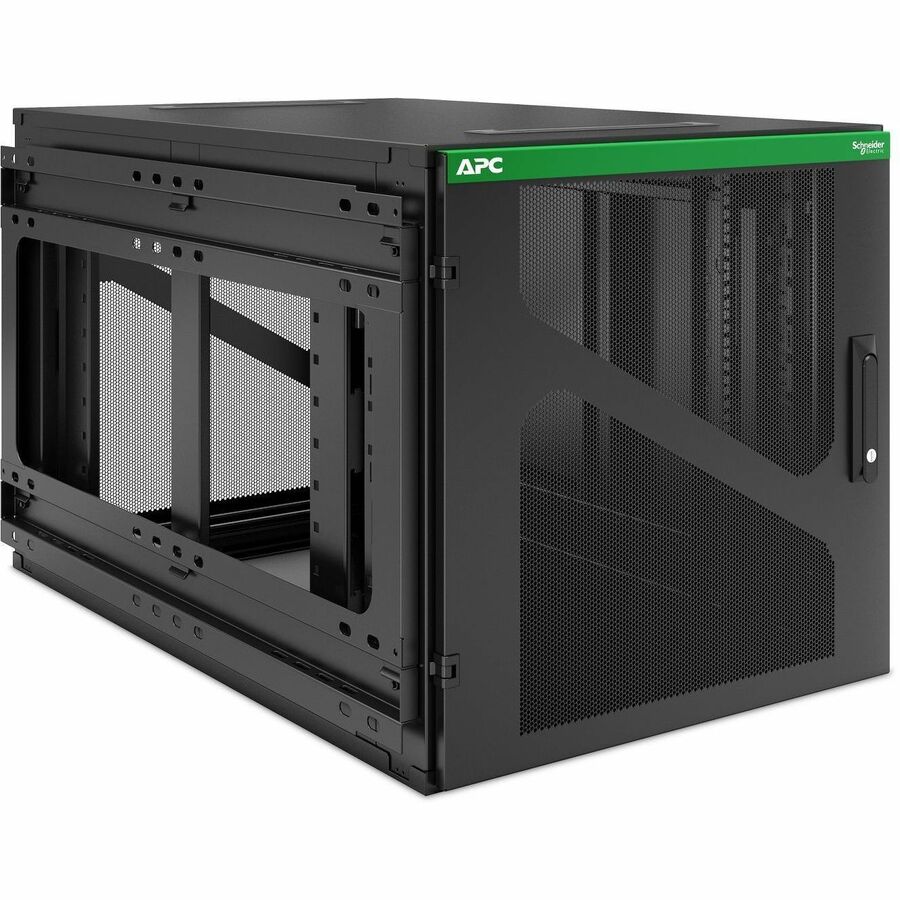

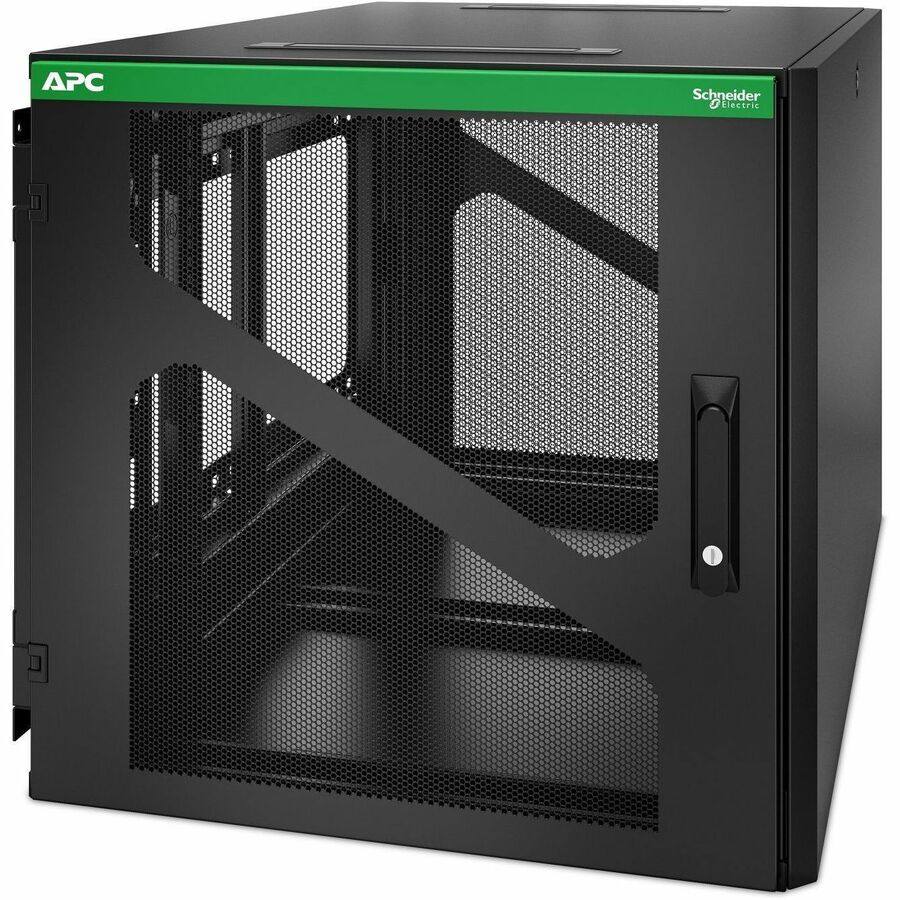

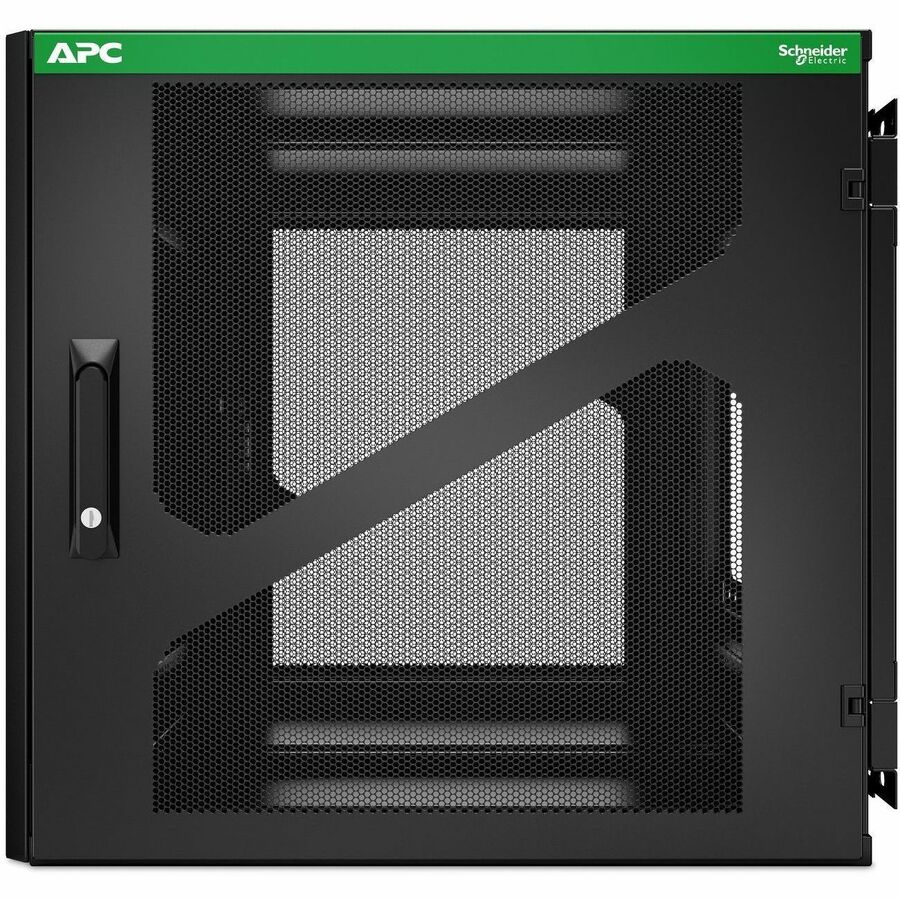

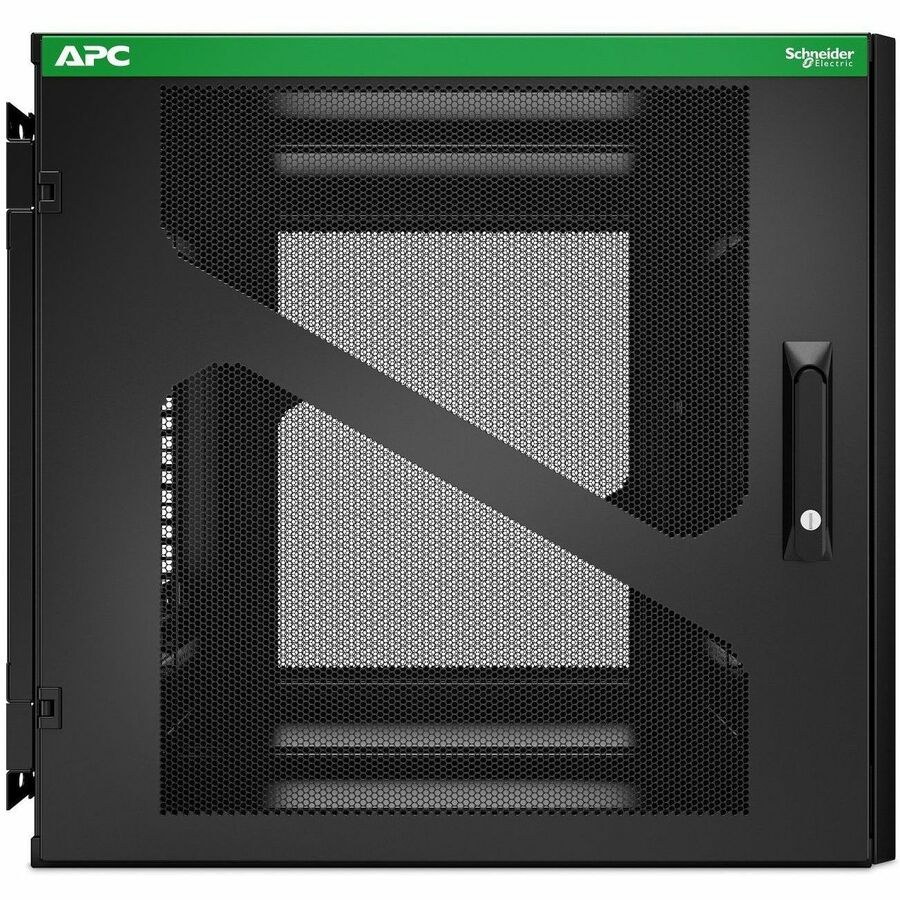

The NetShelter UPS Depth Wall-Mount Enclosure offers reliability, durability, and ease-of-deployment for single-phase equipment mounted on the wall Available in 12U, 18U, and 24U sizes, NetShelter UPS Depth Wall-Mount Enclosure is designed with an 800mm depth to accommodate a wide range of single-phase applications Bracket-style mounting ensures quick and easy deployment Low-profile side-mount configuration ensures the enclosure extends less than 25 inches from the wall, a perfect solution for locations with limited space Compatible with APC's NetBotz security solutions for remote access, video surveillance, and environmental monitoring (sold separately) Maximum load capacity of 350lb ensures durability for heavy-duty equipment Both top and bottom feature cable access openings to route, secure, and organize cables Accessory channels included to provide toolless mounting capabilities for rack PDU's and cable management accessories Ideal for diverse segments such as retail, healthcare, distribution centers, and education, providing an efficient solution for deploying IT equipment for edge computing applications 19" rack width, ships fully-assembled, ventilated, backed by 5-year APC warranty
Warranty
Limited Warranty: 5 Year
Highlights
Efficient and secure edge computing solution when floor space is limited
Wallmount Rack Enclosure
12U, 800mm deep, max. load 350lb
Low-profile side-mount
Locking swing-handle
Bracket-style mounting
Cable access openings top/bottom
Ventilated
Ships pre-assembled
Includes hardware
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR112SM
Brand Name
APC
Product Line
NetShelter
Product Name
NetShelter 12U Wallmount Rack Enclosure Cabinet Side Mount UPS Depth
Packaged Quantity
1
Product Type
Rack Cabinet
Physical Characteristics
Form Factor
Wall Mountable
Product Material
Steel
Maximum Weight Capacity
350 lb
Height
24.5"
Width
23.6"
Depth
40.8"
Rack Height
12U
Rack Width
19"
Rack Depth
32.87"
Weight (Approximate)
129.76 lb
Technical Information
Rack Type
Enclosed Cabinet
Application/Usage
UPS, IT Equipment
Ventilation
Yes
Features
Cable Management
Mounting Preference
No Preference
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
NetShelter 12U Wallmount Rack Enclosure Cabinet Side Mount UPS Depth Hardware
Assembly Required
No
Country of Origin
Thailand
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
