7000 MB/s Maximum Read Transfer Rate - 5 Year Warranty
SKU
Category
Hard Drives/Solid State Drives
$256.22
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 12 and Nov 16, then process your delivery right after.
Genuine Sabrent through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Hard Drives/Solid State Drives
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

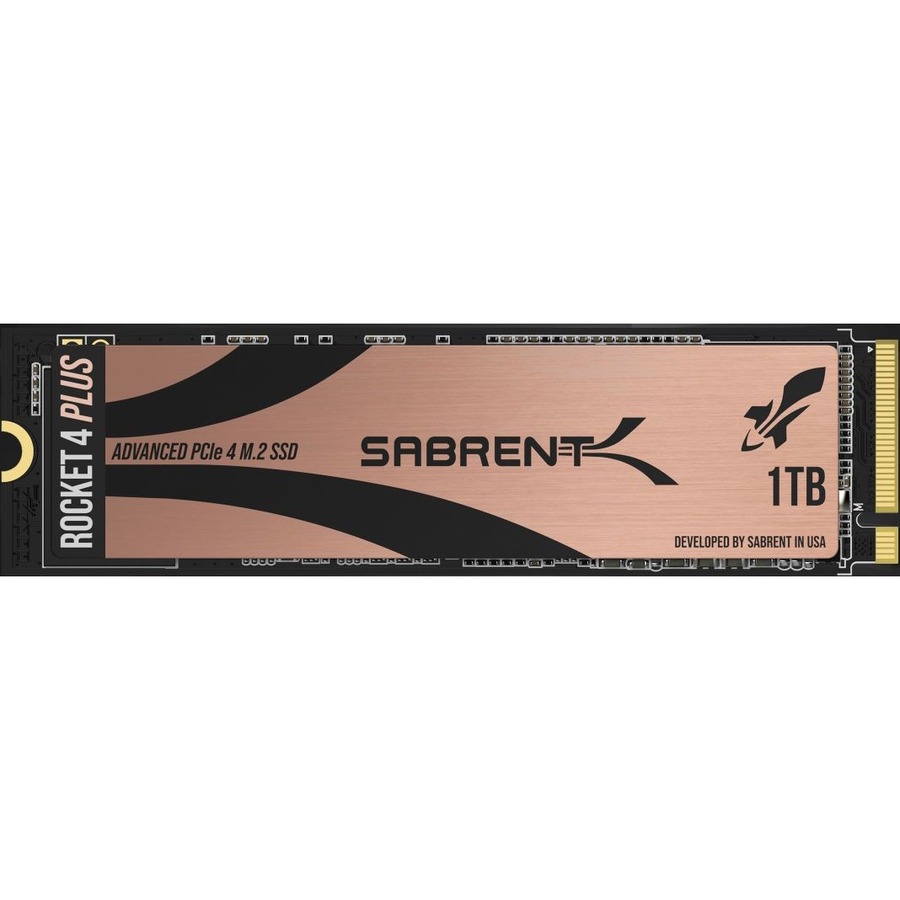

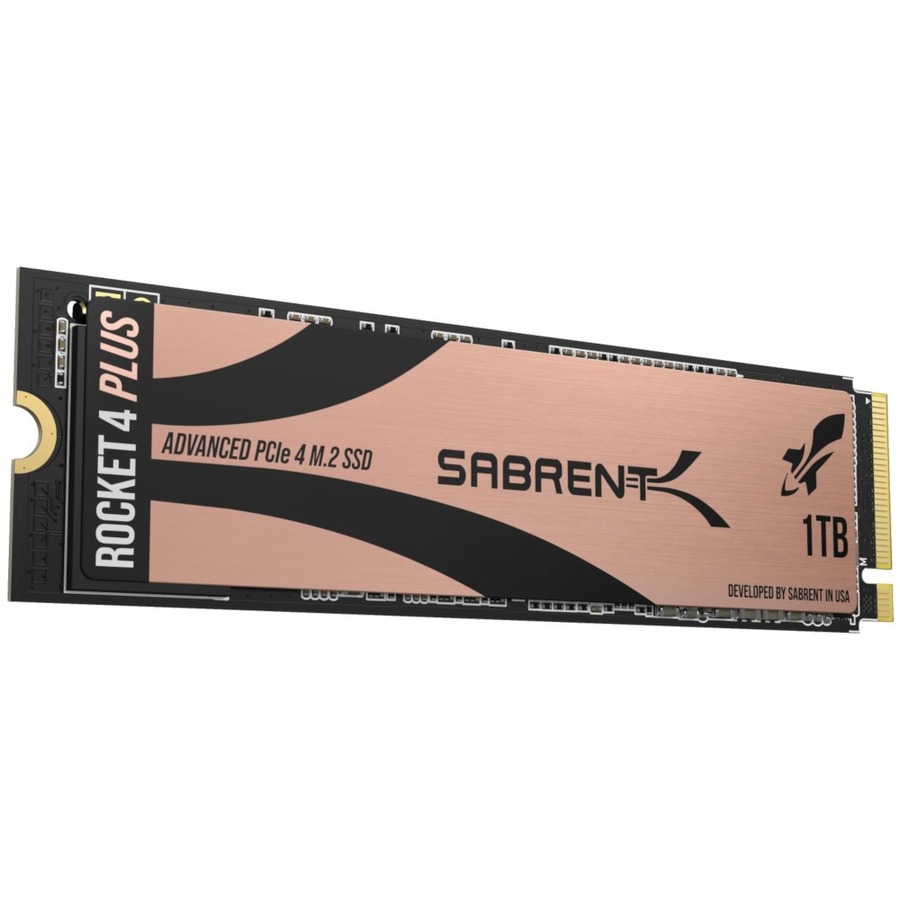

The Sabrent 1TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Extreme Performance Solid State Drive (SB-RKT4P-1TB) delivers all the advantages of flash disk technology with PCIe Gen4.0 x4 interface.
Based on TLC NAND Flash memory, its performance speeds can reach up to 7000 MB/s (read) and 5300 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 3000 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.
The Sabrent 1TB Rocket 4+ Nvme PCIe 4.0 M.2 2280 Internal SSD was designed using PCIe 4.0 which allows for speeds of up to 7000 MB/s (read) and 5300 MB/s (write), significantly faster than PCIe 3.0.
Note: In order to take advantage of these speeds, a PCIe Gen4 motherboard is REQUIRED . Otherwise it will be at pcie gen 3 speed at max of 3500MB/s.
When installing any NVMe PCIe 4.0 SSD directly onto a PCIe Gen4 Motherboard a Heatsink is required to dissipate the heat generated by the drives extreme speed levels to avoid thermal throttling and maximize performance.
The Sabrent 1TB Rocket 4+ Nvme PCIe 4.0 M.2 2280 Internal SSD is backward compatible with PCIe 3.0. Using a Gen 3 PCIe motherboard will enable the user to reach speeds of up to 3400 MB/s (read) and 3000 MB/s (write).
Features:
• NVMe M.2 PCIe Gen4 x4 Interface.
• PCIe 4.0 Compliant / NVMe 1.3 Compliant.
• Power Management Support for APST / ASPM / L1.2.
Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
All Sabrent SSDs come with FREE Sabrent Acronis True Image for Sabrent Software for easy Cloning. For those who require a specific sector size to clone their existing SSDs: A newly released Sabrent utility enables users to re-format the Rocket drive and choose the sector size of their liking, either 512-bytes or 4K bytes.
Specifications
Drive Performance
Maximum Read Transfer Rate
7000 MB/s
Maximum Write Transfer Rate
5300 MB/s
General Information
Manufacturer
Sabrent, Inc
Manufacturer Part Number
SB-RKT4P-1TB
Brand Name
Sabrent
Product Line
Rocket 4 PLUS
Product Model
SB-RKT4P-1TB
Product Name
1TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Solid State Drive (SB-RKT4P-1TB)
Product Type
Solid State Drive
Interfaces/Ports
Drive Interface
PCI Express NVMe
Drive Interface Standard
PCI Express NVMe 4.0 x4
Network & Communication
Wireless LAN
No
Physical Characteristics
Drive Type
Internal
Form Factor
M.2 2280
Height
0.5"
Width
2.8"
Depth
4"
Weight (Approximate)
2.40 oz
Technical Information
Storage Capacity
1 TB
Platform Supported
PC
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
1TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Solid State Drive (SB-RKT4P-1TB)
