Premier Mounts AM65 Wall Mount for TV, Monitor - Black
1 Display(s) Supported - 55" Screen Support - 65 lb Load Capacity - 100 x 100, 400 x 400, 400 x 200, 300 x 300, 300 x 200, 400 x 300, 200 x 200, 430 x 400 - 1
Genuine Premier Mounts through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AM65
Category
Mounting Kits
Overview

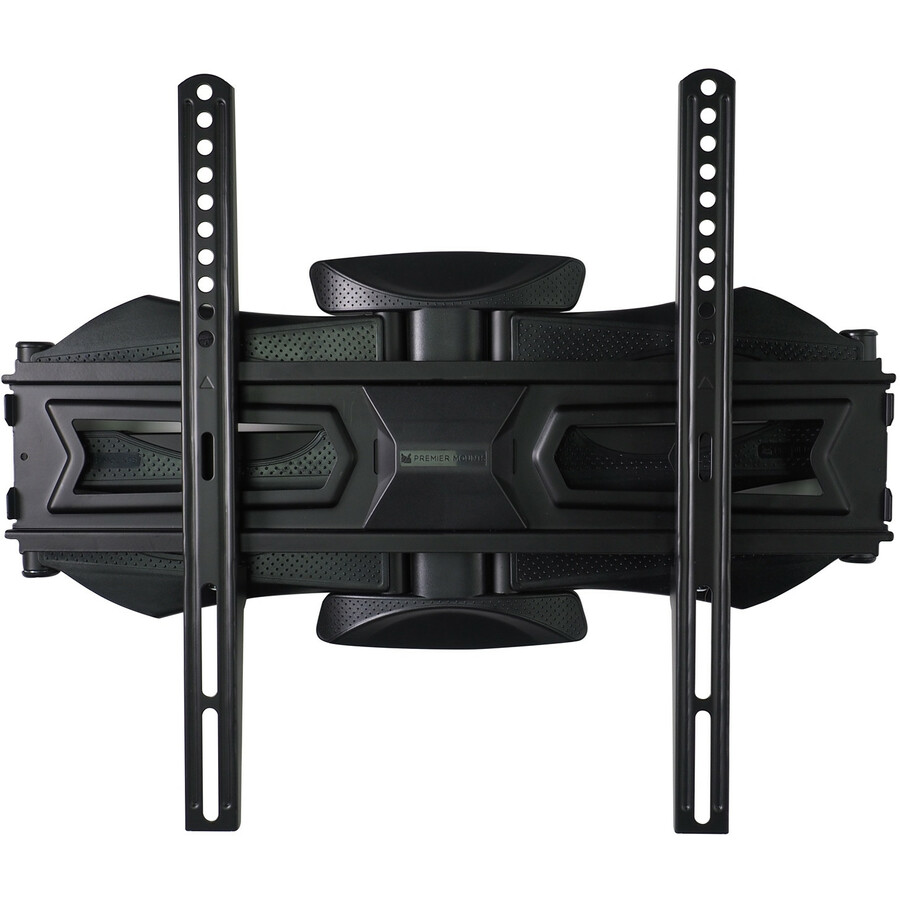

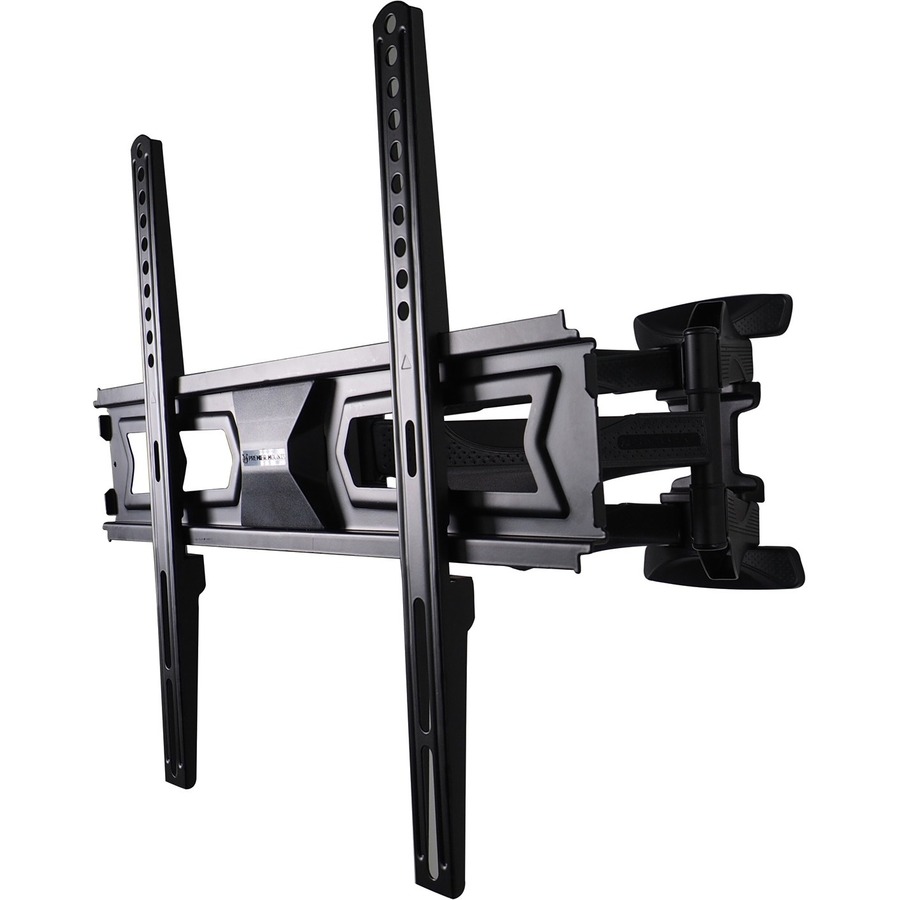

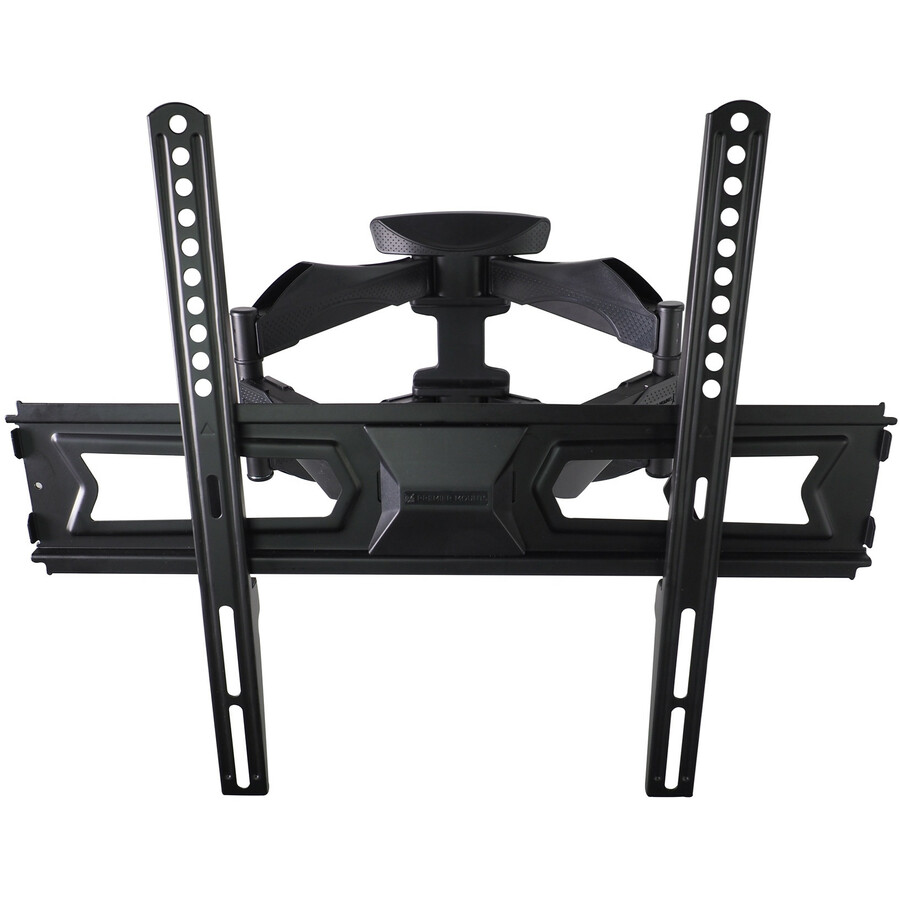

The AM65 is an ultra slim, commercial grade articulating mount that has 18.3 inches of extension, 12 degrees of tilt and allows for lateral shifting. This means that you will be able to view your display at almost any angle you chose! With unmatched movement versatility from a single stud mounting solution, the AM65 can also hold up to 65lbs, which is more than the weight of most standard 55 inch displays.
It is the perfect "price to value" articulating wall mount to mate with the newer, thinner, lower cost flat panel displays in use today.
Complete install from box to wall is much quicker than most other wall mount models available. Cable management channels are also built into the arm to keep power cables protected when pulling or pushing the display to your desired angle. In addition, an open wall plate allows for clear access to cable and power connections.
Highlights
Low profile swing out mount collapses to just 2.2" from the wall
Single piece construction makes for a quicker install

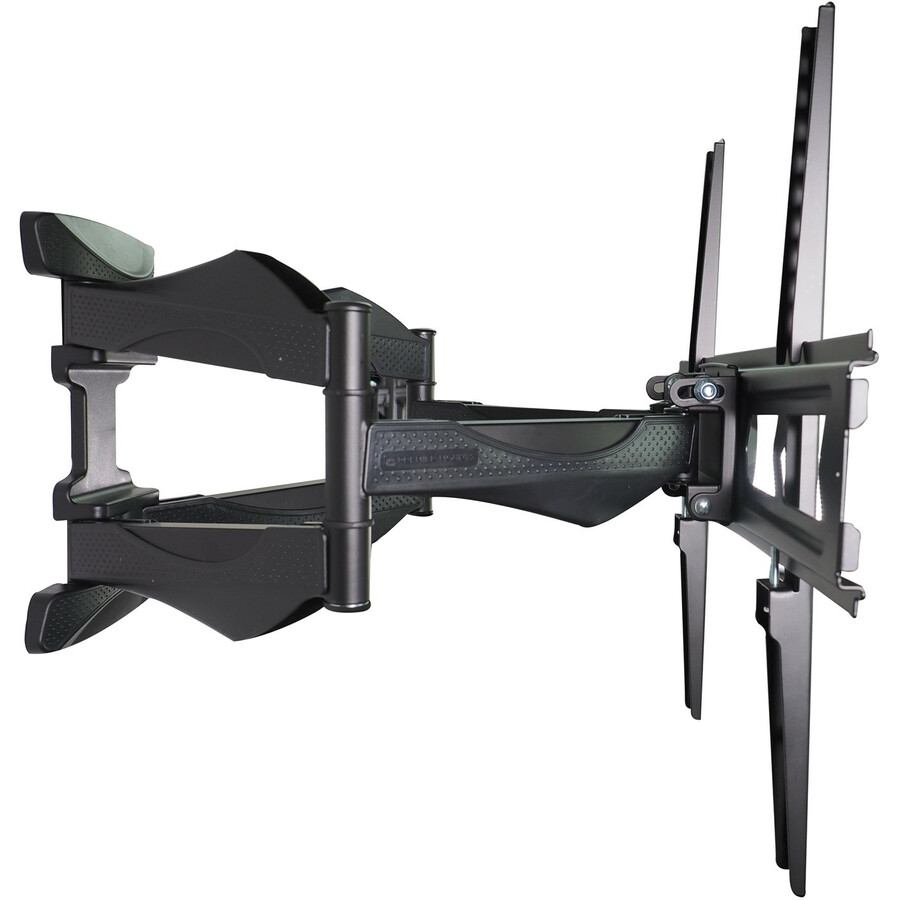

Scissor style arms pull up to 18" from the wall
12° of downward tilt
Universal mounting pattern up to 400 x 400
Specifications
Package Contents
Low Profile Ultra-Slim Swingout Mount for Flat-Panels Up to 65 lb./29 kg
1 x Universal Hardware Pack
1 x Instruction Manual
Product Type
Wall Mount
Device Supported
TV, Monitor
Manufacturer Part Number
AM65
Packaged Quantity
1
Limited Warranty
Lifetime
Manufacturer
Premier Mounts
Product Model
AM65
Product Name
Low Profile Ultra-Slim Swingout Mount for Flat-Panels Up to 65 lb./29 kg
Maximum Load Capacity
65 lb
Brand Name
Premier Mounts
Country of Origin
China
Height
16.60"
Width
19.60"
Depth
2.20"
Maximum Screen Size Supported
55"
Number of Displays Supported
1
Mounting Pattern
100 x 100, 400 x 400, 400 x 200, 300 x 300, 300 x 200, 400 x 300, 200 x 200, 430 x 400
