Overview

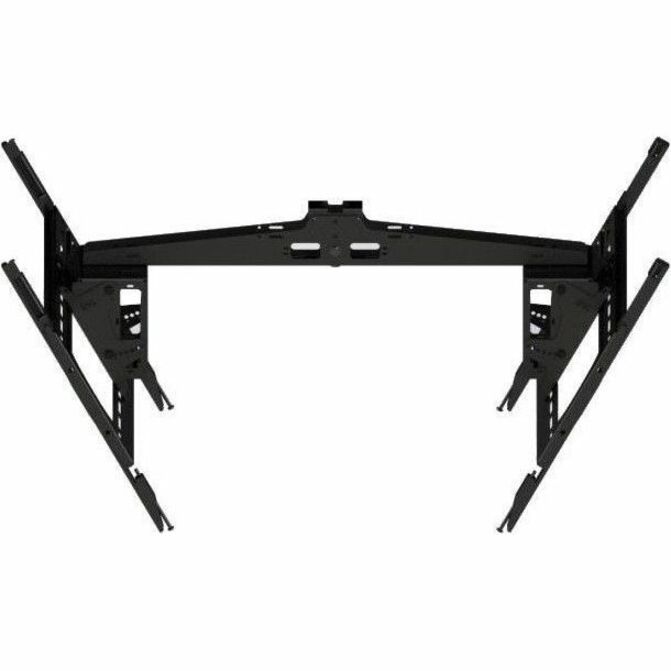

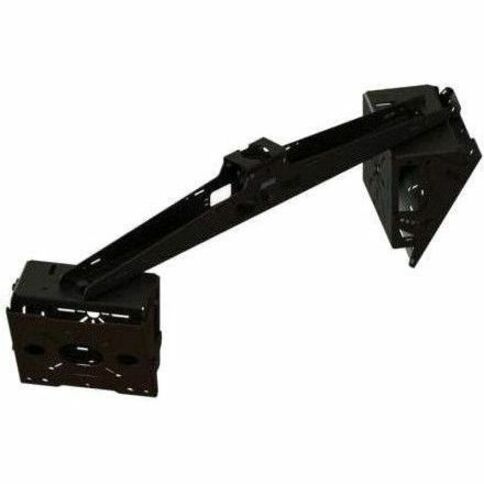

Premier Mounts' dual ultra-tilt ceiling mount is designed to elevate your digital signage experience. This innovative dual ceiling mount solution allows you to create dynamic and engaging visual displays up to 75".
This dual swivel ceiling mount features 30 degrees of tilt and 90 degrees of independent swivel for each display, providing unparalleled flexibility in positioning and orientation. These features help guarantee content is displayed clearly and effectively.
Mounting holes for gang boxes and media player brackets allow for customization and integration with your existing setup. This flexibility enables you to tailor the display mount to your specific needs and preferences, ensuring a seamless integration with your overall system.
The dual ultra-tilt ceiling mount is ideal for various settings, including digital signage, live events, transportation centers, retail, quick service restaurants, hospitality, and conference centers. Its versatility makes it a valuable tool for businesses and organizations seeking to enhance their visual communications.
Highlights

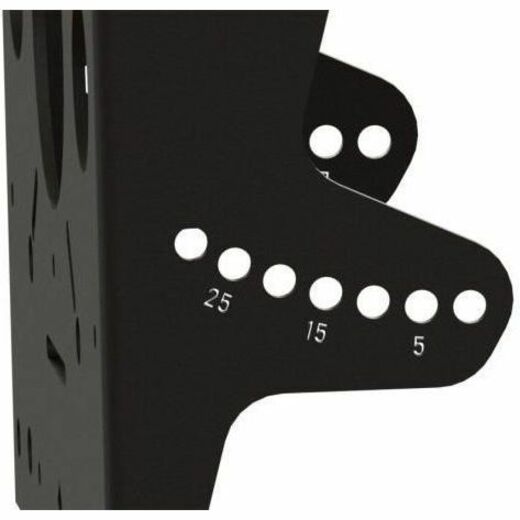

Up to 30° fixed tilt on each display
90° independent swivel on each display
Turnkey design ensures a streamlined installation
Mounting holes for gang boxes and media player brackets
Compatible with Premier Mounts fixed and adjustable length ceiling pipes
Built from high-grade steel, this mount provides secure and durable support for your displays
Specifications
General Information
Manufacturer
Premier Mounts
Manufacturer Part Number
7170-1158-01
Brand Name
Premier Mounts
Product Name
Ultra Tilt Dual Swivel Portrait Ceiling Mount for Displays up to 75" and 200lbs.
Product Type
Ceiling Mount
Physical Characteristics
Product Material
Steel
VESA Mount Compatible
Yes
Mounting Pattern
200 x 200, 535 x 705
Form Factor
Ceiling Mountable
Height
30.60"
Width
22.40"
Depth
38.42"
Weight (Approximate)
35 lb
Product Information
Device Supported
Digital Signage Display, Display
Number of Displays Supported
2
Minimum Load Capacity
175 lb
Maximum Load Capacity
350 lb
Maximum Screen Size Supported
75"
Features
Tilt, Swivel, Flexible, Durable, Adjustable
Mount Profile
Fixed
Orientation
Portrait
Minimum Tilt Angle
0°
Maximum Tilt Angle
30°
Minimum Swivel Angle
-90°
Maximum Swivel Angle
90°
Mount Function
Tilt, Ceiling Mount, Swivel, Adjustable
Mount Surface
Ceiling
Miscellaneous
Package Contents
Ultra Tilt Dual Swivel Portrait Ceiling Mount for Displays up to 75" and 200lbs.
