Genuine PNY Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VCG50608DFXPB1
Category
Graphic Cards
Overview
Get game-changing performance with the GeForce RTX 5060, powered by NVIDIA Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

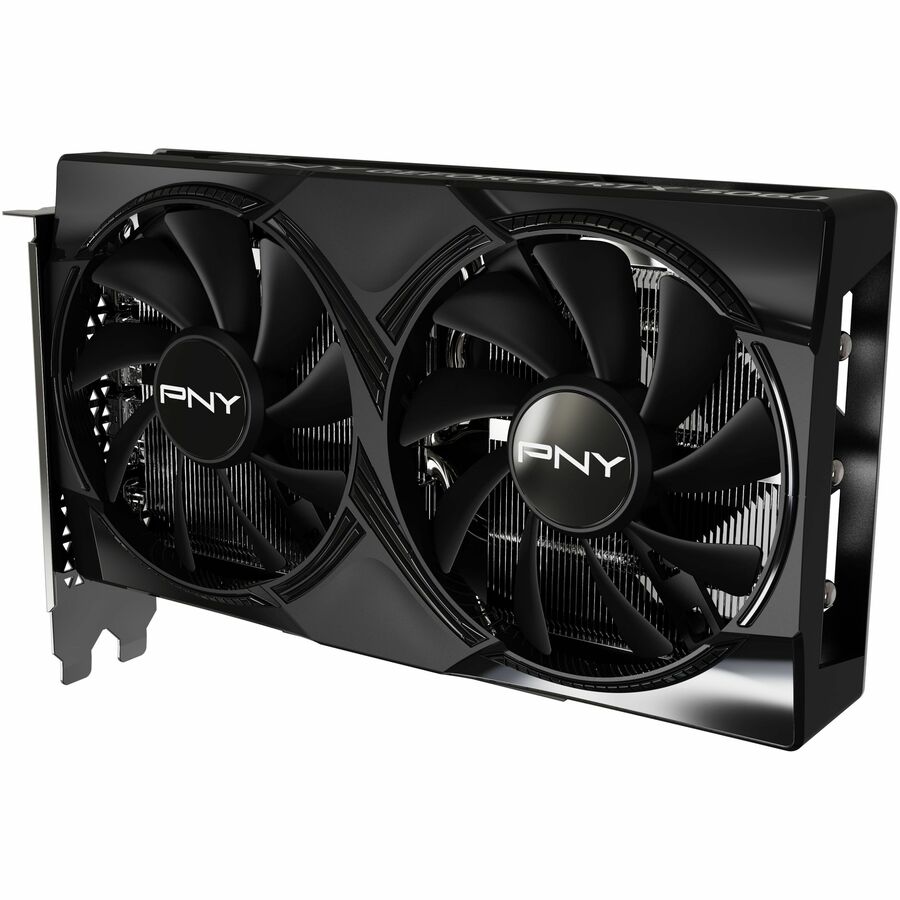

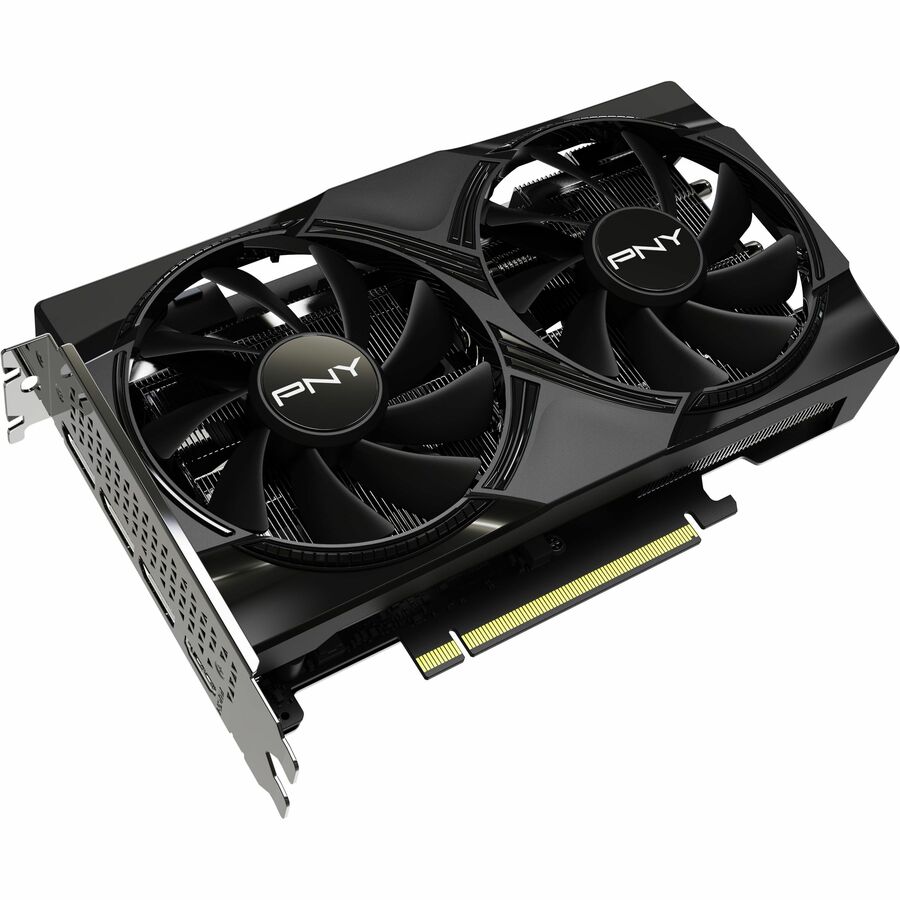

DUAL FAN COOLING
With two fans working together, heat is distributed and dissipated more efficiently across the GPU surface
SMALL FORM FACTOR
Compact design opens up possibliities for a wide away of PC system sizes and configurations
Warranty
Limited Warranty: 3 Year
About PNY Technologies
Our Solutions
PNY offers solutions for a wide variety of Consumer, Commercial and OEM customers worldwide.
Highlights
NVIDIA Blackwell Architecture
8 GB GDDR7
2497 MHz Boost Clock
448 GB/s Memory Bandwidth
128-bit Memory Interface
154W Max Power Consumption

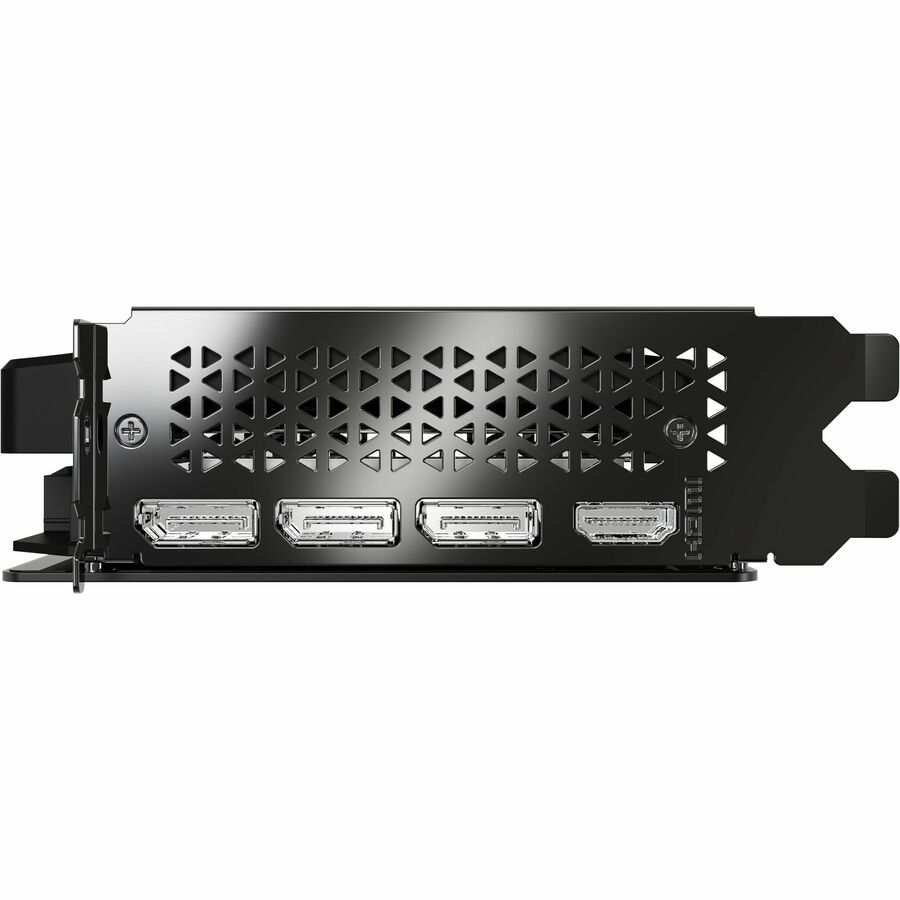

DisplayPort 2.1b (x3)
HDMI 2.1b (x1)
Dual-Slot Width
Specifications
General Information
Manufacturer
PNY Technologies
Manufacturer Part Number
VCG50608DFXPB1
Brand Name
PNY
Product Name

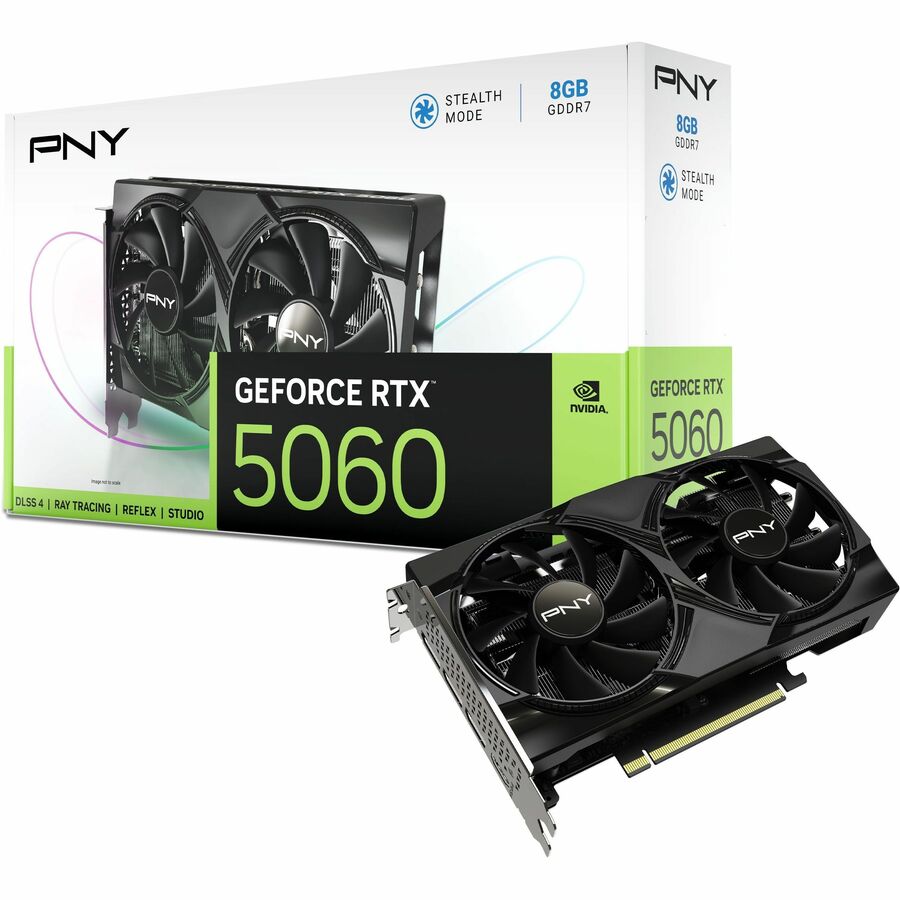

GeForce RTX 5060 8GB Dual Fan Graphic Card
Product Type
Graphic Card
Interfaces/Ports
Host Interface
PCI Express 5.0 x8
DisplayPort
Yes
Number of DisplayPort Outputs
3
HDMI
Yes
Number of HDMI Outputs
1
Memory
Standard Memory
8 GB
Memory Technology
GDDR7
Bus Width
128 bit
Maximum Memory Bandwidth
448 GB/s
Physical Characteristics
Slot Space Required
Dual
Form Factor
Plug-in Card
Card Height
Full-height
Cooler Type
Fan Cooler
Height
1.6"
Width
4.7"
Length
7.9"
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Line
GeForce
Chipset Series
RTX
Chipset Model
RTX 5060
GPU Clock
2.28 GHz
GPU Boost Clock
2.50 GHz
Technical Information
Number of Monitors Supported
4
Maximum Digital Display Resolution
7680 x 4320
CUDA Cores
3840
Features
Dual-fan Cooler
AI-powered
Yes
Warranty
Limited Warranty
3 Year
Power Description
Power Supply Wattage
550 W
Power Connector
1x 8-pin
Miscellaneous
Platform Supported
PC, Linux
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
