Genuine Perle Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
05061540
Category
Transceivers/Media Converters
Overview

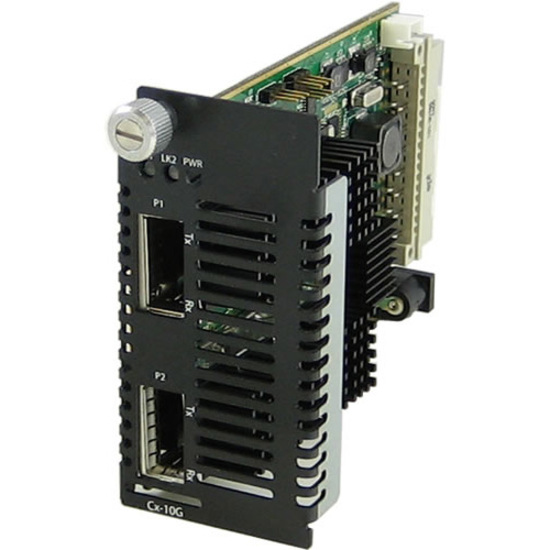

Installed in a high density MCR1900 Media Converter Chassis, Perle C-10G Media Converter Modules transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
Warranty
Limited Warranty: Lifetime
Highlights
For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
Takes minimal energy and effort to get installed internally
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
05061540
Brand Name
Perle
Product Model
C-10G-XTXH
Product Name
C-10G-XTXH Media Converter
Product Type
Transceiver/Media Converter
I/O Expansions
Expansion Slot Type
XFP
Number of XFP Slots
2
Interfaces/Ports
Network (RJ-45)
No
DVI
No
USB
No
Management Port
No
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
Network Technology
10GBase-X
Physical Characteristics
Form Factor
Internal
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
