1 Display(s) Supported - 43" to 75" Screen Support - 150 lb Load Capacity - 600 x 400, 200 x 100 - VESA Mount Compatible - 1
MSRP$649.00
$431.81
Save 33%Special order — expected back in stock the week of Sep 7–13.
Genuine Peerless Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

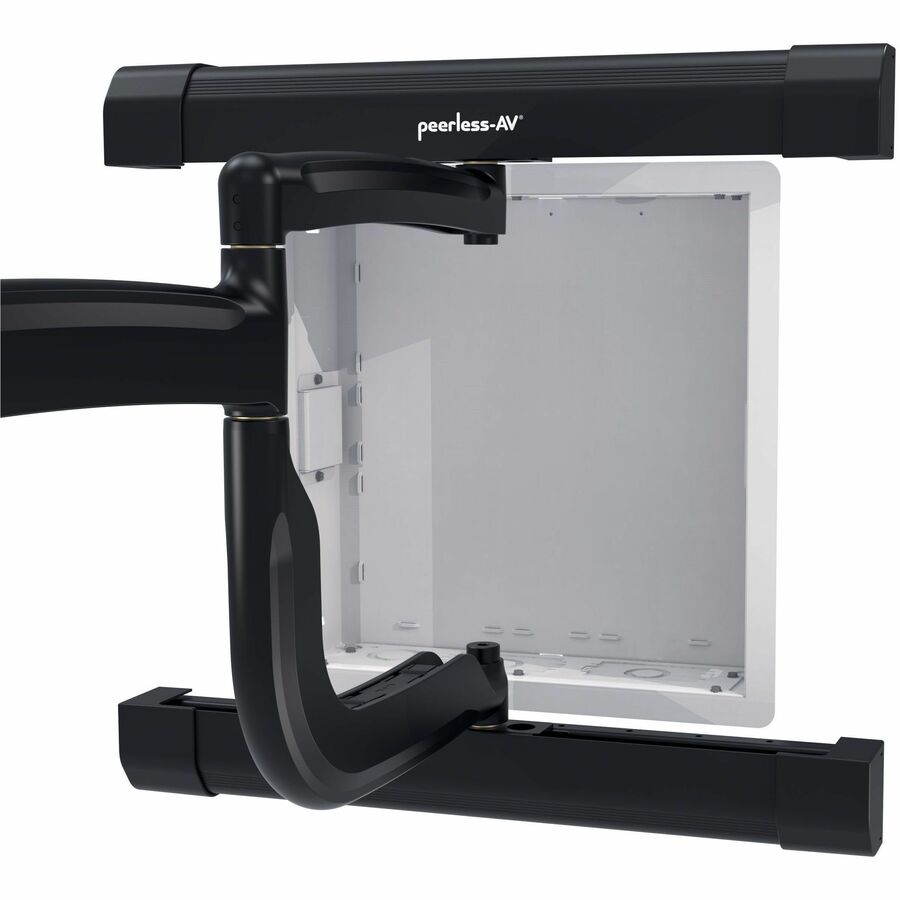

Peerless-AV's SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA761PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang feature produces simplified installation and One-Touch tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation.
More from the Manufacturer
SmartMount
Articulating Wall Arm for 39" to 75" Displays
The SmartMount
Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA761PU, extend the display up to 26.6" (676mm) or fully-retract it to just 3.1" (79mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Features
Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns

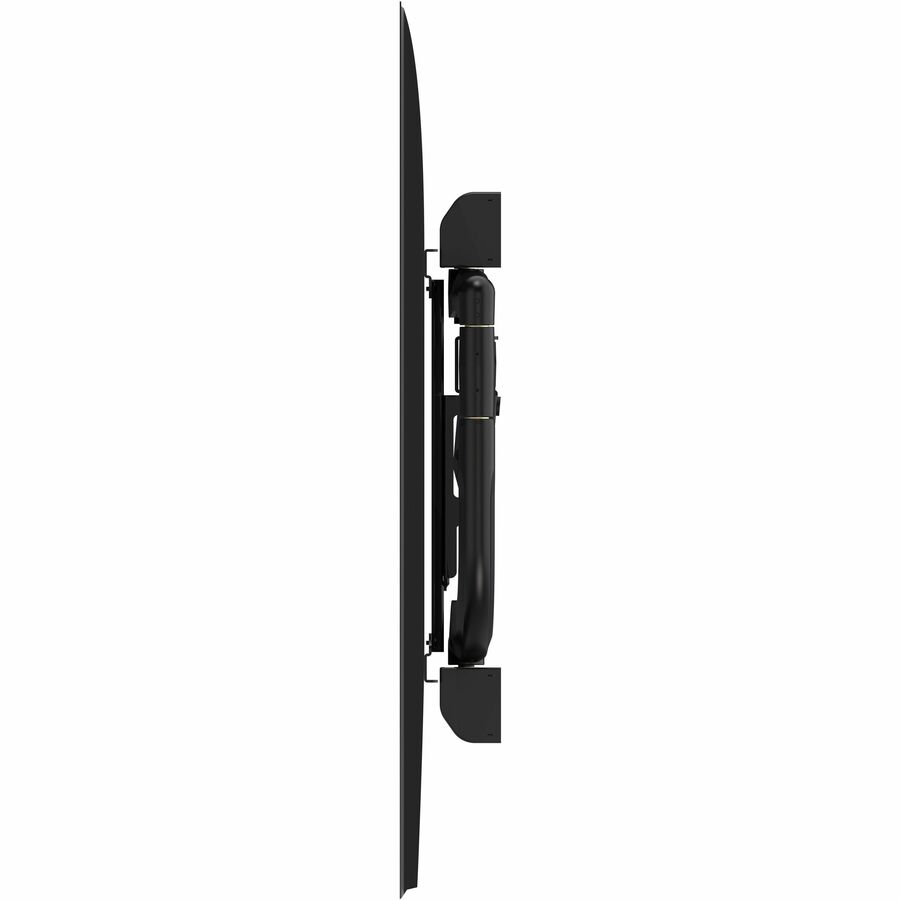

Retracts to hold display just 3.10" (79mm) from the wall
Extends up to 26.60" (676mm)
±90° degrees of pivot allows for perfect display positioning
Easy leveling ±5° after display installation
Quick and easy, Hook-and-Hang™ one person installation
I-shaped adaptor plate helps avoid blocking connections on back of display
+15°/-5° vertical tilt movement for the ideal viewing angle
Landscape or Portrait mounting options increases display versatility
Stylish wall plate covers create a finished look and are easy to install and remove
Open wall plate design increases electrical and cable management options
Removable cover for wall plate knock out included
Includes all necessary wall and display attachment hardware
Design is UL listed and tested to four times stated load capacity

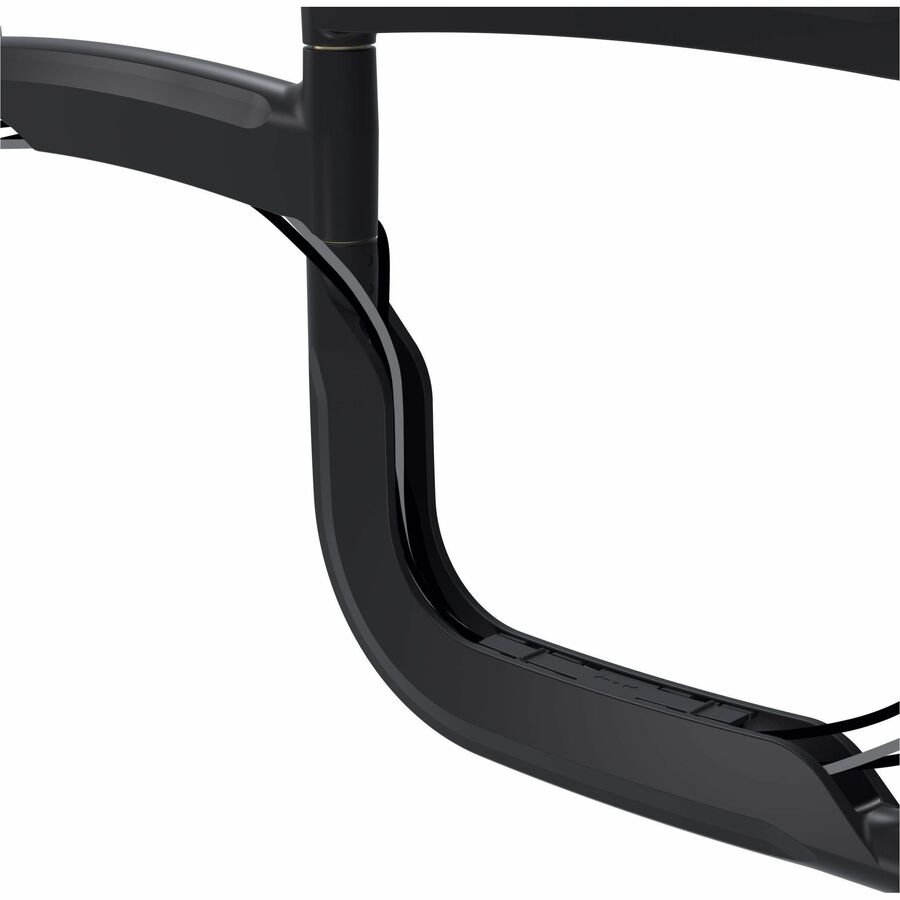

Integrated cable management protects, contains and conceals cables for a clean, professional installation
Mounts to wood stud, concrete, cinder or breeze block
Limited Warranty: Lifetime
SmartMount® Articulating Wall Mount for 43" to 75"+ Displays
SmartMount® Articulating Wall Mount for 43" to 75"+ Displays
| General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SA761PU |
| Brand Name | SmartMount® |
| Product Series | SA761PU |
| Product Model | SA761PU |
| Product Name | Articulating Wall Mount for 43" to 75"+ Displays |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Semi-gloss Black |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Form Factor | Wall Mountable |
| Height | 21.06" |
| Width | 26.47" |
| Depth | 30.50" |
| Weight (Approximate) | 26 lb |
| Product Information | |
| Device Supported | Display |
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 43" |
| Maximum Screen Size Supported | 75" |
| Features | Articulating, Cable Management, Swivel, Tilt, Hook-and-Hang Design, Retractable, Easy to Install, Ratcheting Handle, Lockable, Flexible, +/- 5° Level Adjustment, +/- 90° Pivot |
| Minimum Adjustable Depth | 3" |
| Maximum Adjustable Depth | 30.50" |
| Minimum Tilt Angle | 5° |
| Maximum Tilt Angle | 15° |
| Mount Function | Articulating, Cable Management, Swivel, Tilt, Lockable, Wall Mount |
| Mount Surface | Cinder Block, Concrete, Wood |
| Durability | Scratch Resistant |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Wood Stud, Concrete, Cinder Block, Breeze Block |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| Manufacturer Product Class | Articulating |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
