Genuine Peerless Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Mounting Kits
Overview
The SmartMount® PLCM-4 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.
More from the Manufacturer

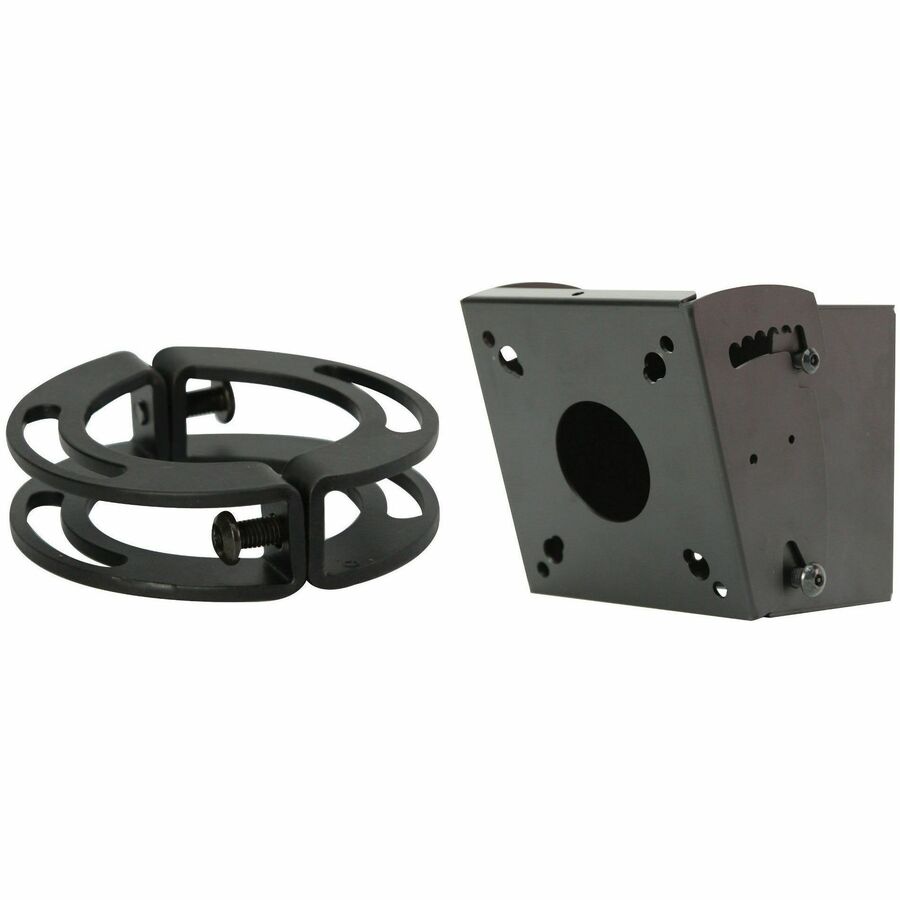

Ceiling Mount Tilt Boxes for up to 90" Displays
The SmartMount® PLCM-4 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV’s AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.
Features
Ceiling plate and extension columns required (sold separately)
Additional display mounting adaptor plates available (sold separately)
PLCM-4 mounts in-line onto 1.9" or 2.0" extension columns for stacking multiple displays
VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
-5° to 20° adjustable tilt and 360° swivel
Warranty
Limited Warranty: 5 Year
Highlights
Ceiling plate and extension columns required (sold separately)
Additional display mounting adaptor plates available (sold separately)
PLCM-4 mounts in-line onto 1.9" or 2.0" extension columns for stacking multiple displays
VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
-5° to 20° adjustable tilt and 360° swivel
Specifications
General Information
Manufacturer
Peerless Industries, Inc
Manufacturer Part Number
PLCM-4
Brand Name
SmartMount®
Product Series
PLCM-4
Product Model
PLCM-4
Product Name
Ceiling Mount Tilt Boxes for up to 90" Displays
Packaged Quantity
1 Unit
Product Type
Ceiling Mount
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Cold Rolled Steel
VESA Mount Compatible
Yes
Mounting Pattern
75 x 75, 100 x 100
Form Factor
Ceiling Mountable
Height
6.09"
Width
5.60"
Depth
3.54"
Weight (Approximate)
2.70 lb
Product Information
Device Supported
Display
Maximum Load Capacity
150 lb
Maximum Screen Size Supported
90"
Features
Tilt, 360° Swivel, Adjustable Tilt, Adjustable
Minimum Tilt Angle
-5°
Maximum Tilt Angle
20°
Maximum Swivel Angle
360°
Mount Function
Swivel, Tilt, Adjustable
Mount Surface
Ceiling
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
Ceiling Mount Tilt Boxes for up to 90" Displays Stacking Clamp Installation Instructions
