Overview

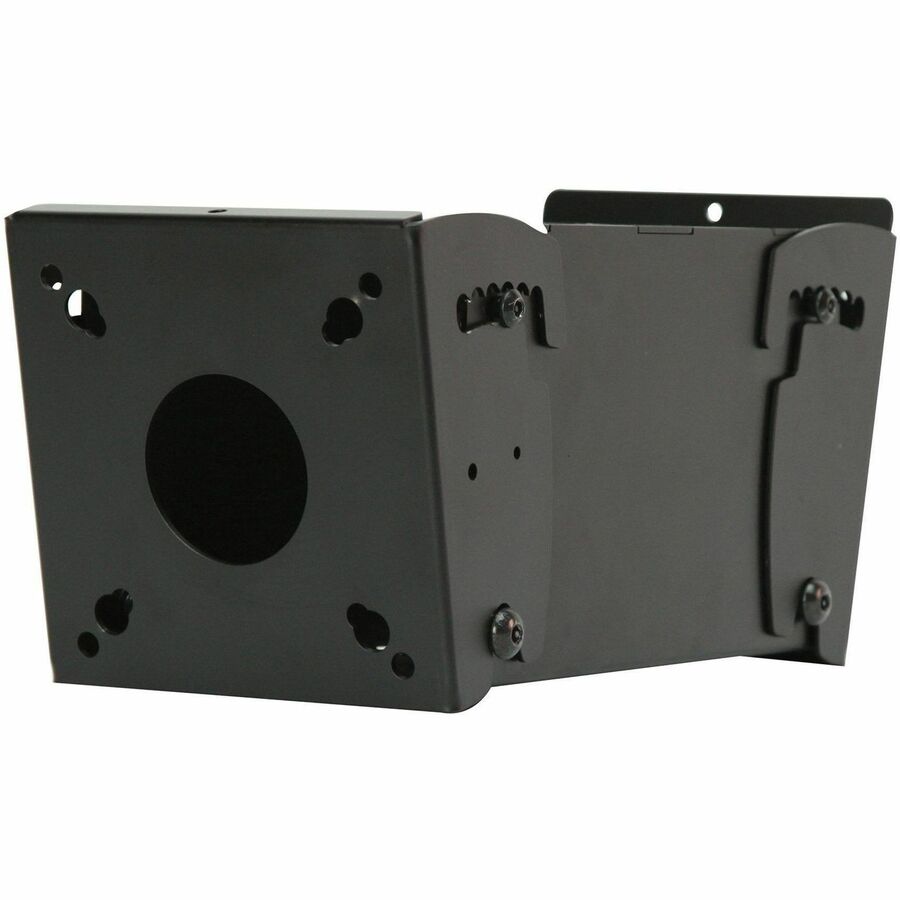

The SmartMount ® PLB-1 Back-to-Back Ceiling Mount works with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The Back-to-Back Ceiling Mount can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. Each side of the tilt box provides -5° to 2° of forward tilt, and 36° of swivel, making it possible to find the perfect viewing angle. Not compatible with AEC006009 , EXT002 and EXT006 extension columns.
More from the Manufacturer
SmartMount
Back-to-Back Ceiling Mount Tilt Box for 2 Displays up to 90"
The SmartMount
PLB-1 Back-to-Back Ceiling Mount works with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The Back-to-Back Ceiling Mount can be used in conjunction with Peerless-AV’s AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. Each side of the tilt box provides -5° to 2° of forward tilt, and 36° of swivel, making it possible to find the perfect viewing angle. Not compatible with AEC006009 , EXT002 and EXT006 extension columns.
Features
Works with standard 1.5" NPT Pipe (1.9" dia)
VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
Additional display mounting adaptor plates available (sold separately)
360° swivel
Ceiling plate and extension columns required (sold separately)
-5° to 20° adjustable tilt (tilt range may vary based on display size)
Landscape or portrait orientation
Warranty
Limited Warranty: 5 Year
Highlights
Works with standard 1.5" NPT Pipe (1.9" dia)
VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
Additional display mounting adaptor plates available (sold separately)
360° swivel
Ceiling plate and extension columns required (sold separately)
-5° to 20° adjustable tilt (tilt range may vary based on display size)
Landscape or portrait orientation
Specifications
General Information
Manufacturer
Peerless Industries, Inc
Manufacturer Part Number
PLB-1
Brand Name
SmartMount®
Product Series
PLB-1
Product Model
PLB-1
Product Name
Back-to-Back Ceiling Mount Tilt Box for 2 Displays up to 90"
Packaged Quantity
1 Unit
Product Type
Ceiling Mount
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Steel
VESA Mount Compatible
Yes
Mounting Pattern
75 x 75, 100 x 100
Form Factor
Ceiling Mountable
Height
5.22"
Width
5.60"
Depth
8.82"
Weight (Approximate)
4.50 lb
Product Information
Device Supported
Flat Panel Display
Number of Displays Supported
2
Minimum Load Capacity
150 lb
Maximum Load Capacity
300 lb
Minimum Screen Size Supported
30"
Maximum Screen Size Supported
90"
Features
Tilt, Swivel
Orientation
Landscape/Portrait
Minimum Tilt Angle
-5°
Maximum Tilt Angle
20°
Minimum Swivel Angle
36°
Maximum Swivel Angle
360°
Mount Function
Tilt, Swivel
Mount Surface
Ceiling
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
Back-to-Back Ceiling Mount Tilt Box for 2 Displays up to 90"
