to 90" Ultra-Thin Displays
Height Adjustable - 1 Display(s) Supported - 42" to 90" Screen Support - 150 lb Load Capacity - 800 x 400 - VESA Mount Compatible - 1 Unit
MSRP$865.00
$559.71*
Save 35%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 19 and Nov 23, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Peerless Industries through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM771PU is ADA compliant when used with displays 2" thick or less.
More from the Manufacturer
DesignerSeries
TM

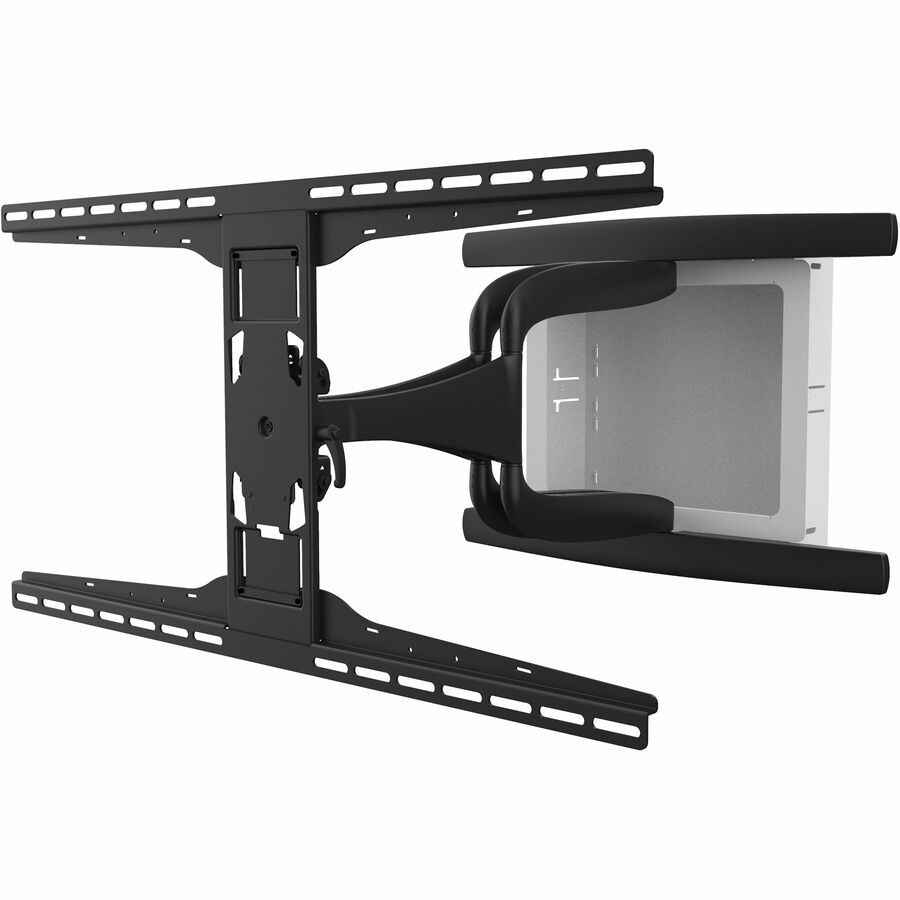

Articulating Mount with In-Wall Box for 42" to 90" Ultra-Thin Displays
Peerless-AV’s Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM771PU is ADA compliant when used with displays 2" thick or less.
Features
Includes Articulating Mount with 800 x 400mm VESA® adaptors
I-shaped adaptor plate helps avoid blocking connections on the back of display
Removable trim ring allows for pre-construction or retrofit installations
Obstruction free In-Wall Box provides ample room and accessibility to equipment
Removable mounting plates allow wiring terminations to take place outside of the box to ease the installation process
Up to ±90° of side-to-side swivel
Added ±5° of roll for post-installation display leveling without the use of tools
Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
Landscape or portrait mounting options increases display versatility
Low profile design provides an ADA compliant solution when used with displays 2" thick or less
Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent
Integrated cable tie locations
Limited Warranty: 5 Year
| General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | IM771PU |
| Brand Name | DesignerSeries |
| Product Series | IM771PU |
| Product Model | IM771PU |
| Product Name | Articulating Mount with In-Wall Box for 42" to 90" Ultra-Thin Displays |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black, White |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 800 x 400 |
| Form Factor | Wall Mountable |
| Height | 16.94" |
| Width | 32.25" |
| Depth | 28.84" |
| Weight (Approximate) | 35 lb |
| Product Information | |
| Device Supported | Display |
| Minimum Load Capacity | 25 lb |
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 42" |
| Maximum Screen Size Supported | 90" |
| Height Adjustable | Yes |
| Features | Swivel, Vertical Adjustment, +/- 5° Roll, Cable Tie Slot, Articulating |
| Minimum Adjustable Depth | 5.84" |
| Maximum Adjustable Depth | 28.84" |
| Mount Profile | Low Profile |
| Orientation | Landscape/Portrait |
| Minimum Swivel Angle | -90° |
| Maximum Swivel Angle | 90° |
| Mount Function | Swivel |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Stud, In-wall, Drywall |
| Indoor/Outdoor | Indoor |
| Compatibility | RACO 420 gang box |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| Manufacturer Product Class | In Wall Mount |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
