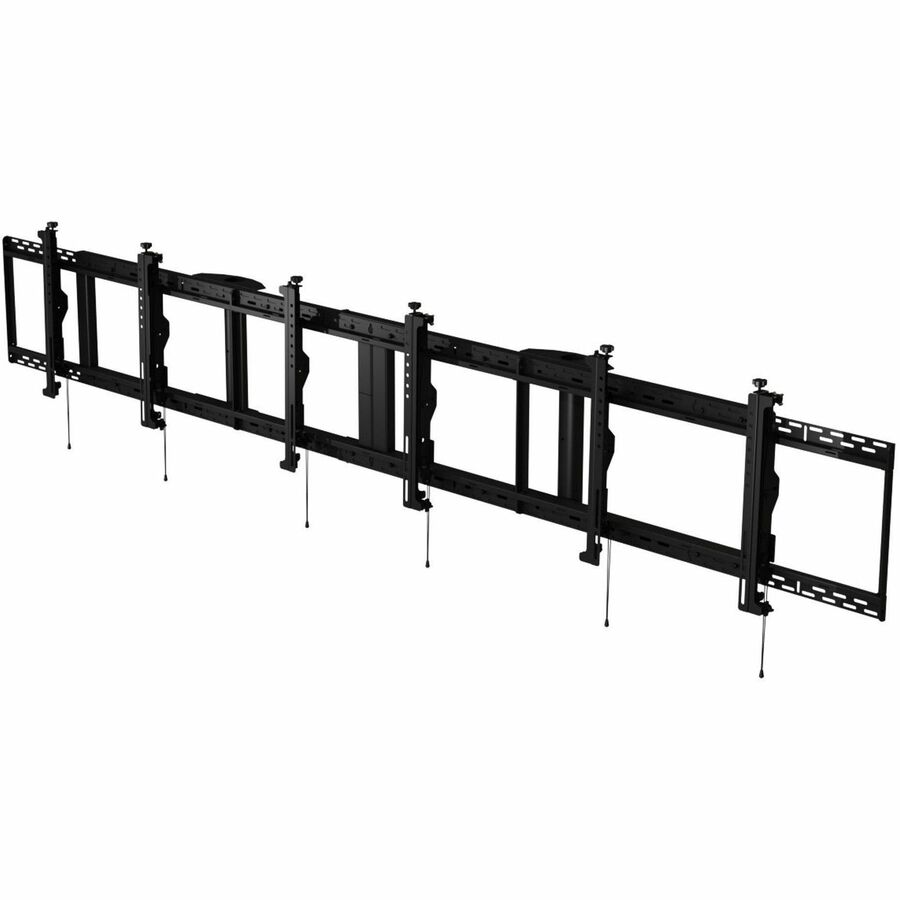

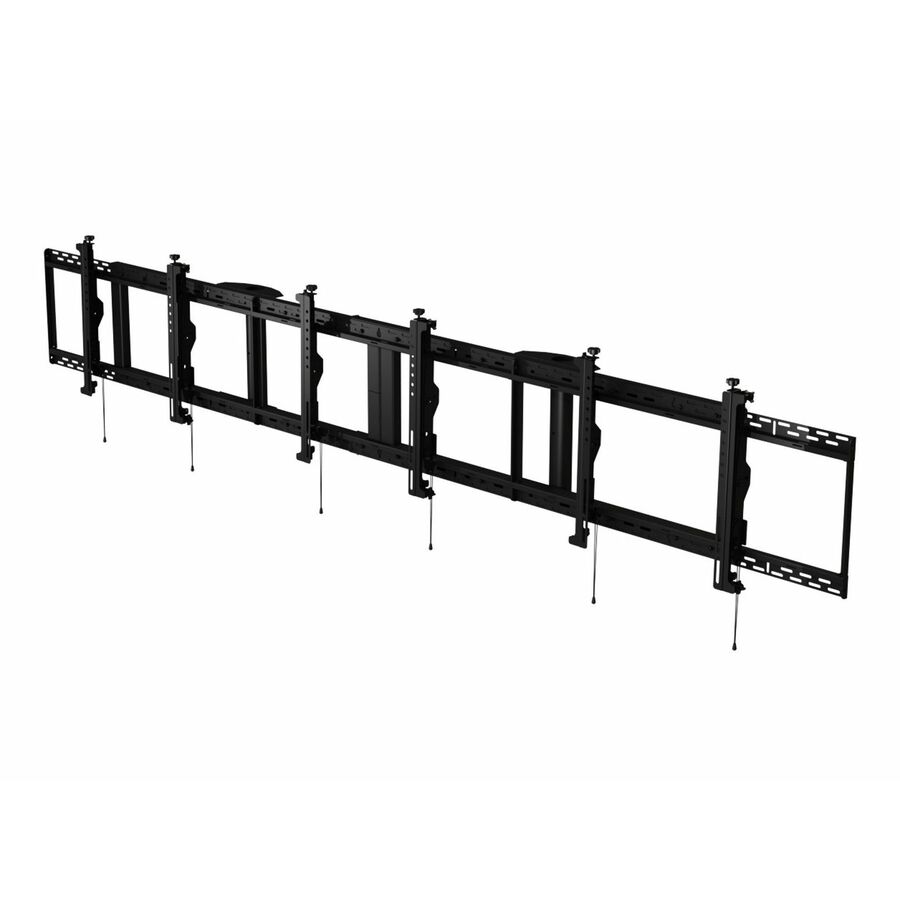

Peerless-AV® SmartMount® Digital Menu Board Ceiling Mount with 8pt Adjustment - Landscape 3x1 Configuration for 46" to 48" Displays
46" to 48" Screen Support - 300 lb Load Capacity - 2944 x 400, 2658 x 400 - VESA Mount Compatible - 1
- SKU
- DS-MBZ947L-3X1
- Category
- Mounting Kits
MSRP$1,396.00
$867.01
Save 38%Back ordered — ships when restocked.
Genuine Peerless Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DS-MBZ947L-3X1
- Category
- Mounting Kits
Overview
Peerless-AV's quick service restaurant (QSR) Menu Board Ceiling Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating flawless alignment. The QSR Menu Board Mount has a tool-less 8pt adjustment to position all of the displays on the same plane. Quick connect adaptor rails quickly attach to the support frame with an auto latch, easing the set up and making the QSR Menu Board Mount the perfect mounting solution.
More from the Manufacturer
Highlights
- DS-MBZ942L-3X1 - landscape configuration for 40"-42" displays with mounting hole patterns 2658 x 400mm (104.65"W x 15.75"H)
- DS-MBZ947L-3X1 - landscape configuration for 46"-48" displays with mounting hole patterns 2944 x 400mm (115.90"W x 15.75"H)
- Tool-less four corner depth adjustment aligns the displays on the same plane
- Quick connect latch automatically engages the wall plate when mounting the display for a speedy set-up and peace of mind
- Included security hardware deters tampering and theft
- Horizontal adjustment allows the installer to create a menu board with a seamless appearance
- Continuous and Increlok? tilt options assure that all displays are tilted at the same angle to assure alignment
- Connecting wall plates create a continuous mounting surface for ease of display alignment
- Minimum compatible length, fixed column: EXT018
- Minimum compatible length, adjustable column: ADD0203 (adjusts to a minimum 31")
Specifications
| Application/Usage | Quick Serve Restaurant (QSR) |
|---|---|
| Package Contents |
|
| Product Type | Ceiling Mount |
| Device Supported | Menu Board, Display |
| Manufacturer Part Number | DS-MBZ947L-3X1 |
| Packaged Quantity | 1 Unit |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 88.40 lb |
| Durability | Tamper Resistant, Theft Resistant |
| Features | Increlock, Quick Connect, Adjustable Depth, Tool-less Adjustment, Flat, Tool-less Micro-Adjustment, Horizontal Adjustment |
| Form Factor | Ceiling Mountable |
| Manufacturer | Peerless Industries, Inc |
| Product Model | DS-MBZ947L-3X1 |
| Product Name | DS-MBZ947L-3X1 Ceiling Mount |
| Product Series | DS-MBZ947L-3X1 |
| Maximum Load Capacity | 300 lb |
| Brand Name | SmartMount® |
| Country of Origin | United States |
| Orientation | Landscape |
| Assembly Required | Yes |
| Height | 19.49" |
| Width | 116.25" |
| Depth | 7.47" |
| Minimum Screen Size Supported | 46" |
| Maximum Screen Size Supported | 48" |
| VESA Mount Compatible | Yes |
| Number of Displays Supported | 3 |
| Mounting Pattern | 600 x 400 |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor |
| Product Color | Black |
| Color Family | Black |
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | 15° |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Mount Function | Adjustable, Tilt |
| Mount Surface | Wall, Ceiling |
| Manufacturer Product Class | Menu Board Ceiling |
