7U Rack-mountable - AVR - 5 Hour Recharge - 12 Minute Stand-by - 380 V AC, 400 V AC, 415 V AC Input - 230 V AC, 220 V AC, 240 V AC, 380 V AC, 400 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display
MSRP$12,754.26
$11,446.14
Save 10%Special order — estimated available by September 10, 2026.
Genuine PANDUIT through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

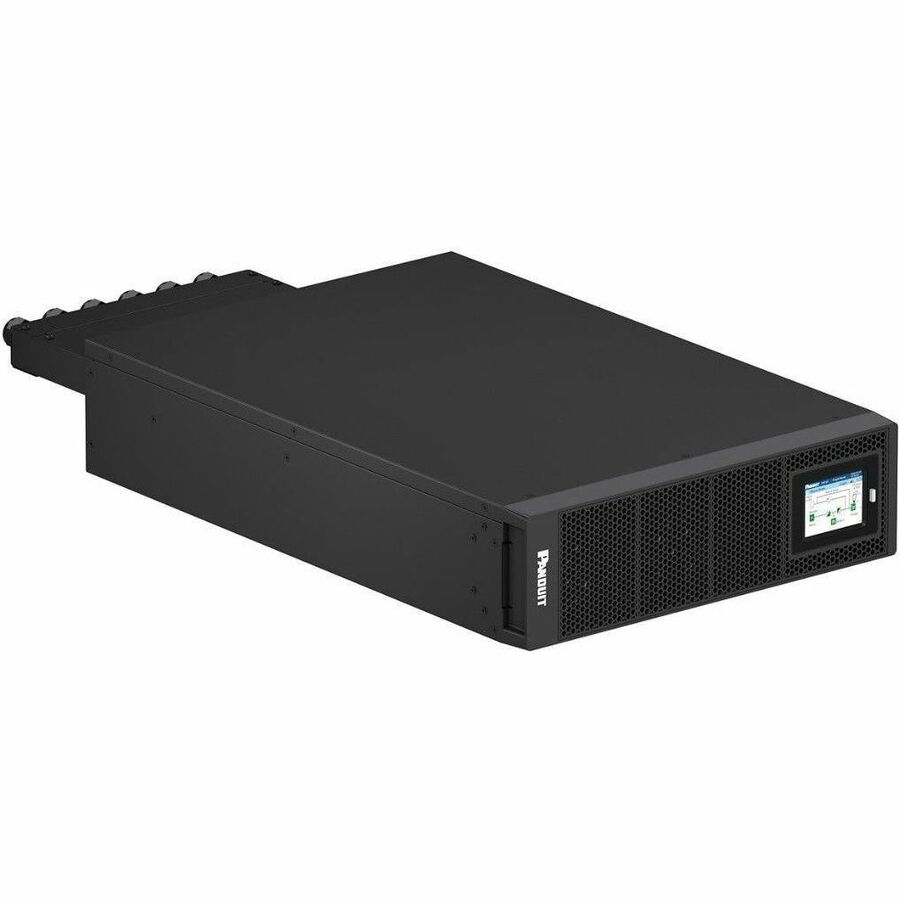

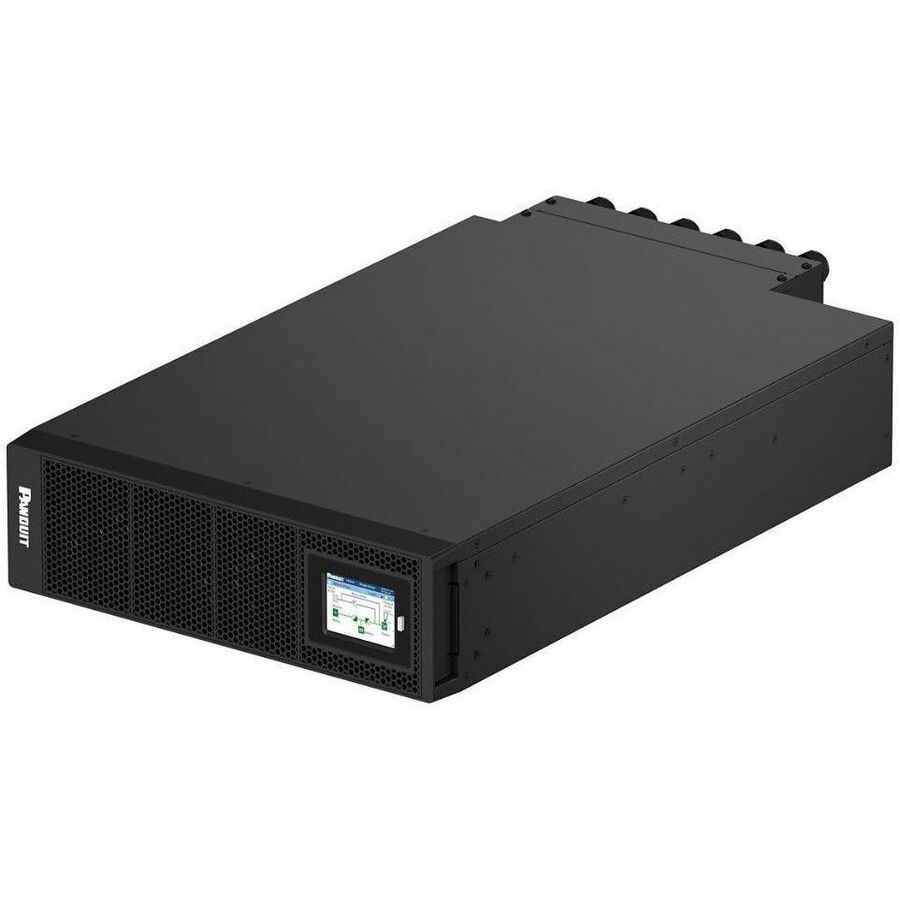

The UPS with maintenance-free VRLA battery, 3-Phase 230/400 V unit is a true Online Double Conversion system that delivers highly efficient and reliable power protection for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring, and network functions, complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT equipment.
Key Features and Benefits | Online Double Conversion with fully digital control
Provides stable and clean power with less ripple and by filtering noise, automatic voltage regulation (AVR) and surge protection
Wide input voltage range
138-485Vac, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 98.5%, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
Output unity power factor
Means more active power for customer's load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)

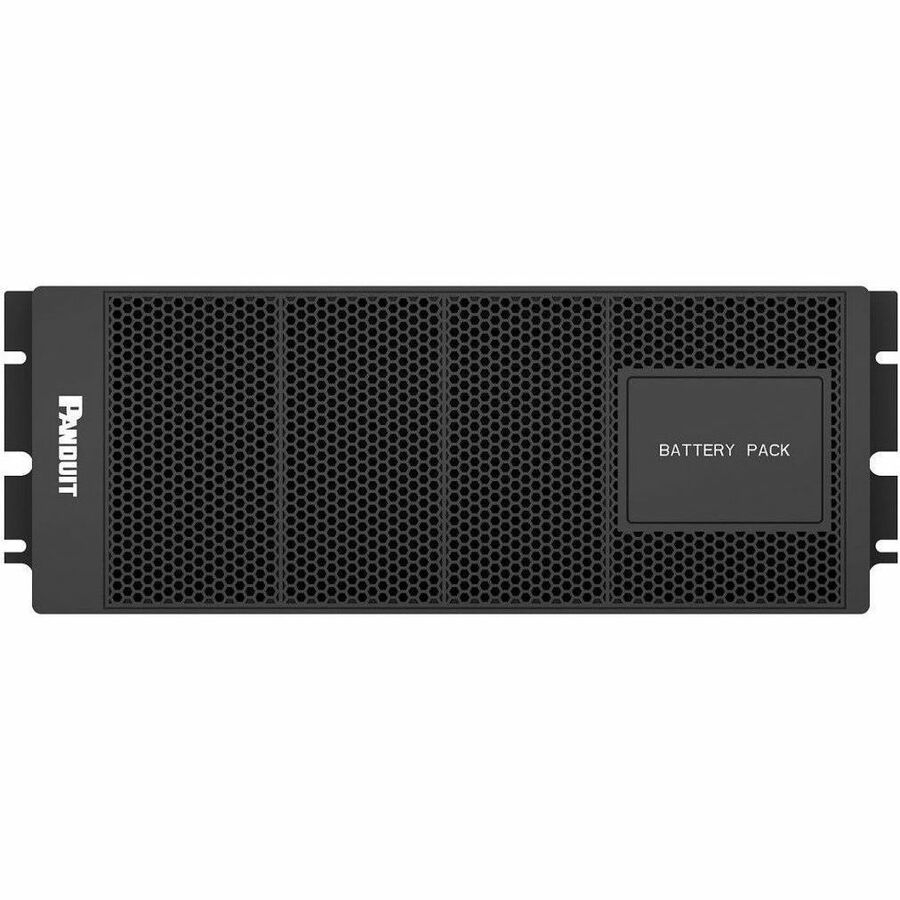

Matchable battery packs:
Allows to connect maximum four external battery packs, extending the UPS backup time
Three-stage battery charging method
Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easily shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without mains input but with batteries
Intelligent fan speed regulation
Automatic adjustment of fan speed due to the ambient temperature and load percentage

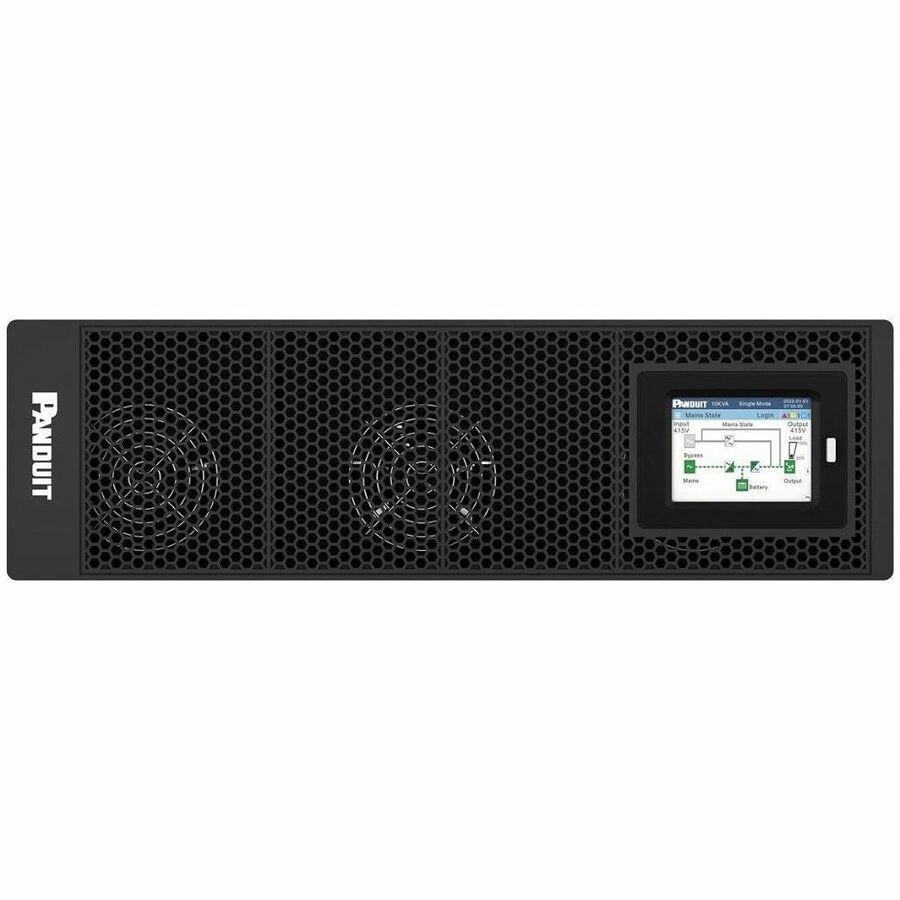

Touch-screen colorful LCD
Colorful LCD with cold start button and LED indicators, providing intuitive display

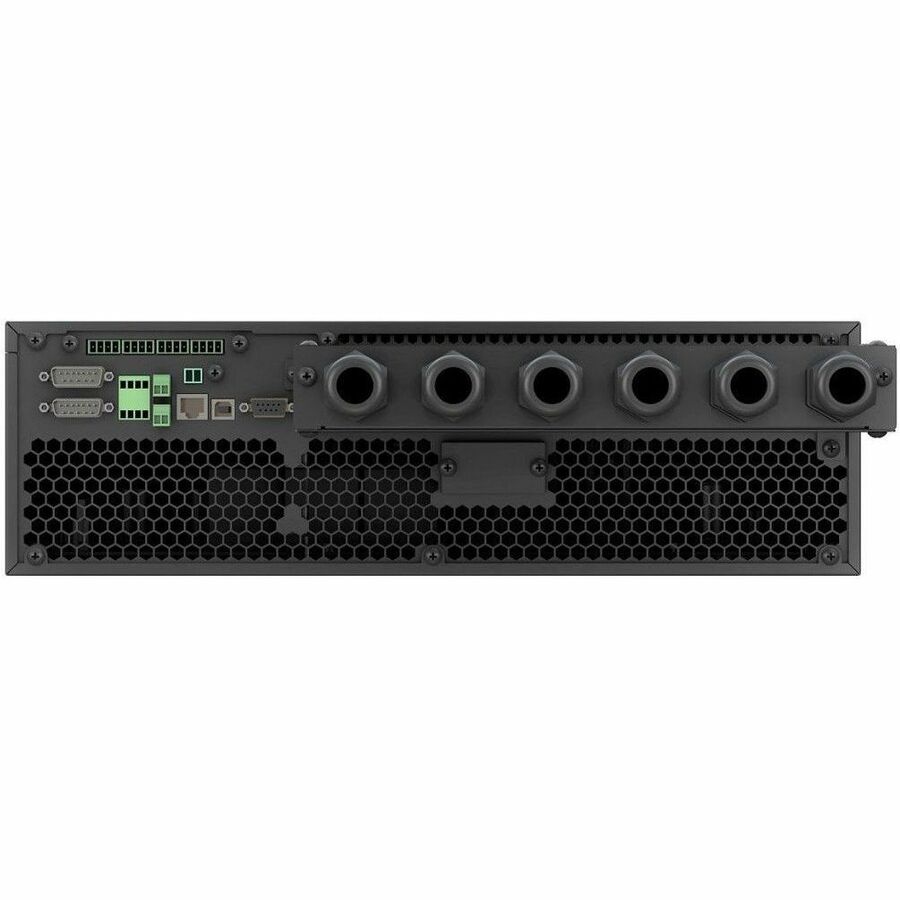

Multiple communication interface
RS232/RS485/USB/intelligent slot, realizing communication and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and fan fault alarm
Parallel functionality:
Connect up to 4 units to achieve very high availability of backup power
Inverter design
3-Level IGBT for significant advantages of high efficiency, impact resistance, and reliability
Additional Redundancy
Shared battery group and support dual input to achieve very high availability of backup power
Output Options
Supports 3-Phase or single phase output
Additional Warranty Information: <p>3 years for UPS and EBP & 2 years for VRLA battery cartridges</p> Limited Warranty: 3 Year
Company Profile The quality of your infrastructure has a direct impact on the success of your business. As a leader in infrastructure products and services for data networks and electrical power applications, Panduit helps you create connectivity solutions that give you the ability to become more productive and adaptable across your organization. A Culture of Curiosity, A Passion for Problem Solving Although the world has dramatically changed since our story began in 1955 when our founder Jack E. Caveney invented the Panduct wiring duct in his garage, our spirit of discovery and can-do attitude have remained. Choosing to innovate rather than imitate, we continue to create leading-edge physical electrical and network infrastructure solutions across a wide spectrum of business environments. As a customer-focused company, we pride ourselves on creating a continuous flow of new products, software, and solutions designed to help you achieve your business goals. By partnering with Panduit, you can develop your connectivity strategy on a foundation that ensures scalability, accuracy, security, and reliability, so you can build for long-term growth. Stats at a Glance Connections Are the Lifeblood of Your Business Our world is becoming more and more connected every day. Discover how we're helping businesses like yours reach their full potential by delivering smarter infrastructure strategies. The Industry’s Broadest Portfolio of Specialties We understand that everyone’s challenges are unique, which is why we offer an extensive product portfolio to help our customers achieve and exceed their operational and financial goals. From data centers and office facilities to plant floors and processing lines, we design, build, install, and service innovative solutions that turn connectivity into a competitive advantage. Data Center Panduit helps customers worldwide conquer IT complexity in data center deployments. Our extensive portfolio of converged infrastructure solutions helps achieve scalability, agility, and operational efficiency. Ut vitae mi luctus dui tincidunt eleifend. Vivamus efficitur, justo ac faucibus porttitor, ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Enterprise We simplify the design, installation, and operation of evolving enterprise networks with comprehensive cabling and physical infrastructure solutions. Aenean sollicitudin turpis nec nibh tempus dictum. Vivamus eget cursus tortor. Praesent egestas dui vitae mi eleifend pharetra. Ut hendrerit iaculis lorem, iaculis congue dui faucibus non. Curabitur ut felis risus. Industrial Networks From the enterprise to the edge, Panduit provides reliable integrated IT and OT architecture that simplifies industrial network deployment for better equipment optimization and broader risk management. Industrial Construction / MRO We understand the challenges of power cabling infrastructures within heavy-duty industrial environments, and our solutions reduce installation time and cost while improving operational performance and safety. OEM Panduit helps OEMs and contract manufacturers organize, connect, and protect electrical wire and cabling systems for optimum performance. We are your single-source partner to achieve the lowest total cost of ownership. Learn More About Connecting your Business to What's Possibile Understand the Impact Infrastructure Has on Your IoT Solutions A robust infrastructure is critical for successful IoT deployment. This series of whitepapers discusses key considerations for businesses looking to embrace the Industrial Internet of Things.
| Battery Information | |
|---|---|
| DC System Voltage | 480 V DC |
| Number of Batteries | 40 |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 24 Minute |
| Typical Battery Recharge Time | 5 Hour |
| Replaceable Battery | Yes |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Thermal Dissipation | 706.59 W |
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U15N32V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U15N32V |
| Product Name | SmartZone U15N32V 15000VA Rack-mountable UPS |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | RS-232/RS-485/USB/Intelligent Slot, SNMPv3 |
| Alarm | Overload, Overheat, Fan Fault |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 7U |
| Height | 5.2" |
| Width | 17.3" |
| Depth | 26" |
| Weight (Approximate) | 874.86 lb |
| Power Description | |
| Load Capacity (VA) | 15 kVA |
| Load Capacity (Watt) | 15 kW |
| Input Voltage | 380 V AC, 400 V AC, 415 V AC |
| Input Voltage Range | 138 V AC - 485 V AC, 305 V AC - 485 V AC |
| Output Voltage | 230 V AC, 220 V AC, 240 V AC, 380 V AC, 400 V AC |
| Input Frequency | 40 Hz, 70 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 600 J |
| Output Power Factor | 1 |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hardwire Terminal (L + N + G) |
| Receptacle Type | Hardwire Terminal |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Phase | Three Phase |
| Application/Usage | IT Equipment, Data Center, Edge IT Infrastructure, Network |
| Efficiency | 98.5% |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years for UPS and EBP & 2 years for VRLA battery cartridges |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
