6U Rack/Tower - 6 Hour Recharge - 9 Minute Stand-by - 230 V AC, 120 V AC Input - 230 V AC, 220 V AC, 240 V AC Output - 2 x IEC 60320 C13, 2 x IEC 60320 C19 - Pure Sine Wave - Serial Port - USB - LCD Display
MSRP$8,156.18
$7,319.65
Save 10%Special order — estimated available by September 10, 2026.
Genuine PANDUIT through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This pure sine wave Double Conversion 5-10KVA UPS, delivers efficient and reliable power protection and backup for your computer IT equipment. The UPS features a maintenance-free VRLA battery and is a 5-10kVA single-phase 208/230 volt unit. The pure Online Double Conversion system provides constant excellent electrical performance and comes standard with enhanced intelligent monitoring and network functions. The unit complies with ENERGY STAR® 2.0, EMC, and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT Infrastructure.
Key Features and Benefits | Rack/Tower convertible
Supports rack/tower installation with rotatable colorful touchscreen LCD panel
Online Double Conversion with fully digital control (EMEA unit only)
Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR), and surge protection
Wide input voltage range
110-280 VAC covering extended voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 98%, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE/UL/ENERGY STAR 2.0 compliant for North America units
Output unity power factor
Means more active power for IT equipment load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)

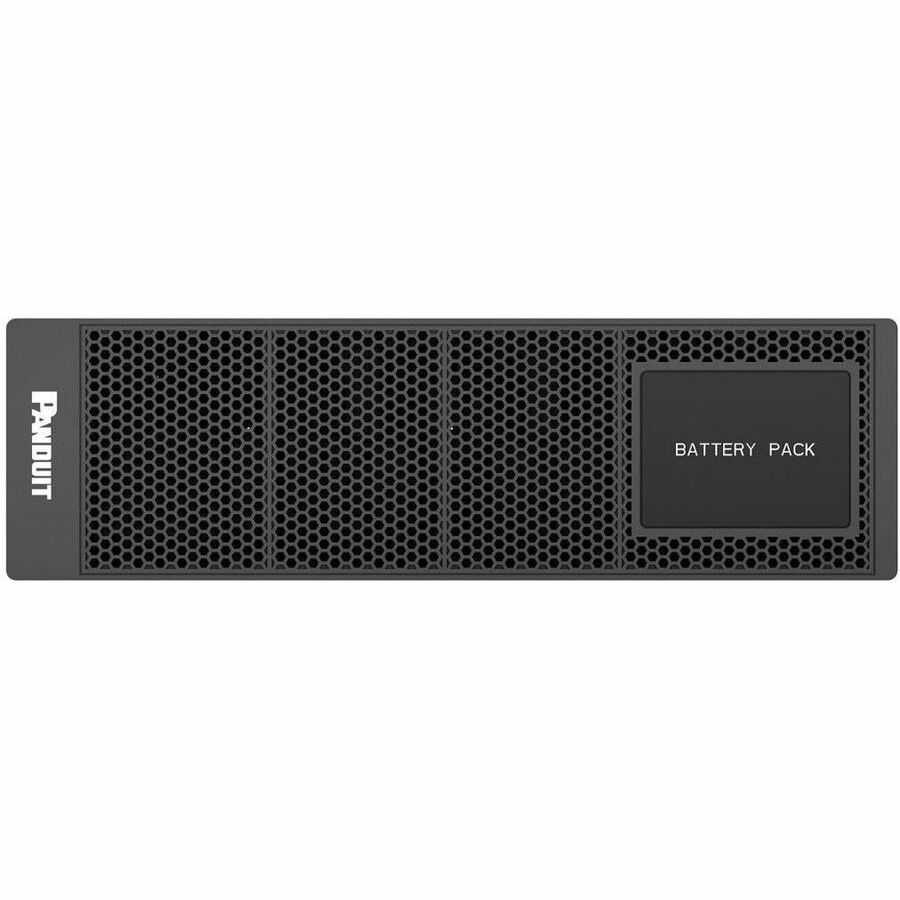

Expandable battery packs
Allows to connect maximum five external battery packs, extending the UPS backup running time
Intelligent Battery Management:
Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easily shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without main input but with batteries
Intelligent fan speed regulation
Automatically adjustment of fan speed due to the ambient temperature and load percentage
Multiple communication interface
RS232/USB/intelligent slot, realizing communication, and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
Programmable outlet group with Smart Load Shedding
Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load.
Touch-Screen colorful LCD
Colorful LCD with cold start button and LED indicators, providing intuitive display
Additional Warranty Information: <p>3 years for UPS & EBP and 2 years for battery</p> Limited Warranty: 3 Year
Company Profile The quality of your infrastructure has a direct impact on the success of your business. As a leader in infrastructure products and services for data networks and electrical power applications, Panduit helps you create connectivity solutions that give you the ability to become more productive and adaptable across your organization. A Culture of Curiosity, A Passion for Problem Solving Although the world has dramatically changed since our story began in 1955 when our founder Jack E. Caveney invented the Panduct wiring duct in his garage, our spirit of discovery and can-do attitude have remained. Choosing to innovate rather than imitate, we continue to create leading-edge physical electrical and network infrastructure solutions across a wide spectrum of business environments. As a customer-focused company, we pride ourselves on creating a continuous flow of new products, software, and solutions designed to help you achieve your business goals. By partnering with Panduit, you can develop your connectivity strategy on a foundation that ensures scalability, accuracy, security, and reliability, so you can build for long-term growth. Stats at a Glance Connections Are the Lifeblood of Your Business Our world is becoming more and more connected every day. Discover how we're helping businesses like yours reach their full potential by delivering smarter infrastructure strategies. The Industry’s Broadest Portfolio of Specialties We understand that everyone’s challenges are unique, which is why we offer an extensive product portfolio to help our customers achieve and exceed their operational and financial goals. From data centers and office facilities to plant floors and processing lines, we design, build, install, and service innovative solutions that turn connectivity into a competitive advantage. Data Center Panduit helps customers worldwide conquer IT complexity in data center deployments. Our extensive portfolio of converged infrastructure solutions helps achieve scalability, agility, and operational efficiency. Ut vitae mi luctus dui tincidunt eleifend. Vivamus efficitur, justo ac faucibus porttitor, ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Enterprise We simplify the design, installation, and operation of evolving enterprise networks with comprehensive cabling and physical infrastructure solutions. Aenean sollicitudin turpis nec nibh tempus dictum. Vivamus eget cursus tortor. Praesent egestas dui vitae mi eleifend pharetra. Ut hendrerit iaculis lorem, iaculis congue dui faucibus non. Curabitur ut felis risus. Industrial Networks From the enterprise to the edge, Panduit provides reliable integrated IT and OT architecture that simplifies industrial network deployment for better equipment optimization and broader risk management. Industrial Construction / MRO We understand the challenges of power cabling infrastructures within heavy-duty industrial environments, and our solutions reduce installation time and cost while improving operational performance and safety. OEM Panduit helps OEMs and contract manufacturers organize, connect, and protect electrical wire and cabling systems for optimum performance. We are your single-source partner to achieve the lowest total cost of ownership. Learn More About Connecting your Business to What's Possibile Understand the Impact Infrastructure Has on Your IoT Solutions A robust infrastructure is critical for successful IoT deployment. This series of whitepapers discusses key considerations for businesses looking to embrace the Industrial Internet of Things.
| Battery Information | |
|---|---|
| DC System Voltage | 240 V DC |
| Number of Batteries | 20 |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 9 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Thermal Dissipation | 526.06 W |
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U10S12V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U10S12V |
| Product Name | SmartZone U10S12V 10000VA Rack/Tower UPS |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | USB/RS-232/Intelligent Card Slot, SNMPv3 |
| Alarm | Overload, Over Charge, Fan Fault |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 5.2" |
| Width | 17.3" |
| Depth | 26.2" |
| Weight (Approximate) | 227.08 lb |
| Power Description | |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 230 V AC, 120 V AC |
| Input Voltage Range | 176 V AC - 264 V AC, 110 V AC - 285 V AC, 110 V AC - 280 V AC |
| Output Voltage | 230 V AC, 220 V AC, 240 V AC |
| Input Frequency | 40 Hz, 70 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 600 J |
| Output Power Factor | 1 |
| Technical Information | |
| Plug/Connector Type | Hardwire Terminal (L + N + G) |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13, Hard Wire (L + N + G) |
| Receptacle Detail | 2 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Phase | Single Phase |
| Application/Usage | IT Equipment, Data Center, Edge IT Infrastructure |
| Efficiency | 98% |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years for UPS & EBP and 2 years for battery |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
