Overview

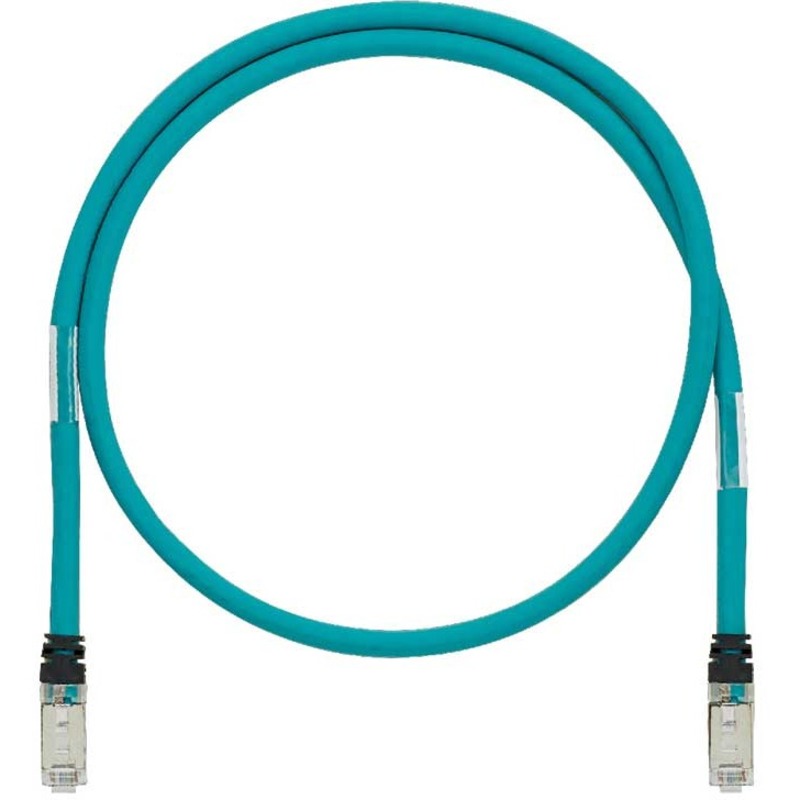

The IndustrialNet Cat 6A Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CMR cable with industrial bulkhead modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 1 meter in length and teal.
Highlights
Robust 600V-rated construction: Allows for patch runs between automation devices in industrial environments; rated for 600V panel or on-machine applications when the space is shared with high voltage power cables; plug contact plated with 50 micro-inches of gold
100% performance tested for wire map, NEXT, and return loss:Factory testing provides confidence that each patch cord delivers specified performance
Centered de-embedded plug:Performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
Integral pair manager: Optimizes performance and consistency by reducing untwist at the plug
Flexible stranded cable: 26 AWG stranded copper cable with a nominal diameter of 7.4mm (0.29 in.) allows for high density applications and superior panel cable management
Identification provides for future traceability:Identification of performance level, length, and quality control number is provided on each cord
Specifications
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
ISTPH6X1MTL
Brand Name
IndustrialNet
Product Name
Industrial Cat 6A Shielded 600 V Patch Cord, 1m
Packaged Quantity
1
Product Type
Network Cable
Physical Characteristics
Color Family
Green
Product Color
Teal
Boot Color
Black
Product Material
Polycarbonate, Thermoplastic Elastomer (TPE)
Shielding Material
Foil
Technical Information
Cable Type
Category 6a
Cable Characteristic
Patch Cable
Cable Length
3.28 ft
Connector Type on First End
RJ-45 Network - Male
Connector on First End Details
1 x RJ-45 Network - Male
Connector Type on Second End
RJ-45 Network - Male
Connector on Second End Details
1 x RJ-45 Network - Male
Contact Plating
Gold
Shielding
Yes
Jacket Type
CMR, CM
Device Supported
Network Device, Control Panel, Switch, Patch Panel
