IndustrialNet Copper Cable, Cat 6A, 4-Pair, 24/7 AWG, SF/UTP, CM
1000.66 ft Category 6a Network Cable for Patch Panel, Network Device, Control Panel, Rack Equipment - First End: Bare Wire - Second End: Bare Wire - 10 Gbit/s - Shielding - CM, CMX - 24/7 AWG - Teal - 1000
SKU
ISFCH6X04ATL-UG
Category
Connector Cables
MSRP$3,431.37
$3,095.31
Save 10%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine PANDUIT through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ISFCH6X04ATL-UG
Category
Connector Cables
Overview

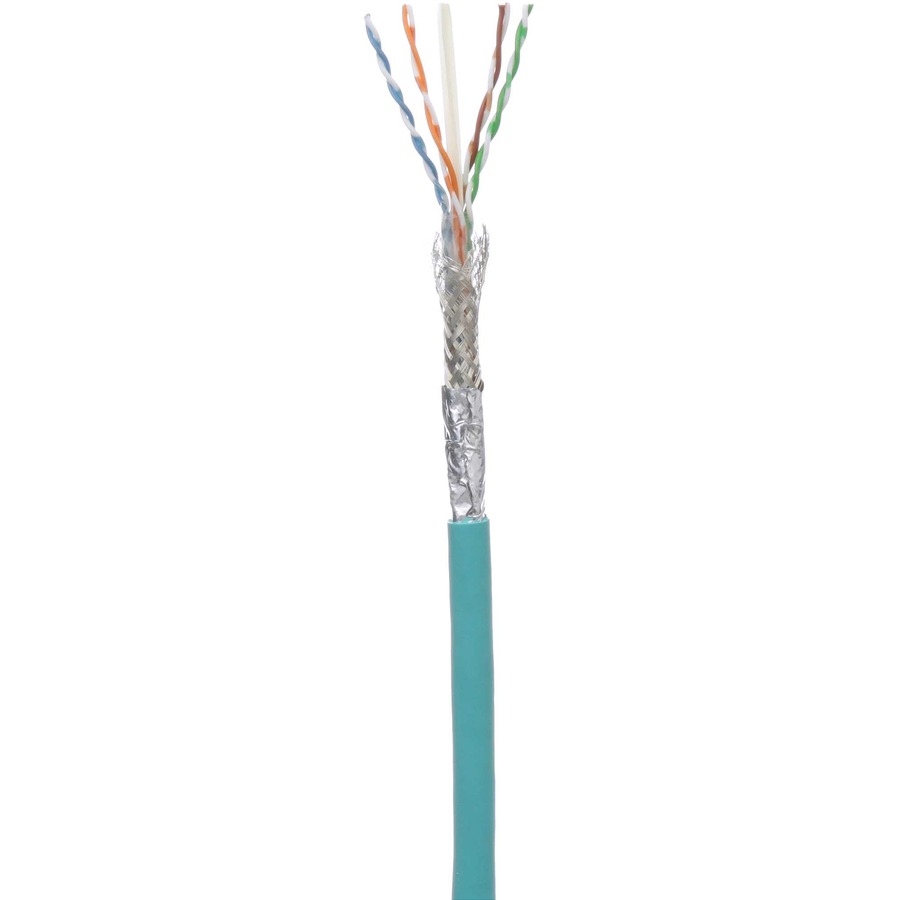

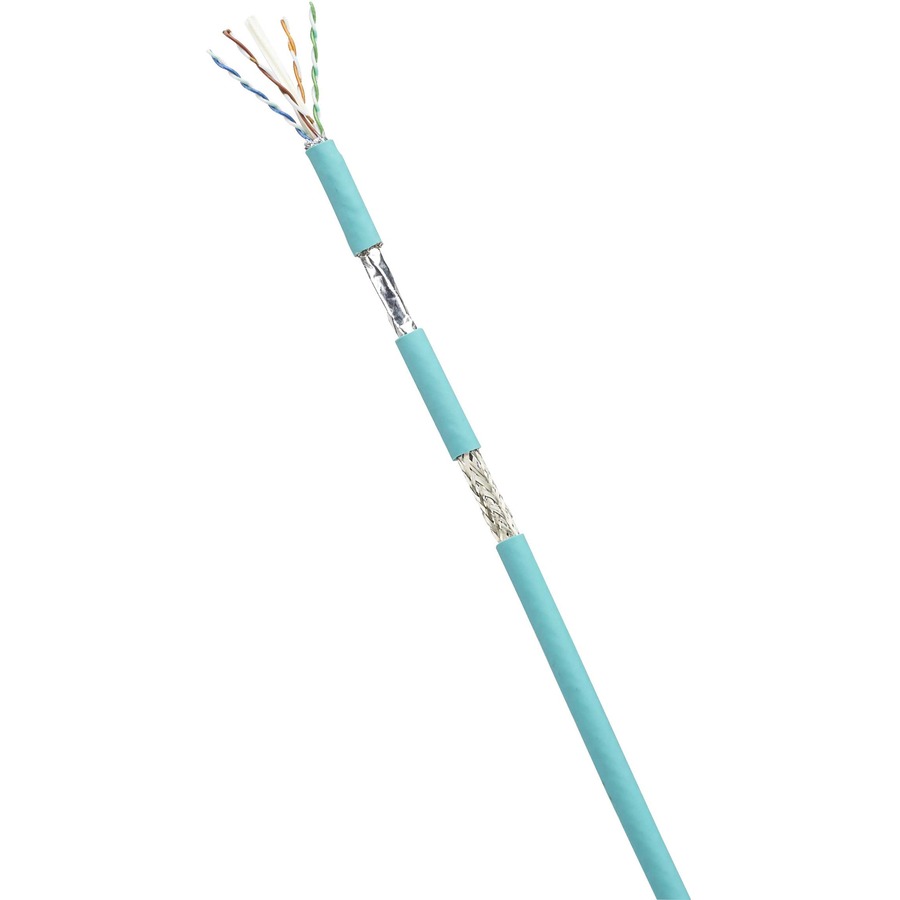

The Cat 6A SF/UTP copper cable is constructed of 24/7AWG stranded copper conductors with HDPE polyethylene insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
Highlights
Third party tested:Cable has been tested by an independent laboratory and complies with the electrical standard requirements of IEC 61156-6 Category 6A and ANSI/TIA-568-C.2 Category 6A standards
Reliability :Shielded SF/UTP cable construction protects against environmental elements that can cause electrical performance failures; stranded conductors for high flex applications and ease of installation; cable jacket is oil, sunlight, weld splatter, and abrasion resistant for enhanced chemical resistance and mechanical performance
High flex applications :Life cycle tested for robotic and c-track use
600V on-machine applications:Rated for panel or on-machine applications when the space is shared with 600V high voltage power cables
Specifications
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
ISFCH6X04ATL-UG
Brand Name
IndustrialNet
Product Name
Copper Cable, Cat 6A, 4-Pair, 24/7 AWG, SF/UTP, CM
Packaged Quantity
1000
Product Type
Network Cable
Physical Characteristics
Color Family
Green
Product Color
Teal
Product Material
Copper, Thermoplastic Elastomer (TPE)
Insulation Material
Polyethylene, High-density Polyethylene (HDPE)
Shielding Material
Foil
Technical Information
Cable Type
Category 6a
Cable Length
1000.66 ft
Connector Type on First End
Bare Wire
Connector on First End Details
Bare Wire
Connector Type on Second End
Bare Wire
Connector on Second End Details
Bare Wire
Shielding
Yes
Jacket Type
CM, CMX
Device Supported
Patch Panel, Network Device, Control Panel, Rack Equipment
