For Data Networking, Optical Network - 1 x MPO 100GBase-PSM4 Network - Optical Fiber - Single-mode - Gigabit Ethernet - 100GBase-PSM4 - Hot-pluggable
SKU
Category
Modules
MSRP$983.73
$934.45
Save 5%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 8 and Nov 12, then process your delivery right after.
Genuine NVIDIA through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Modules
Country of origin
Israel
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

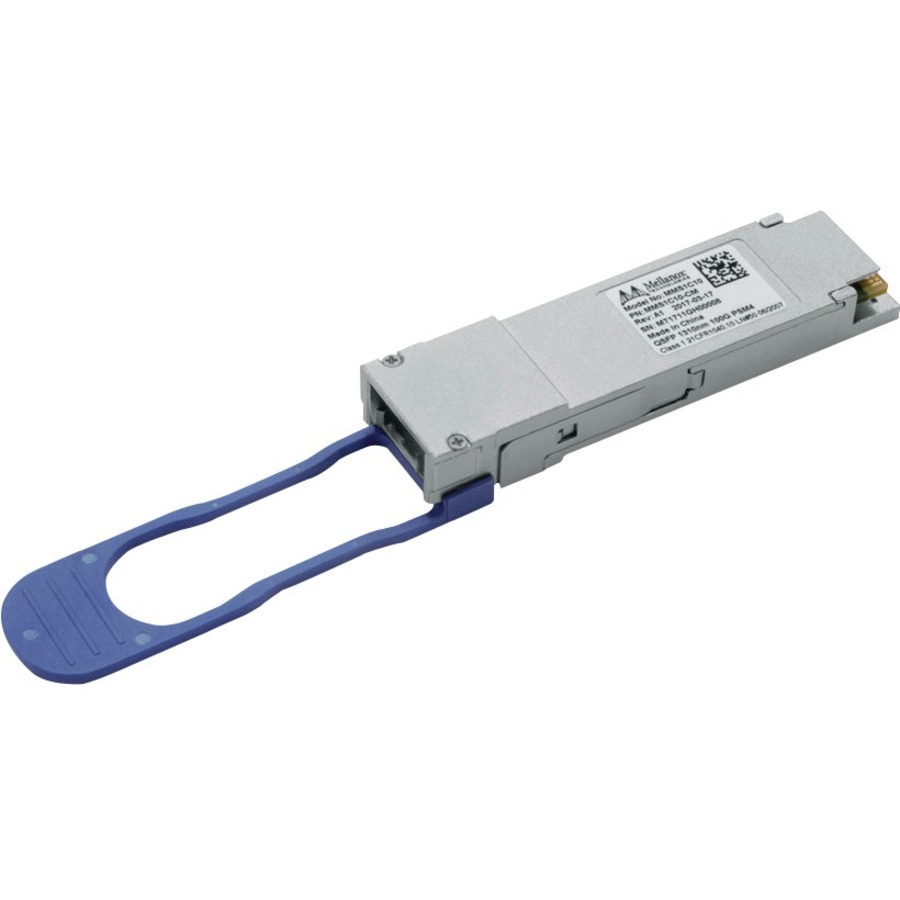

Mellanox® MMS1C10-CM transceiver is a parallel, single mode, 1310nm, 4-channel (PSM4), pluggable, QSFP28 optical transceiver designed for use in 100GbE Ethernet applications. This module incorporates state-of-the-art uncooled DFB laser and integrated circuit technology in order to provide high performance. The transceiver operates over 4-lane, parallel, single mode fiber (SMF) using a nominal wavelength of 1310nm, and is SFF-8665 compliant.
The transceiver has a standard QSFP28 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction and is intended for a parallel single-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
The MMS1C10-CM transceiver has Digital Diagnostic Monitoring (DDM) functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.
Adjustment of the Tx input equalizer, Rx output amplitude/emphasis, and (de)selection of retiming are controlled via control registers defined in the SFF-8636 standard.
The MMS1C10-CM transceiver complies with the PSM4 MSA.
Warranty
Limited Warranty: 1 Year
Highlights
Up to 100Gb/s data rate
Up to 500m link length over single mode fiber at 100Gb/s
