Mellanox 100Gb/s QSFP28 Optical Transceiver
For Optical Network, Data Networking - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable
- SKU
- MMA1B00-C100D
- Category
- Modules
MSRP$234.00
$178.26
Save 24%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MMA1B00-C100D
- Category
- Modules
Overview

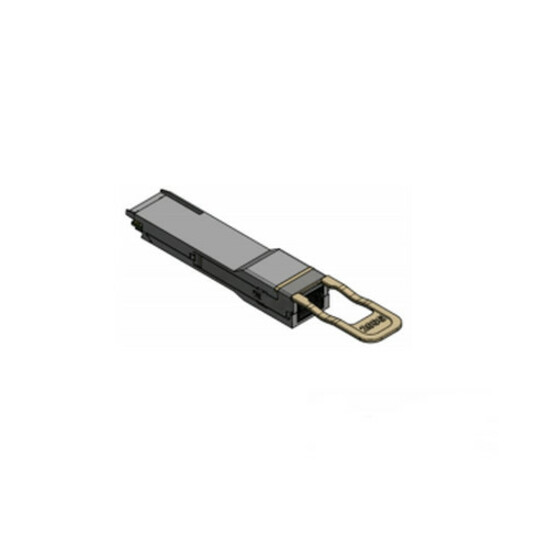

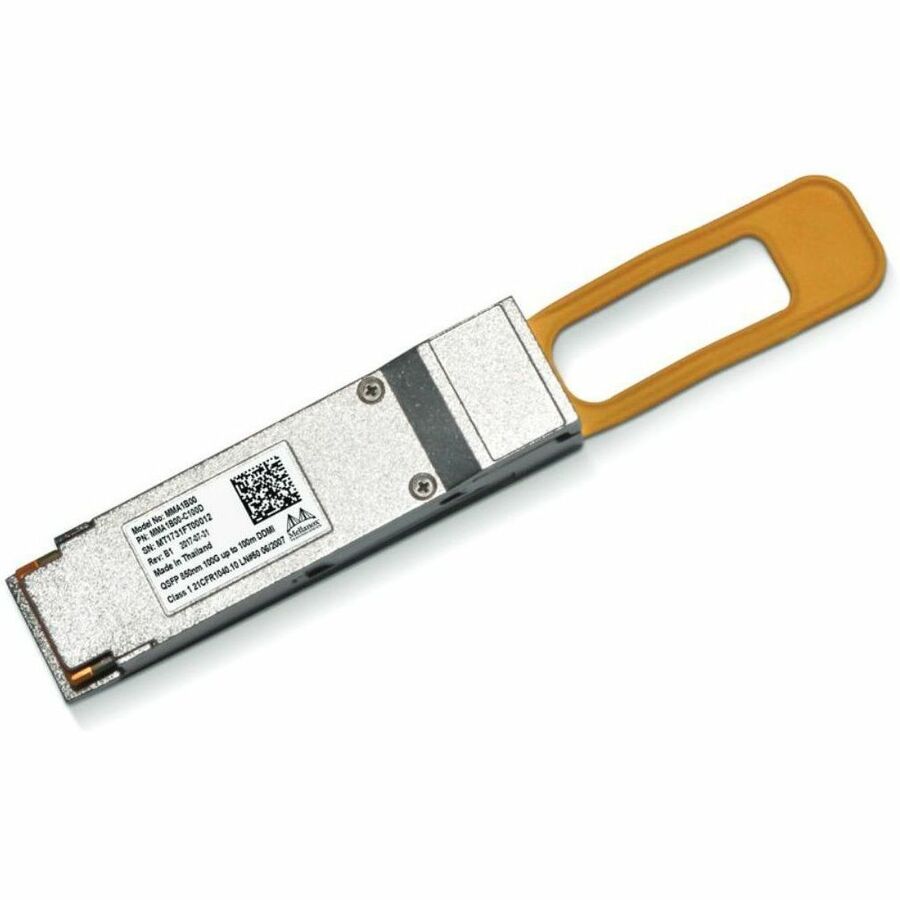

Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant. The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Highlights
- QSFP28 offers enhanced dependability with maximum productivity
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- Hot-pluggable form factor for your convenience and simplicity of usage
- QSFP28 with optical network application/usage for maximum productivity and usability
Specifications
| Application/Usage | Optical Network, Data Networking |
|---|---|
| Product Type | QSFP28 |
| Manufacturer Part Number | MMA1B00-C100D |
| Interfaces/Ports Details | 1 x MPO 100GBase-SR4 Network |
| Limited Warranty | 1 Year |
| Connector Type | MPO |
| Form Factor | Hot-pluggable |
| Manufacturer | NVIDIA Corporation |
| Product Name | 100Gb/s QSFP28 Optical Transceiver |
| Network Technology | 100GBase-SR4 |
| Brand Name | Mellanox |
| Country of Origin | Israel |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 1 |
