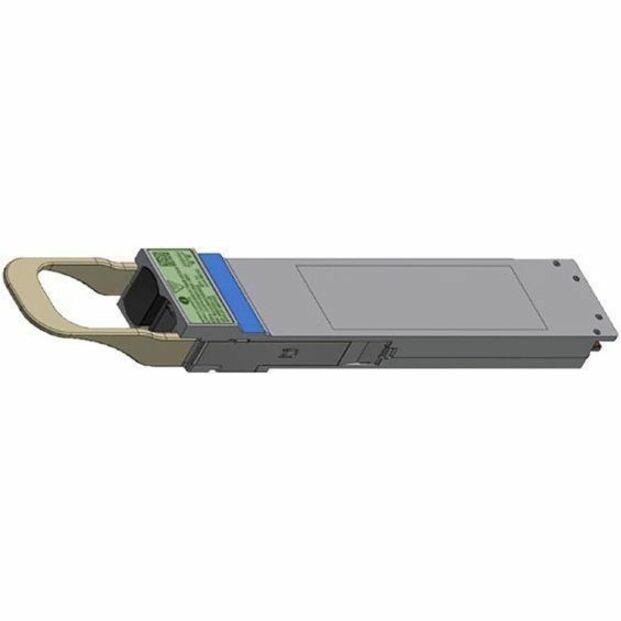

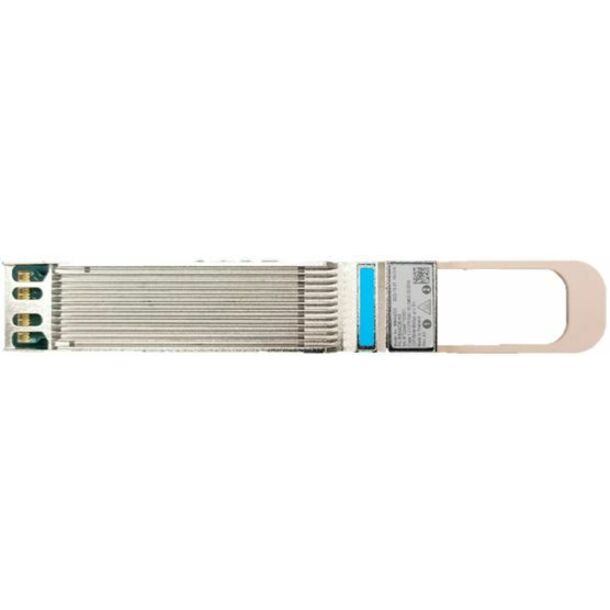

Mellanox MMA4Z00-NS400 400Gb/s Single-port OSFP, 400Gb/s Multimode SR4 50m Transceiver
For Data Networking, Optical NetworkOptical Fiber - Multi-mode - 400 Gigabit Ethernet400 Gbit/s - 0.05 km Maximum Distance - Hot-pluggable
- SKU
- MMA4Z00-NS400
- Category
- Modules
MSRP$1,353.00
$1,032.05
Save 24%In stock: 326
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MMA4Z00-NS400
- Category
- Modules
Overview
Introduction
The NVIDIA MMA4Z00-NS400 is an InfiniBand (IB) and Ethernet (ETH) 400Gb/s, Single-port, OSFP, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel (SR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multimode fiber and assumes two optical patch panels in the link. It has identical design and internals as the QSFP112 version, only with different connector shells.
The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to. The OSFP shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 connector cage.
When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver automatically creating a 200G speed and reducing power.
Multimode optics is denoted by a tan-colored pull tab and aqua-colored optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector and is not compatible with Ultra-flat Polished Connectors (UPC) (aqua colored).
NVIDIA's Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end systems and customer networking solutions. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Highlights
- OSFP is the single answer to all your desired and specified module application execution needs
- Lets you conveniently connect to the 400 gigabit ethernet Ethernet technology to offer maximum productivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
- OSFP with data networking application/usage for reliability and maximum efficiency
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | OSFP |
| Compatibility | NVIDIA CONNECTX-7 NDR 400G Infiniband Adapter Card |
| Manufacturer Part Number | MMA4Z00-NS400 |
| Maximum Distance Supported | 0.05 km |
| Connector Type | MPO-12/APC |
| Form Factor | Hot-pluggable |
| Manufacturer | NVIDIA Corporation |
| Product Name | MMA4Z00-NS400 400Gb/s Single-port OSFP, 400Gb/s Multimode SR4 50m Transceiver |
| Brand Name | Mellanox |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 400 Gbit/s |
| Ethernet Technology | 400 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
