For Data Networking - 16 x RJ-45 Serial RS-232 - 1
$1,471.53
In stock: 2
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Lantronix® SLC 8000 I/O Module enables system and network administrators to easily expand or switch out their SLC 8000 unit's I/O configuration without the hassle of disconnecting all of its attached equipment and replacing the entire console server which disrupts the entire system and workflow. Once installed, the I/O module is automatically detected by the SLC 8000.

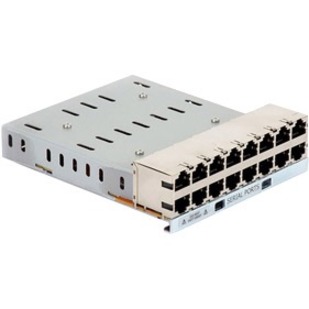

• 16-port RS-232 RJ45 serial I/O module
• Expands device port density for SLC 8000
• Allows easy and quick I/O replacements for SLC 8000 device ports
• Provides flexibility and efficiency of SLC 8000 deployments
• Enables easy customization of SLC 8000 configurations
• Reduces time and cost required to develop and deploy IT services
• Enables balanced CAPEX and OPEX management
• Field-replaceable and field-upgradable
More from the Manufacturer
Lantronix SLC 8000: Advanced Console Manager
The Lantronix® SLC™ 8000 advanced console manager is the industry’s first modular console server that provides secure remote access to IT equipment while reducing deployment costs and time.
Product Features
The industry’s first modular console server offering bothRJ45 and USB connectivity with user swappable I/O modules allowing for easyupgrades and scalability to enables custom “mix-and-match” configurations withUSB and RS-232 modules
Integrated dual 1 Gb Ethernet or dual 1 Gb SFP interfaces
HTML5 support for Java-free web based telnet/SSH remote access to console ports that is browser independent
Provides multiple layers of out-of-band access with optional dial-up and cellular technologies
Reduces operating costs and security risks by eliminating the need for on-site interventions
Simplifies service deployments and balances CAPEX and OPEXwith its modular design
Minimizes cable clutter with software-reversible device portpins
Increases testing productivity and efficiency as a DUT(device under test) aggregation tool
Protects management interfaces with authentication and FIPS140-2 compliant encryption
Built-in support for environmental sensors and dry contact access control
Centrally Monitor, Manage, and Troubleshoot
Designed for system administrators, quality and test engineers, the SLC 8000 provides easy, secure administration and management of IT equipment from anywhere and at any time. Users can access the SLC 8000 device ports via Telnet/SSH, or a web browser-based console client without any proprietary software.
Any IT asset that provides console or serial port management services can be managed remotely and locally with the same interface and capabilities.
The SLC 8000 enables users to leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.This can be done over an in-band network with dual Gigabit Ethernet connections for both public and management networks, or through out-of-band connections including dial-up (optional internal modem, sold separately) and cellular connectivity (PremierWave® XC HSPA+ intelligent gateway, sold separately).
Users can securely access and control a wide variety of IT and network equipment, including Linux, Unix or Windows® servers, routers, switches, firewalls, PBXs, UPSs, and even building access devices through their serial ports.
Integrated Security
Protecting IT resources is a top priority.
The SLC 8000 provides security features such as SSL and SSH for data encryption in addition to remote authentication for integration with other systems already in place.
For added protection, the SLC 8000 also includes firewall features to reject connection attempts or block ports and has NIST-certified AES encryption.
The SLC 8000 also supports FIPS 140-2 certified mode for government and military applications. ullamcorper id risus eu, sagittis molestie lectus. Ut vitae mi luctus dui tincidunt eleifend. Vivamus efficitur, justo ac faucibus porttitor, ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Donec nec massa quam. Aenean sollicitudin.
Unique Modular Design
The modular design of the SLC 8000 console manager enables users to simply add or swap modules to expand the number of device ports, upgrade from a single power supply to dual, and easily introduce new serial interfaces such as USB to support a combination of existing and new IT equipment that are connected.
This reduces the time required to develop and deploy new services, and this flexibility minimizes capital expenditures while offering easy scalability and upgrades.
Introduction: Lantronix® SLC™ 8000 Advanced Console Manager
Key Features: SLC™ 8000 Advanced Console Manager
Limited Warranty: 3 Year
A GLOBAL LEADER IN ENTERPRISE IoT SOLUTIONS With more than two decades of experience in creating robust machine to machine (M2M) technologies, Lantronix is an innovator in enabling our customers to build new business models and realize the possibilities of the Internet of Things. Our connectivity solutions are attached to and deployed inside millions of machines serving a wide range of industries, including medical, security, industrial, transportation, retail, financial, environmental, data center, education and government. Out-of-Band Management AI-Driven Automation and Console Access for Enterprise Networks While enterprise networks vary widely in form and function, good network management is always essential. Lantronix’s complete out-of-band portfolio enables you to choose a console server sized to each deployment, the type of OOB link and the types of serial console connections needed. Our single pane of glass management platform provides the remote access, reporting and compliance needed for enterprise networks. You can also choose between traditional remote console access and AI-driven out-of-band (OOB) management — an expert system using rules-based AI to recover and mitigate network infrastructure securely, reliably, and automatically. Able to secure access to remote gear during an outage, it also automates many daily tasks that can unnecessarily consume much of a network admin’s day. IoT System Solutions IoT-Enable All Your Machines & Devices Our portfolio of M2M and IoT Gateways includes a wide range of solutions designed to deliver secure connectivity for virtually any electronic device. From medical devices to industrial machinery, Lantronix provides OEMs and system integrators with secure enterprise-class solutions that IoT-enable existing devices without the need for product redesign. IoT Gateways IoT Building Blocks IoT Building Blocks Embedded WiFi & Wired Solutions The Lantronix full suite of networking solutions provides OEMs with everything needed to enhance the value and utility of designs, speed time to market and build and deploy IoT connected devices. Embedded inside modern electronic systems and equipment, our IoT building block solutions deliver secure network connectivity, application hosting, protocol conversion and many other functions. Management Software Accelerate IoT Edge Solutions The Percepxion™ IoT edge solutions platform provides comprehensive device life cycle management, application integration and data analytics, so you can focus on your business. Accelerate your time to market and simplify your user experience ― all through a single pane of glass Management Software
| Application/Usage | Data Networking |
|---|---|
| Package Contents |
|
| Product Type | Service Module |
| Compatibility | Lantronics SLC 8000 Advanced Console Manager |
| Manufacturer Part Number | FRRJ451601 |
| Packaged Quantity | 1 |
| Interfaces/Ports Details | 16 x RJ-45 Serial RS-232 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1 lb |
| Connector Type | RJ-45 |
| Manufacturer | Lantronix, Inc |
| Product Name | SLC 8000 16-Port RS-232 RJ45 I/O Module |
| Brand Name | Lantronix |
| Country of Origin | China |
| Height | 1.7" |
| Width | 5" |
| Depth | 6" |
| Environmentally Friendly | Yes |
| Total Number of Ports | 16 |
