Genuine MSI through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CUBINUC1M010B
Category
Barebone Systems
Overview

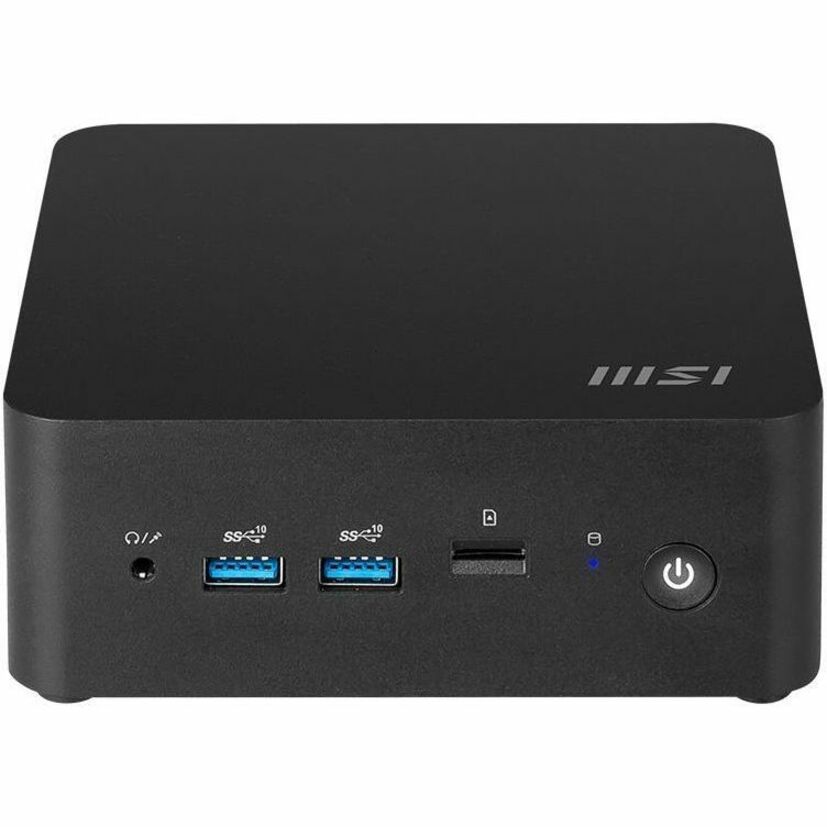

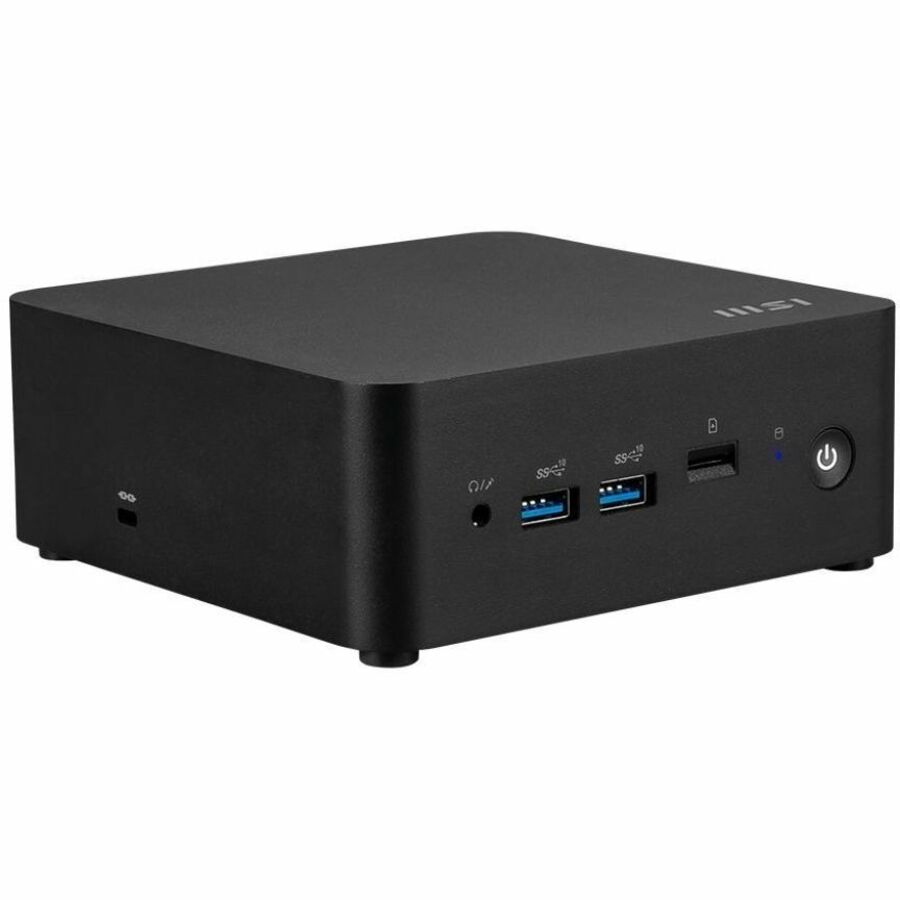

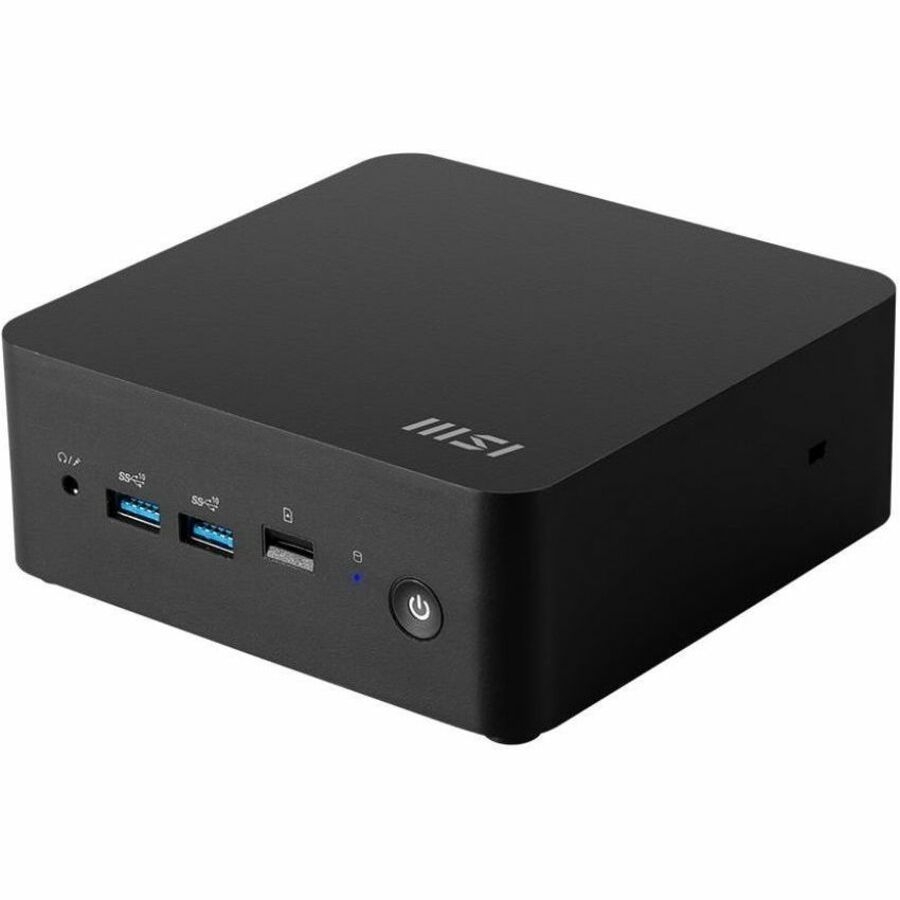

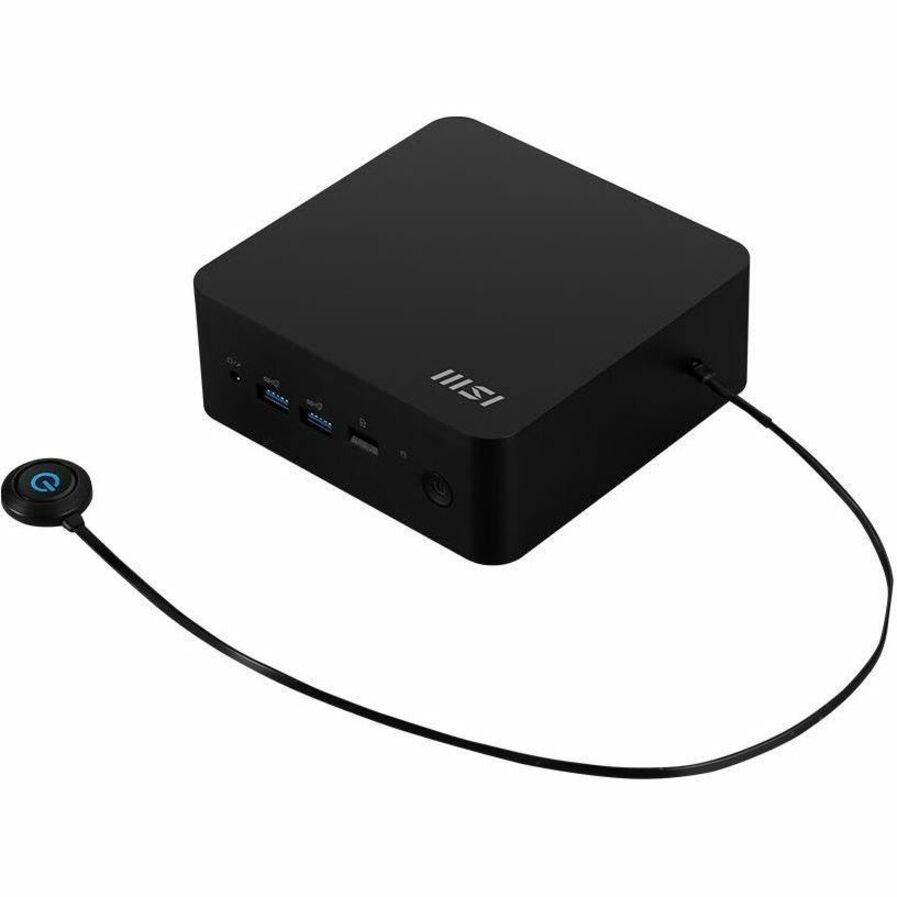

The MSI Cubi NUC Mini PC is the ideal client device for purpose built applications such as digital signage, back up or front end user interface without taking up any space. It can be hidden or mount behind the display less than 6 inches from backwall. the Cubi can display up to 4 independent displays.
More from the Manufacturer
Highlights
Intel Core 5-120U Processor
Dual Ethernet LAN ports
dTPM2.0
SD Card reader
Up to 4 Display Output
3 Year Advanced Replacement Warranty
Specifications
Additional Warranty Information
3 Year Advance Replacement
Package Contents
Cubi NUC 1M-010BUS Barebone System
AC Adapter
Product Type
Barebone System
Manufacturer Part Number
CUBINUC1M010B
Maximum Memory Supported
64 GB
Limited Warranty
3 Year
Weight (Approximate)
1.30 lb
Form Factor
Mini PC
Manufacturer
MSI
Product Model
Cubi NUC 1M-010BUS
Product Name
Cubi NUC 1M-010BUS Barebone System
Package Type
Retail
Processor Speed
3.80 GHz
Processor Type
Core i5
Brand Name
MSI
Memory Technology
DDR5 SDRAM
Processor Model
120U
Country of Origin
United States
Memory Standard
DDR5-5200/PC5-41600
Height
1.9"
Width
5.3"
Depth
5.3"
Processor Core
Deca-core (10 Core)
Environmentally Friendly
Yes
64-bit Processing
Yes
Processor Manufacturer
Intel
Chipset Manufacturer
Intel
Graphics Controller Manufacturer
Intel
Bluetooth
Yes
Wireless LAN
Yes
Graphics Memory Technology
DDR5 SDRAM
Graphics Memory Accessibility
Shared
Wireless LAN Standard
IEEE 802.11ax
Number of Processors Installed
1
Ethernet Technology
Gigabit Ethernet
HDMI
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Maximum Power Supply Wattage
120 W
Total Number of USB Ports
6
Maximum Turbo Speed
5 GHz
TAA Compliant
No
Energy Star
Yes
Product Color
Black
Number of USB 3.2 Gen 2 Ports
2
Color Family
Black
Number of USB 3.2 Gen 2 Type-C Ports
2
Number of Thunderbolt 4 Ports
2
Total Number of Memory Slots
2
Energy Efficiency Compliance
Energy-related Products Directive (ErP)
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
