SKU
61UJK-RG6
Category
Connectors
Overview
APPLICATION

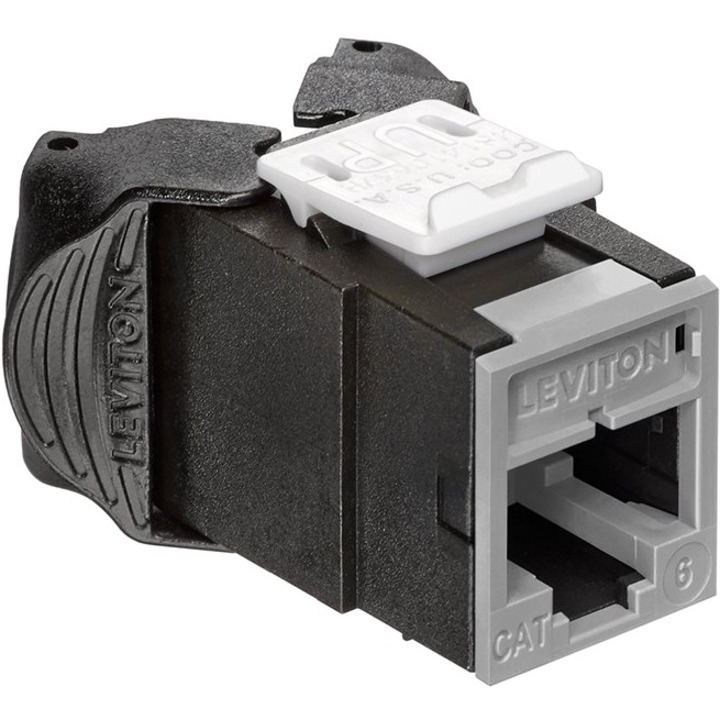

Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connectors support 1000BASE-T networks. The connector is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The connector supports emerging technologies and will easily adapt to network trends.
SPECIFICATION
The connector shall meet or exceed all requirements for channel- and component-level performance as described in ANSI/TIA-568-C.2 for Category 6 standards, as well as Class E requirements described in ISO/IEC 11801. The connector shall comply with all National Electrical Codes, be compliant with ANSI/TIA-1096-A, be UL listed, and be independently verified. The connector body shall be made of die-cast zinc and all plastic components shall be made of high-impact, fire-retardant plastic rated UL 94V-0. The connector shall support tool-free termination/ re-termination and shall not require a specialized termination tool. The connector wiring shall be universal to accommodate T568A and T568B wiring schemes. The connector shall be available in 13 colors; more than established by the ANSI/TIA-606 standard. The connector shall be supplied with interchangeable icons, and be offered with internal shutter and standard styles. It shall support Power over Ethernet up to 100 watts.
Highlights
Independently tested and guaranteed to exceed all component,permanent link, and channel margins
Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and connector, preventing arcing from intermittent disconnects
Unique design supports tool-free termination/re-termination and requires no specialized termination tool
Short connector design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
Connector supplied with interchangeable icons (voice, data, A/V, and blank, color coded to match the connector face), for easy identification and tracking of data, voice, or other functions
Connector with internal shutter protects against dust and debris
Tine geometry prevents arcing damage where plug and connector make contact
