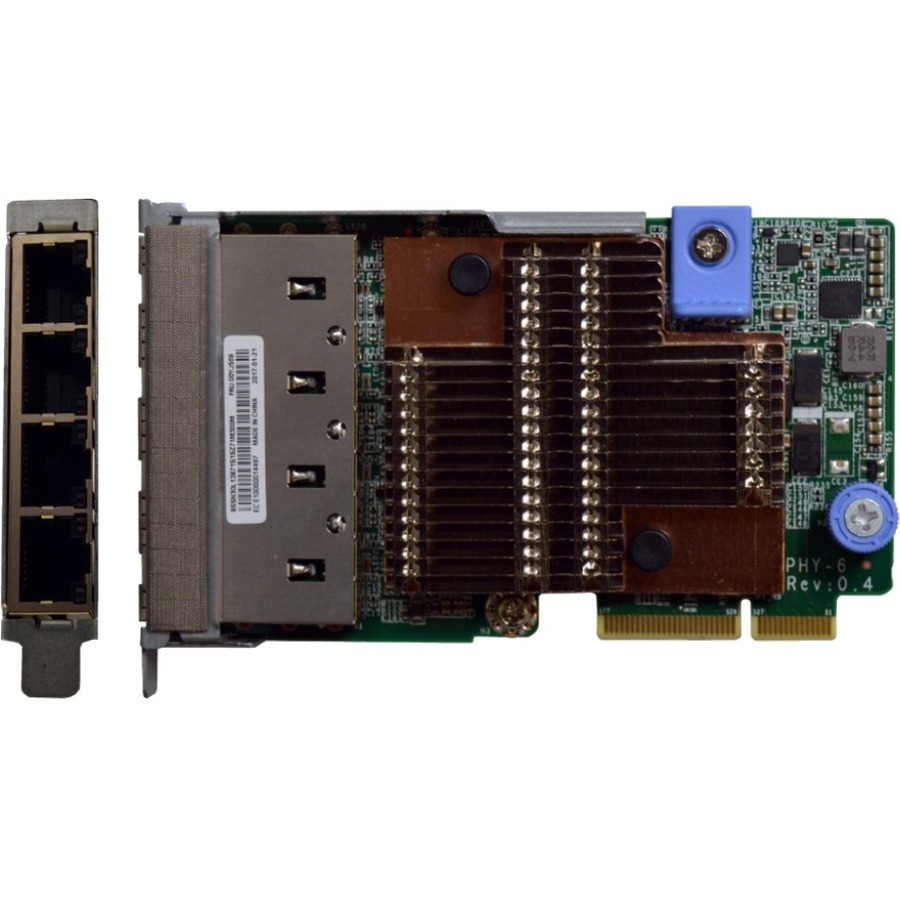

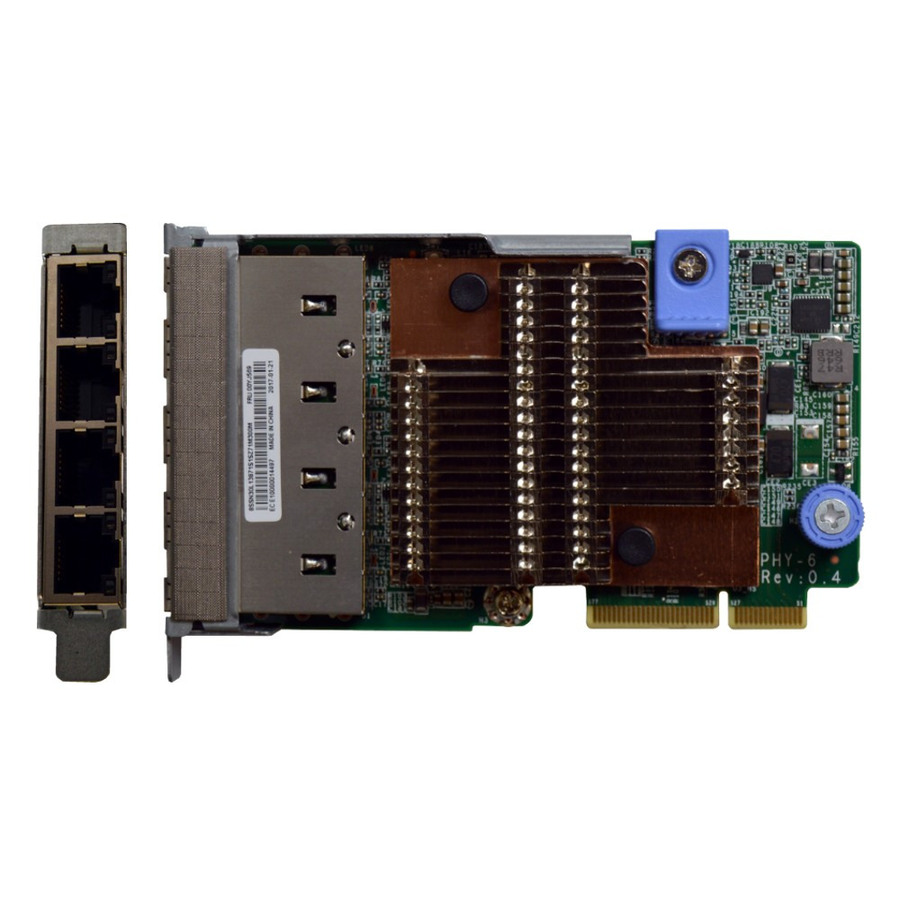

Lenovo ThinkSystem 10Gb 4-port Base-T LOM
PCI Express - 4 Port(s) - 4 - Twisted Pair - 10GBase-T - Plug-in Card
- SKU
- 7ZT7A00549
- Category
- Network Interface Cards
$559.09
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7ZT7A00549
- Category
- Network Interface Cards
Overview
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers. ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
Did you know?
The Intel Ethernet Connection X722 shares the same core and drivers as the Intel X710 adapters making driver management easier of existing customers.
ThinkSystem LOM adapters are cost-effective adapters that take advantage of the X722 controller embedded in Intel Xeon Processor Scalable Family chipset and offer the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the XClarity Controller management processor for NC-SI-compliant systems management.
Highlights
- 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
- Enjoy superfast data transfer of up to 250 MB/s with PCI Express card, between the network card and motherboards
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
Specifications
| Host Interface | PCI Express |
|---|---|
| Product Type | 10Gigabit Ethernet Card |
| Device Supported | Server |
| Manufacturer Part Number | 7ZT7A00549 |
| Form Factor | Plug-in Card |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 10Gb 4-port Base-T LOM |
| Network Technology | 10GBase-T |
| Brand Name | Lenovo |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS) |
