SKU
00JY940
Category
Network Interface Cards
Overview
The new Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three form factors: a Standard PCIe low-profile card for ThinkServer and System x servers, a Mezzanine LOM (ML2) form factor for System x servers, and an AnyFabric form factor for ThinkServer systems.
Did you know?
The Intel X710 adapters support Intel I/O Virtualization Technology, which helps accelerate data and improves application response times. For virtualized environments, the X710 adapters offer advanced features with VMDq that lower processor usage and increase I/O performance.
Mezzanine LAN-on-Motherboard Generation 2 (ML2) for System x and AnyFabric for ThinkServer are cost-effective adapters that offers the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the server's IMM2 service processor for NCSI-compliant out-of-band systems management.
Warranty
Limited Warranty: 1 Year
About Lenovo
Join Lenovo
Transformation is a Team Sport
When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
00JY940
Brand Name
Lenovo
Product Series
X710
Product Model
X710-DA2
Product Name

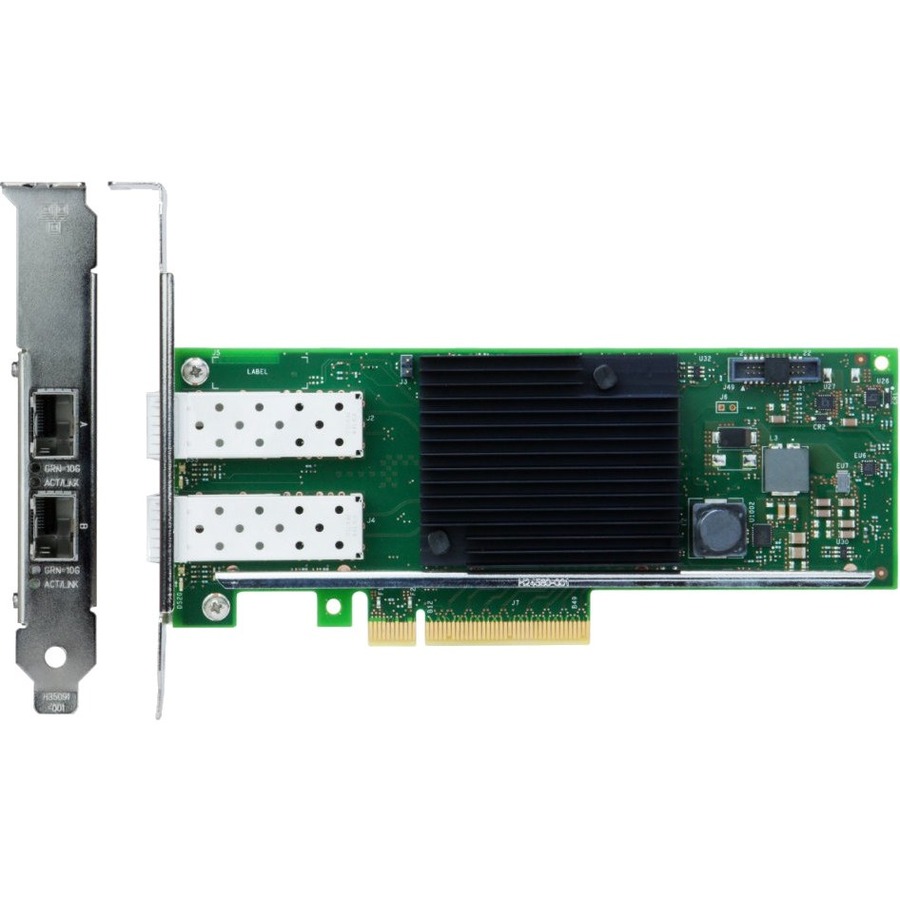

Intel X710-DA2 ML2 2x10GbE SFP+ Adapter
Packaged Quantity
1
Product Type
10Gigabit Ethernet Card
I/O Expansions
Expansion Slot Type
SFP+
Interfaces/Ports
Host Interface
PCI Express 3.0 x8
Total Number of Ports
2
Media & Performance
Media Type Supported
Optical Fiber
Network & Communication
Network Technology
10GBase-X
Physical Characteristics
Form Factor
Plug-in Module
Height
2.7"
Width
0.7"
Depth
6.6"
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
Intel X710-DA2 ML2 2x10GbE SFP+ Adapter
Full-Height (3U) Bracket Attached with Low-Profile (2U) Bracket
