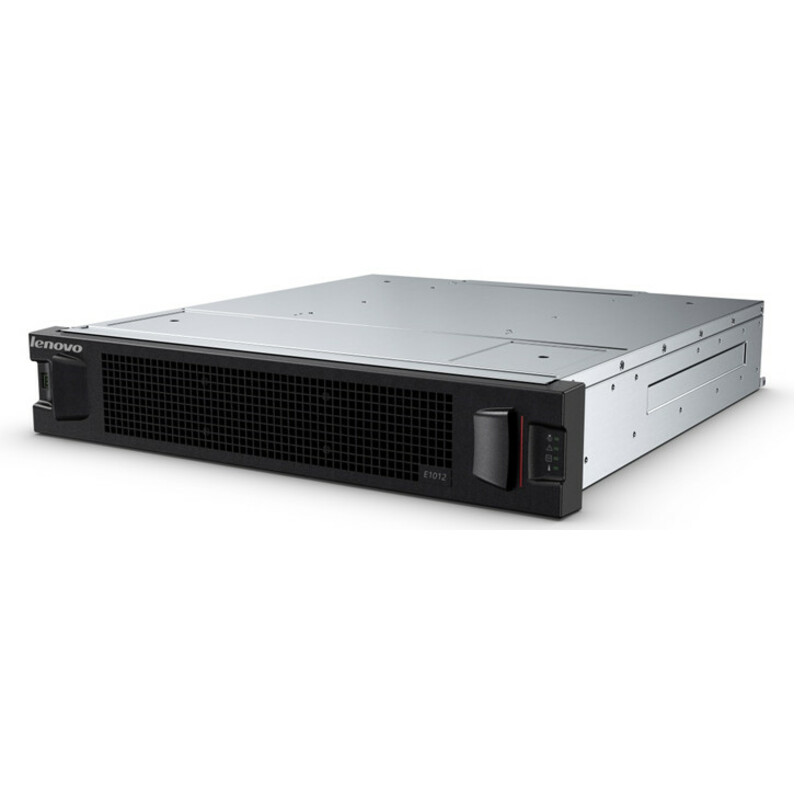

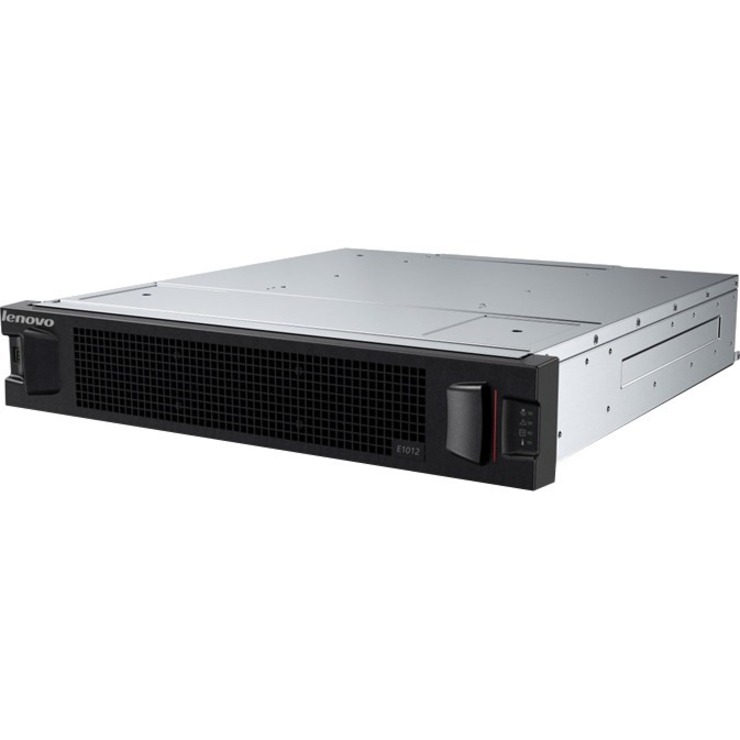

Lenovo E1012 Drive Enclosure - Mini-SAS Host Interface - 2U Rack-mountable
12 x HDD Supported - 12 x SSD Supported - 12 x Total Bay - 12 x 3.5" Bay
- SKU
- 64111B1
- Category
- Drive Cabinets
$2,213.65
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 64111B1
- Category
- Drive Cabinets
Overview

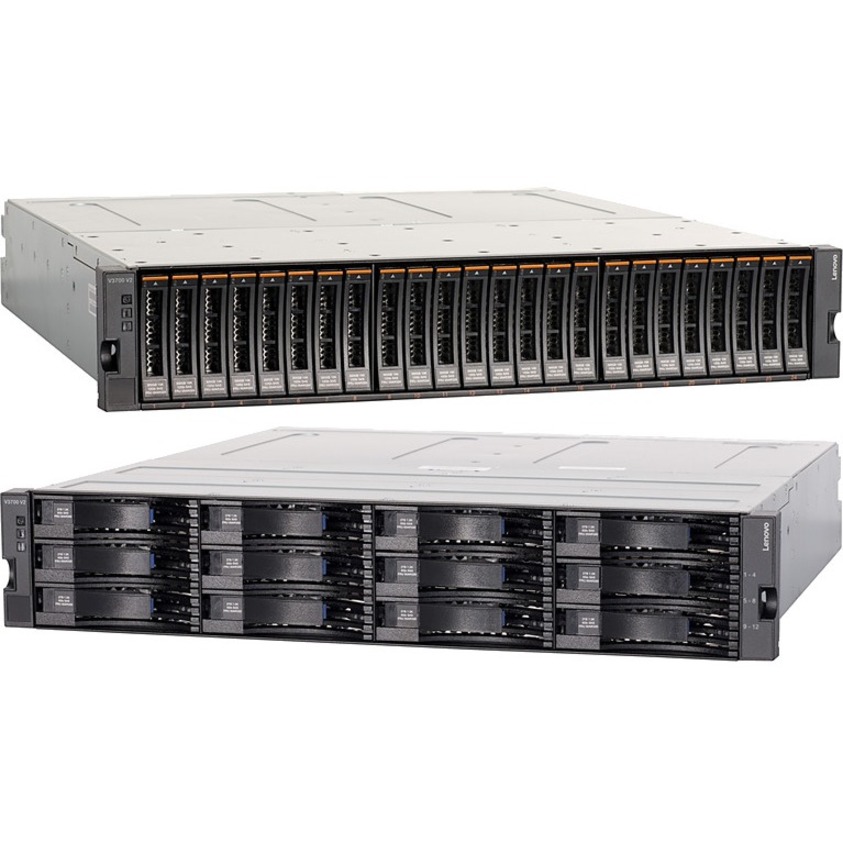

Abstract The Lenovo Storage E1012 and E1024 Disk Expansion Enclosures offer universal storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The E1012 and E1024 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity or Lenovo storage area network (SAN) array expansion.
This product guide provides essential pre-sales information to understand the structure of the E1012 and E1024 expansion enclosure offerings, their key features and specifications, components and options, and configuration guidelines.
Introduction The Lenovo Storage E1012 and E1024 Disk Expansion Enclosures offer universal storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The E1012 and E1024 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity or Lenovo storage area network (SAN) array expansion.
The E1012 and E1024 expansion units are designed for a wide range of workloads, including big data and analytics, video surveillance, media streaming, private clouds, file and print serving, e-mail and collaboration, and databases.
Did you know?
The E1012 and E1024 expansion enclosures offer flexible drive configurations with the choice of 2.5-inch and 3.5-inch drive form factors, 10K or 15K rpm SAS and 7.2K rpm NL SAS hard disk drives (HDDs) and self-encrypting drives (SEDs), and SAS solid-state drives (SSDs).
With support for daisy chaining, the E1012 can be scaled up to 960 TB for capacity-optimized configurations, and the E1024 can be scaled up to 192 drives for performance-optimized configurations.
The E1012 and E1024 expansion units are universal enclosures that can be used with Lenovo System x and ThinkServer systems as direct attach storage (DAS) or as expansion for the Lenovo Storage S2200 and S3200 storage area network (SAN) arrays.
Highlights
- Versatile, scalable storage expansion with a single I/O module for entry-level solutions or dual I/O module configurations for high availability and performance
- Flexible host connectivity to match diverse client needs for direct attach storage with support for 6 Gb or 12 Gb SAS RAID adapters for advanced data protection or 6 Gb SAS Host Bus Adapter (HBA) for maximum JBOD performance
- Provide expansion capabilities and share common parts with the S2200 and S3200 SAN arrays
- 6 Gb SAS drive-side connectivity with support for 12x 3.5-inch large form factor (LFF) drives in the E1012 enclosure or 24x 2.5-inch small form factor (SFF) drives in the E1024 enclosure
- Scalability of up to 96 LFF or 192 SFF drives per RAID adapter with the attachment of up to eight E1012 or E1024 daisy-chained expansion enclosures to satisfy growing needs for storage capacity and performance
- Flexibility in storing data on high performance SAS SSDs, performance-optimized enterprise SAS HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form factors on a single RAID adapter to perfectly meet performance and capacity requirements for various workloads
- Self-encrypting drives with a supported RAID adapter allow clients to secure their sensitive data and to comply with various security regulations when required
- Designed to comply with NEBS and MIL-STD requirements
- Designed for 99.999% availability
Specifications
| Package Contents |
|
|---|---|
| Host Interface | Mini-SAS |
| Product Type | Drive Enclosure |
| Compatibility | IBM Lenovo System x Servers x3100 M5 Type 5457 x3250 M5 Type 5458 x3300 M4 Type 7382 x3500 M4 Type 7383 (E5-2600 and E5-2600 v2) x3500 M5 Type 5464 x3530 M4 Type 7160 (E5-2400 and E5-2400 v2) x3550 M4 Type 7914 (E5-2600 and E5-2600 v2) x3550 M5 Type 5463 x3550 M5 Type 8869 x3630 M4 Type 7158 (E5-2400 and E5-2400 v2) x3650 M4 Type 7915 (E5-2600 and E5-2600 v2) x3650 M4 BD Type 5466 x3650 M4 HD Type 5460 x3650 M5 Type 5462 x3650 M5 Type 8871 x3750 M4 Type 8753 x3850 X6 Type 6241 (E7 v2 and E7 v3) x3950 X6 Type 6241 (E7 v2 and E7 v3) Lenovo ThinkServer Servers: RS140 RD350 (E5-2600 v3 and E5-2600 v4) RD450 (E5-2600 v3 and E5-2600 v4) RD550 (E5-2600 v3 and E5-2600 v4) RD650 (E5-2600 v3 and E5-2600 v4) TS440 TS450 TD350 (E5-2600 v3 and E5-2600 v4) |
| Manufacturer Part Number | 64111B1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 37.04 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Lenovo Group Limited |
| Product Model | E1012 |
| Product Name | E1012 Drive Enclosure |
| Rack Height | 2U |
| Brand Name | Lenovo |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 20.6" |
| Environmentally Friendly | Yes |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | No |
| Cooling Fan | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
More Drive Cabinets from Lenovo

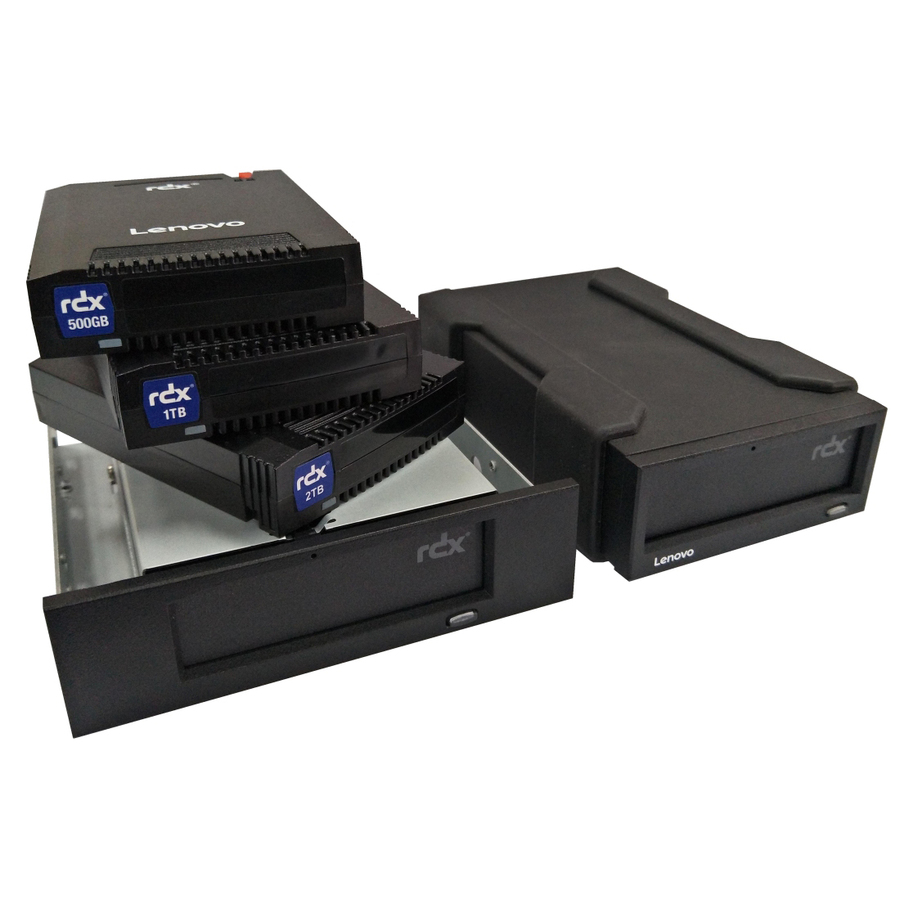

View the Lenovo catalog →- LenovoLenovo Drive Enclosure - USB 3.0 Host Interface External - 1 x Total Bay4T27A10725
