for Notebook, Tablet - 135 W - USB Type C - 2 Displays Supported - 4K, UHD - 3840 x 2160, 5120 x 2880 - 6 x USB Ports - 2 x USB 2.0 - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Black - Audio Line Out - Wired - Gigabit Ethernet - Windows 7, Windows 10, Windows 11
Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Docking Stations
Overview
The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability, like PXE boot and MAC address pass-through, the ThinkPad Hybrid USB-C with USB-A docking station offers three high-speed USB 3.1 ports and includes a USB-C to USB-A adapter to provide port replication to non-Lenovo or USB-C laptop computers. This ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging for ThinkPad notebooks.
Key Details
• Enterprise-class capabilities with PXE boot, Wake-On-Lan, and MAC address pass-through
• Supports ThinkPad RapidCharge
• Connects with up to dual UHD 4K display with DP and HDMI ports
• Delivers up to 10Gbps data transfer speed on 3 x USB 3.1 ports
Warranty
Limited Warranty: 3 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
Wired connectivity technology provides a high-powered and dependable connection
USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
Docking Station provides a dependable and fast charging solution for your notebook with maximum productivity
Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
AC power source type for your docking station provides maximum energy feasibility and added surveillance productivity
Enjoy HD quality videos on your HDTV with the HDMI port facility
6 USB ports allows quick transmission of data at a higher rate for your convenience
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
40AF0135US
Brand Name
Lenovo
Product Line
ThinkPad
Product Model
40AF
Product Name
ThinkPad Hybrid USB-C
Product Type
Docking Station

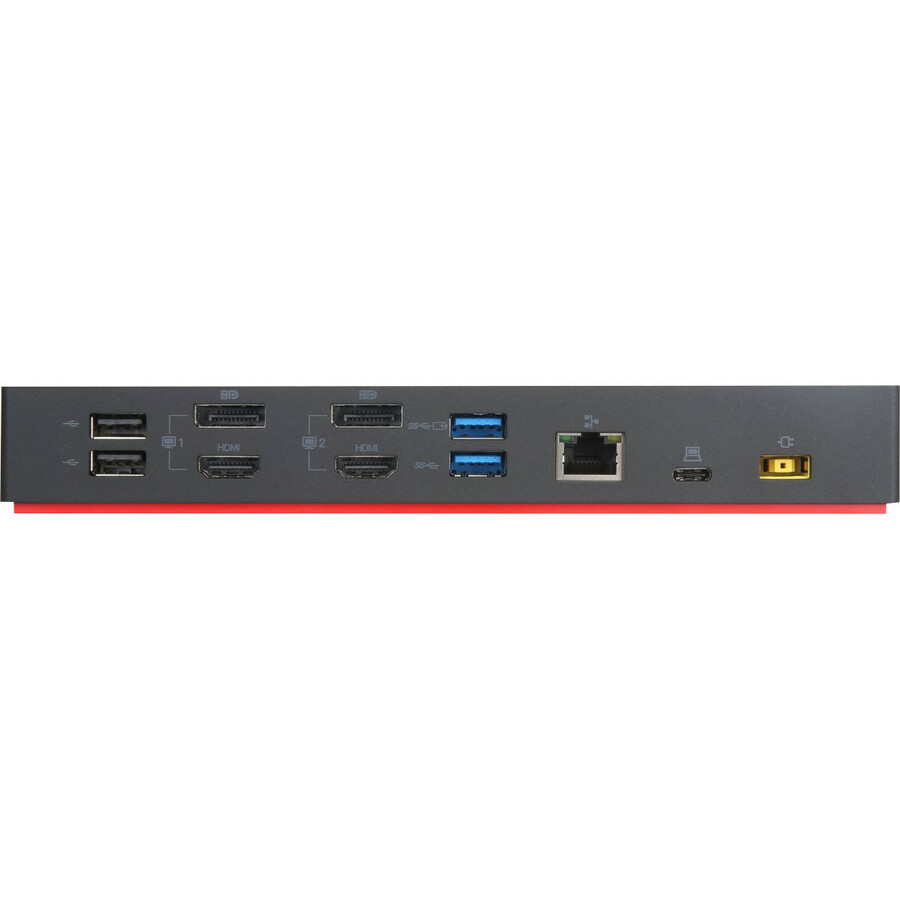

Interfaces/Ports
Host Interface
USB Type C
Audio Line Out
Yes
Total Number of USB Ports
6
Number of USB 2.0 Ports
2
Number of USB 3.2 Gen 1 Type-A Ports
3
USB Type-C
Yes
USB Type-C Detail
1 x USB-C (Data, 5V/3A power)
Number of RJ-45 Ports
1
Network (RJ-45)
Yes
Number of DisplayPorts
2
DisplayPort
Yes
DisplayPort Version
1.2
Headphone/Microphone Combo Port
Yes
Number of HDMI Ports
2
HDMI
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Product Color
Black
Height
1.18"
Width
8.27"
Depth
3.15"
Weight (Approximate)
1.06 lb
Power Description
Maximum Power Supply Wattage
135 W
Software
Operating System Supported
Windows 7, Windows 10, Windows 11
Technical Information
Connectivity Technology
Wired
Number of Displays Supported
2
Device Supported
Notebook, Tablet
Supported Resolutions
3840 x 2160, 5120 x 2880
Screen Mode Supported
4K, UHD
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents

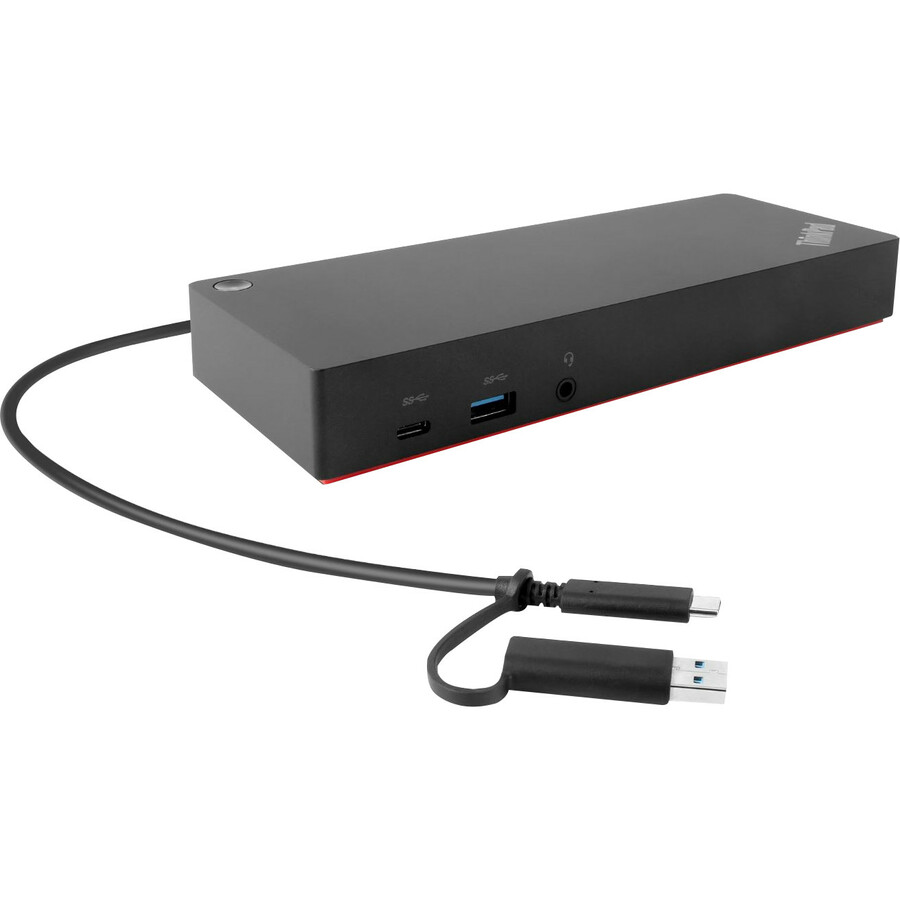

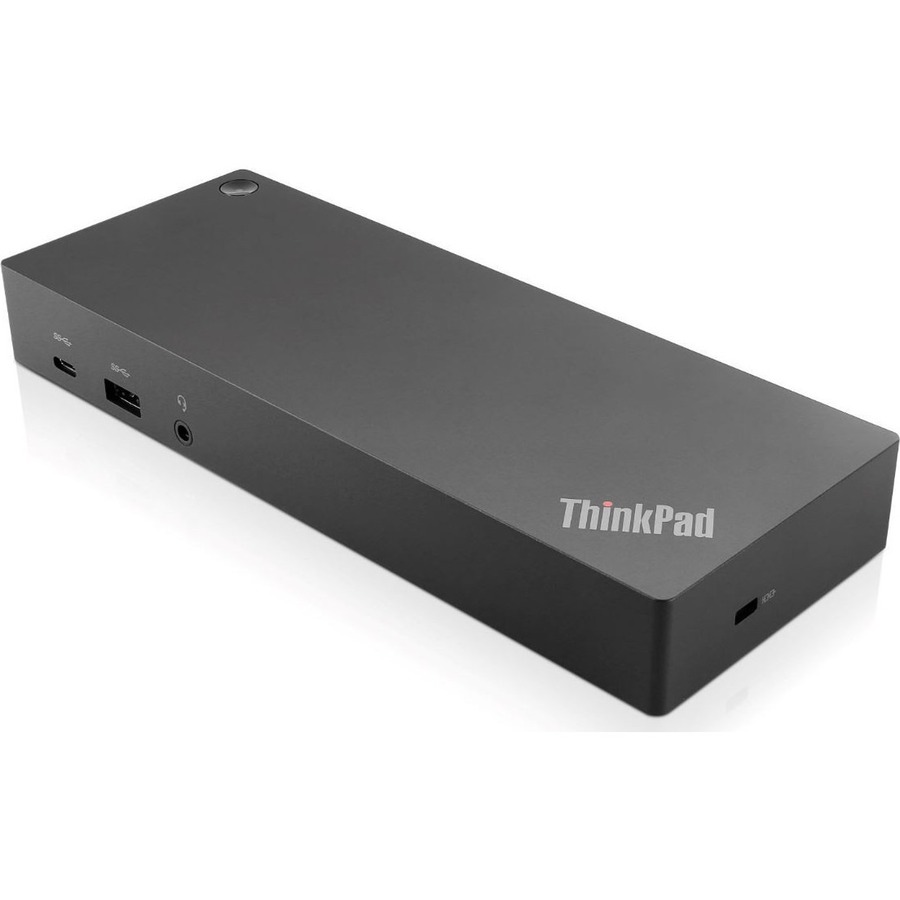

ThinkPad Hybrid USB-C with USB-A Dock

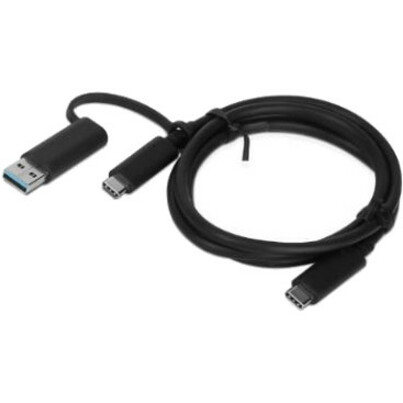

USB-C cable (with USB-C to USB-A Dongle)
ThinkPad 135W AC Adapter (Slim Tip)

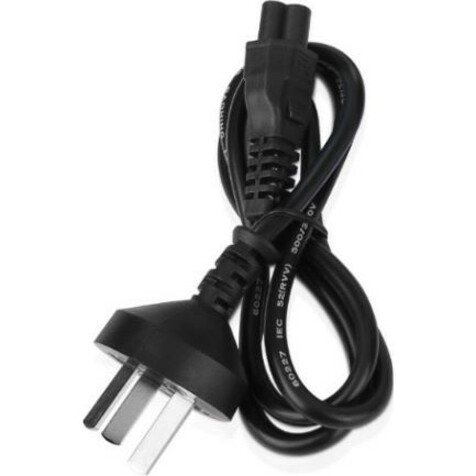

Power Cord
Poster
Compatibility
Lenovo Products: E580 E480 E470 L580 L480 L470 L380 L380 Yoga Tablet 10 Miix 520-12IKB T580 T570 T480 T480s T470 T470s T460 ThinkPad 25 X1 Carbon Gen 6 X1 Carbon Gen 5 X1 Yoga Gen 3 X1 Yoga Gen 2 X1 Tablet Gen 3 X1 Tablet Gen 2 13 Gen 3 Windows X280 X270 X260
