Attention: Due to high order volume, orders may require an additional business day to process.
Height Adjustable - 1 Display(s) Supported - 32" to 65" Screen Support - 75 lb Load Capacity
MSRP$649.00
$614.69
Save 5%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
The Chief dual arm wall mount allows for perfect flat panel display placement and extends up to 25" for viewing from any angle while remaining low-profile in home position. The screen of this dual arm mount can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look for this tv mount. More from the Manufacturer

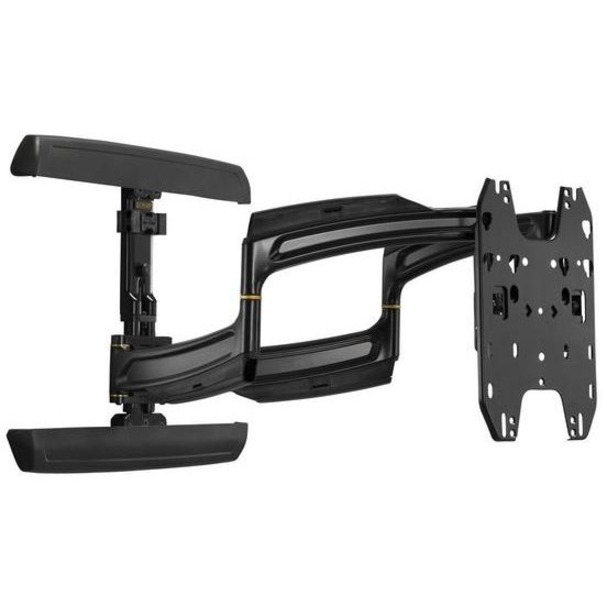

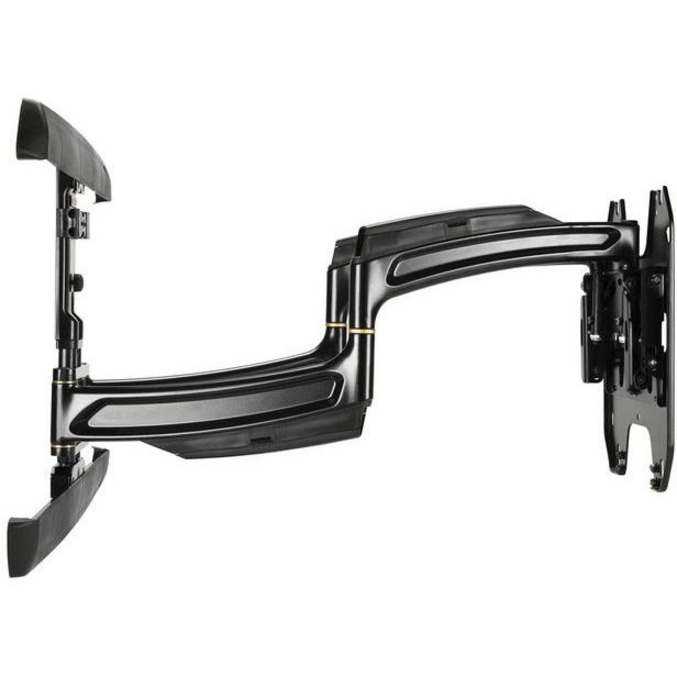

Chief Thinstall Medium 25 Inch Extension Display Wall Mount - For 32-65 Inch Displays - Dual Monitor Arm - Black
The Chief dual arm wall mount allows for perfect flat panel display placement and extends up to 25" for viewing from any angle while remaining low-profile in home position. The screen of this dual arm mount can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look for this tv mount.
Chief Thinstall Monitor Arm Wall Mount
Monitor Arm Mounts
Chief’s Thinstall Series Swing Arm Mounts are ultra low-profile full-motion wall mounts for flat panel TVs and displays. These sleek,
ruggedly-constructed solutions have low 1.5”-2” (38-53 mm) profiles, are easy to install and extend up to 25” (635 mm).
Features
FULL EXTENSION
Arms extend out up to 25” (635 mm) for maximum viewing potential.
ULTRA LOW-PROFILE
These sleek designs collapse 1.5 to 1.8” (38 to 46 mm) providing an ultra-thin profile.
CONTROLZONE™ HEIGHT ADJUSTMENT
Adjust the height of your entire configuration post-installation up to 1” (25 mm).
CENTERLESS™ LATERAL SHIFT
Get up to 16” (406 mm) of post-installation shift for limitless centering possibilities.
CENTRIS™ LOW-PROFILE FINGERTIP TILT
Provides up to 15° of fingertip tilt to achieve the perfect viewing angle.
INTEGRATED CABLE MANAGEMENT
Enclosed, tool-less cable covers and a wide open wall plate make it easy to route power and signal cables.
Monitor Arm Accessories
TA100 Component Shelf
• TA100 compatible with
TS525TU, TS325TU,
TS318TU, and TS318SU
• Height adjustable shelf sits
above or below TV to
accommodate different
component and screen sizes
• 10 lbs (4.5 kg) weight capacity
TA200/TA250 Camera Shelves
• 8” or 12” (203 mm or 305 mm)
wide shelf
• Compatible with TS525TU,
TS325TU, TS318TU, and
TS318SU
• Height adjustable shelf sits
above or below TV to
accommodate different
• 10 lbs (4.5 kg) weight capacity
TA350 Center ChannelSpeaker Adapter
• Compatible with TS525TU,
TS325TU, TS318TU, and TS318SU
• Infinitely adjustable to fit speaker flush with top or bottom of TV
• 10 lbs (4.5 kg) weight capacity
TA410 Portrait Adapter
• Compatible with TS525TU,
TS325TU, TS318TU, and TS318SU
• Allows displays to be installed
in portrait orientation
• Not necessary for TVs having
100 x 100 mm or 200 x 200 mm
mounting patterns
• Adds 0.1” (2.7 mm) of depth to
installation
TA500 In-Wall Accessory Box
• Allows a TS525TU or TS325TU to be
recessed into a standard depth wall for
a zero-profile installation
• Requires a 34.25 x 22” (870 x 559 mm)
opening in a standard depth wall
TA501 In-Wall Accessory Box
• Allows a TS318TU to be recessed into
a standard wall for a zero-profile
installation
• Requires a 30.25 x 20.25” (768 x 514 mm)
opening in a standard depth wall
TA502 In-Wall Accessory Box
• Allows a TS218SU or TS118SU to be
recessed into a standard wall for a
zero-profile installation
• Installs in between standard 16” on
center studs
• Requires a 14.5 x 14.5” (368 x 368 mm)
opening in a standard depth wall
Limited Warranty: 10 Year
Chief, a brand of Legrand | AV, has delivered proven product and service excellence since 1978. Their installer-inspired design is a philosophy that guides their engineers and designers to create AV solutions that solve installation problems, propelling AV projects towards completion. With numerous product awards and patented designs, Chief is recognized for creating high-quality products that are easy to install and maintain.
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | TS325TU |
| Brand Name | Chief |
| Product Line | Thinstall |
| Product Model | TS325TU |
| Product Name | Thinstall TS325TU Medium Dual Swing Arm Wall Mount |
| Product Type | Mounting Arm |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100, 600 x 400 |
| Form Factor | Wall Mountable |
| Height | 17.20" |
| Width | 29.50" |
| Depth | 1.30" |
| Weight (Approximate) | 31 lb |
| Product Information | |
| Device Supported | Flat Panel Display, Monitor, TV, Display |
| Number of Displays Supported | 2 |
| Maximum Load Capacity | 75 lb |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 65" |
| Height Adjustable | Yes |
| Features | Tilt, Extendable, Swing, Adjustable, Centris, Cable Management |
| Maximum Adjustable Depth | 25.70" |
| Mount Profile | Low Profile |
| Warranty | |
| Limited Warranty | 10 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Flat Panel Display |
| Compatibility |
|
| Country of Origin | China |
