Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
LTM1U
Category
Mounting Kits
Overview
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
More from the Manufacturer
Chief Fusion Wall Mount Displays
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Features
ControlZone™ Height & Roll Adjustment is an industry-first feature for post-installation fine-tuning of height and leveling of the entire configuration, not just the display.
Centerless™ Lateral Shift allows for up to 16” (406 mm of post-installation lateral shift - 8” (203 mm) left/right of uprights. Enhancements include up to 3” (76 mm) of lateral shift in the wall plates. Dual-stud versions only.
Centris® Low-Profile Tilt provides effortless, tool-free tilting by using the center of gravity to balance the screen.

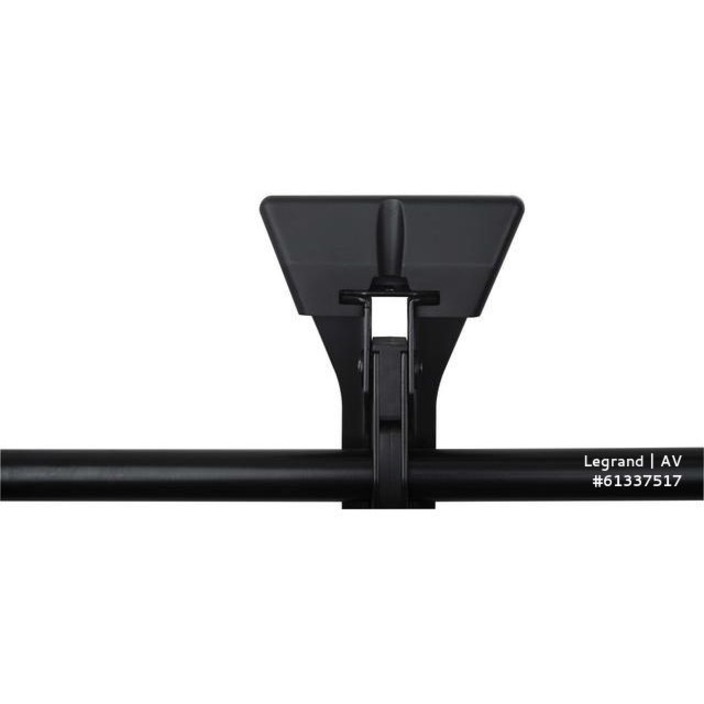

ClickConnect® Tool-Free Latching creates an audible click when the screen safely engages with the mount. A built-in cable stand allows easy access under the screen. Tuck Quick Store cords out of sight with the magnetized end.
Fusion Wall Mount Diagram
Micro-Adjustable Fixed and Tilt Mounts
Warranty
Limited Warranty: 10 Year
About Legrand
Chief, a brand of Legrand | AV, has delivered proven product and service excellence since 1978. Their installer-inspired design is a philosophy that guides their engineers and designers to create AV solutions that solve installation problems, propelling AV projects towards completion. With numerous product awards and patented designs, Chief is recognized for creating high-quality products that are easy to install and maintain.
Highlights
Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
Can withstand a maximum weight of 200 lb
Supports 86" displays
Tilt feature for maximum productivity with added dependability
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
LTM1U
Brand Name
Chief
Product Line
Fusion Wall Tilt
Product Model
LTM1U
Product Name

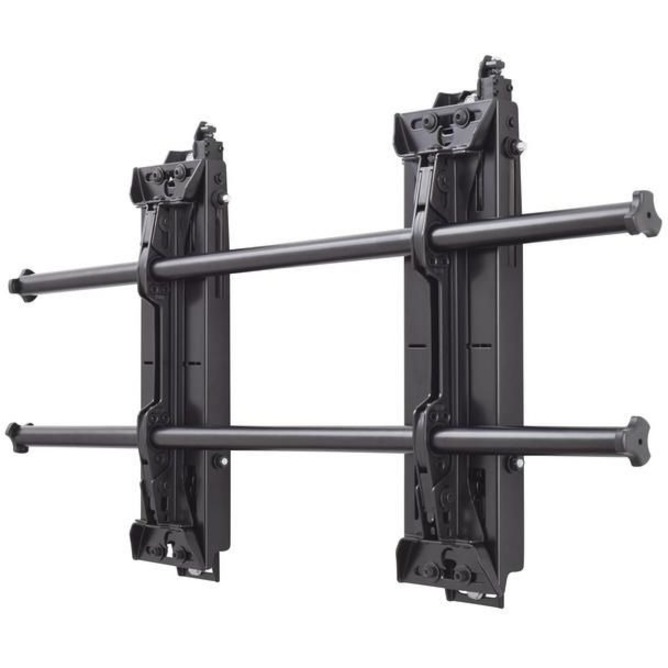

Large Fusion Micro-Adjustable Tilt Wall Mount
Product Type
Wall Mount
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Pattern
100 x 100, 878 x 500
Height
17"
Width
34.75"
Depth
2"
Product Information
Device Supported
Flat Panel Display
Number of Displays Supported
1
Maximum Load Capacity
200 lb
Minimum Screen Size Supported
42"
Maximum Screen Size Supported
86"
Height Adjustable
Yes
Features
Tilt, Cable Management, Lateral Adjustment, Leveling System
