SKU
LM4-LC24J-2A2UN
Category
Patch Panels
Overview
Infinium M4 Cassettes are part of a complete fiber solution. When combined with matched Infinium Trunks and Infinium Patch Cable Assemblies the solution can enable industry leading pre-terminated performance and universal polarity for simple, fast and consistent and simplified installation. Compatible with Infinium HD-E Rack Mount Fiber Enclosure with M4 Drawer Face.
Warranty
Limited Warranty: 5 Year
Highlights
High Density: 12 or 24-fiber cassette compatible with Infinium HD M4 Enclosures
Versatile Installation: Infinium Modular Panel enables mixed media installations
Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Ultra fiber
Polarization: Universal
LC adapter with internal shutter: Ensures eye safety by blocking laser light when the connector is removed. Automatic shutter requires no manual handling. Compatible with LC connectors, keeps the interior clean, and allows visible light to pass through.
Infinium Ultra: Ultra Low Loss System with Infinium Ultra Trunks and Patch Cords: Single-mode channel loss: 1.2 dB, return loss: 49 dB. Multimode channel loss: 1.0 dB, return loss: 19 dB.
Infinium Core: Low Loss System with Infinium Core Trunks and Patch Cords: Single-mode channel loss: 2.1 dB, return loss: 49 dB. Multimode channel loss: 2.5 dB, return loss: 19 dB.
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
LM4-LC24J-2A2UN
Brand Name
Ortronics
Product Line
Infinium
Product Name

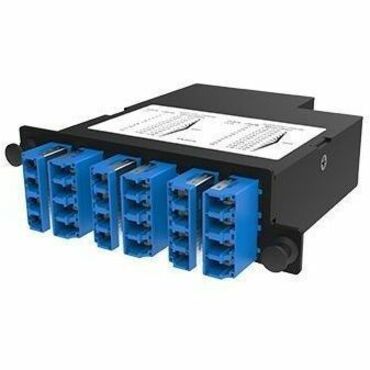

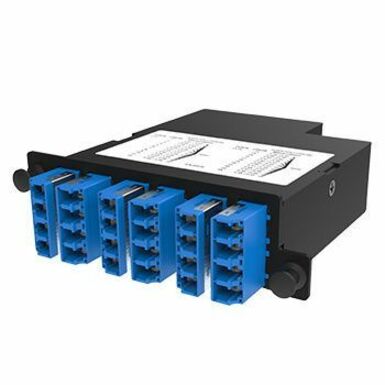

Infinium Ultra M4 Cassette-24 Fiber-LC Quad to MPOM-OS2-Universal Polarity
Product Type
Fiber Cassette
Physical Characteristics
Color Family
Blue
Product Color
Blue
Form Factor
Rack-mountable
Height
1.1"
Width
4.2"
Depth
4.8"
Technical Information
Media Type Supported
Optical Fiber
Warranty
Limited Warranty
5 Year
Interfaces/Ports
Total Number of Ports
24
Number of LC Ports
24
LC Port Type
Duplex
Miscellaneous
Package Contents
Infinium Ultra M4 Cassette-24 Fiber-LC Quad to MPOM-OS2-Universal Polarity
