Legrand

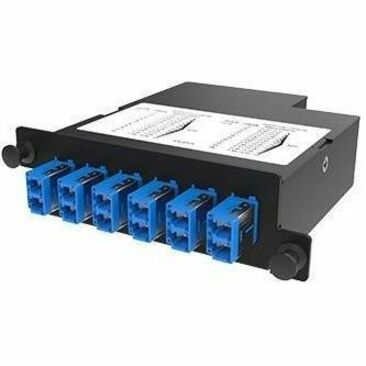

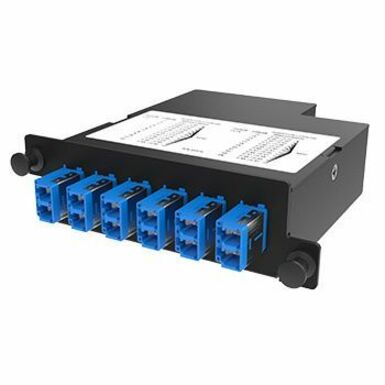

Ortronics Infinium Fiber Cassette
12 Port(s) - 6 x Duplex - Optical Fiber - Blue - Rack-mountable
- SKU
- LM4-LC12J-1A2UN
- Category
- Patch Panels
MSRP$1,116.36
$692.70
Save 38%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LM4-LC12J-1A2UN
- Category
- Patch Panels
Overview
High density modular fiber optic pre-terminated cassettes provide plug-and-play functionality with the high density footprint accommodating up to 96-fibers in one rack unit. Used with Infinium High Density (HD) Enhanced Fiber Enclosures with M4 Drawer Face Available in three performance levels; Core, Ultra and Quantum
Highlights
- High Density: 12 or 24-fiber cassette compatible with Infinium HD M4 Enclosures
- Versatile Installation: Infinium Modular Panel enables mixed media installations
- Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Ultra fiber
- Polarization: Universal
- LC adapter with internal shutter: Ensures eye safety by blocking laser light when the connector is removed. Automatic shutter requires no manual handling. Compatible with LC connectors, keeps the interior clean, and allows visible light to pass through.
- Infinium Ultra: Ultra Low Loss System with Infinium Ultra Trunks and Patch Cords: Single-mode channel loss: 1.2 dB, return loss: 49 dB. Multimode channel loss: 1.0 dB, return loss: 19 dB.
- Infinium Core: Low Loss System with Infinium Core Trunks and Patch Cords: Single-mode channel loss: 2.1 dB, return loss: 49 dB. Multimode channel loss: 2.5 dB, return loss: 19 dB.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Fiber Cassette |
| Manufacturer Part Number | LM4-LC12J-1A2UN |
| Limited Warranty | 5 Year |
| Form Factor | Rack-mountable |
| Manufacturer | Legrand Group |
| Product Name | Infinium Fiber Cassette |
| Product Line | Infinium |
| Brand Name | Ortronics |
| Country of Origin | Mexico |
| Height | 1.1" |
| Width | 4.2" |
| Depth | 4.8" |
| Number of LC Ports | 6 |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 12 |
| LC Port Type | Duplex |
| Product Color | Blue |
| Color Family | Blue |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
