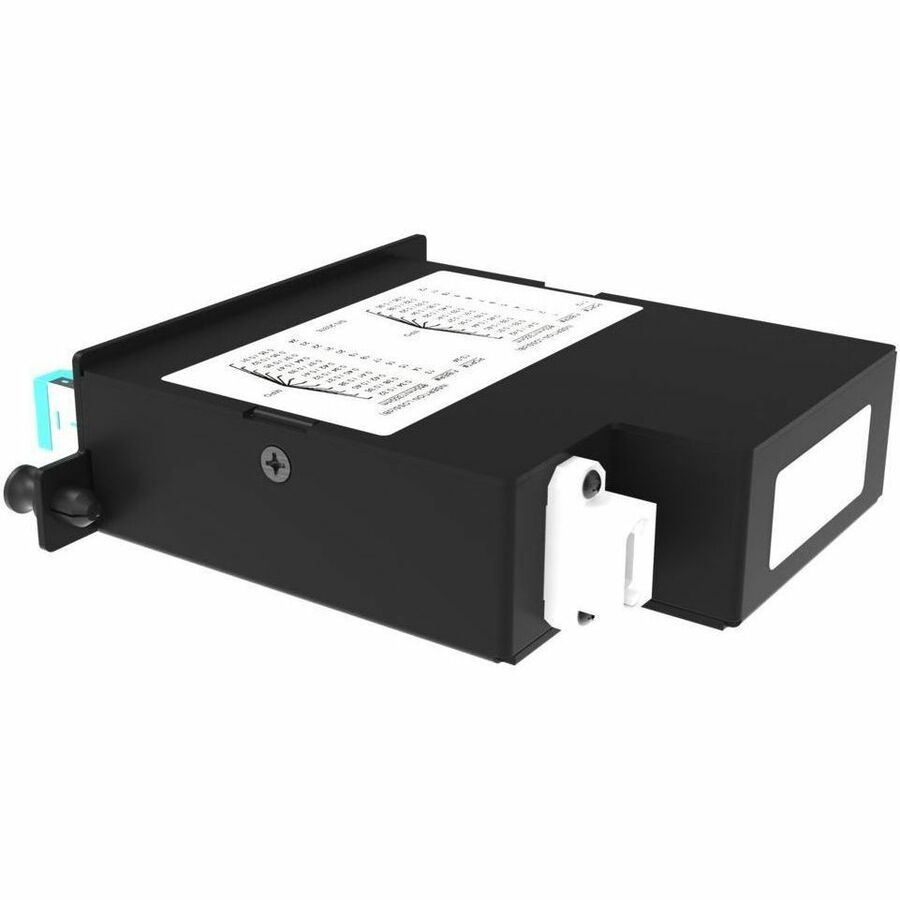

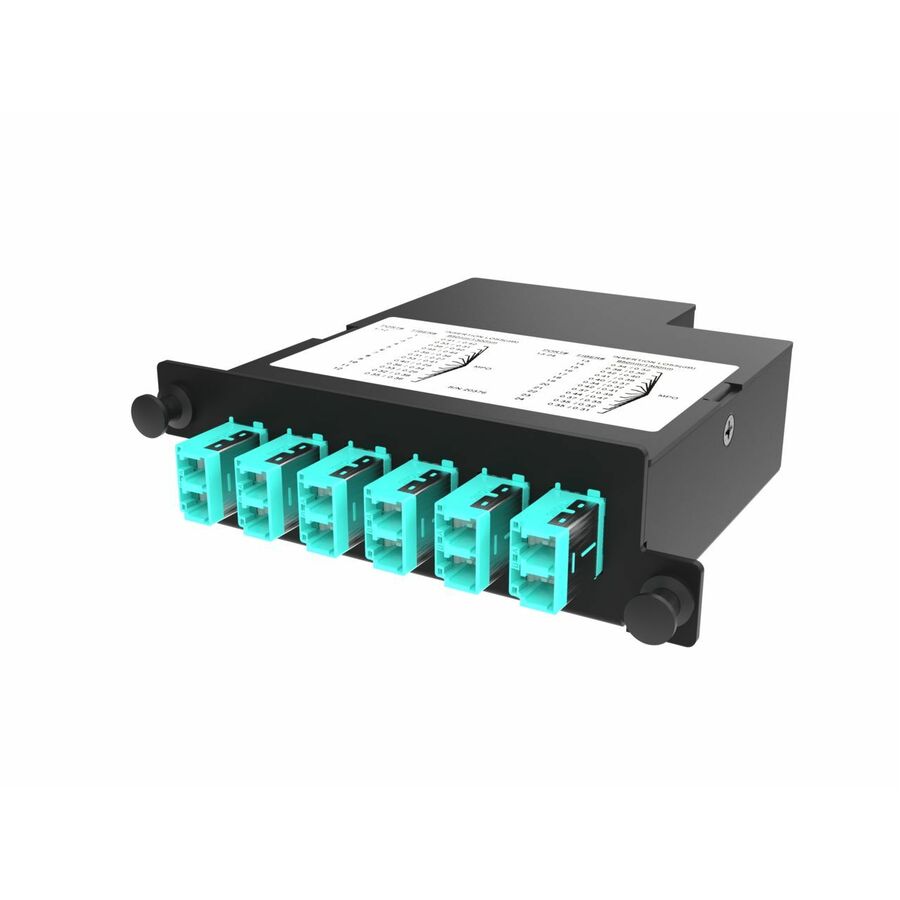

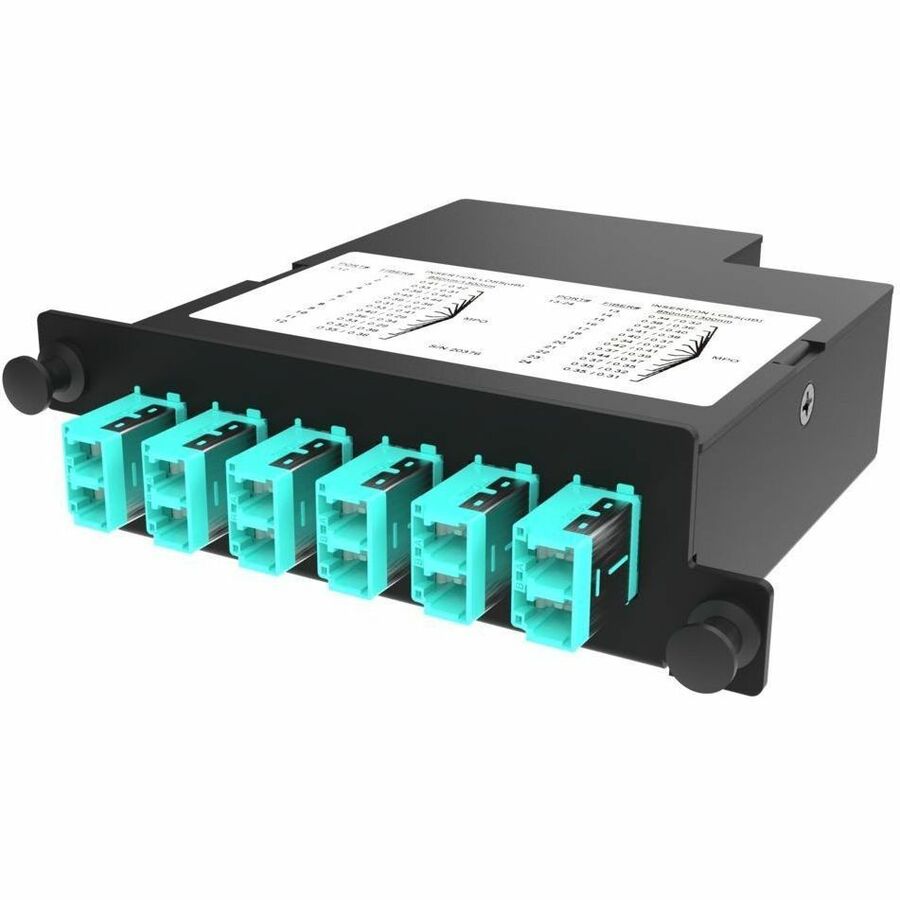

Ortronics Infinium Fiber Cassette
Legrand

Ortronics Infinium Fiber Cassette

13 Port(s) - 6 x Duplex - Optical Fiber - Aqua

SKU
LM4-LC12H-1A4UN
Category
Patch Panels

MSRP$1,175.11

$729.15

Save 38%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LM4-LC12H-1A4UN
Category
Patch Panels

Overview

Lowest Total Channel Connection Loss

67% Improvement Over Standard Systems

Single-mode total channel connection loss: 0.75dB

Single-mode total channel connection return loss: 49dB

Multimode total channel connection loss 0.75dB

Multimode total channel connection return loss: 34dB

Future Proofing Open Path to 400G and Beyond Reducing or eliminating the need to replace link to meet demands of 400G and beyond Reduce need for fusion splicing to obtain low link loss Ability to add cross connections, signal drops, splitting, or switching components into the link for a particular transmission distance

Highlights

  • High Density: 12 or 24-fiber cassette compatible with Infinium HD M4 Enclosures
  • Versatile Installation: Infinium Modular Panel enables mixed media installations
  • Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Ultra fiber
  • Polarization: Universal
  • LC adapter with internal shutter: Ensures eye safety by blocking laser light when the connector is removed. Automatic shutter requires no manual handling. Compatible with LC connectors, keeps the interior clean, and allows visible light to pass through.
  • Infinium Ultra: Ultra Low Loss System with Infinium Ultra Trunks and Patch Cords: Single-mode channel loss: 1.2 dB, return loss: 49 dB. Multimode channel loss: 1.0 dB, return loss: 19 dB.
  • Infinium Core: Low Loss System with Infinium Core Trunks and Patch Cords: Single-mode channel loss: 2.1 dB, return loss: 49 dB. Multimode channel loss: 2.5 dB, return loss: 19 dB.

Specifications

Package Contents
  • Infinium Fiber Cassette
  • Serial Number Label
Product TypeFiber Cassette
Manufacturer Part NumberLM4-LC12H-1A4UN
Limited Warranty5 Year
ManufacturerLegrand Group
Product NameInfinium Fiber Cassette
Product LineInfinium
Brand NameOrtronics
Country of OriginMexico
Height1.1"
Width3.5"
Depth4.8"
Number of LC Ports6
Media Type SupportedOptical Fiber
Total Number of Ports13
LC Port TypeDuplex
Product ColorAqua
Color FamilyGreen
Product MaterialAluminum, Steel, Thermoplastic, Zirconia
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
