SKU
CMS492C
Category
Mounting Kits
Overview

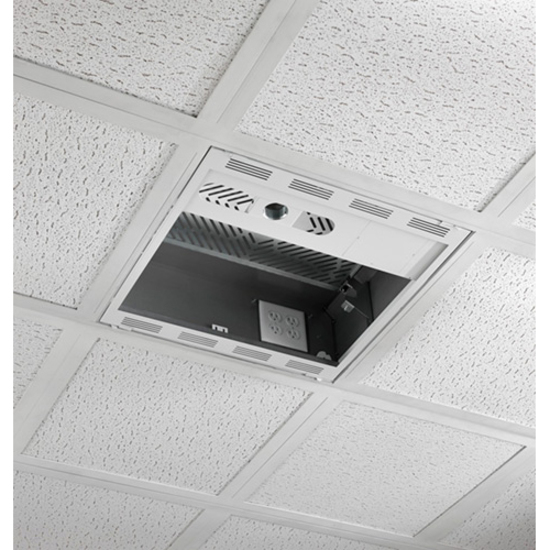

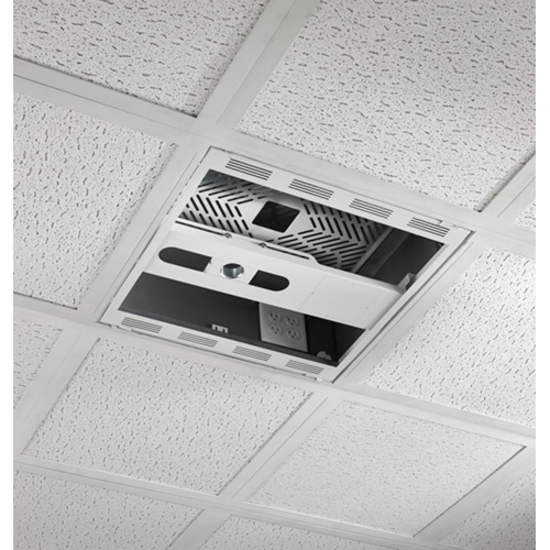

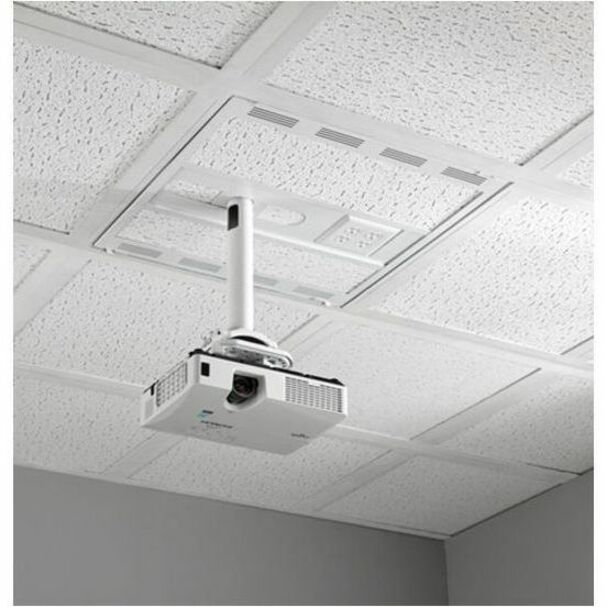

The Chief suspended ceiling storage box conceals AV equipment above a 2' x 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
Warranty
Limited Warranty: 10 Year
About Legrand
Chief, a brand of Legrand | AV, has delivered proven product and service excellence since 1978.
Their installer-inspired design is a philosophy that guides their engineers and designers to create AV solutions that solve installation problems, propelling AV projects towards completion. With numerous product awards and patented designs, Chief is recognized for creating high-quality products that are easy to install and maintain.
Highlights
Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality

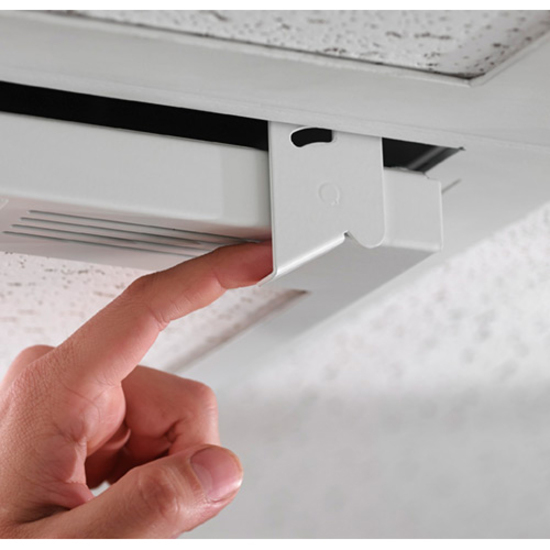

Drop carriage door improves accessibility and serviceability providing full access to equipment
Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
Inside the box or facing the room
Up to 2 single gang or 1 dual gang outlet
4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
Built in ventilation
AV tray supports a variety of AV components
Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
1 RU rack rail brackets sold separately, see CMS1RU
Overall weight capacity 100 lbs (45 kg)
50 lbs (22 kg) for projector ceiling plate
25 lbs (11 kg) per shelf location
Ships with speed connect installation hardware
Lightweight construction, one man installation
UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
TAA Compliant
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
CMS492C
Brand Name
Chief
Product Model
CMS492C
Product Name
2" x 2" Suspended Ceiling Storage Box with Column Drop - TAA Compliant - White
Product Type
Ceiling Mount
Physical Characteristics
Color Family
White
Product Color
White
Height
8"
Width
24.97"
Depth
23.67"
Product Information
Device Supported
A/V Equipment, Projector
Maximum Load Capacity
100 lb
Warranty
Limited Warranty
10 Year
Miscellaneous
Package Contents
2' x 2' Above Suspended Ceiling Storage Box with Column Drop
