Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Mounting Kits
Overview

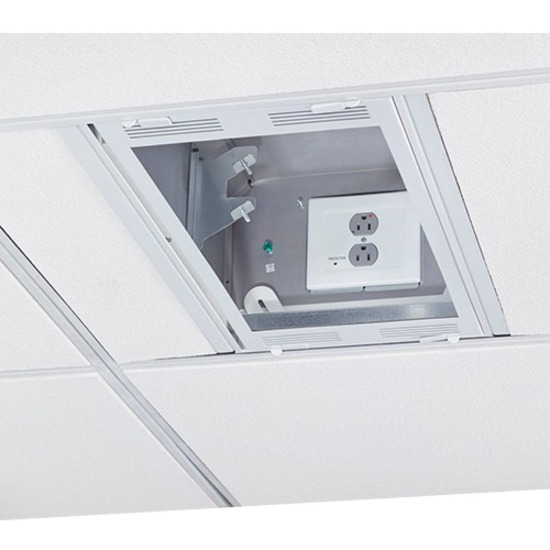

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX ® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK ® Electronic Systems Protection.
Warranty
Limited Warranty: 10 Year
About Legrand
Chief, a brand of Legrand | AV, has delivered proven product and service excellence since 1978. Their installer-inspired design is a philosophy that guides their engineers and designers to create AV solutions that solve installation problems, propelling AV projects towards completion. With numerous product awards and patented designs, Chief is recognized for creating high-quality products that are easy to install and maintain.
Highlights
Drop carriage door improves accessibility and serviceability providing full access to equipment
Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time
Inside the plenum box or facing the room
Up to 2 single gang or 1 dual gang outlet
4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
Built in ventilation
AV tray supports a variety of AV components
Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
Overall weight capacity 100 lbs (45 kg)
50 lbs (22 kg) for projector ceiling plate
25 lbs (11 kg) per shelf location
Ships with speed connect installation hardware
Lightweight construction, one man installation
Plenum rated, UL approved in accordance to 2043
TAA Compliant
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
CMS491P2
Brand Name
Chief
Product Series
CMS
Product Model
CMS491P2
Product Name
1' x 2' Plenum Rated Storage Box with 2-Gang Filter & Surge
Product Type
Ceiling Mount
Physical Characteristics
Product Color
White
Height
8"
Width
12.97"
Depth
23.67"
Product Information
Device Supported
Projector
Maximum Load Capacity
99.21 lb
Warranty
Limited Warranty
10 Year
Miscellaneous
Package Contents
1' x 2' Plenum Rated Storage Box with 2-Gang Filter & Surge
