Power Delivery
for Notebook, Tablet PC - Charging Capability - USB Type C - 4K @30Hz, 4K, Full HD - 3840 x 2160, 1920 x 1080 - 4 x USB Ports - 2 x USB 3.0 - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - Black - Wired - Gigabit Ethernet - Windows, macOS, Linux - 100W
$90.11
In stock: 680
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

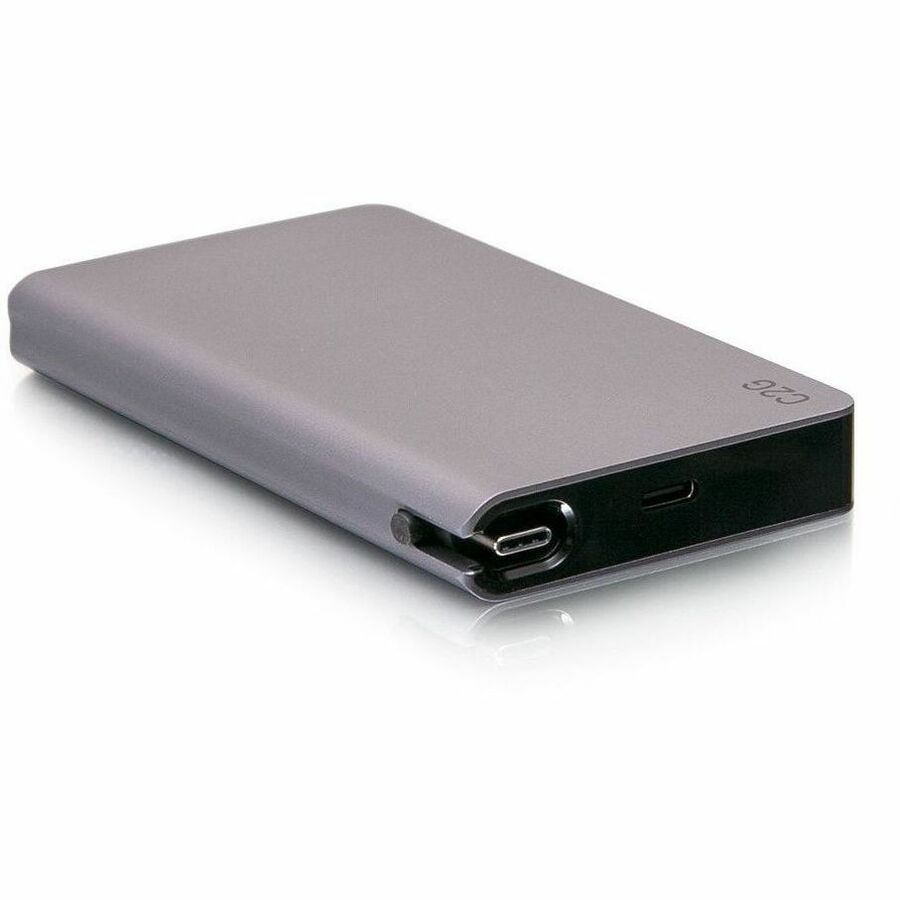

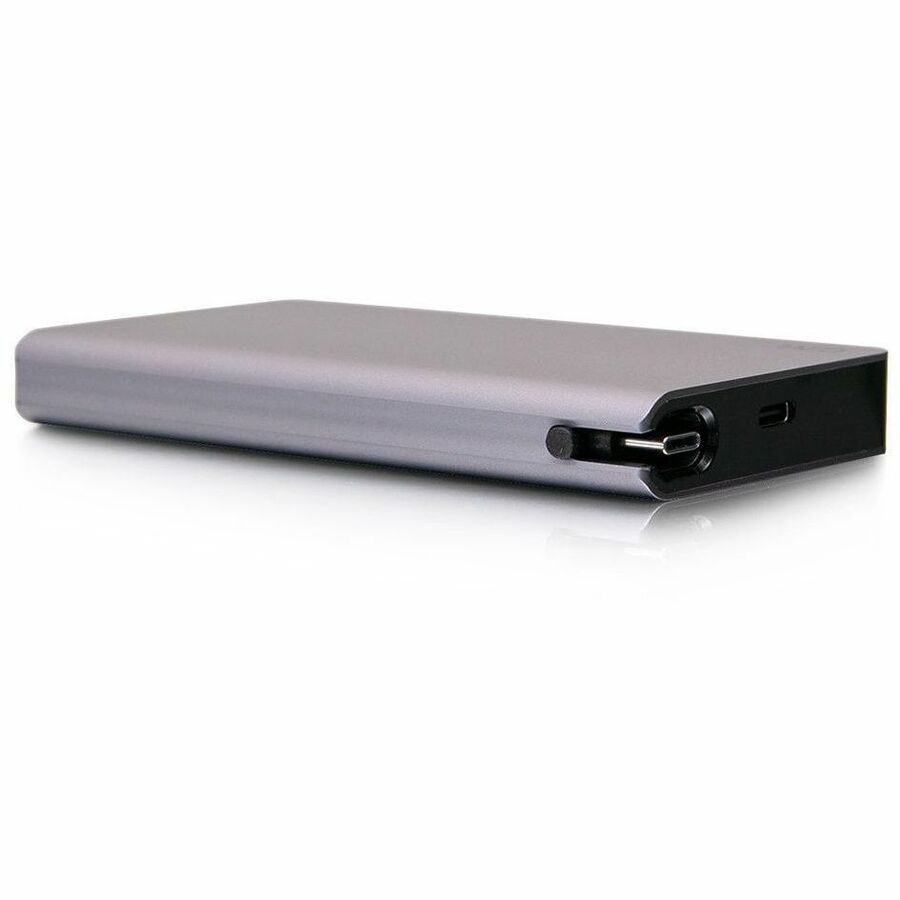

This USB-C 5-in-1 Compact Dock with HDMI, USB-A, Ethernet and USB-C Power Delivery connects to USB-C or Thunderbolt 3 enabled laptops and is perfect for contributing to a desktop solution ? making it ideal for inside reps that need essential connectivity while in the office or when working from home.
This USB-C compact dock supports up to 100W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.
This compact dock includes an HDMI port with a resolution up to 4K (3840 x 2160) at 30Hz for high definition audio/video. The USB-A and USB-C data ports support SuperSpeed USB 5Gbps data transfers ? allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Optimize performance by connecting displays designed for 4K 30Hz signals and USB devices designed for 5Gbps transfer speeds.

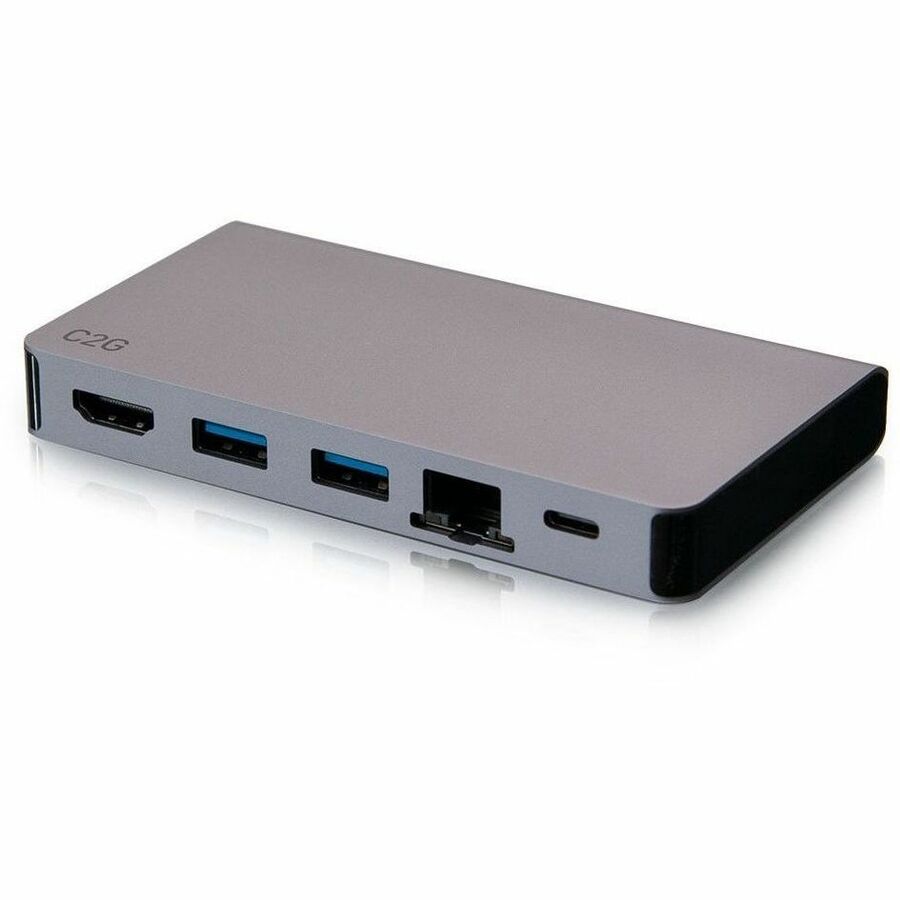

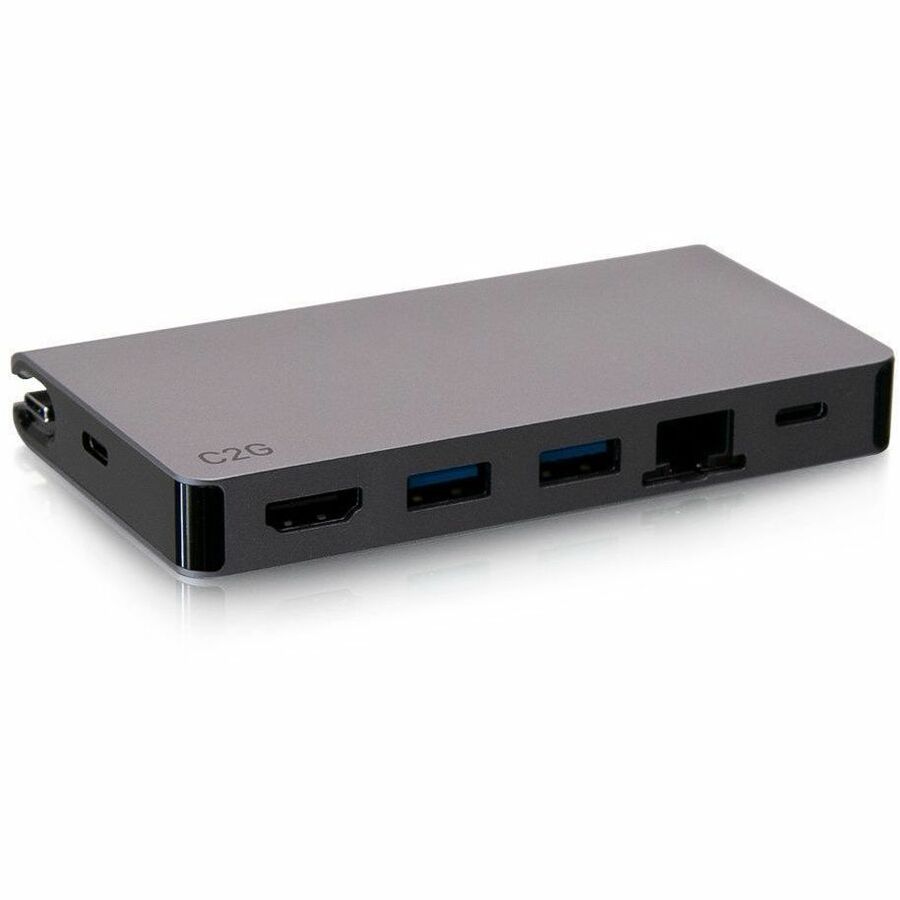

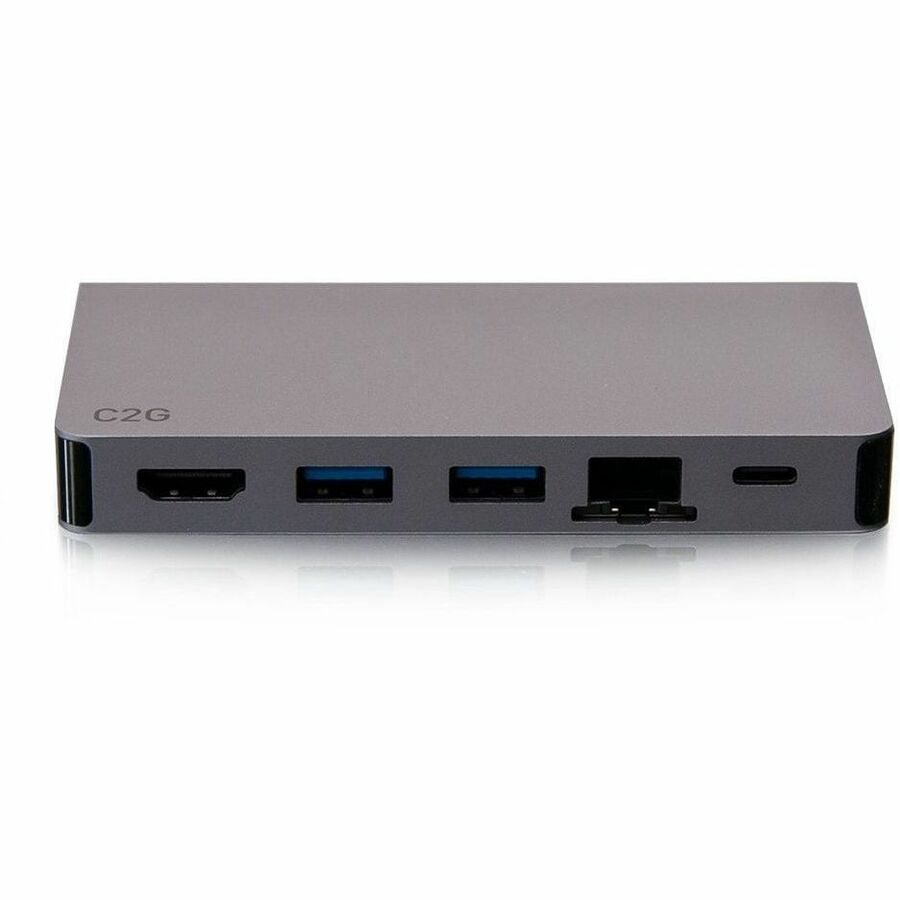

PORTS
4K HDMI: Connect to a 4K display via the HDMI port.
2x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
Gigabit Ethernet: Connect to local network for network and internet access.
1x USB-C: Connect storage devices and transfer data up to 5Gbps through the USB-C port.
1x USB-C Data and PD: Transfer data up to 5Gbps from a storage device and power a laptop or tablet with up to 100W power delivery.
Additional Technical Spec
Signal Specifications
• HDMI: Resolution up to 4Kx2K @ 30Hz
• USB-C Female: Supports Data up to 5Gbps; Supports PD Charging with Power up to 100W (20V/5A)
• RJ45 Female: 10M/100M/1000M
• USB-A 3.0 Female: Supports Data up to 5Gbps
Electrical Specifications
• Cable: USB 3.1 OD: 4.2MM ~ Black TPE No Print
• Rated Temperature: 80°C ; Voltage: 30V
• Conductor Resistance: At 20°C Max 34AWG: 860 OHMS/KM
• Insulation Resistance: 10M-KM MIN at 20°C DC 500V.(EIA-364-21)
• Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA-364-20)
Physical Specifications
• Operating Temperature: 0° to +45°C; 15-85% RH (Non-Condensing)
• Storage Temperature: -10° to +70°C; 15-85% RH (Non-Condensing)
Physical Characteristics
• Connector P1: USB 3.1 Type-C Male: Terminal Contacts Gold Plated 3U, Nickel Plated Shell; Black Insulation
• Connector P2-1: USB-C Female: 24 Pin Iron Shell, Nickel Plated, Black Core with PCB
• Connector P2-2: HDMI Female: 19 Pin A/F Iron Shell Nickel Plated, Gold Plated Terminal G/F with PCB
• Connector P2-3: RJ45 Female: Iron Shell - Nickel Plated, Black Core, Gold Plated Pin with PCB
• Connector P2-4: USB-A Female: Blue Adhesive (PA9T) Iron Case Nickel Plated ~ Pin Gold Plated with PCB
• Molding Material P1: Black TPE Conform RoHS
• Molding Material P2: Black TPE Conform RoHS
• Inspection: 100% Test for Short/Open
• Inspection: 100% Transmission rate test (300M/S); 100% Full Functional Tests to all Ports
• Product is CE marked and conforms to 2011/65/EU ROHS 2
Limited Warranty: 5 Year
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
C2G Docking Station
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G54457 |
| Brand Name | C2G |
| Product Name | Docking Station |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C Male, 1 x USB-C Female |
| Number of USB Type-A Ports | 2 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| USB Power Delivery | 100W |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.55" |
| Width | 4.33" |
| Depth | 2.44" |
| Software | |
| Operating System Supported | Windows, macOS, Linux |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Notebook, Tablet PC |
| Supported Resolutions | 3840 x 2160, 1920 x 1080 |
| Screen Mode Supported | 4K @30Hz, 4K, Full HD |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Country of Origin | China |
