for Desktop PC, Monitor, Projector - USB Type C - 4K @30Hz, 4K @ 60Hz, 4K, Full HD - 3840 x 2160, 1920 x 1080 - 1 x USB Ports - 1 x USB Type-C Ports - USB Type-C - 1 x HDMI Ports - HDMI - DVI - VGA - 1 x DisplayPorts - DisplayPort - Black - Portable
MSRP$93.99
$57.74
Save 39%In stock: 561
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

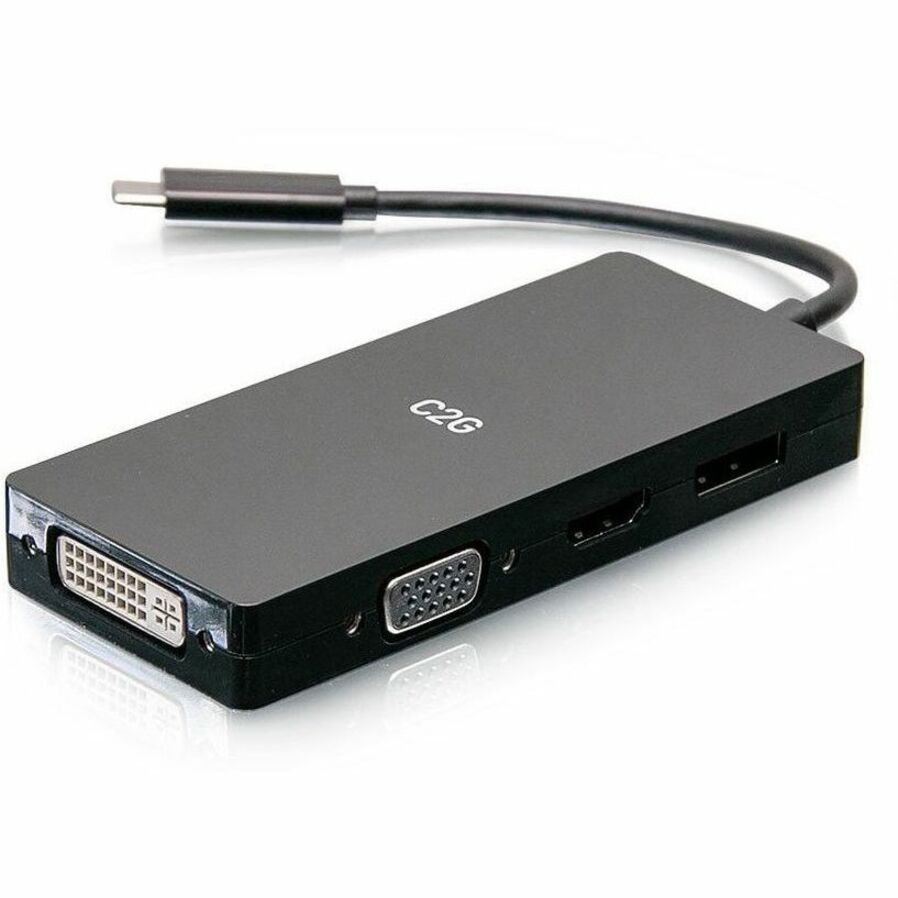

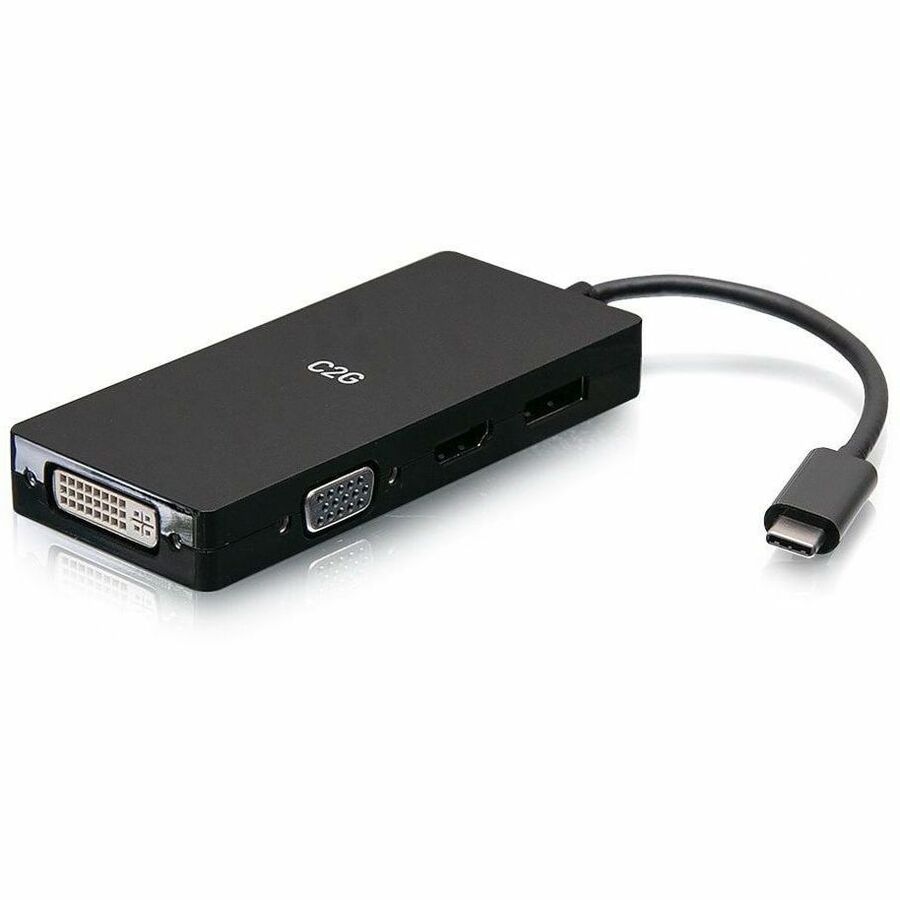

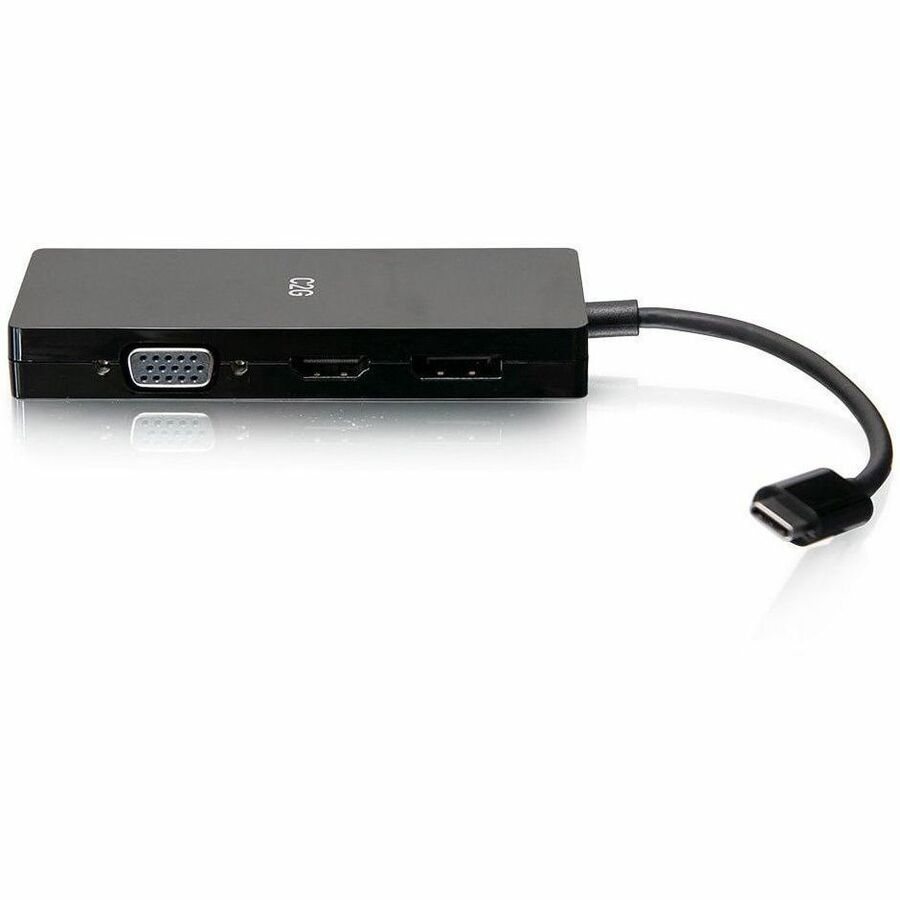

This USB-C Multiport Adapter is an easy and convenient solution for connecting an HDMI, DisplayPort, DVI, or VGA monitor to a USB-C computer in your home or your office. This multiport adapter supports up to a 4K resolution for HDMI or DisplayPort and a 1080p resolution for DVI or VGA, and meets the requirements of high performance applications.
Avoid frustration by simply plugging the multiport adapter into your computer, then attach to the existing cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.
This multiport adapter automatically converts USB-C to HDMI or DisplayPort, supporting full HD resolutions up to 4K (3840 x 2160) at 60Hz. The adapter also converts USB-C to DVI or VGA, supporting resolutions up to 1920 x 1080 at 60Hz.
Signal Specifications
DisplayPort/HDMI: Resolution up to 4Kx2K @ 60Hz
DVI/VGA: Resolution up to 1080p @ 60Hz
Support: Plug-and-Play
Note: When multiple outputs are connected, DP has the highest priority, followed by HDMI, DVI and VGA are the lowest.
Electrical Specifications
Cable: USB 3.1 OD: 3.9MM ~ PVC Black No Print
Rated Temperature: 80°C ; Voltage: 30V
Conductor Resistance: At 20°C Max 34AWG: 860 OHMS/KM
Insulation Resistance: 10M-KM MIN at 20°C DC 500V.(EIA-364-21)
Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA-364-20)
Physical Specifications
Operating Temperature: 0° to +45°C; 15-85% RH (Non-Condensing)
Storage Temperature: -10° to +70°C; 15-85% RH (Non-Condensing)
Physical Characteristics

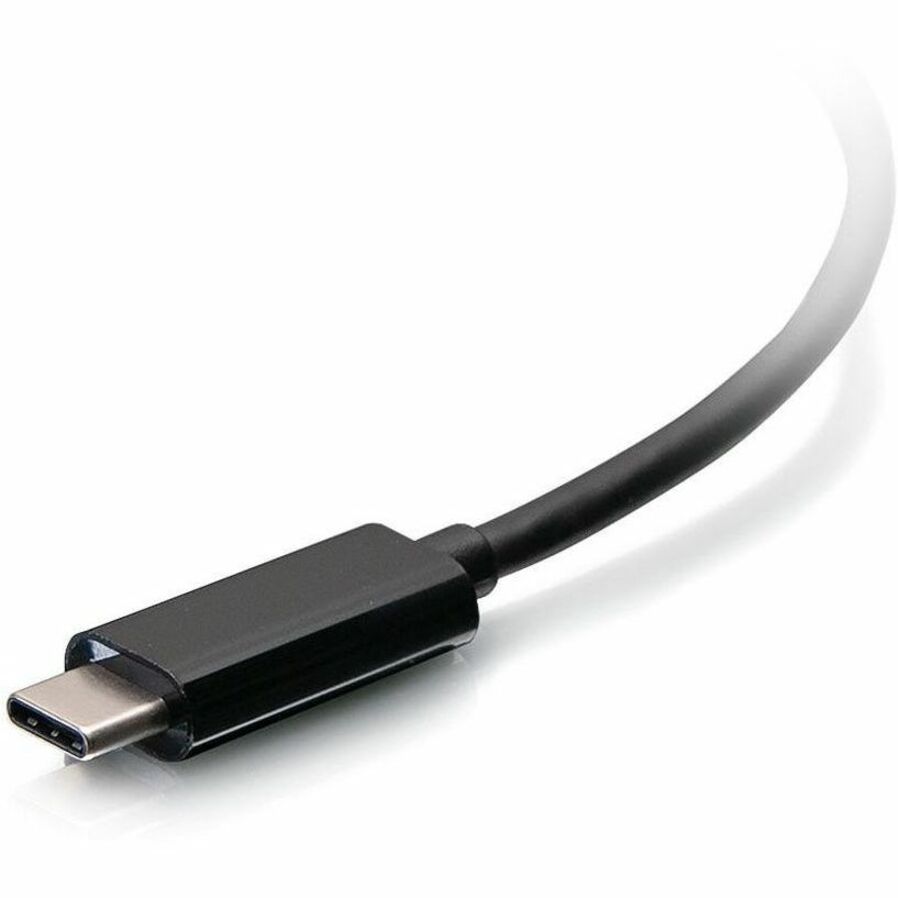

Connector P1: USB 3.1 Type-C Male: Terminal Contacts Gold Plated 3U, Nickel Plated Shell; Black Insulation
Connector P2-1: VGA Female: Front Rivet Nut, Black Insulation, Iron Shell Nickel Plated with PCB
Connector P2-2: HDMI Female: 19 Pin A/F Iron Shell Nickel Plated - Gold Plated Terminal G/F with PCB
Connector P2-3: DP Female: Black Insulation, Iron Shell Nickel Plated - Flat Mouth - Pin - Gold Plated with PCB
Connector P2-4: DVI Female: Front Rivet Hexagon Nickel Plated Nut - White Plastic Core - Iron Shell Nickel Plated with PCB
Molding Material P1: Black PVC Conform RoHS
Molding Material P2: Black PVC Conform RoHS
Inspection: 100% Test for Short/Open
Inspection: 100% Transmission rate test (300M/S); 100% Full Functional Tests to all Ports
Product is CE marked and conforms to 2011/65/EU ROHS 2
Limited Warranty: 5 Year
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
| Host Interface | USB Type C |
|---|---|
| Product Type | Docking Station |
| Compatibility | USB-C Computer |
| Device Supported | Desktop PC, Monitor, Projector |
| Manufacturer Part Number | C2G54454 |
| Limited Warranty | 5 Year |
| Form Factor | Portable |
| Manufacturer | Legrand Group |
| Product Name | Docking Station |
| Brand Name | C2G |
| Country of Origin | China |
| Height | 0.55" |
| Width | 1.81" |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| DVI | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 1 |
| Number of DisplayPorts | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C Male |
| Number of USB Type-C Ports | 1 |
| Product Color | Black |
| Supported Resolutions | 3840 x 2160, 1920 x 1080 |
| Screen Mode Supported | 4K @30Hz, 4K @ 60Hz, 4K, Full HD |
