Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
41509
Category
Component Speakers
Overview

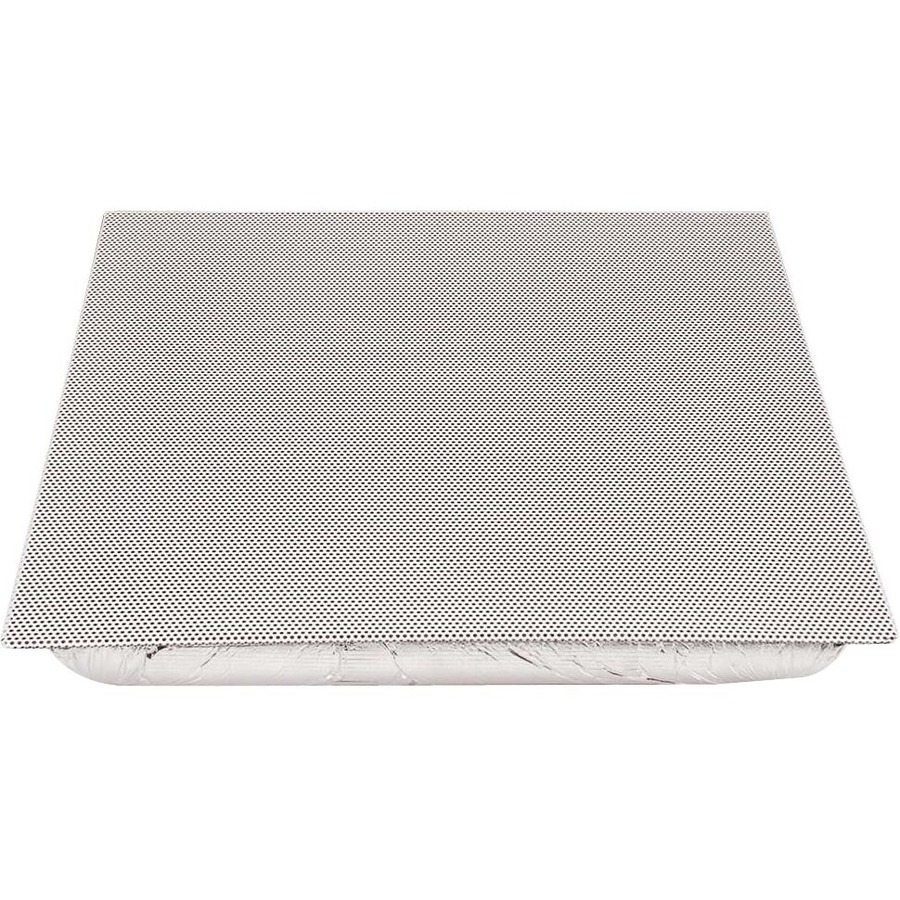

The Plenum-Rated 2x2 Drop In Ceiling Speaker is specifically designed for use in K-12 classrooms to deliver high quality audio from multimedia presentations, video clips, movies and other curriculum throughout the classroom. This speaker is designed to mount in the drop-ceiling frame that is often present in classrooms. Available in an industry standard 70 volt version with a 25 volt tap, this speaker ensures long life and quality sound. The Plenum-Rated 2x2 Drop In Ceiling Speaker has 0.5, 1.0, 2.0 and 4.0 watt taps to integrate seamlessly with a 70 or 25 volt amplifier to provide a complete classroom sound system. Additionally, the speakers can be combined with the A/V controller and RapidRun® for a complete connected classroom. This ceiling mount speaker provides a clean, unobtrusive look while dispersing sound down to students at 100 degrees for full classroom coverage.
Warranty
Limited Warranty: 3 Year
About Legrand
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application.
We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services.
Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run.
We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE
against defects in workmanship.
Highlights
8 inch outer diameter dual cone speaker with 100° coverage angle

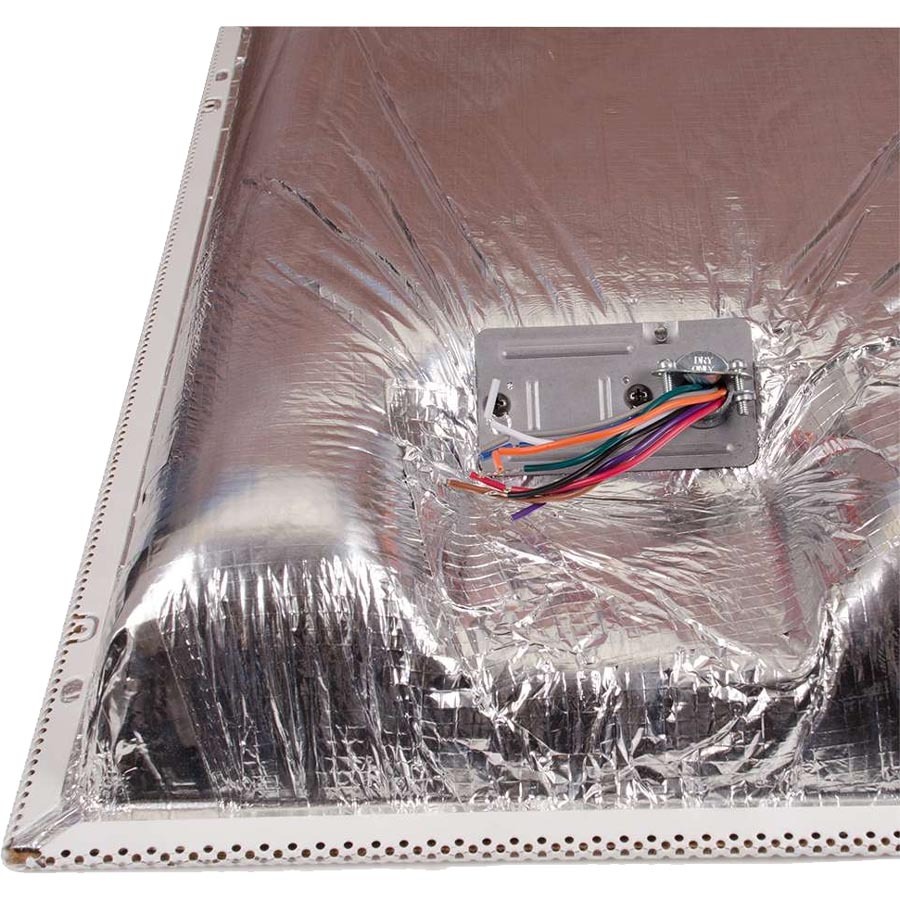

5 oz. magnet with a TBLU-5W-25/70V transformer

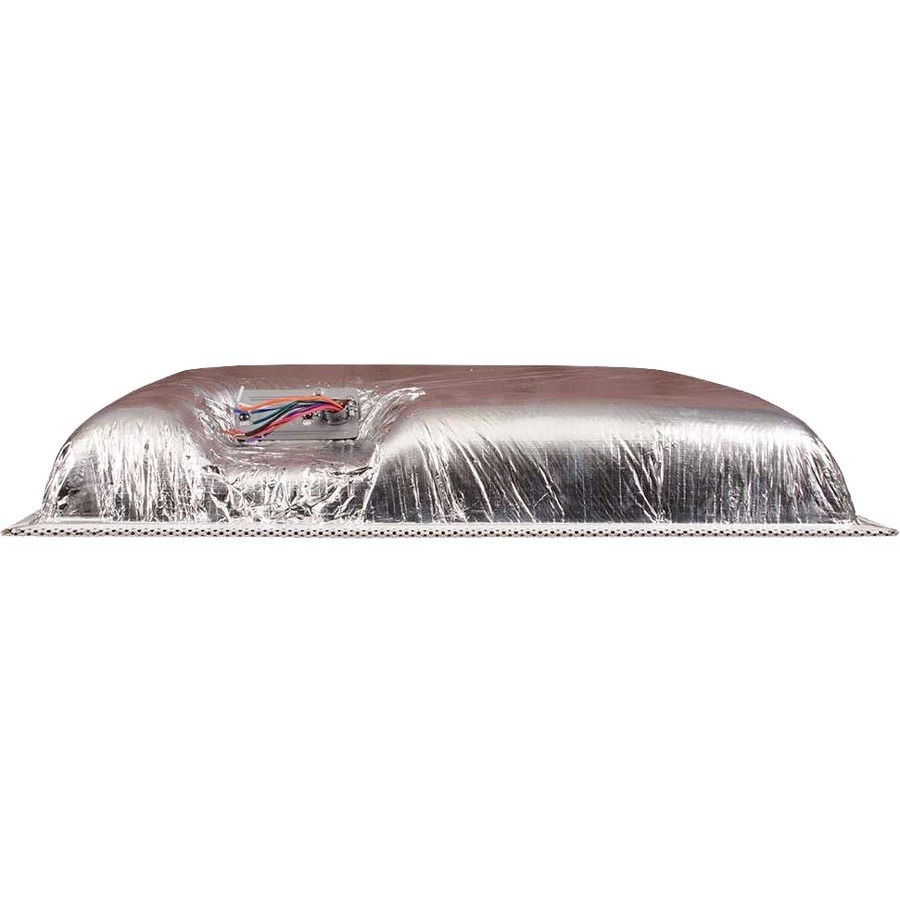

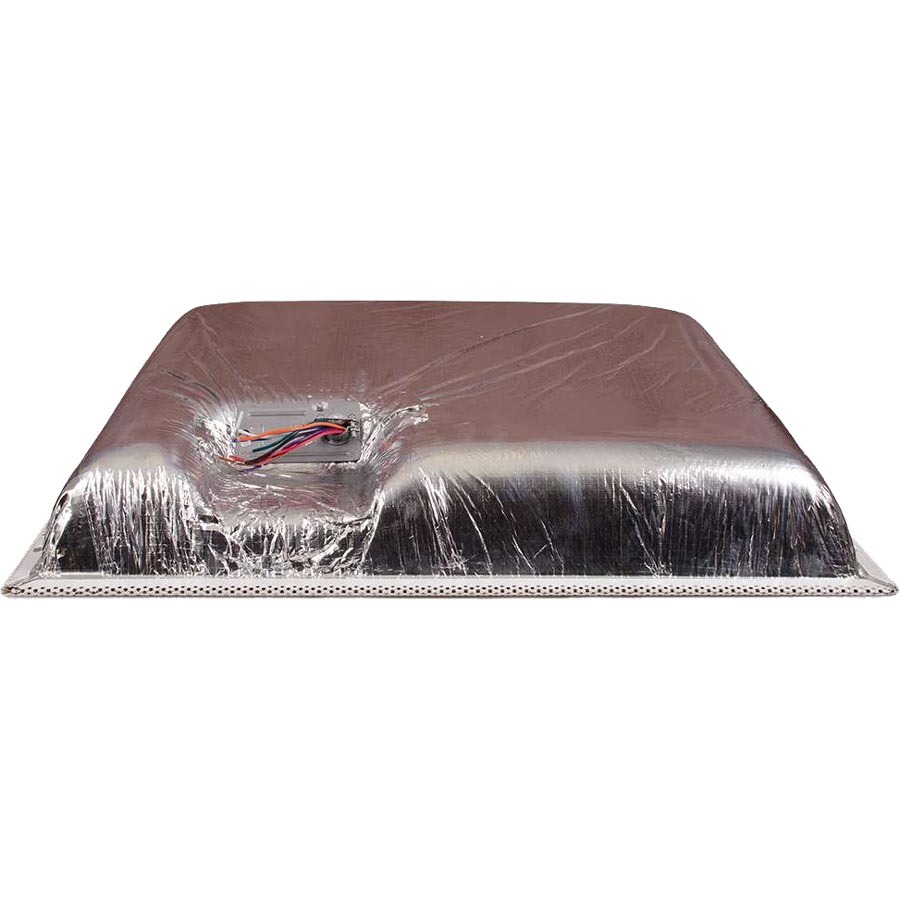

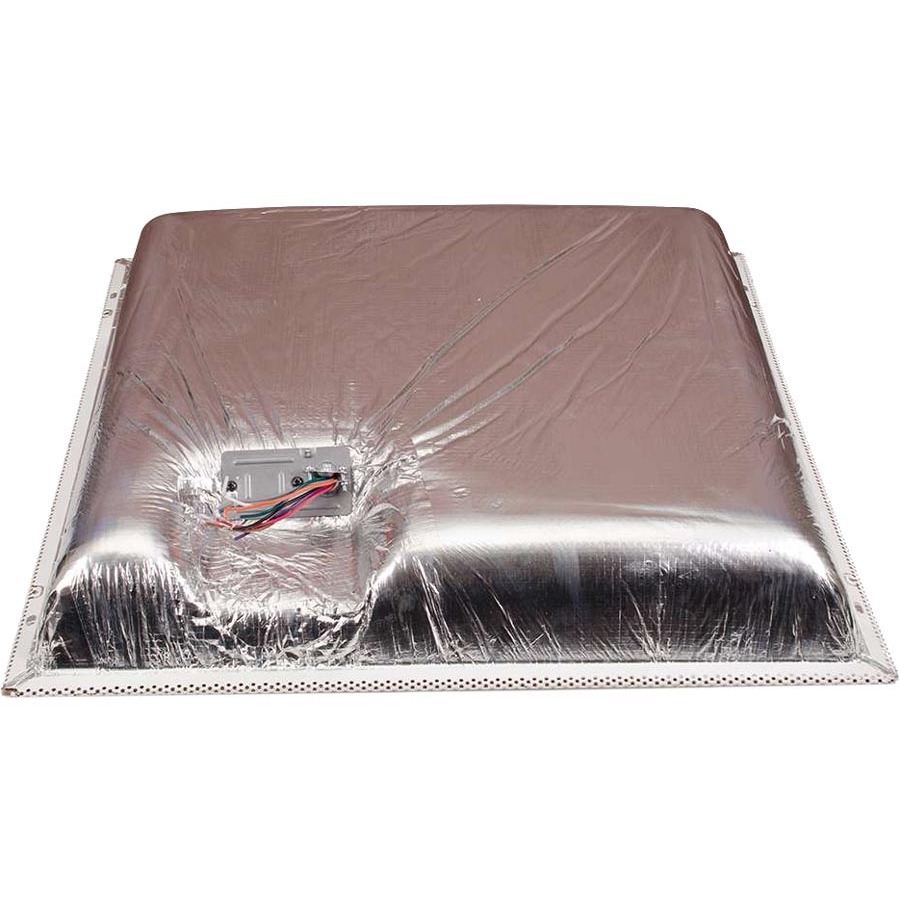

Plenum rated enclosure
Seismic tie-off points
Specifications
Product Type
Speaker
Manufacturer Part Number
41509
Sensitivity
92 dB
Limited Warranty
3 Year
Weight (Approximate)
6.15 lb
Form Factor
In-ceiling
Manufacturer
Legrand Group
Product Name
2x2 Drop In Ceiling Speaker - 70/25 Volt - Plenum Rated (TAA Complaint)
