SKU
FAP40T
Category
Component Speakers
Overview

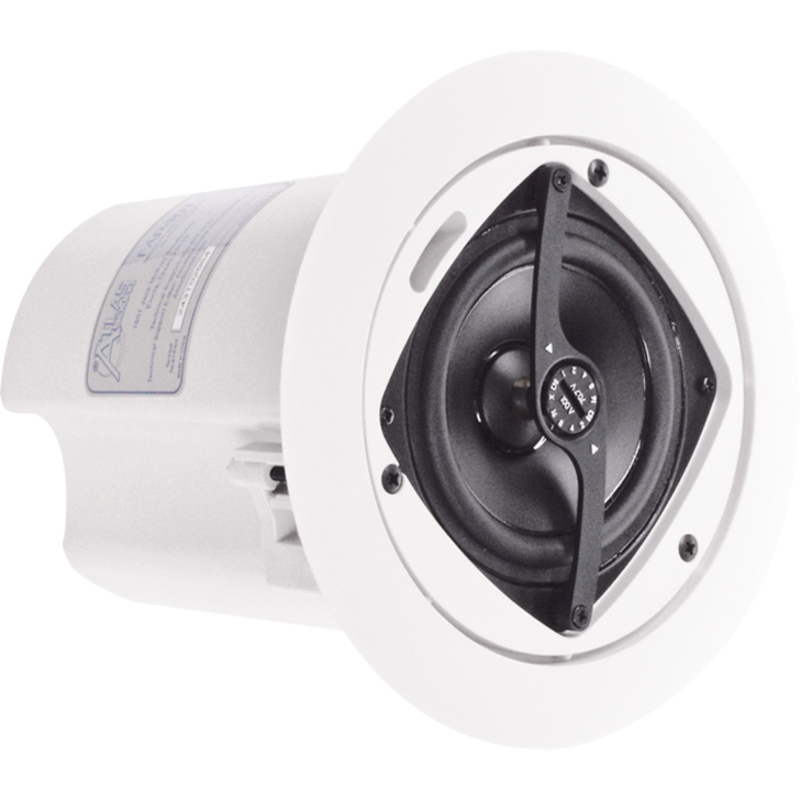

Designed to provide high performance in a very compact footprint, the FAP40T appeals to both system designers and architects. FAP40T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. A unique (patent pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 16 watts as well as an 8 ohm transformer bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" polypropylene driver. In fact, the high frequency response of the FAP40T is so natural that many would assume that the driver in the FAP40T was a coaxial design instead of a single cone driver. Low frequency response is enhanced by the tuned and ported enclosure design. The enclosure (UL1480 pending) is constructed of high impact injection molded plastic and includes a press fit grill design that blends quite well with contemporary architecture. A two pole terminal strip housed below a metal removable cover on the back of the FAP40T enclosure allows for easy system wiring as well as "daisy chain" wiring to other FAP40T's or even FASUB70 subwoofers (a great combination!).
Warranty
Limited Warranty: 1 Year
Highlights
Significantly enhance the sound from your devices and drives, get immersed in sound quality
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Listen to deep lows and euphoric highs with a frequency range of sound from 80 Hz-15 kHz
Handles up to 16 W of RMS power
4" woofer driver size allows better stereo imaging with maximum sound feasibility
Offers great productivity with 15 kHz maximum frequency response
87 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
In-ceiling form factor for your convenience and simplicity of usage
Indoor speaker installation provides a reliable sound output solution with fixed mounting inside your house/office/institution/caf/restaurant
7.1" height for efficient frequency access and optimal operation
Specifications
General Information
Manufacturer
AtlasIED
Manufacturer Part Number
FAP40T
Brand Name
AtlasIED
Product Line
Strategy
Product Model
FAP40T
Product Name
4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8? Bypass
Product Type
Speaker
Physical Characteristics
Product Color
White
Form Factor
In-ceiling
Speaker Installation
Indoor
Height
7.1"
Depth
7.13"
Diameter
7.4"
Technical Information
RMS Output Power
16 W
PMPO Output Power
32 W
Woofer Driver Size
4"
Woofer Driver Material
Polypropylene
Minimum Frequency Response
80 Hz
Maximum Frequency Response
15 kHz
Impedance
8 Ohm
Sensitivity
87 dB
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8? Bypass
