C2G TruLink Dual Gang VGA+3.5mm+Composite+Decora over Cat5 Receiver- Aluminum
16:10 - HD Progressive 1.1 - 100" Height x 159.8" Width - Wall/Ceiling Mount
- SKU
- 29239
- Category
- Projection Screens
MSRP$33,411.00
$22,899.55
Save 31%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 29239
- Category
- Projection Screens
Overview

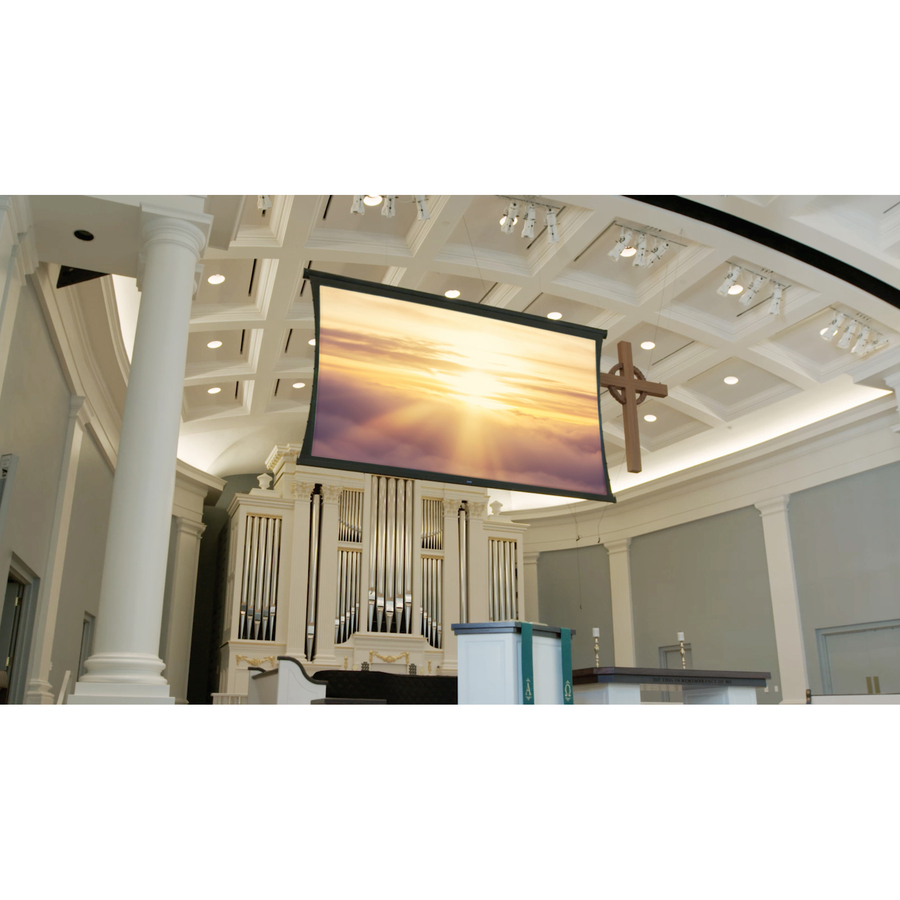

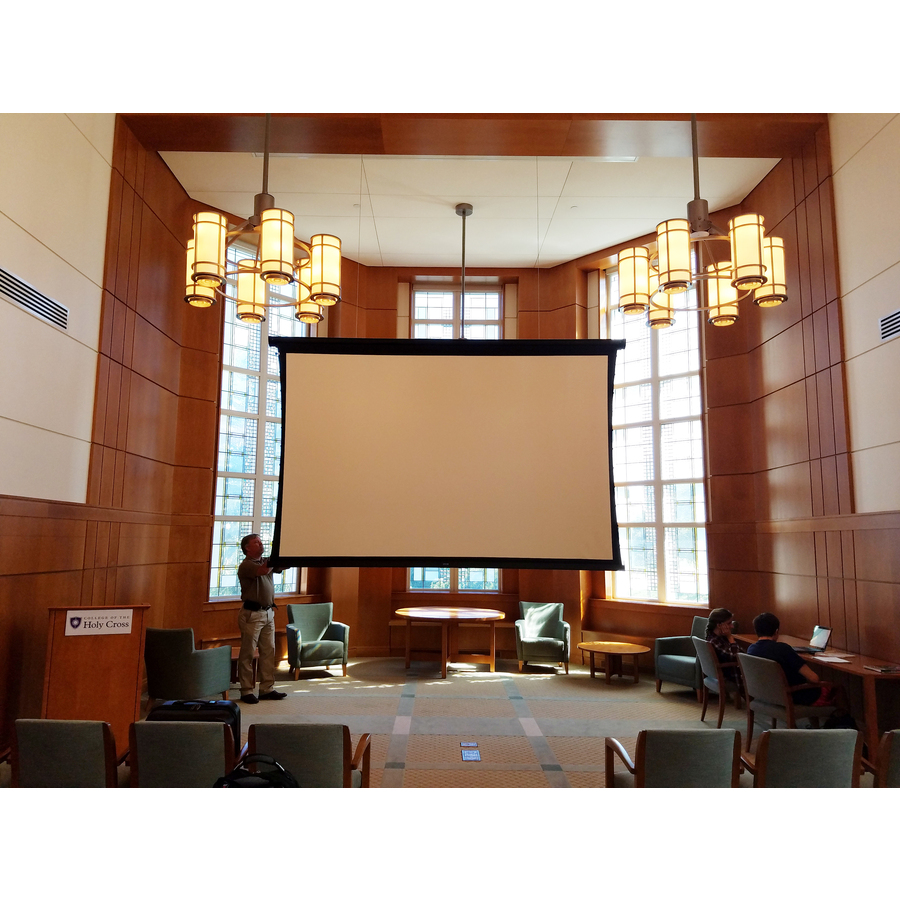

Designed for large venues, the Wireline uses thin steel cables up to 29 feet instead of black drop to lower the screen to an appropriate viewing height for a clean, aesthetically pleasing presentation. The Wireline? Advantage® screen features simple in-ceiling installation with sliding brackets and ceiling trim built into the housing. The extra step of concealing the rough opening with ceiling trim is eliminated. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Advantage® tensioned screens ensure the smoothest surface possible for high quality image projection.
Highlights

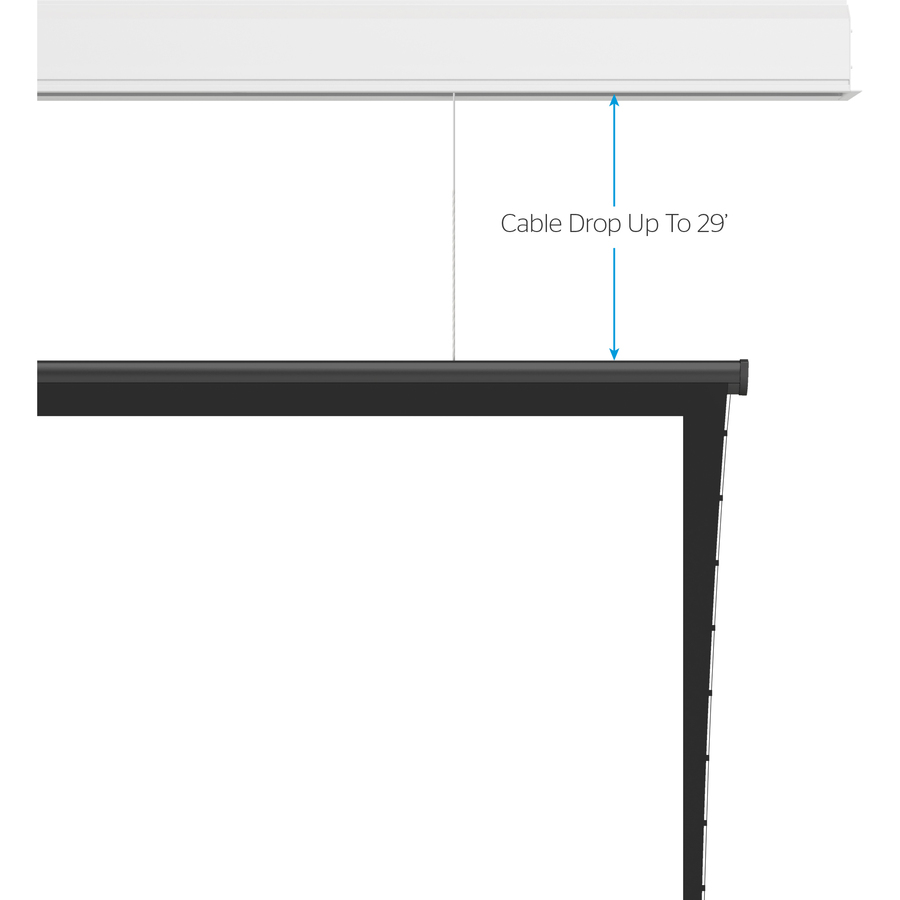

- Up to 29' of cable to accommodate appropriate viewing height in rooms with high ceilings
- Available without trim flange for non-ceiling recessed applications
- Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- UL Plenum rated case
- Standard radio frequency motor with hand-held remote and dry contact interface
- Optional radio frequency control accessories include single channel wall switch and RS-232 interface
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models
- Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
Specifications
| Aspect Ratio | 16:10 |
|---|---|
| Package Contents |
|
| Product Type | Projection Screen |
| Diagonal Image Size | 189" |
| Manufacturer Part Number | 29239 |
| Limited Warranty | 5 Year |
| Manufacturer | Legrand Group |
| Product Name | Wireline Advantage Projection Screen |
| Mount Type | Wall/Ceiling Mount |
| Product Line | Wireline Advantage |
| Brand Name | Da-Lite |
| Screen Fabric | HD Progressive 1.1 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD Gold, GREENGUARD |
| Screen Folding Mechanism | Electric |
| Screen Height | 100" |
| Screen Width | 159.8" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
