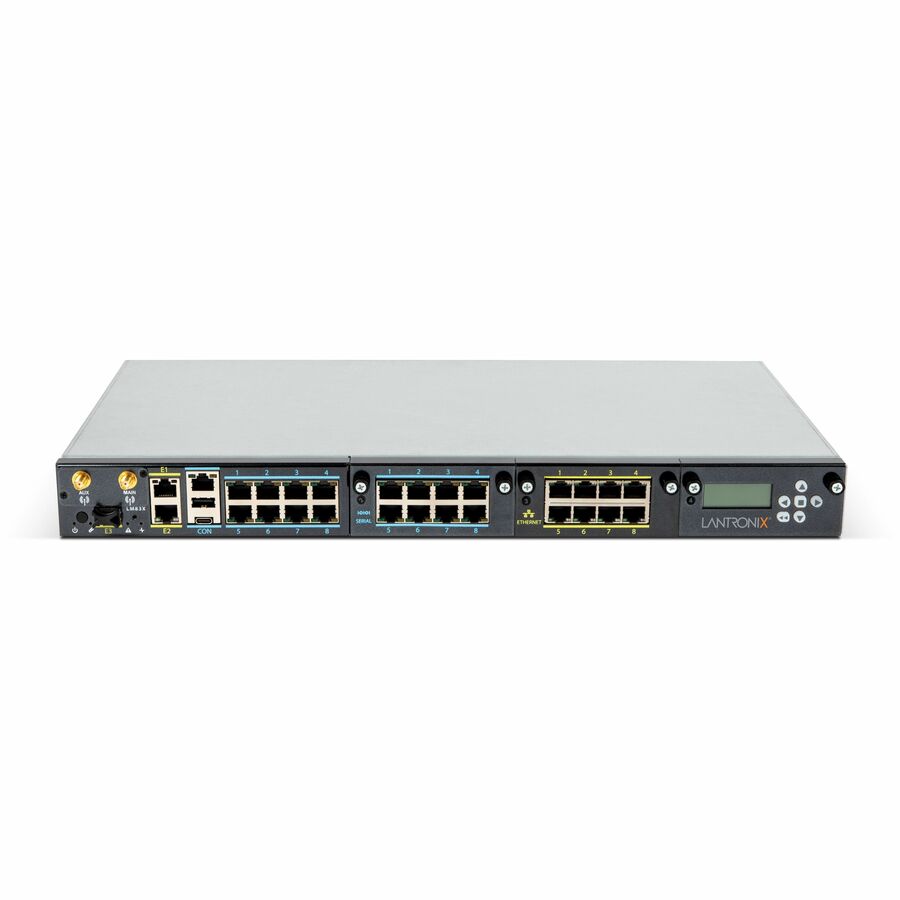

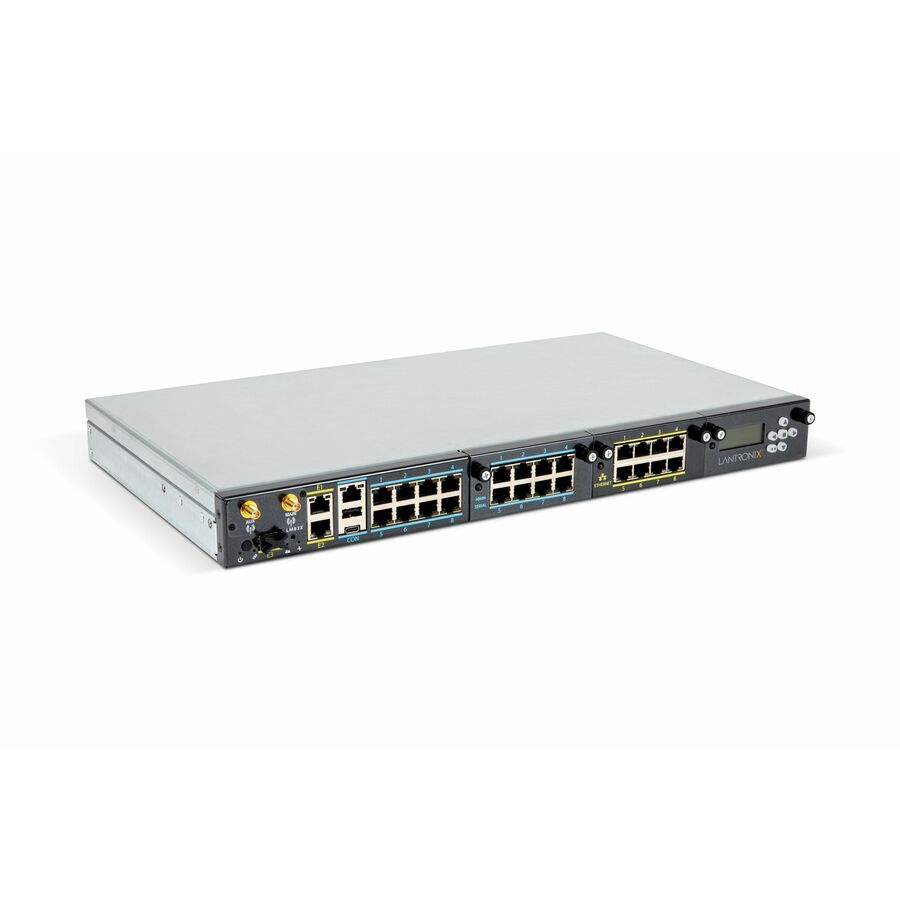

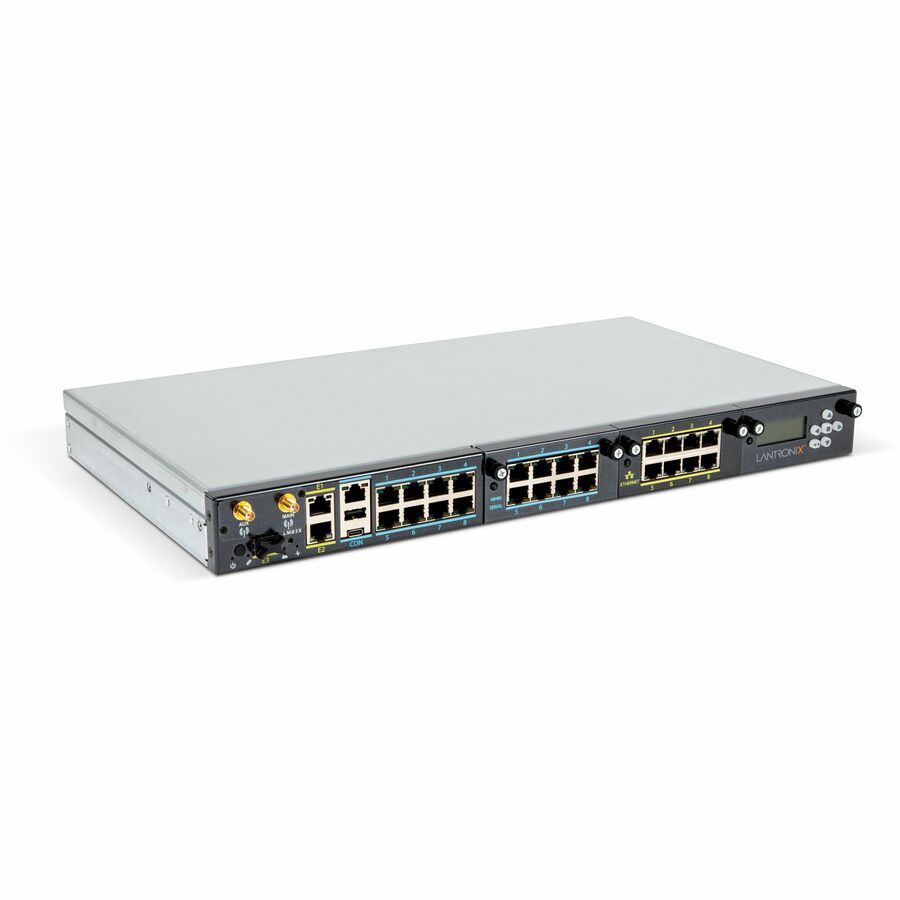

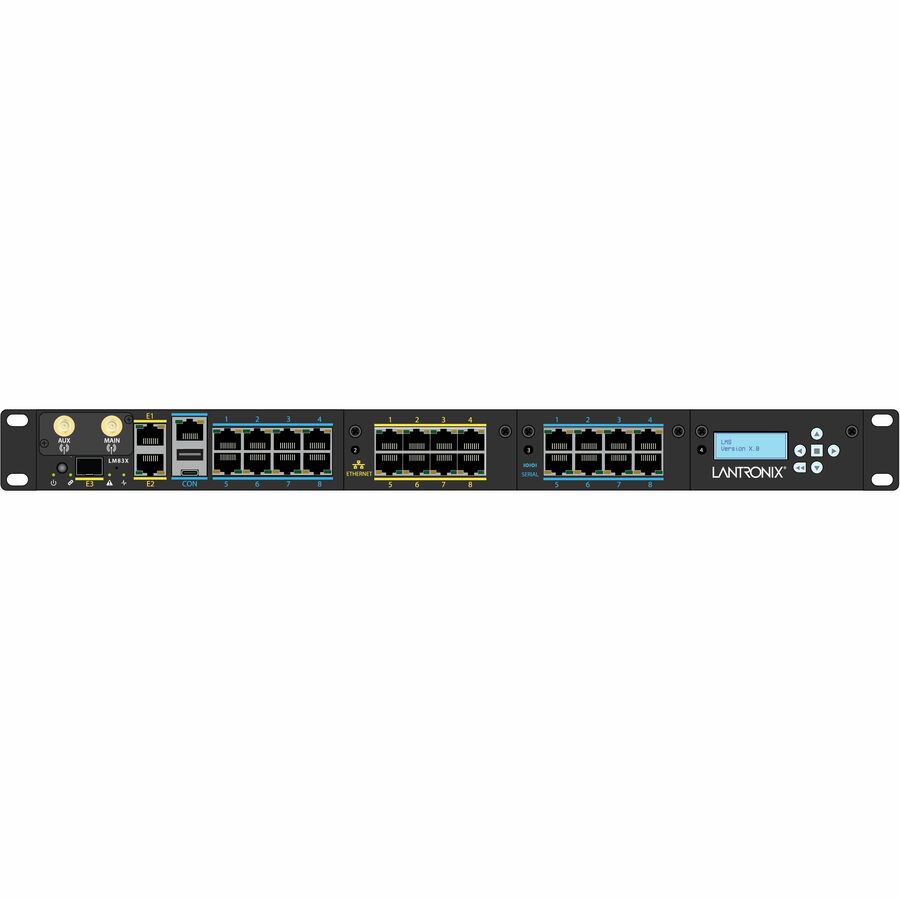

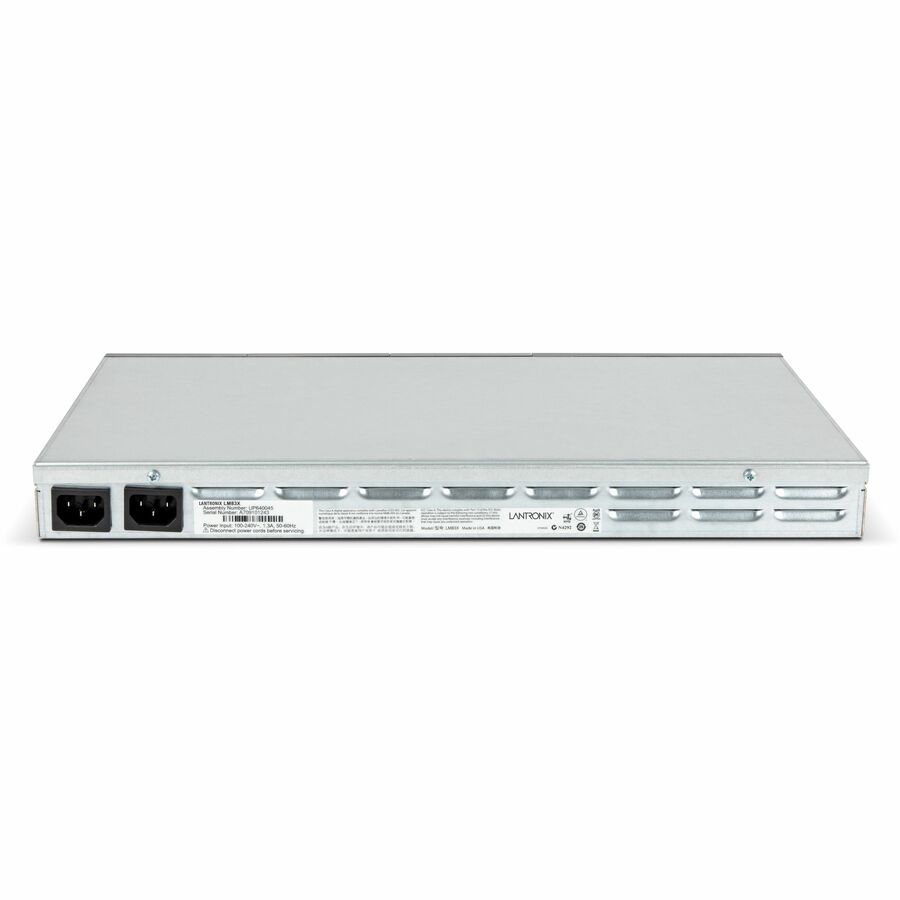

Lantronix 24-Port LM83X - FIPS Certified

250 GB - Twisted Pair - 3 Total Expansion Slot(s) - 11 x Network (RJ-45) - 2 x USB - 24 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - Management Port - Rack-mountable - TAA Compliant

SKU
83X-24S-E24-YAA
Category
Terminal & Device Servers

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
83X-24S-E24-YAA
Category
Terminal & Device Servers

Overview

The Most Advanced Console Server

Designed from the ground up as a modular platform able to act independently from the network to remotely monitor, manage and control up to 104 devices over a serial console connection, the LM83X is the fifth generation Local Manager.

Configurable to manage 8-104 devices directly over RS-232 connections, the LM-Series is also capable of managing virtual environments and SD-WAN deployments to increase resiliency. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure, automation of day-to-day management and the go-to source of information and response during network emergencies.

Specifications

Package Contents
  • 24-Port LM83X- FIPS Certified
  • 2 x Power Cords
  • 2 x Rack Mount Ears
  • 4 x Mounting Screws
  • 1 x USB-A to USB-C cable
  • 1 x Connection Instruction Sheet
  • 1 x Warranty Booklet
  • LMS
Product TypeDevice Server
Input Voltage120 V AC, 230 V AC
Manufacturer Part Number83X-24S-E24-YAA
Limited Warranty1 Year
Standard Memory250 GB
Weight (Approximate)8.20 lb
Form FactorRack-mountable
ManufacturerLantronix, Inc
Product ModelLM83X
Product Name24-Port LM83X - FIPS Certified
Power Consumption60 W
Product SeriesLM
Brand NameLantronix
Input Voltage Range100 - 240 VAC
Country of OriginUnited States
Height1.7"
Width17.5"
Depth10.4"
Network Standard10/100/1000Base-T
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
USBYes
Number of Network (RJ-45) Ports11
Network (RJ-45)Yes
Number of USB Ports2
Serial PortYes
Management PortYes
Media Type SupportedTwisted Pair
Number of Serial Ports24
Total Number of Expansion Slots3
TAA CompliantYes
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
