250 GB - Twisted Pair - 3 Total Expansion Slot(s) - 11 x Network (RJ-45) - 2 x USB - 24 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - Management Port - Rack-mountable - TAA Compliant
SKU
83X-24S-E11-NAA
Category
Terminal & Device Servers
$4,601.46
Back-ordered
Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
83X-24S-E11-NAA
Category
Terminal & Device Servers
Overview

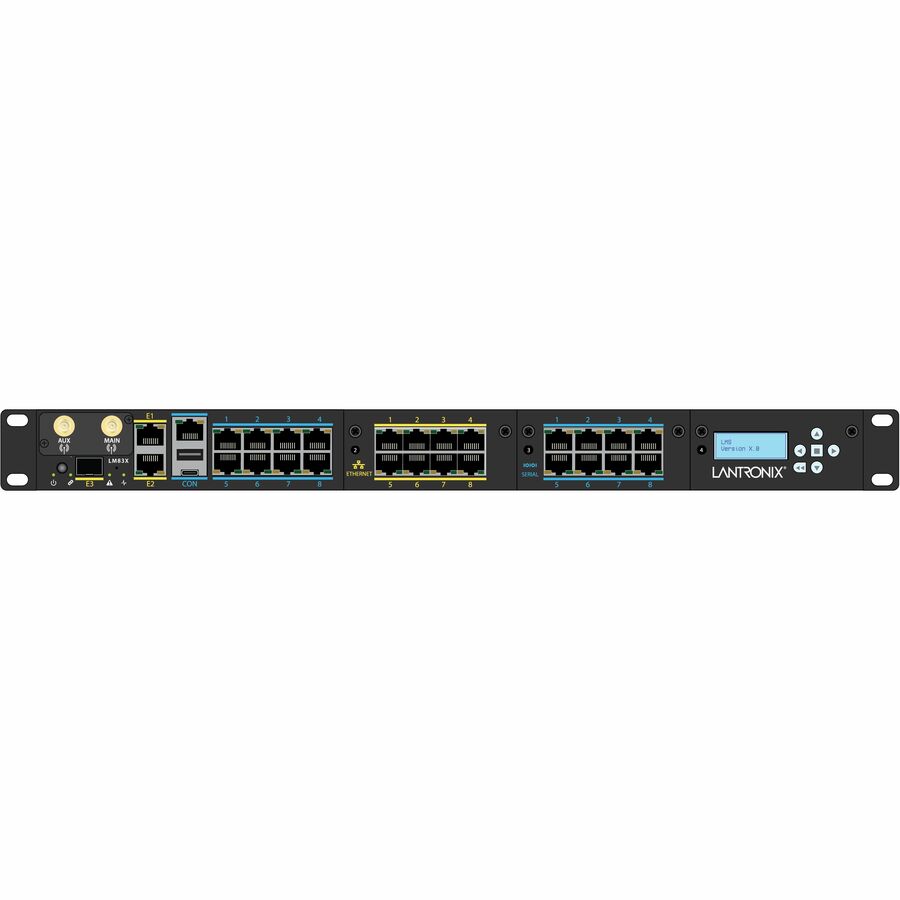

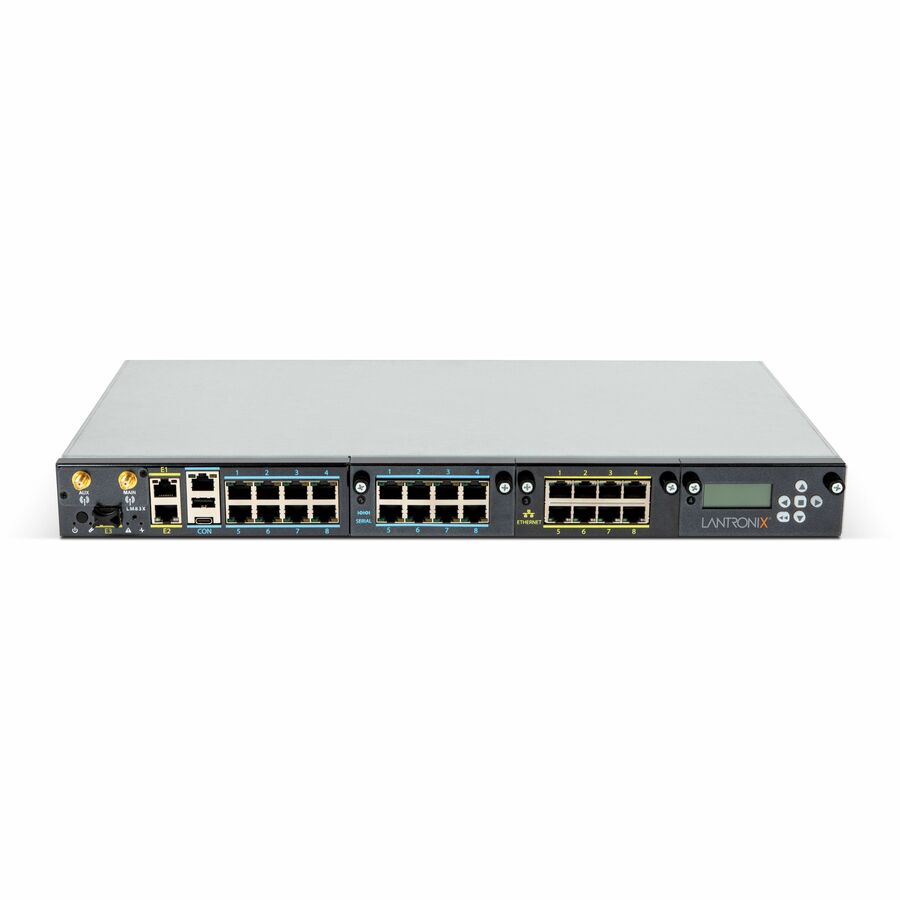

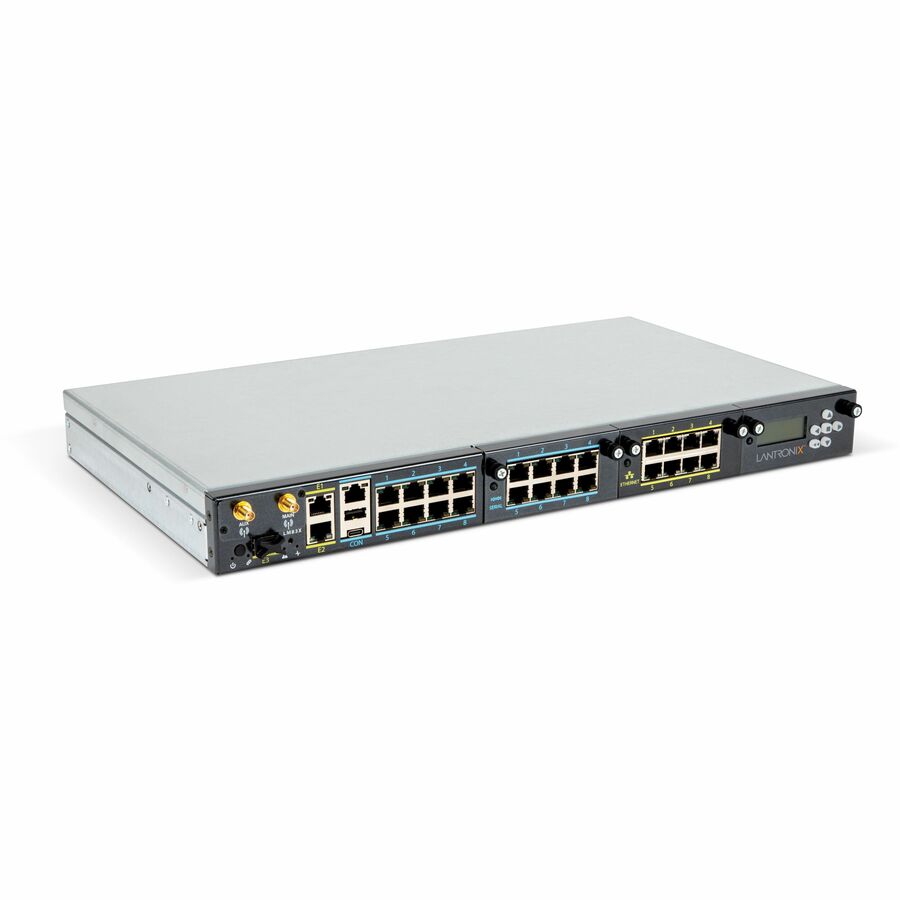

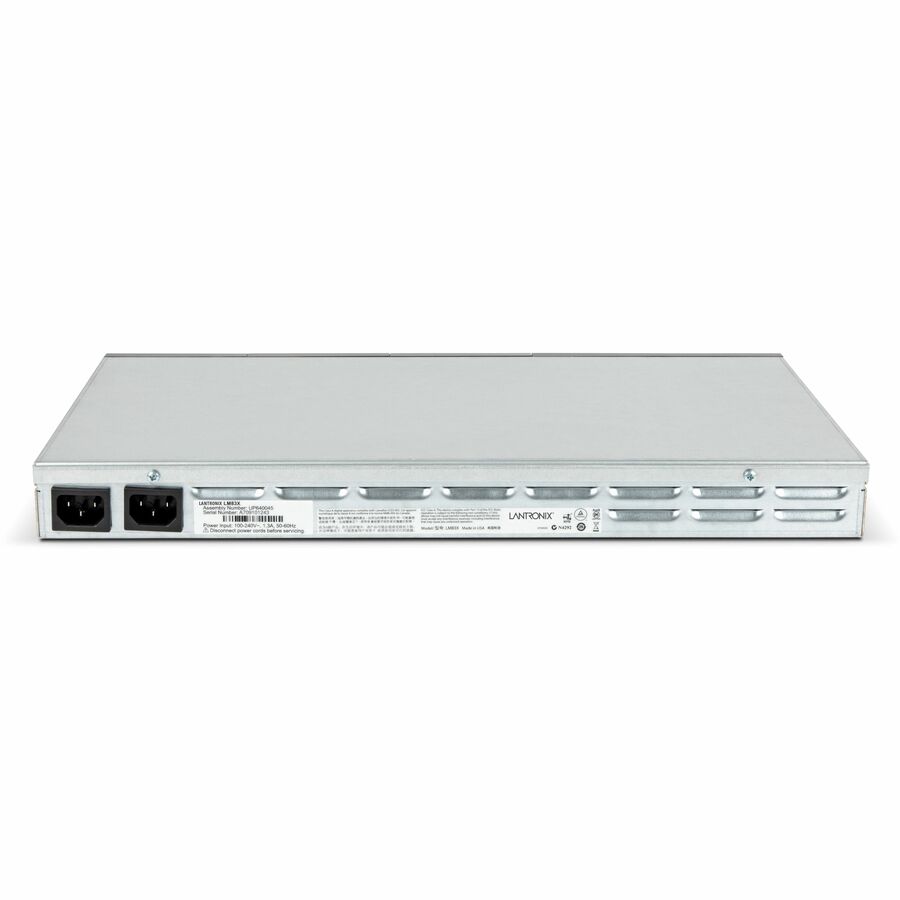

The Most Advanced Console Server
Designed from the ground up as a modular platform able to act independently from the network to remotely monitor, manage and control up to 104 devices over a serial console connection, the LM83X is the fifth generation Local Manager.
Configurable to manage 8-104 devices directly over RS-232 connections, the LM-Series is also capable of managing virtual environments and SD-WAN deployments to increase resiliency. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure, automation of day-to-day management and the go-to source of information and response during network emergencies.
Specifications
Package Contents
24-Port LM83X
2 x Power Cords
2 x Rack Mount Ears
4 x Mounting Screws
1 x USB-A to USB-C cable
1 x Connection Instruction Sheet
1 x Warranty Booklet
LMS
Product Type
Device Server
Input Voltage
120 V AC, 230 V AC
Manufacturer Part Number
83X-24S-E11-NAA
Limited Warranty
1 Year
Standard Memory
250 GB
Weight (Approximate)
8.20 lb
Form Factor
Rack-mountable
Manufacturer
Lantronix, Inc
Product Model
LM83X
Product Name
24-Port LM83X
Power Consumption
60 W
Product Series
LM
Brand Name
Lantronix
Input Voltage Range
100 - 240 VAC
Country of Origin
United States
Height
1.7"
Width
17.5"
Depth
10.4"
Network Standard
10/100/1000Base-T
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
USB
Yes
Number of Network (RJ-45) Ports
11
Network (RJ-45)
Yes
Number of USB Ports
2
Serial Port
Yes
Management Port
Yes
Media Type Supported
Twisted Pair
Number of Serial Ports
24
Total Number of Expansion Slots
3
TAA Compliant
Yes
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
