96W PD
for Headphone, Solid State Drive, Microphone, Monitor - Memory Card Reader - SD, microSD - Thunderbolt 4 - 2 Displays Supported - 8K, 4K - 7680 x 4320, 3840 x 2160 - 6 x USB Ports - 4 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - Black, Gray - Thunderbolt - Wired - Gigabit Ethernet - Windows 10 - 96W
$306.36
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
Genuine Kensington Computer Products through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Features | Designed Exclusively for Surface
Kensington worked directly with Microsoft to provide professional-level connectivity that looks as good as it functions. Connect with confidence for a seamless dock and charge experience.
Plug-and-Play
Offers a quick and powerful plug-and-play solution for Thunderbolt based Surface devices running Windows (10 or later).
Thunderbolt 4 Technology
Supports next-level Thunderbolt experiences. Transfers up to 40Gbps of data, video, and audio. Provides daisy chain support for SSDs, monitors, and other Thunderbolt devices. Blocks peripheral devices from unauthorized access to your system memory using Intel VT-d DMA protection.
Single 8K or Dual 4K Support for Thunderbolt Devices
Extend visual productivity with the resolution, contrast, and color depth of Ultra HD. Supports up to Single 8K @ 60Hz via a Thunderbolt 4 port or Dual 4K @ 60Hz via two HDMI® ports.
Up to 96W Dynamic Power Delivery
Delivers power whenever and wherever you need it-to host and connected accessories. Supports up to 96W of Power Delivery and provides optimal performance under any usage scenario.
Productive 13-in-1 Design
Extend your productivity with two HDMI® ports, one Thunderbolt 4 port, one Thunderbolt 4 host port, one USB-C® 3.2 Gen2 10Gbps port, two USB-A 3.2 Gen2 10Gbps ports, two USB-A 3.2 Gen1 5Gbps ports, one Gigabit Ethernet port, one audio combo jack, and two UHS-II 4.0 SD and Micro SD card readers.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5765T transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.

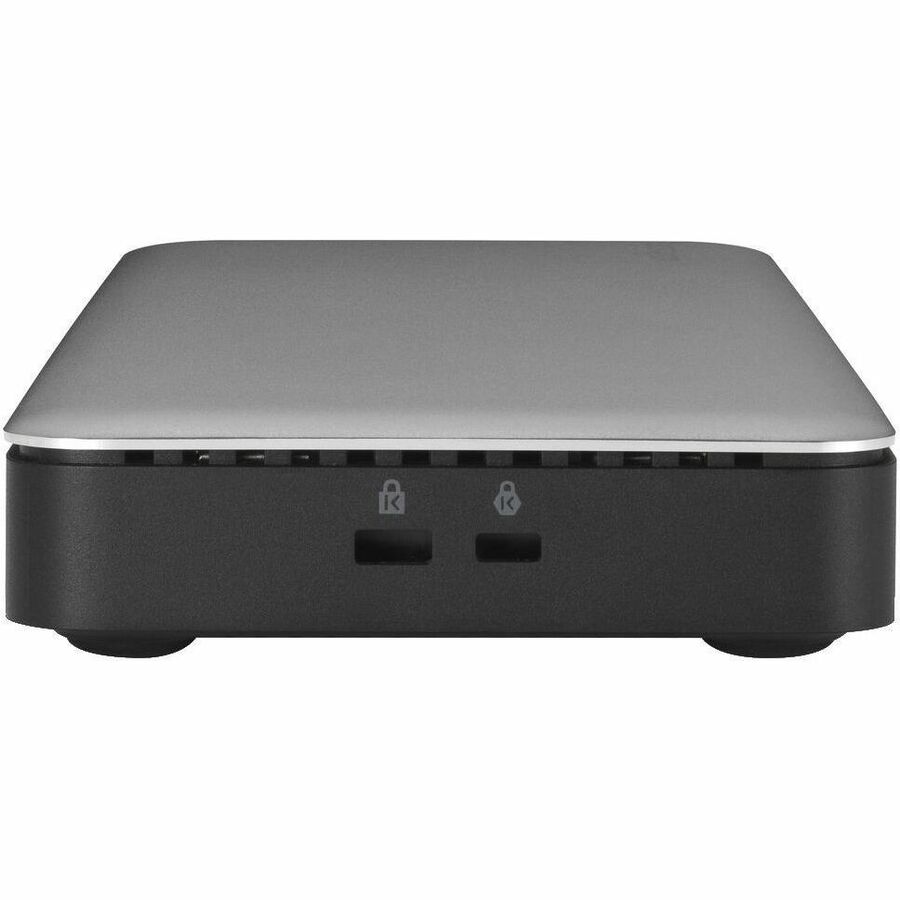

Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
Free Kensington DockWorks Software and 3-Year Limited Warranty
Use our complimentary DockWorks software for the best connection, performance, and security from your Kensington dock-and enjoy peace of mind knowing your covered by Kensington with a professional warranty.
Ideal for professionals and creatives using Thunderbolt based Surface devices who want more speed to work with large files, support for multiple 4K monitors, and more ports so they can connect to accessories without using adapters, the SD5765T Thunderbolt 4 Dual 4K Docking Station is an affordable high-speed dock that provides everything you need to enhance your productivity now and well into the future. Designed exclusively for Surface, the SD5765T Thunderbolt 4 Dual 4K Docking Station provides more speed, more power, and more video options. Delivering 40Gbps data transfer speeds, support for Single 8K or Dual 4K @ 60Hz, two HDMI® ports, multiple USB-C® and USB-A ports, up to 96W of dynamic Power Delivery, and daisy chaining via Thunderbolt 4, the SD5765T provides a true plug-and-play experience and a tidier desktop-so you can be more productive and focused.
• Designed exclusively for Surface to provide a seamless dock and charge experience.
• Plug-and-play solution with no drivers or downloads required.
More from the Manufacturer
Enhanced productivity today and in the future for your Surface.
Ideal for professionals and creatives using Thunderbolt based Surface devices who want more speed to work with large files, support for multiple 4K monitors, and more ports so they can connect to accessories without using adapters, the SD5765T Thunderbolt 4 Dual 4K Docking Station is an affordable high-speed dock that provides everything you need to enhance your productivity now and well into the future.
Designed exclusively for Surface, the SD5765T Thunderbolt 4 Dual 4K Docking Station provides more speed, more power, and more video options. Delivering 40Gbps data transfer speeds, support for Single 8K or Dual 4K @ 60Hz, two HDMI ports, multiple USB-C and USB-A ports, up to 96W of dynamic Power Delivery, and daisy chaining via Thunderbolt 4, the SD5765T provides a true plug-and- play experience and a tidier desktop—so you can be more productive and focused.
Designed exclusively for Surface to provide a seamless dock and charge experience
Transfers up to 40Gbps of data, video, and audio
Supports up to Single 8K @ 60Hz via a Thunderbolt 4 port when DSC is enabled or Dual 4K @ 60Hz via two HDMI ports
Supports up to 96W of Power Delivery and automatically adjusts for optimal performance
13-in-1 design includes Thunderbolt, USB-C, USB-A, HDMI, Ethernet, a combo audio jack, and micro and SD card readers
Limited Warranty: 3 Year
The Professionals' Choice™ With over 40 years of experience, Kensington has been a global leader in desktop productivity solutions since 2006. Known as the Professionals’ Choice, Kensington offers quality-tested products that exceed industry standards, comes with a superior warranty, and provides unmatched support. Built to last with up to 5-year limited warranties, you can trust that our solutions will serve your business for the long haul, reducing unexpected costs and frequent replacements. Experience the harmony of comfort and performance. Your ergonomics and wellness experience should be simple and cohesive, so the results are comfortable, personal, and professional. With Kensington, you gain peace of mind from working with an established U.S.-based partner that organizations worldwide have trusted for over four decades. Whether you're seeking cutting-edge tools to support your company's strategy or looking for the best value to stretch limited budgets, choosing the right tech partner matters.
| General Information | |
|---|---|
| Manufacturer | Kensington Computer Products Group |
| Manufacturer Part Number | K34112NA |
| Brand Name | Kensington |
| Product Model | SD5765T |
| Product Name | SD5765T Thunderbolt 4 Dual 4K Docking Station (DFS) - 96W PD |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB Type-C Ports | 1 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen2 (back) with 5V/1.5A charging |
| Number of USB Type-A Ports | 4 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| USB Power Delivery | 96W |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Product Color | Black, Gray |
| Height | 9.45" |
| Width | 6.69" |
| Depth | 4.13" |
| Weight (Approximate) | 6.03 lb |
| Software | |
| Operating System Supported | Windows 10 |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Device Supported | Headphone, Solid State Drive, Microphone, Monitor |
| Supported Resolutions | 7680 x 4320, 3840 x 2160 |
| Screen Mode Supported | 8K, 4K |
| Memory Card Reader | Yes |
| Memory Card Supported | SD, microSD |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Kensington Security Slot | Yes |
| Compatibility | Microsoft Surface Devices |
| Country of Origin | Vietnam |
