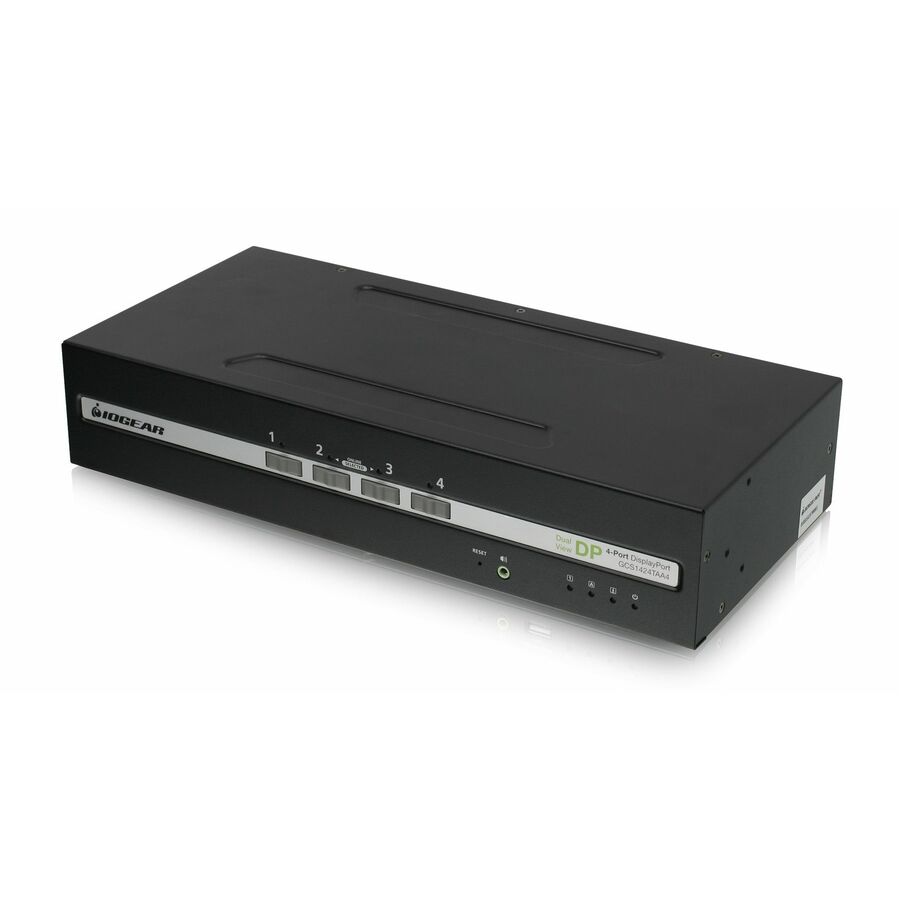

IOGEAR 4-Port Dual View DisplayPort/HDMI Secure KVM Switch w/Audio

4-Port Dual View DisplayPort Secure KVM with Audio Protection Profile v4.0

Secure and manage multiple data-sensitive systems from one workstation from internal and external cybersecurity threats with the TAA-compliant IOGEAR 4-Port Dual View DisplayPort Secure KVM with Audio Protection Profile v4.0. Enable authorized users secure access to up to four systems with one keyboard, mouse, up to two 4K @30Hz monitors.

Featuring the latest in Common Criteria and NIAP Protection Profile v4.0 security requirements set for the U.S. government for peripheral sharing switches, the secure KVM switches are built for multiple interfaces and ideal for use in high-security environments that demand rigorous cybersecurity provisions including military and defense, federal agencies, government, utilities, commercial and healthcare applications.

NIAP Certified, Common Criteria Compliance & TAA Compliant

IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest cybersecurity requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Superior Video Quality

The secure KVM switch supports a dual view display and exceptional 4K Ultra-HD resolutions up to 3840x2160 @30Hz. With the addition of the universal KVM cables, the secure KVM switch can support any monitor port even if the monitor uses a different display standard while enabling a universal display standard.

Active Tamper-Proof System

IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.

With the combination of physical and software security, secure KVM switches offer secure air-gap network isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.

Compatible with IOGEAR Remote Port Selector

Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.

Data Channel Isolation and Unidirectional Data Flow

IOGEAR Secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.

Multiple Video Interface Support

Connect multiple to multiple port configurations with IOGEAR Universal KVM cables* enabling IT administrators options for preventing compatibility issues with diverse secure computer ecosystem. The universal KVM cables connect multiple video sources to a IOGEAR KVM even if they are using different display standards. This flexibility enables IT managers to deploy the same KVM switch across their network without the need for unreliable active cables or costly external video converters or additional docking stations. The universal cables options include HDMI® to DisplayPort, DVI to DisplayPort and USB Type-C to DisplayPort.

Universal 4-Port Dual View DisplayPort/HDMI Secure KVM Switch Kit w/Audio

NIAP-Certified PP4.0

Validated to Protection Profile for Peripheral Sharing Device v4.0

4-Port Dual View DisplayPort/HDMI Secure KVM Switch

One USB console controls 4 secure computers on 2 displays

Superior 4K UHD Video Resolution

UHD Resolution: 3840 x 2160 @30Hz

4-Port Dual View DisplayPort/HDMI Universal Secure KVM Switch Kit w/Audio

Secure and manage multiple data-sensitive systems from one workstation from internal and external cybersecurity threats with the TAA-compliant IOGEAR 4-Port Dual View DisplayPort/HDMI Universal Secure KVM Switch Kit w/Audio. Enable authorized users secure access to up to four systems with one keyboard, mouse, up to two 4K @30Hz monitors.

Featuring the latest in Common Criteria and NIAP Protection Profile v4.0 security requirements set for the U.S. government for peripheral sharing switches, the secure KVM switches are built for multiple interfaces and ideal for use in high-security environments that demand rigorous cybersecurity provisions including military and defense, federal agencies, government, utilities, commercial and healthcare applications.

Features

NIAP-Certified PP4.0

Validated to Protection Profile for Peripheral Sharing Device v4.0

4-Port Dual View DisplayPort/HDMI Secure KVM Switch

One USB console controls 4 secure computers on 2 displays

Superior 4K UHD Video Resolution

UHD Resolution: 3840 x 2160 @30Hz

Multiple Video Interface Support

Support DisplayPort and HDMI video interfaces

Port Selection via Push-Button and Remote Port Selector** for Enhanced Security

Keyboard restrictions - OSD & hotkey methods are not allowed

Isolated Channel per Port

Unidirectional data flow restricts data leakage between connected computers

Active Chassis Intrusion Detection

Compromising the unit's cover renders the switch inoperable

Tamper-Evident Seals

Visually detect attempts to gain access to switch's internal components

Tamper-Proof Hardware

Integrated circuits are soldered directly onto the circuit board to hinder component sabotage

Non-Reprogrammable Firmware

Prevents tampering and attempts to reprogram the switch's firmware

Clears Keyboard Buffer

Data clears automatically after transmission to switch and resets

Analog Speaker Support

Secure audio data input does not convert digital audio to analog audio

Multiplatform Support

Windows® 2000, Vista, 7, 8, 8.1, 10, 11 Linux, Mac OS X, & Sun

Rugged Metal Enclosure

Durable, Full Metal Chassis

Build-In, Internal Power Supply

NIAP Certified, Common Criteria Compliance & TAA Compliant

IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest cybersecurity requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Superior Video Quality

The secure KVM switch supports a dual view display and exceptional 4K Ultra-HD resolutions up to 3840x2160 @30Hz. With the addition of the universal KVM cables, the secure KVM switch can support any monitor port even if the monitor uses a different display standard while enabling a universal display standard.

Compatible with IOGEAR Remote Port Selector

Securely select and switch between systems with optional external remote port selector that provides full operator control for an optimized user experience.

Multiple Video Interface Support

Connect multiple to multiple port configurations with IOGEAR Universal KVM cables* enabling IT administrators' options for preventing compatibility issues with diverse secure computer ecosystem. The universal KVM cables connect multiple video sources to a IOGEAR KVM even if they are using different display standards. This flexibility enables IT managers to deploy the same KVM switch across their network without the need for unreliable active cables or costly external video converters or additional docking stations. The universal cables options include HDMI® to DisplayPort, DVI to DisplayPort and USB Type-C

to DisplayPort.

Government, Military and Commercial Applications

The IOGEAR secure KVM switches physically isolate sensitive networks and network assets from any exposure to the public internet and only accessible with authorized permissions. Additionally, these secure KVM switches filter or block exposed USB ports on servers and desktop computers to ensure the data integrity is never compromised. Designed originally for military and federal intelligence agencies, secure KVM switches are able to serve many organizations including:

FBI

CIA

NSA

Department of Defense

Federal departments

State and Local Utilities

Financial institutions

Healthcare organization

Law firms
