Genuine Icy Dock through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Drive Cabinets
Overview

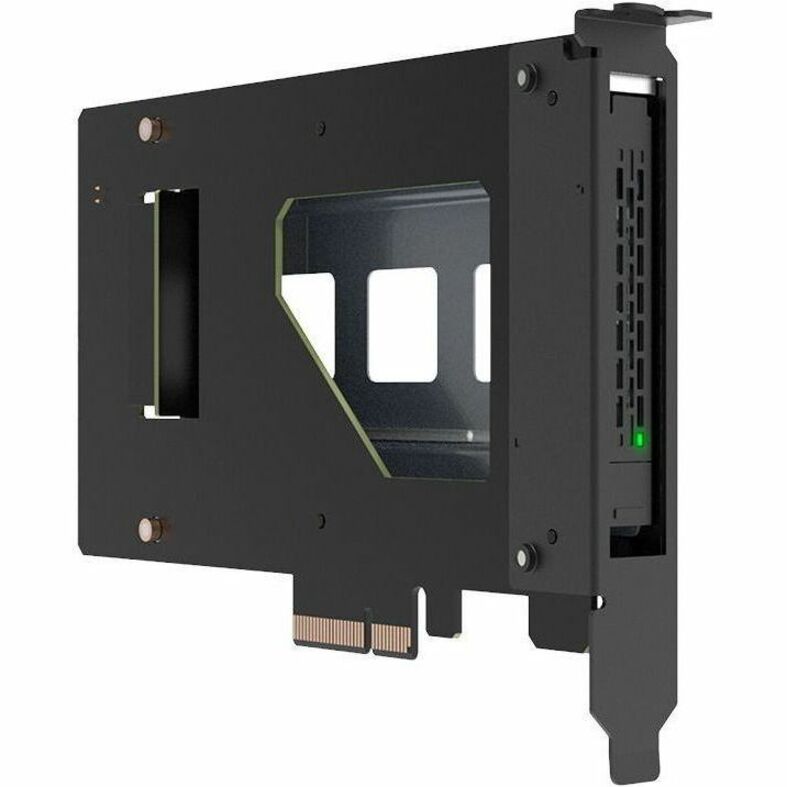

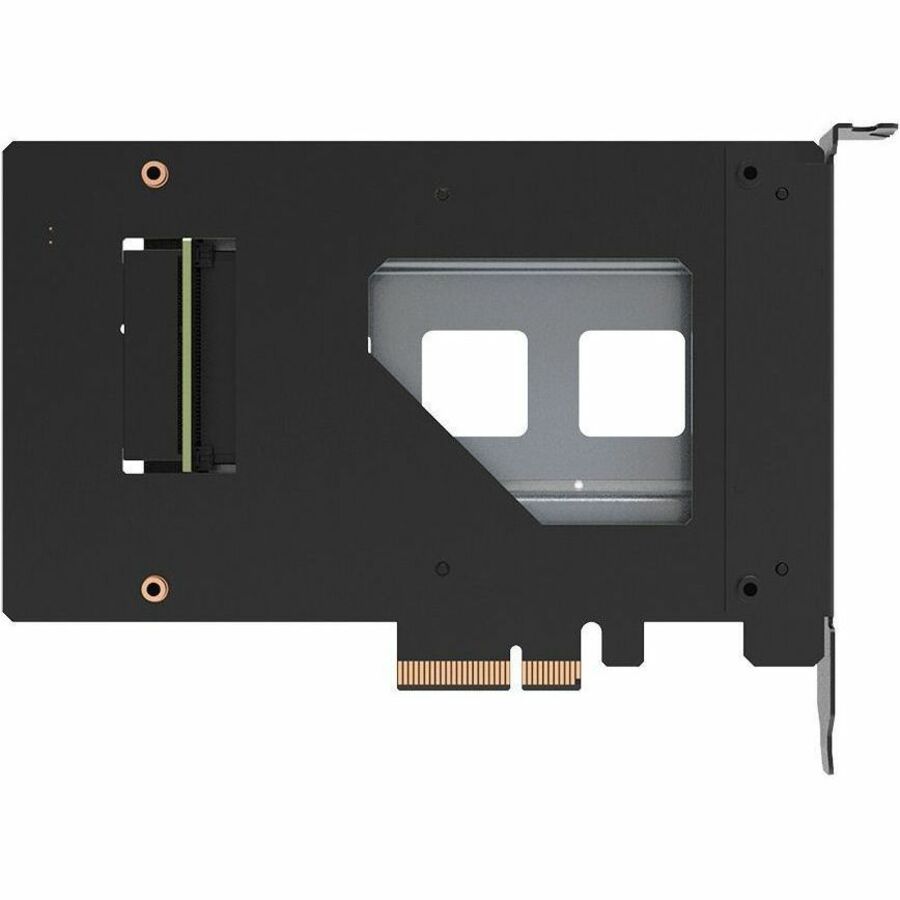

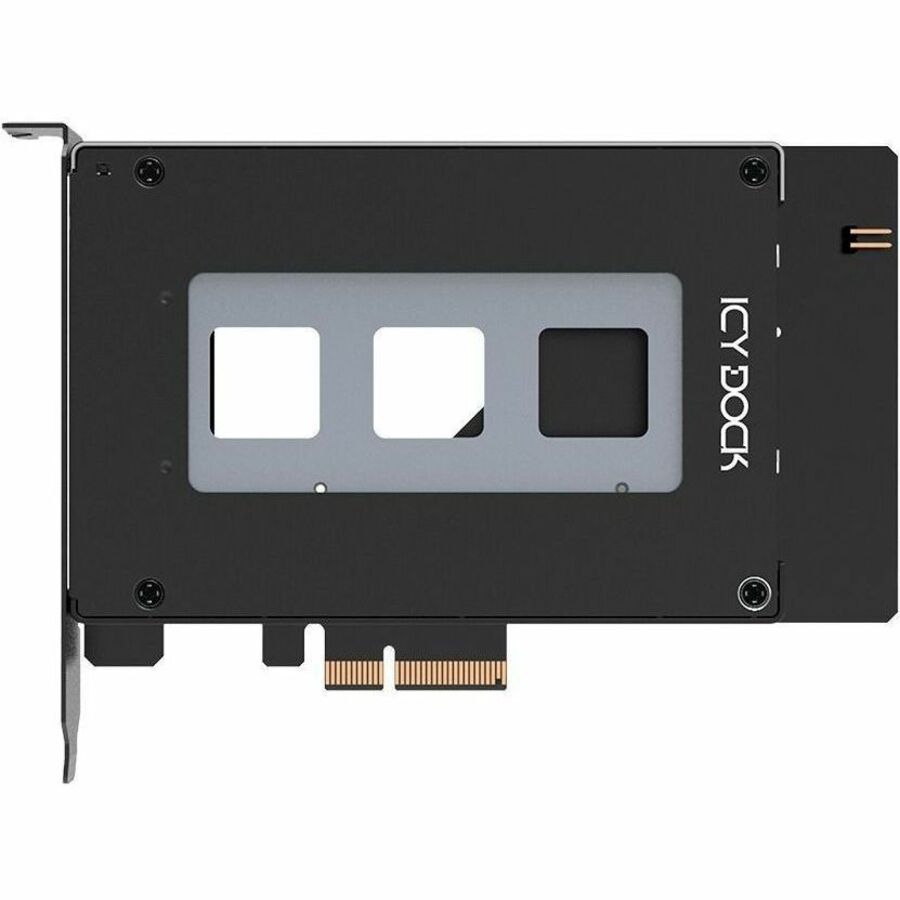

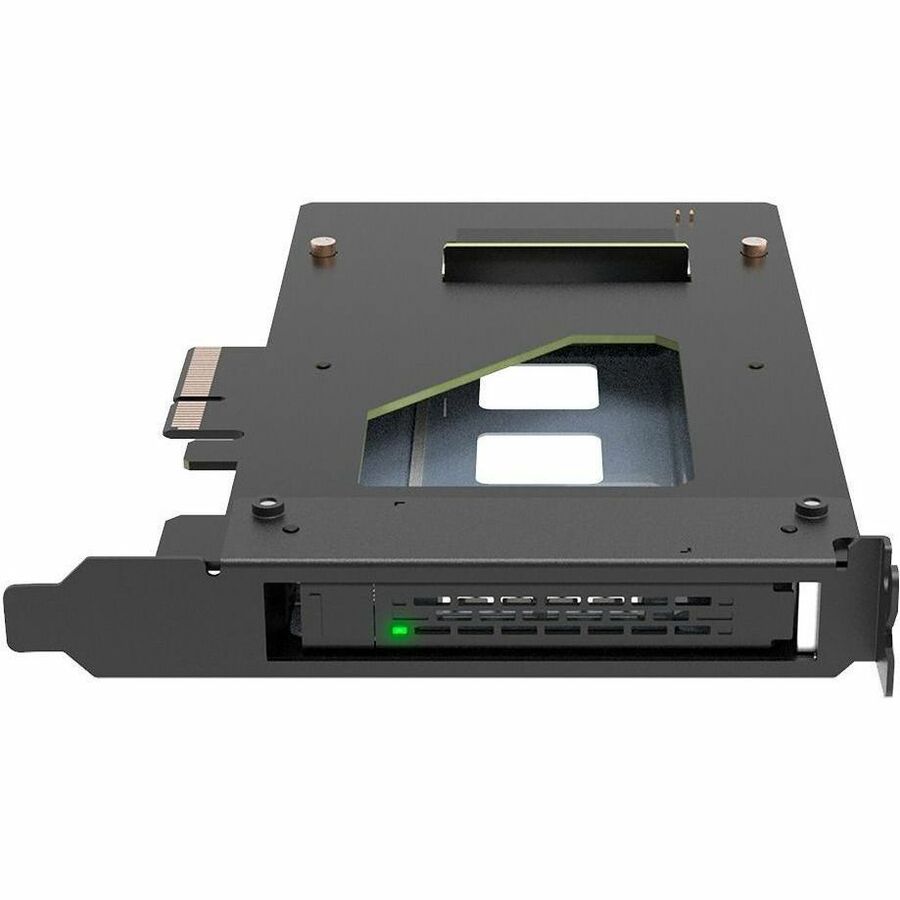

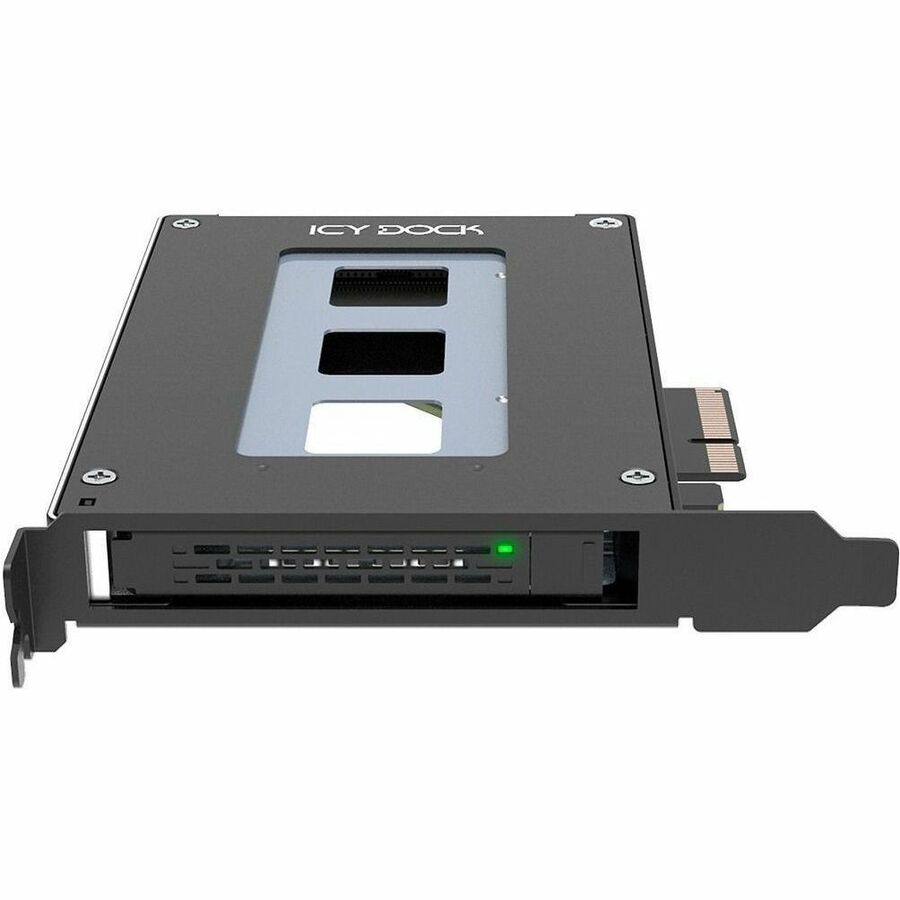

The concept product CP115 is a removable U.2 (2.5") NVMe SSD enclosure for PCIe x4, x8 x16 expansion slot, allowing you to add additional U.2 NVMe SSD in a compact space while achieving full PCIe 4.0 transfer speeds up to 64Gbps.
The CP115 supports 1 x U.2 NVMe SSD up to 9.5mm height and features an innovative removable drive tray for effortless drive access. The full metal removable drive tray system allows users to quickly install or remove the drive without opening the computer case while offering excellent protection to the U.2 NVMe SSD.
Utilizing the PCIe 4.0 x4 interface provides power and data transfer simultaneously, ultimately reducing cable clutter in the system and supporting blazing-fast transfer speed up to 64Gbps.
The CP115 has large ventilation holes on both sides of the enclosure that works with computer's cooling system to keep your U.2 NVMe SSD at optimal operating temperatures.
Warranty
Additional Warranty Information: Industry-leading 3-year warranty against all defects Limited Warranty: 3 Year
Highlights
Supports 1 x U.2 NVMe SSD up to 9.5mm height
Use 1 x PCIe 4.0 x4 interface and supports installation into PCIe 1.0/2.0/3.0/4.0 x4, x8, and x16 slots
Support PCIe 4.0 x4 with transfer rates up to 64Gbps
Removable drive tray with tool-less drive installation design for easy drive maintenance
Eagle-hook lock system keeps the drive secure in the enclosure
EMI grounding - protects hard drives from electrical damage
Anti-vibration technology (AVT) reduces noise and protects against environmental damage
Smart power-saving technology senses when the SSD is installed, and the LED lights up
Industry-leading 3-year warranty against all defects
Complimentary support from professionally trained technical support agents
Specifications
General Information
Manufacturer
Icy Dock
Manufacturer Part Number
MB111VP-B
Brand Name
Icy Dock
Product Model
CP115
Product Name
U.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack for PCIe Expansion Slot
Product Type
Drive Enclosure
Interfaces/Ports
Drive Interface
U.2, PCI Express NVMe 4.0 x4
Host Interface
PCI Express 4.0 x4
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Metal, Plastic
Form Factor
Internal
Height
0.9"
Width
4.8"
Depth
6.1"
Technical Information
Number of Solid State Drive Supported
1
Number of Solid State Drive Installed
0
Maximum Data Transfer Rate
64 Gbit/s
I/O Expansions
Number of Total Expansion Bays
1
Number of 2.5" Bays
1
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Industry-leading 3-year warranty against all defects
Miscellaneous
Package Contents
U.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack for PCIe Expansion Slot
