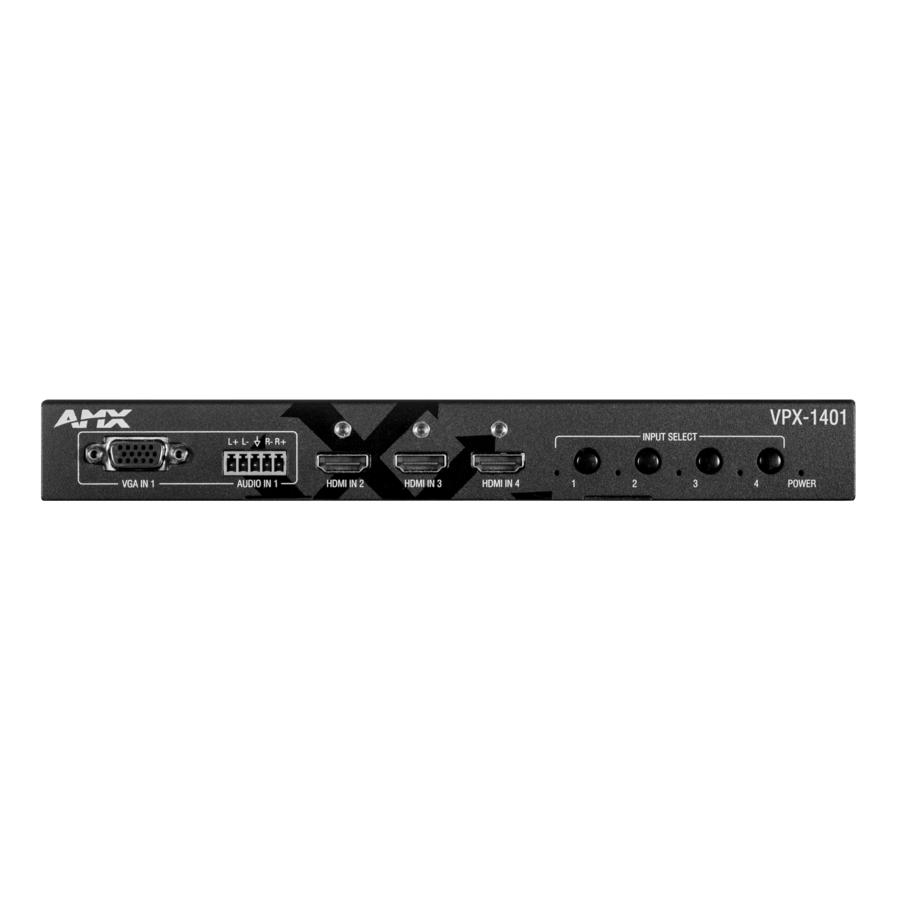

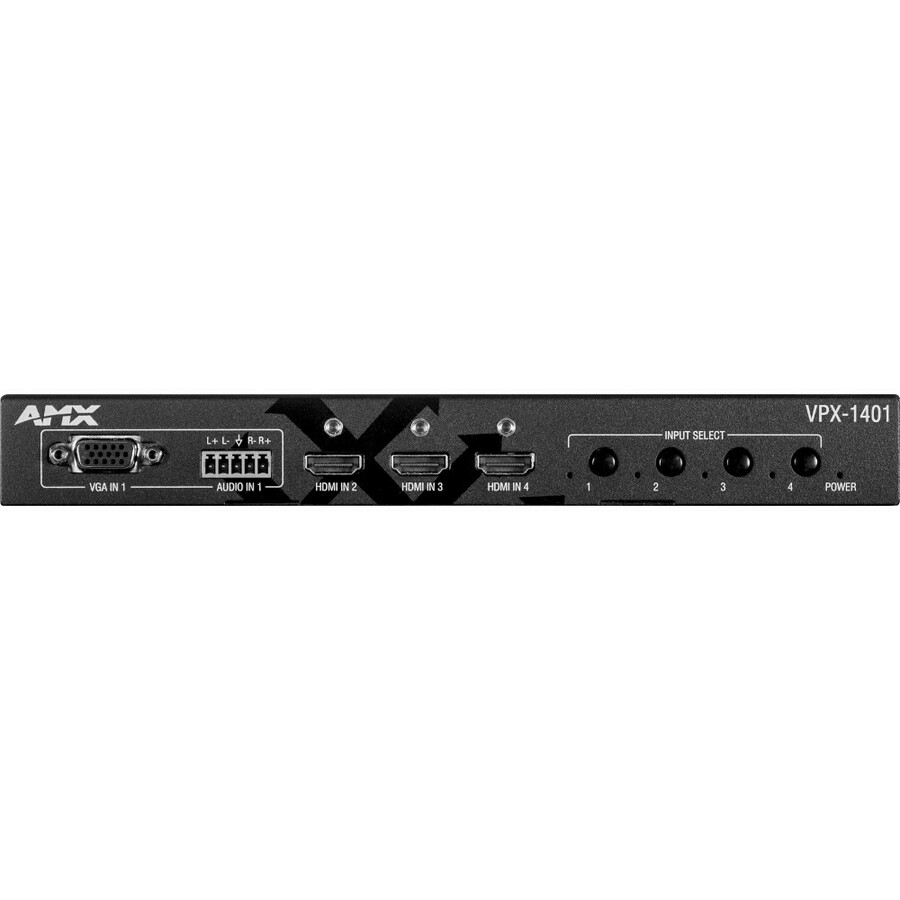

AMX VPX Series 4x1+1 4K60 Presentation Switcher

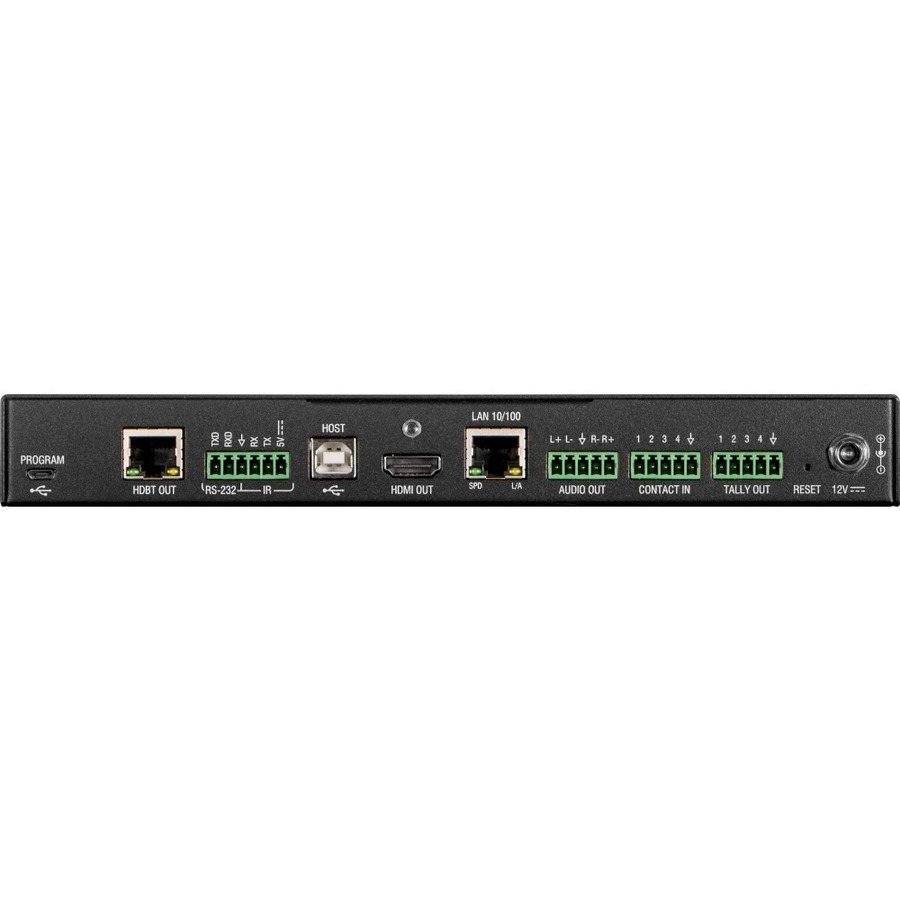

The AMX VPX-1401 is a cost effective 4x1+1 presentation switcher which supports resolutions up to 4K60 4:4:4 and offers HDCP 2.2 compatibility to support the most current sources and displays. The VPX-1401 includes 3 HDMI inputs and 1 VGA input. The VPX Series switchers include built-in scaling, allowing automatic scaling of signals to match the ideal resolution ofthe display. In addition to the HDMI output, there is also a mirrored HDBaseT output, allowing direct connection to a standard HDBaseT output on a display or connection to an AMX DXLite receiver. USB 2.0 distribution is also available over HDBaseT, allowing simplified connection to USB peripherals such as a camera mounted near the display.

There are a variety of options to control the VPX-1401 as well. Front panel controls are available, as is contact closure for use with source selector buttons. The VPX- 1401 is also NetLinx Native, allowing simplified integration with AMX automation systems.

Common Applications

Ideal for table mounting in conference rooms or for use in flipped classroom environments.

Features

• 4K60 4:4:4 Support Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space.

• HDCP 2.2 Support Support the latest source devices.

• Mirrored HDBaseT Output Provides simultaneous support to the local HDMI output and to compatible receiving devices.

• USB 2.0 Distribution over HDBaseT Connect to USB peripherals mounted near the display.

• Front Panel Control - Simple push-button switching.

• Audio Output Extraction - Including volume control to feed amplified speakers.

• Contact Closure - Use with source selector buttons to easily switch sources between connected devices.

• NetLinx Native - Easy integration with AMX automation systems.

• Web Configuration - Provides simple user interface for setup and configuration.

• Open Control API IP controllable by any control system even directly by Zoom Rooms
