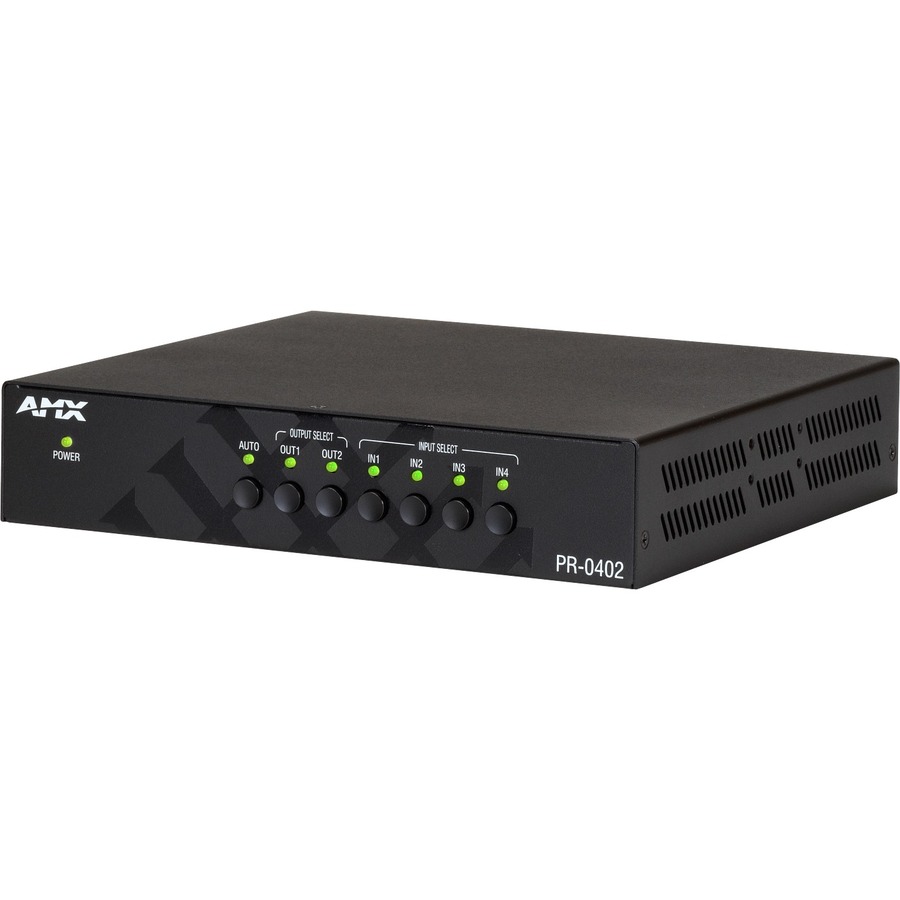

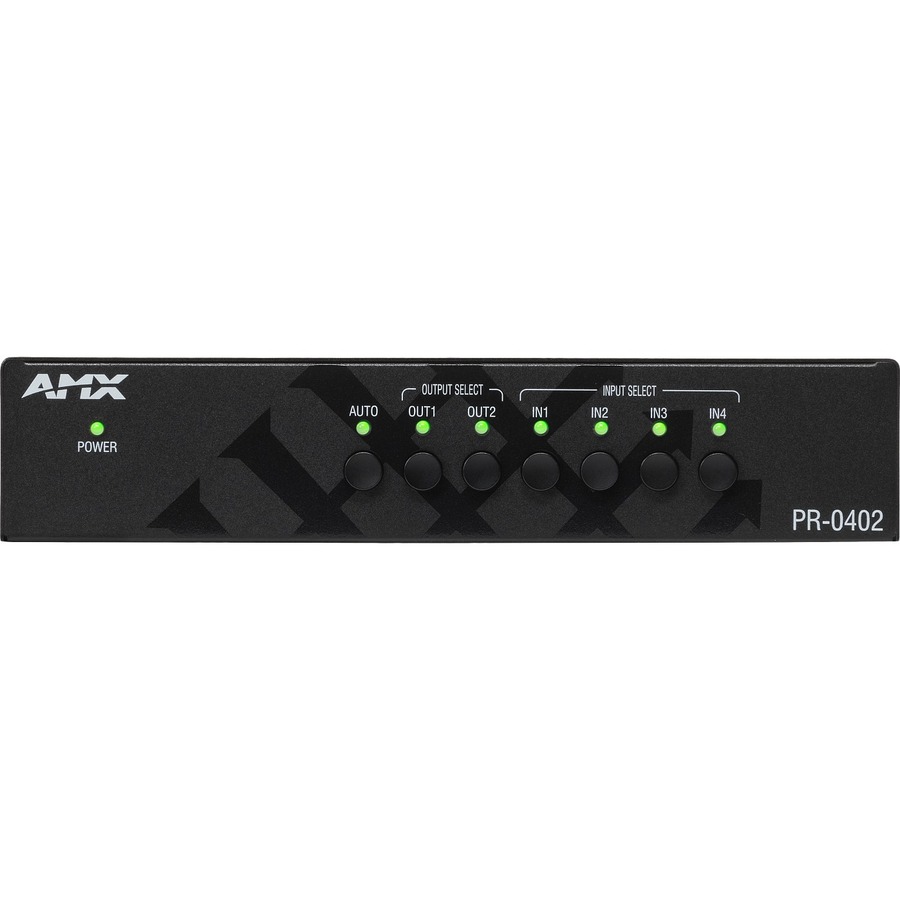

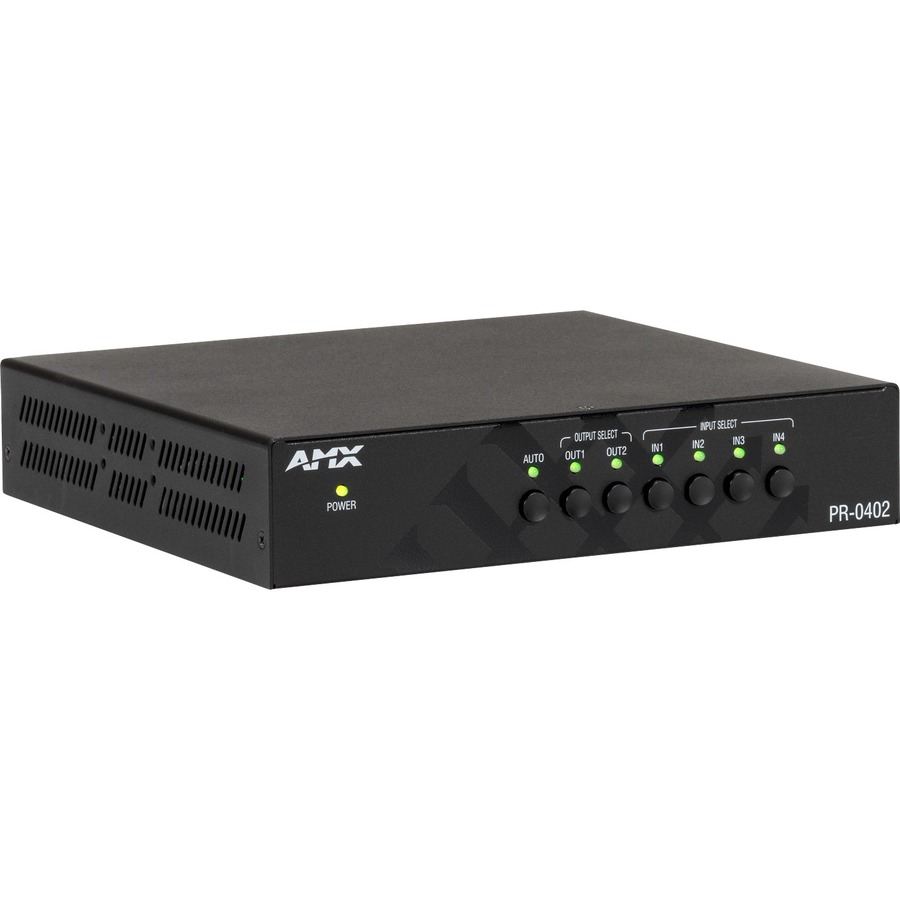

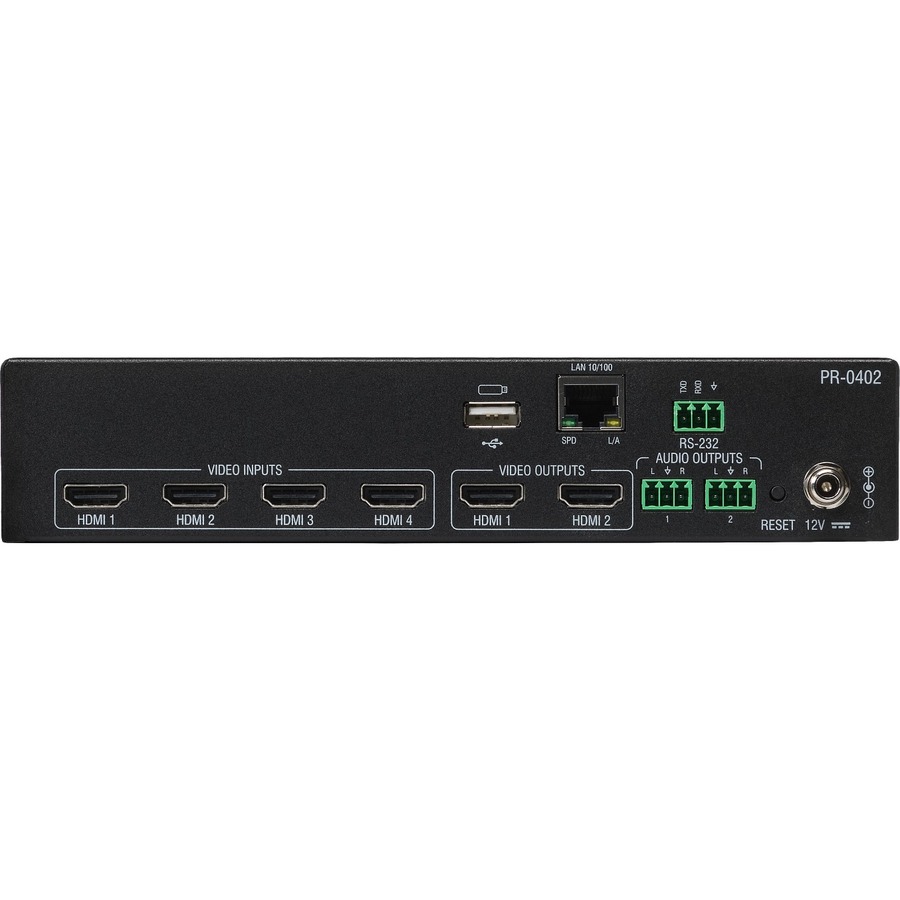

AMX 4x2 4K60 HDMI Switcher
4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Display - 2 x HDMI Out
- SKU
- AMX-PR-0402
- Category
- Video Switchboxes
MSRP$1,061.00
$569.87
Save 46%Back ordered — ships when restocked.
Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AMX-PR-0402
- Category
- Video Switchboxes
Overview
The AMX Precis 4x2 4K60 HDMI Switcher is an extremely affordable yet fully featured HDMI video routing solution for small to medium installations. Featuring 4 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, automatic or manual switching modes, and extreme control flexibility with an open control API and a simple-tomanage web interface.
The PR-0402 supports high quality HDMI 2.0, HDCP 2.2, High Dynamic Range (HDR), and 36-bit per pixel Deep Color. Automatic and manual switching modes plus onboard dynamic audio de-embedding offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0402 can be trusted to deliver an exceptional switching solution.
Common Applications
The Precis PR-0402 4K60 HDMI Switcher is the ideal choice for beautiful, cost effective 4K60 4:4:4 matrix switching in meeting spaces, classrooms, lecture halls, houses of worship and more.
Features
Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays
HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
High Dynamic Range (HDR) and Deep Color Support - Support HDR10, HDR10+, Dolby Vision and 36-bit per pixel deep color.
Automatic and Manual Switching Modes - Automatic switching can be leveraged to create a touch-free experience
EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format
Audio De-Embedding - Includes the convenience of analog audio de-embedding from each HDMI output separately
Multiple Audio Format Support - PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, DTS HD MA
H-Control Upgradable - Ready to support H-control in the future by firmware re-writing via USB.
Multiple Control Options - Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
Highlights
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- Quickly and easily connect with the display
- 4096 x 2160 resolution for high-quality video delivery
Specifications
| Package Contents |
|
|---|---|
| Product Type | Audio/Video Switchbox |
| Device Supported | Display |
| Manufacturer Part Number | AMX-PR-0402 |
| Weight (Approximate) | 2.87 lb |
| Connectivity Technology | Cable |
| Form Factor | Desktop |
| Manufacturer | Harman International Industries, Inc |
| Product Model | PR-0402 |
| Product Name | 4x2 4K60 HDMI Switcher |
| Brand Name | AMX |
| Height | 1.7" |
| Width | 8.4" |
| Depth | 8.1" |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| USB | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Displays Supported | 2 |
| Number of Input Devices Supported | 4 |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
