Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
UA-CR250F2
Category
Surveillance/Network Cameras
Overview

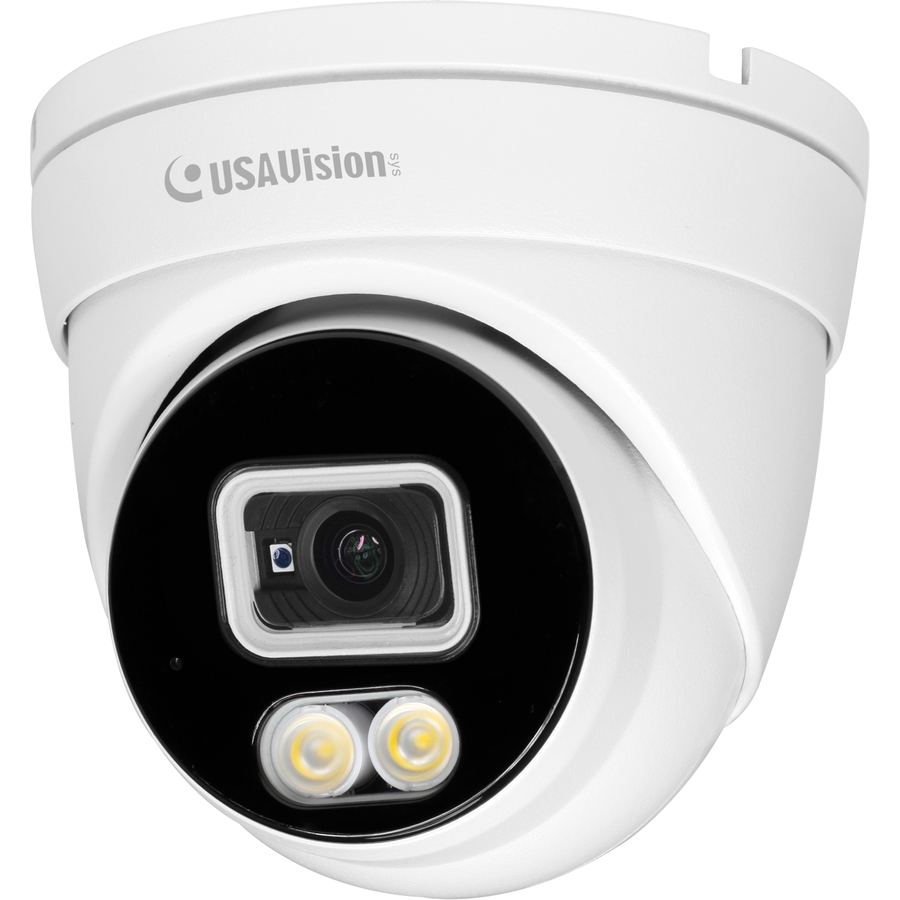

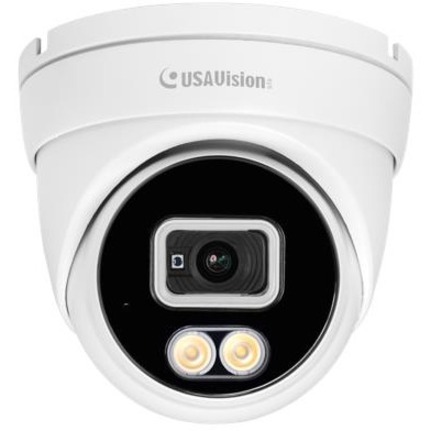

UA-CR250F2 is an outdoor, 2 MP HD Analog Camera with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). With its WDR, it can process scenes with contrasting intensity of lights and produce a clear image. Integrated with USAVision Standalone Video Recorder (UA-XVL810, UA-XVL1610 and UA-XVR810), it supports real-time alert, event playback and more.
Warranty
Limited Warranty: 12 Month
Highlights
Full Color smart warm LED
IR distance up to 30 m (100 ft)
Built-in microphone
Ingress protection (IP66)
4 in 1 (TVI / AHD / CVI / CVBS)
Specifications
Display & Graphics
Image Sensor Type
CMOS
Color Supported
Color
Field of View
Horizontal: 95°, Vertical: 50.9°, Diagonal:112.1°
Effective Camera Resolution
2 Megapixel
Environmental Conditions
Minimum Operating Temperature
-22°F (-30°C)
Maximum Operating Temperature
131°F (55°C)
Maximum Operating Humidity
95%
General Information
Manufacturer
GeoVision, Inc
Manufacturer Part Number
UA-CR250F2
Brand Name
GeoVision
Product Model
UA-CR250F2
Product Name
2 MP Super Low Lux WDR Full Color IR Eyeball Dome Camera
Product Type
Surveillance Camera
Lens
Lens Type
Fixed
Maximum Focal Length
2.80 mm
Lens Included
Yes
Lens Mount Type
M12-mount
Maximum Aperture
f/1
Network & Communication
Connectivity Technology
Wired
Remote Management
No
Physical Characteristics
Mount Type
Wall Mount, Bracket Mount, Power Box Mount, Box Mount
Form Factor
Dome
Diameter
3.9"
Weight (Approximate)
14.46 oz
Power Description
Input Voltage
12 V DC
Technical Information
HD Recording
Yes
Recording Formats
Full HD
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared/Color
Number of IR LEDs
2
Video
Maximum Video Resolution
1920 x 1080
Maximum Frame Rate
30 fps
Video Signal Format
NTSC, PAL
Analog Video Signal Format
TVI, AHD, CVI, CVBS
Warranty
Limited Warranty
12 Month
Miscellaneous
Features
Wide Dynamic Range, Built-in IR LED, Built-in Microphone, Ingress Protection, Removable IR Cut-off Filter, Day/Night, Built-in Infrared Illuminator, 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Digital Wide Dynamic Range (D-WDR)
Indoor/Outdoor
Outdoor
Package Contents
2 MP Super Low Lux WDR Full Color IR Eyeball Dome Camera
