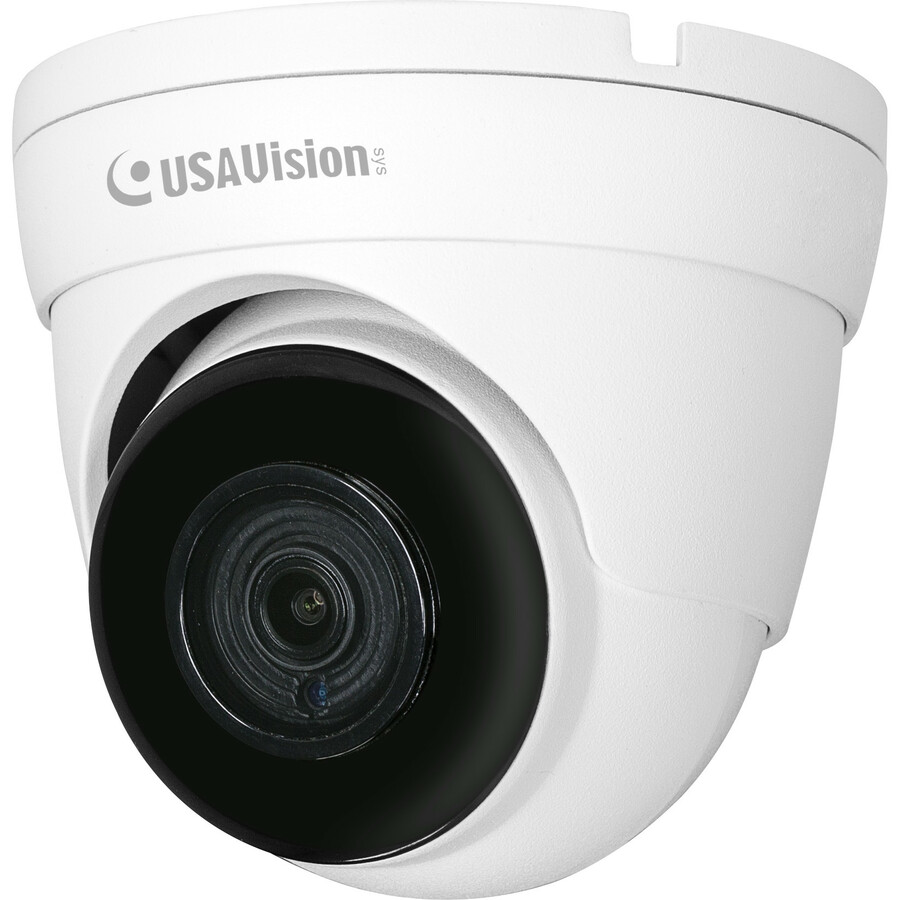

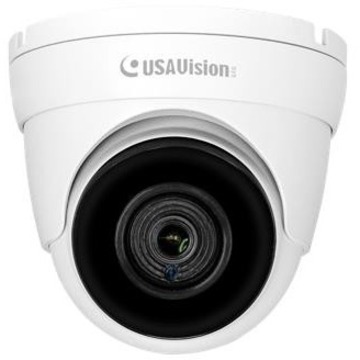

GeoVision UA-CR200F2 2 Megapixel Outdoor Full HD Surveillance Camera - Color - Dome - Metal
65.62 ft Infrared Night Vision - 1920 x 1080 - 2.80 mm Fixed Lens - 30 fps - CMOS - Wall Mount, Bracket Mount, Box Mount, Power Box Mount - IP66
- SKU
- UA-CR200F2
- Category
- Surveillance/Network Cameras
MSRP$62.00
$20.96
Save 66%Back ordered — ships when restocked.
Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- UA-CR200F2
- Category
- Surveillance/Network Cameras
Overview
UA-CR200F2 is an outdoor, 2 MP HD Analog Camera with an automatic IR-cut filter. It is built in 18 IR LEDs for day and night surveillance, with IR illumination reaching up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA-XVL810, UA-XVL1610 and UA-XVR810), it supports real-time alert, event playback and more.
Highlights
- 1/3" progressive scan CMOS sensor
- IR distance up to 20 m (65 ft)
- Built-in microphone
- Ingress protection (IP66)
- 4 in 1 (TVI / AHD / CVI / CVBS)
Specifications
| Package Contents |
|
|---|---|
| Product Type | Surveillance Camera |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | UA-CR200F2 |
| Recording Formats | Full HD |
| Limited Warranty | 12 Month |
| Weight (Approximate) | 14.46 oz |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Features | Wide Dynamic Range, Built-in IR LED, Built-in Microphone, Ingress Protection, Removable IR Cut-off Filter, Day/Night, Built-in Infrared Illuminator, 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Digital Wide Dynamic Range (D-WDR) |
| Form Factor | Dome |
| Lens Type | Fixed |
| Manufacturer | GeoVision, Inc |
| Product Model | UA-CR200F2 |
| Product Name | 2 MP Super Low Lux WDR IR Eyeball Dome Camera |
| Mount Type | Wall Mount, Bracket Mount, Box Mount, Power Box Mount |
| Brand Name | GeoVision |
| Diameter | 3.9" |
| Maximum Aperture | f/2.2 |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Maximum Focal Length | 2.80 mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 2 Megapixel |
| Field of View | Horizontal: 88.24°, Vertical: 48.71°, Diagonal: 104.37° |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Lens Mount Type | M12-mount |
| Remote Management | No |
| Night Vision | Yes |
| Video Signal Format | NTSC, PAL |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 65.62 ft |
| Number of IR LEDs | 18 |
| Indoor/Outdoor | Outdoor |
| Product Color | Metal |
| Color Family | Other |
| Analog Video Signal Format | TVI, AHD, CVI, CVBS |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 95% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
