Genuine Fluke through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FLUKE- 325
Category
Multimeters
Overview
Troubleshoot problems safely and accurately

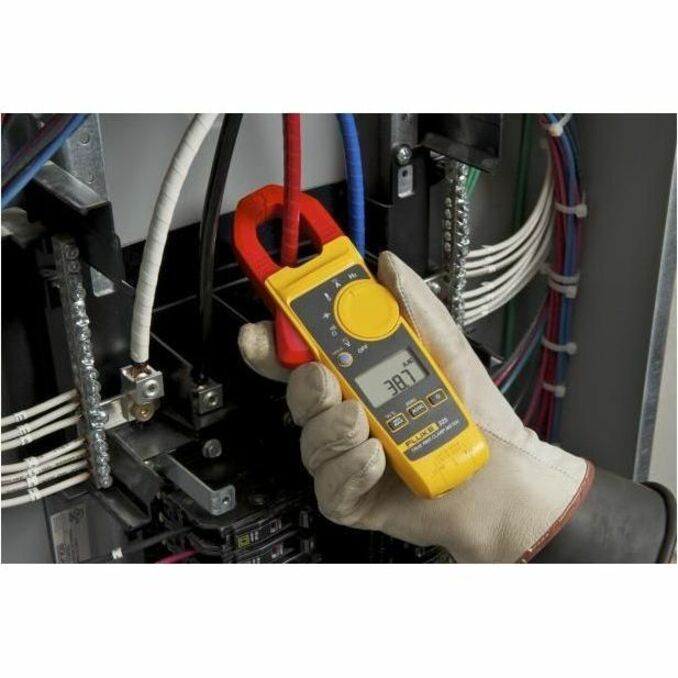

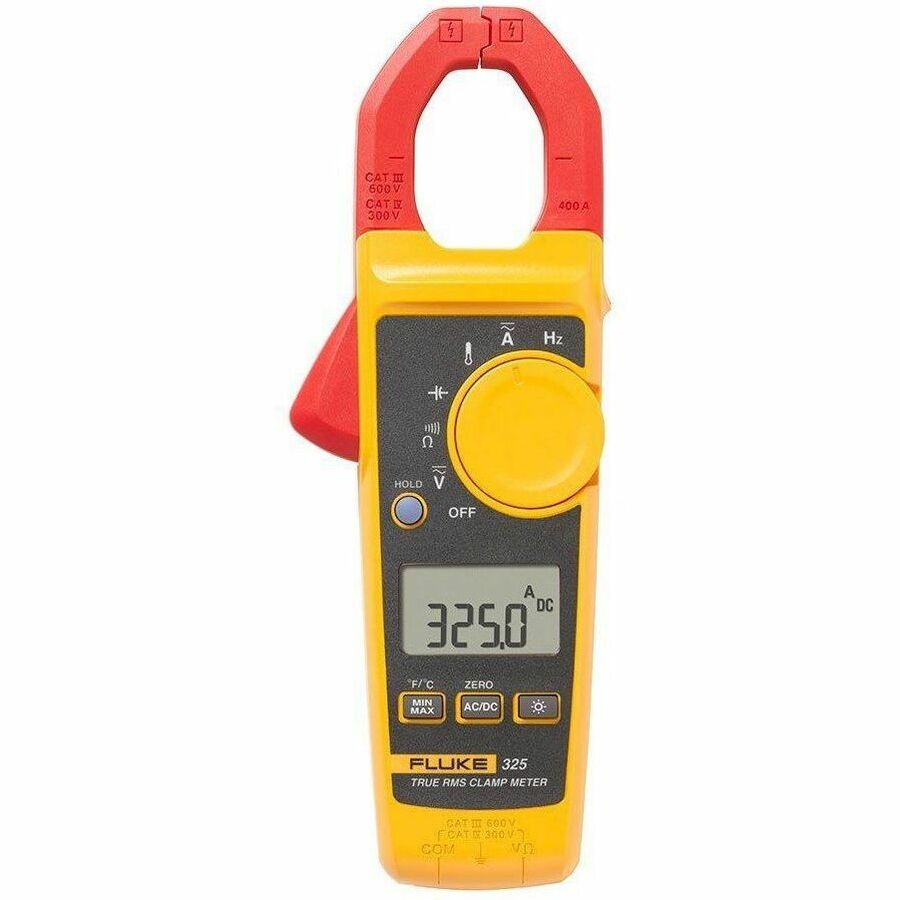

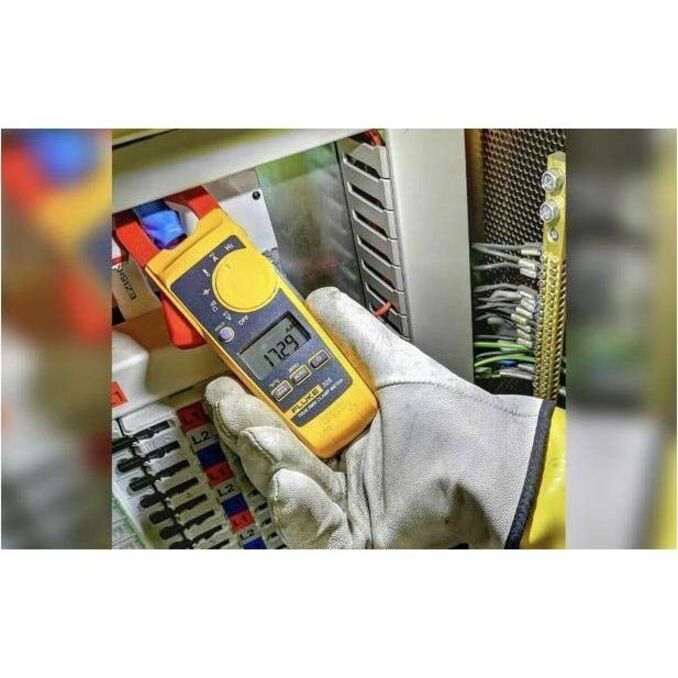

The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
• DC current
• DC voltage
• Temperature
• Frequency
You'll carry fewer tools in your bag and get more work done.
Covers most problems you see day-in, day-out The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:
• Measures AC/DC current up to 400 A through jaw
• AC/DC voltage to 600 V using test leads
• Measures frequency from 5 Hz to 500 Hz; resistance to 40 k?
• Measures temperature from -10 °C to 400 °C with included K-type thermocouple
• Min/Max function records important values
Warranty
Limited Warranty: 2 Year
Highlights
True-rms AC/DC current, voltage, temperature, frequency

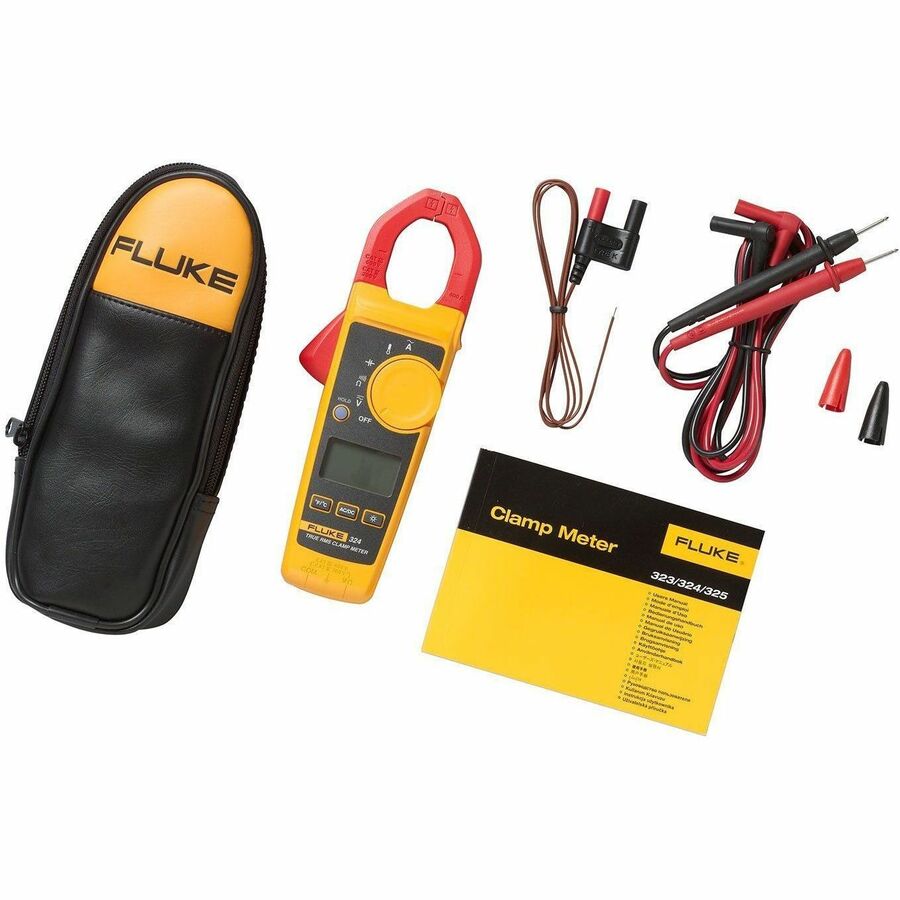

Clamp meter, test leads, K-type thermocouple and soft case
Versatile tool performs most front-line measurement tasks
Specifications
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE- 325
Brand Name
Fluke
Product Model
325
Product Name
325 True-RMS Clamp Meter
Product Type
Clamp Meter
Physical Characteristics
Height
8.1"
Width
3"
Depth
1.3"
Weight (Approximate)
9.98 oz
Technical Information
Measurement Type
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Capacitance, Frequency, Temperature, Continuity
