Genuine Fluke through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FLUKE-283FC/PV
Category
Multimeters
Overview

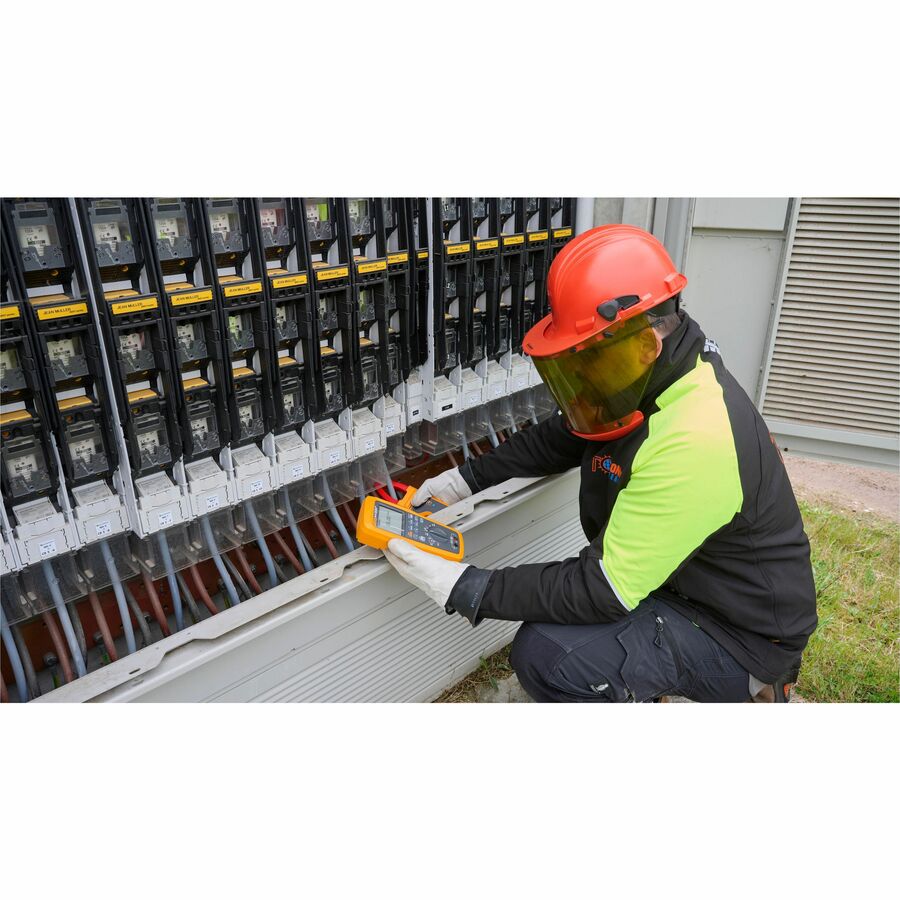

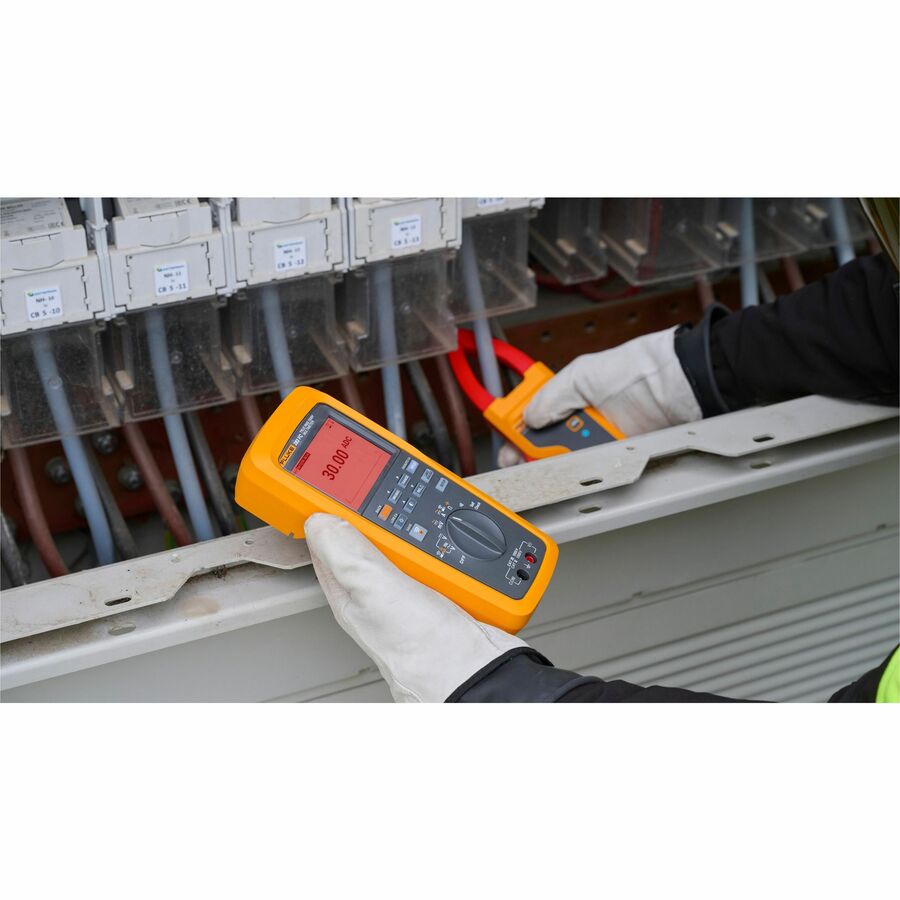

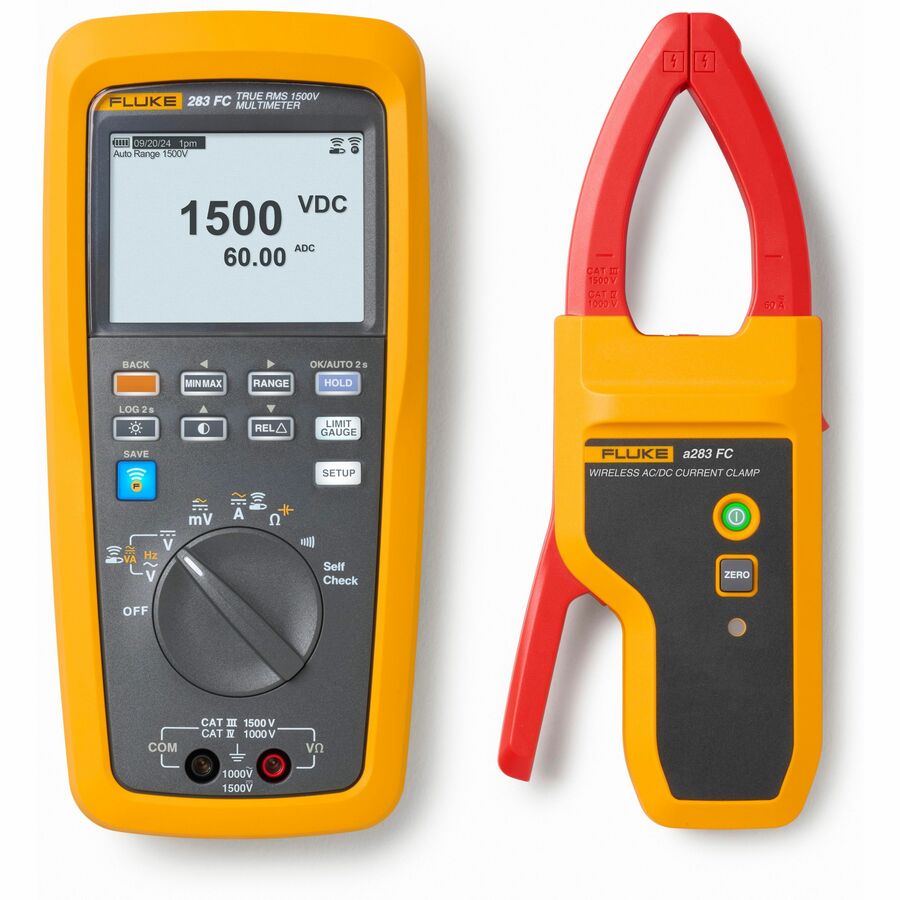

The CAT III 1500 V/CAT IV 1000 V True-RMS Fluke 283 FC Digital Multimeter and a283 FC True-RMS Wireless Current Clamp are the perfect troubleshooting combination for technicians in DC environments up to 1500 V. Whether you're performing frontline troubleshooting on a utility-scale solar photovoltaic (PV) array, wind power installation, an electric railway, or a data center, the Fluke 283 FC is designed to enhance safety and increase productivity while giving you accurate, reliable, and repeatable results.
The 283 FC/PV includes CAT III 1500 V DC safety-rated accessories so you can work confidently without compromising safety. Staubli MC4 test leads allow you to quickly make reliable, secure connections to modules or strings to test DC voltage up to 1500 V DC. TL175-HV CAT III 1500 V/CAT IV 1000 V rated silicone test leads give you more flexibility when testing voltage, millivoltage, resistance, continuity, or capacitance on inverters, combiner boxes, PV arrays, or individual PV modules. With a bright backlit display and illuminated buttons it's easier to work in various lighting conditions, and the included magnetic hanging kit frees up your hands while troubleshooting. With an included custom hard carrying case your investment is protected while you transport it.

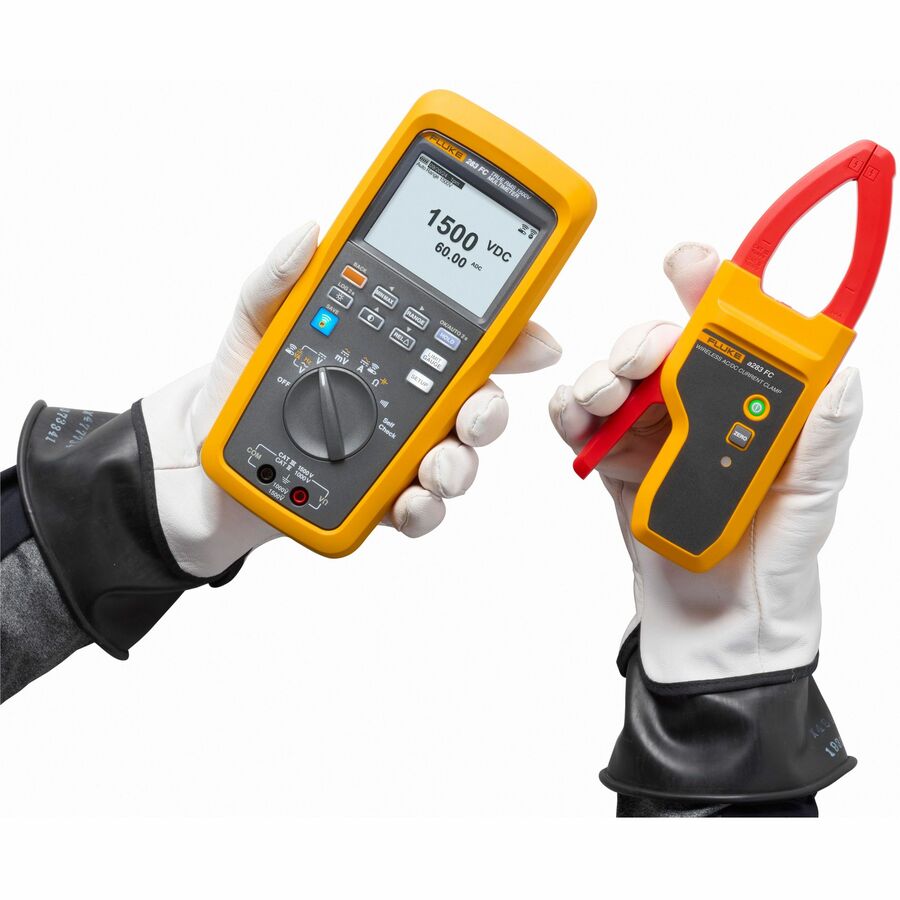

CAT III 1500 V/CAT IV 1000 V safety rated multimeter, wireless current clamp and test leads
Includes CAT III 1500 V rated Staubli MC4 test leads and TL175-HV CAT III 1500 V/CAT IV 1000 V safety rated premium test leads
Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy (when using a283 FC wireless current clamp)
Visual and audio polarity indicators help prevent accidental module wiring issues
Specifications
Display & Graphics
Display Counts
6000
General Information
Manufacturer
Fluke Corporation
Manufacturer Part Number
FLUKE-283FC/PV
Brand Name
Fluke
Product Model
283FC/PV
Product Name
Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp
Product Type
Multimeter
Physical Characteristics
Height
8.9"
Width
2.2"
Depth
4.1"
Weight (Approximate)
1.50 lb
Technical Information
Meter Type
Digital
Measurement Type
AC Voltage, DC Voltage, Resistance, Continuity, Capacitance, Frequency, AC Current, DC Current
True RMS
Yes
Maximum AC Voltage Measurement
1000 V
Maximum DC Voltage Measurement
1500 V
Maximum AC Current Measurement
60 A
Maximum DC Current Measurement
60 A
Maximum Resistance Measurement
50 Mega Ohm
Maximum Capacitance Measurement
0.009999F
Maximum Frequency Measurement
99.99 kHz
Features
Backlight
Warranty
Limited Warranty
Lifetime
Additional Warranty Information
1year clamp, limited lifetime DMM
Miscellaneous

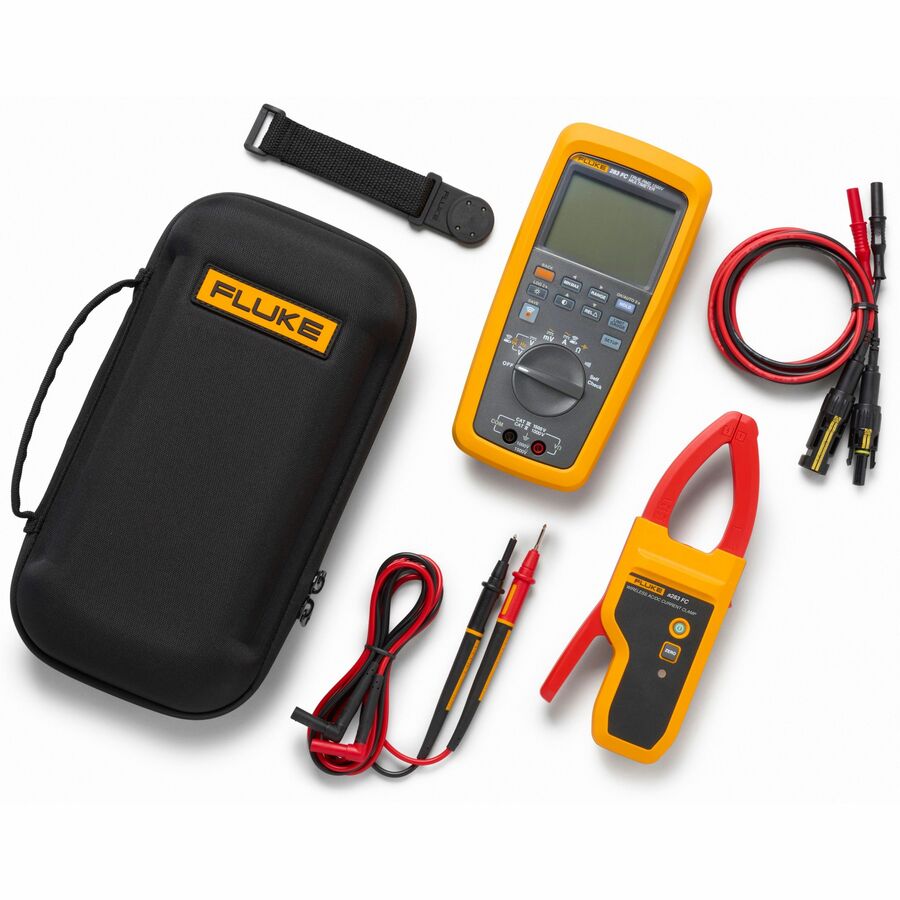

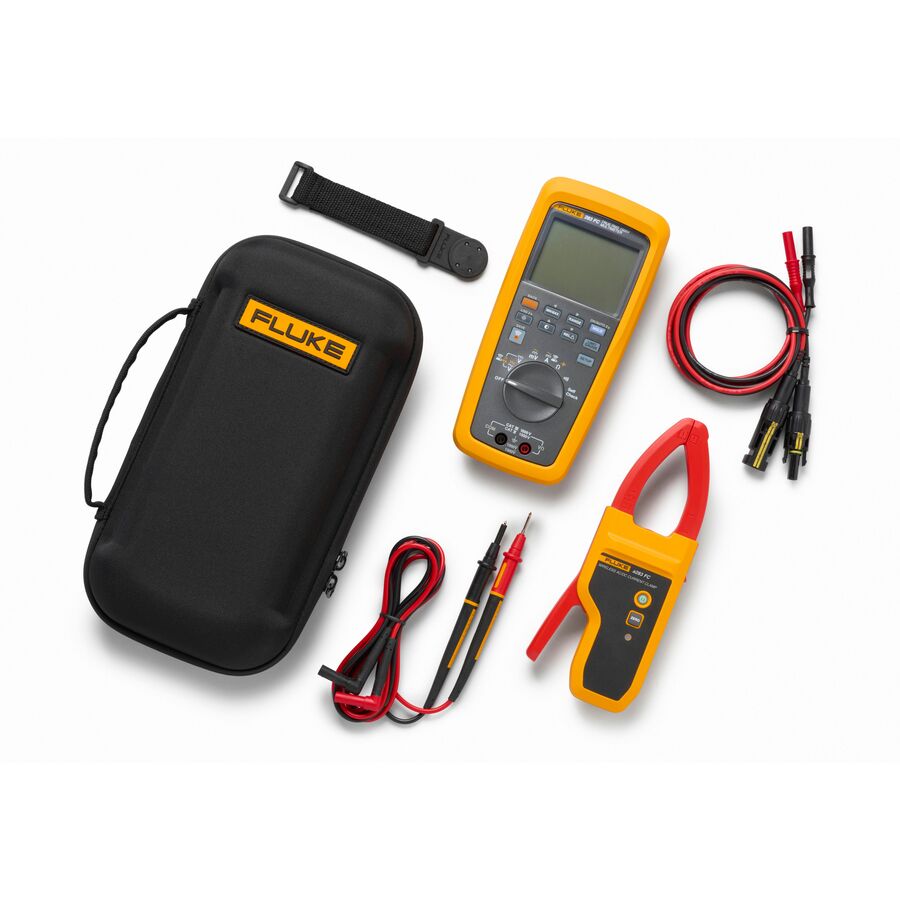

Package Contents
Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp
1 x Magnet Strap
1 x Card, Warranty, 1 Year, Generic
1 x Fluke-A283FC, Working Instruction Sheet For Voltron Clamp
1 x Display Container
1 x Safety Information
1 x Guide, Quick Reference
1 x Softcase
1 x China RoHS Doc #41
1 x TL175-HV Test Lead Set
Country of Origin
United Kingdom
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
