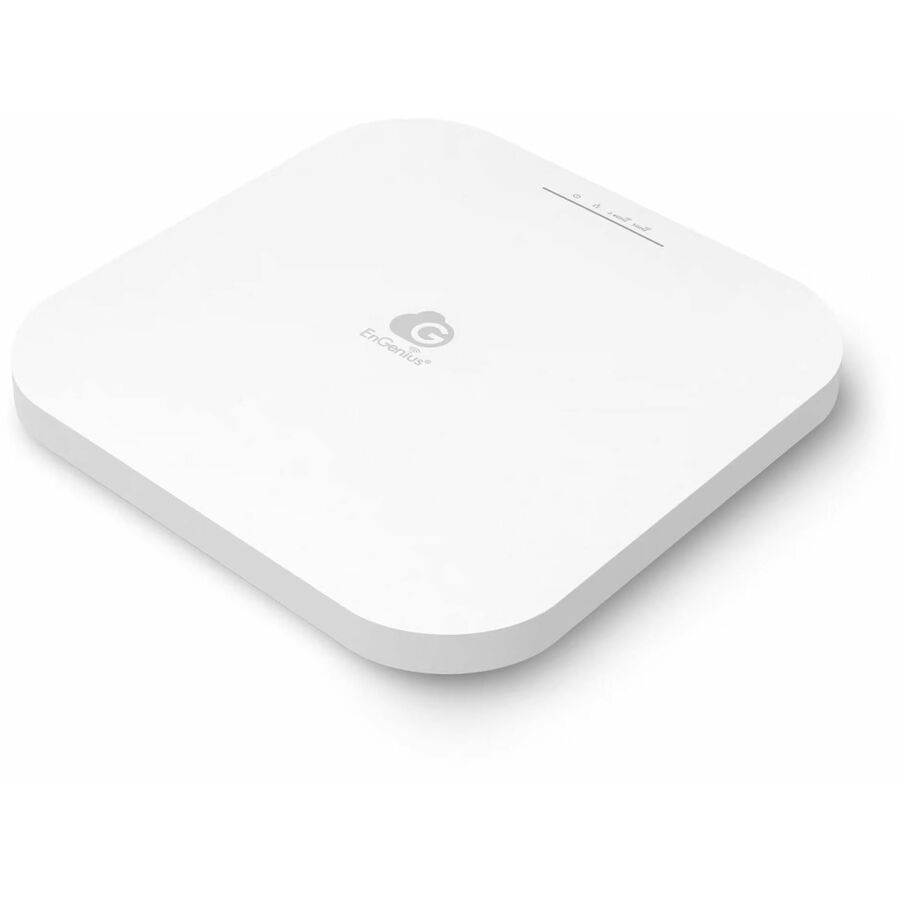

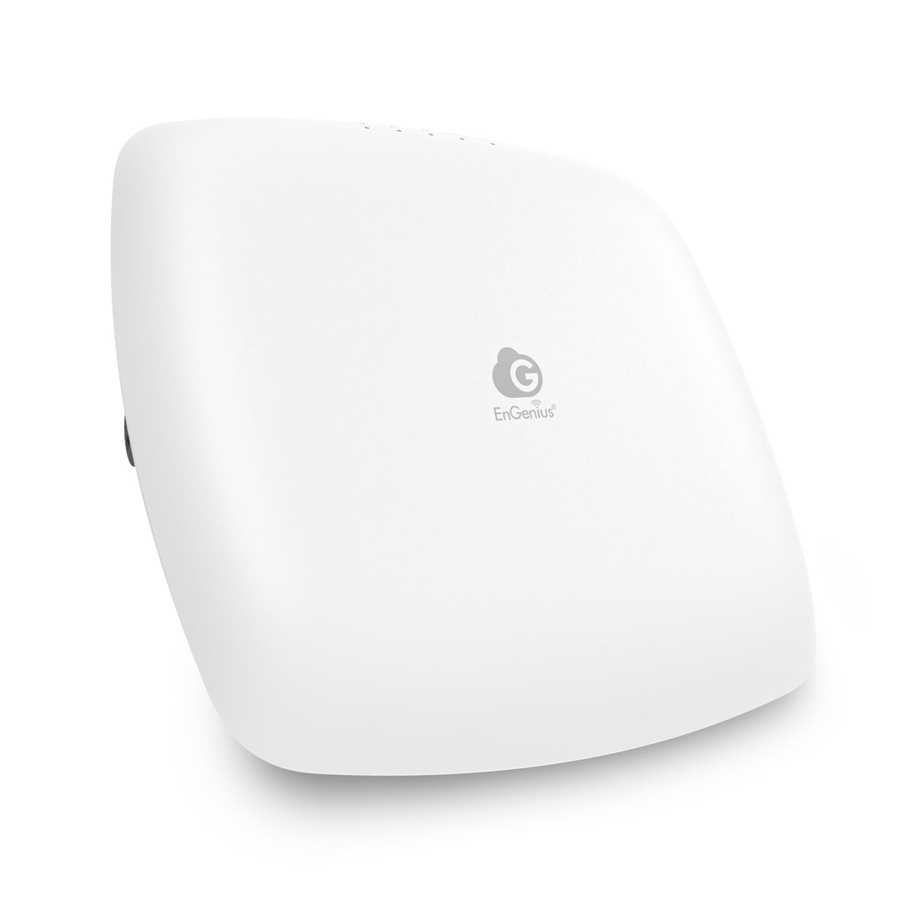

EnGenius Fit EWS276-Fit Dual Band Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax/e 3.46 Gbit/s Wireless Access Point - Indoor
2.40 GHz, 5 GHz - 8 x Internal Antenna(s) - Internal - MIMO Technology - 1 x Network (RJ-45) - 2.5 Gigabit Ethernet - 17 W - Ceiling Mountable, Wall Mountable - 1
- SKU
- EWS276-FIT
- Category
- Wireless Access Points/Bridges
$149.90
In stock: 20
Genuine EnGenius Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EWS276-FIT
- Category
- Wireless Access Points/Bridges
Overview

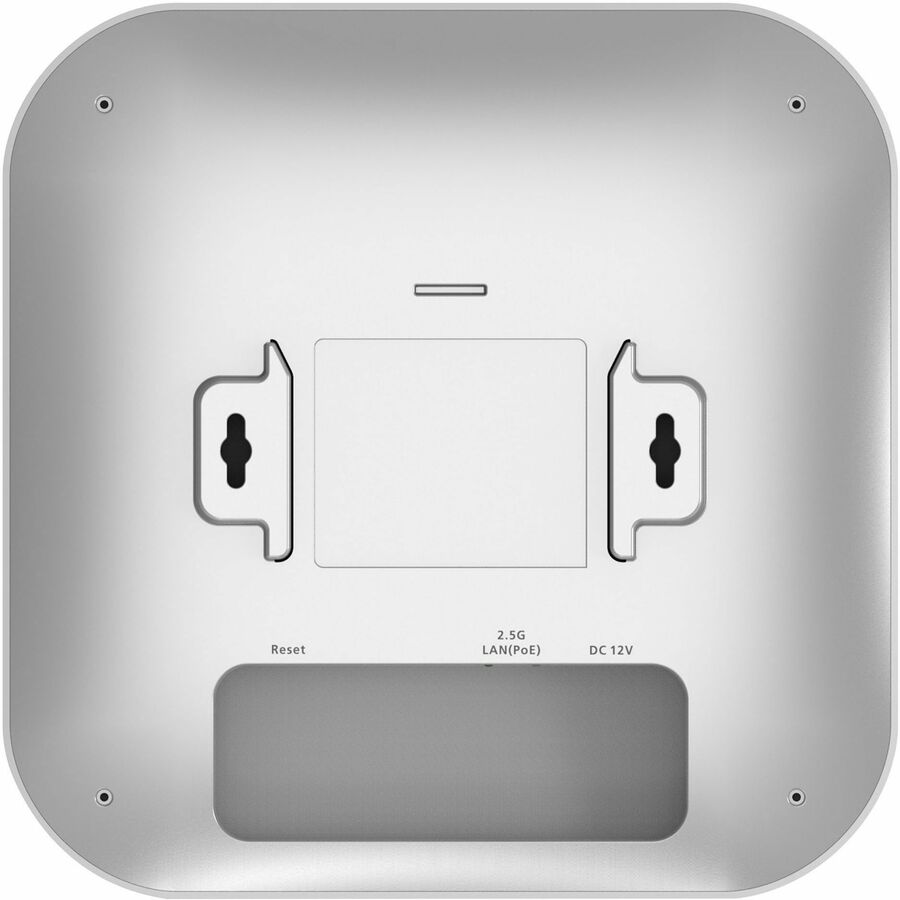

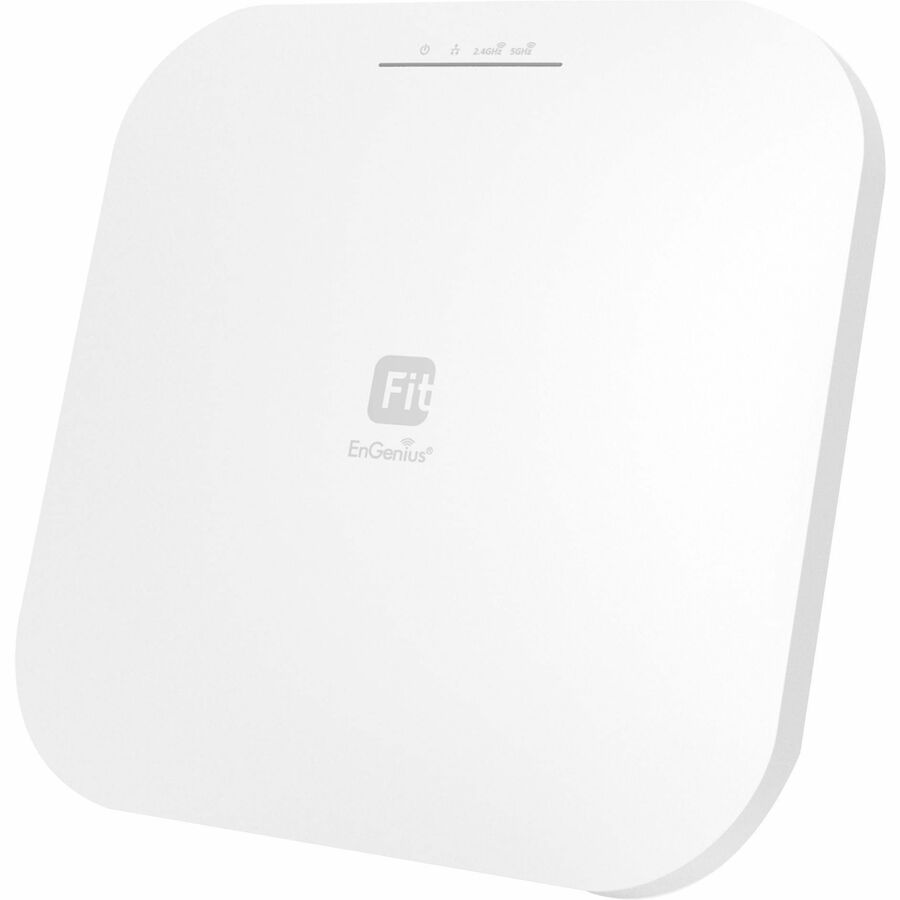

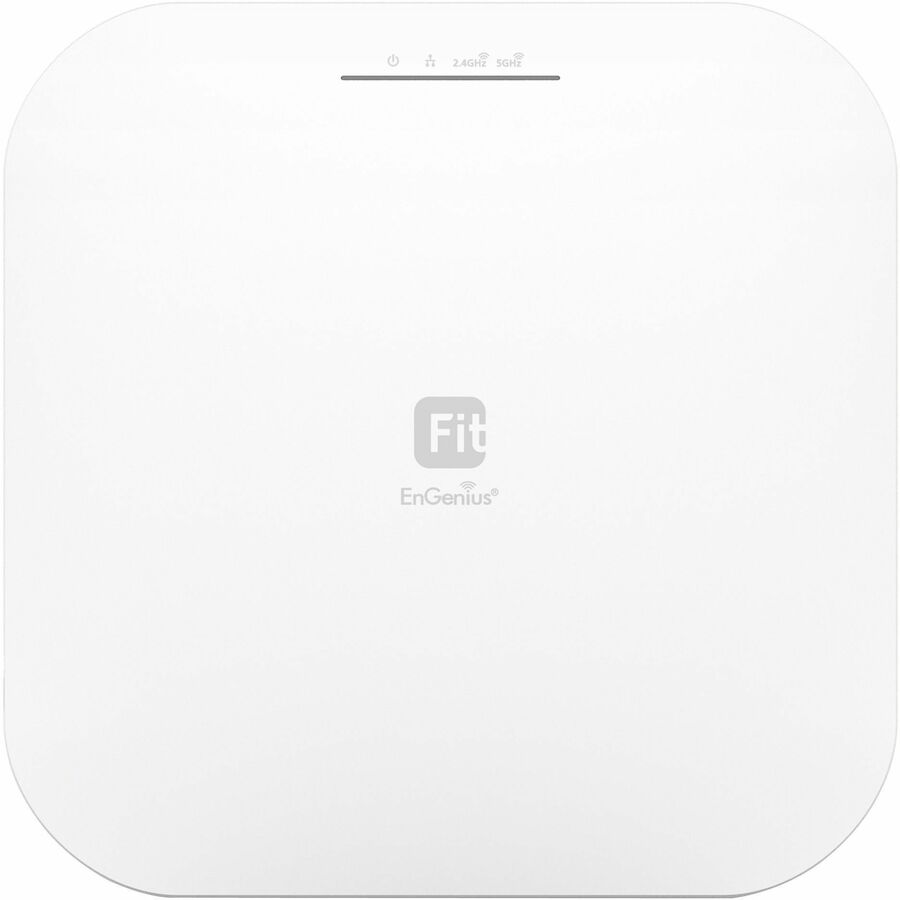

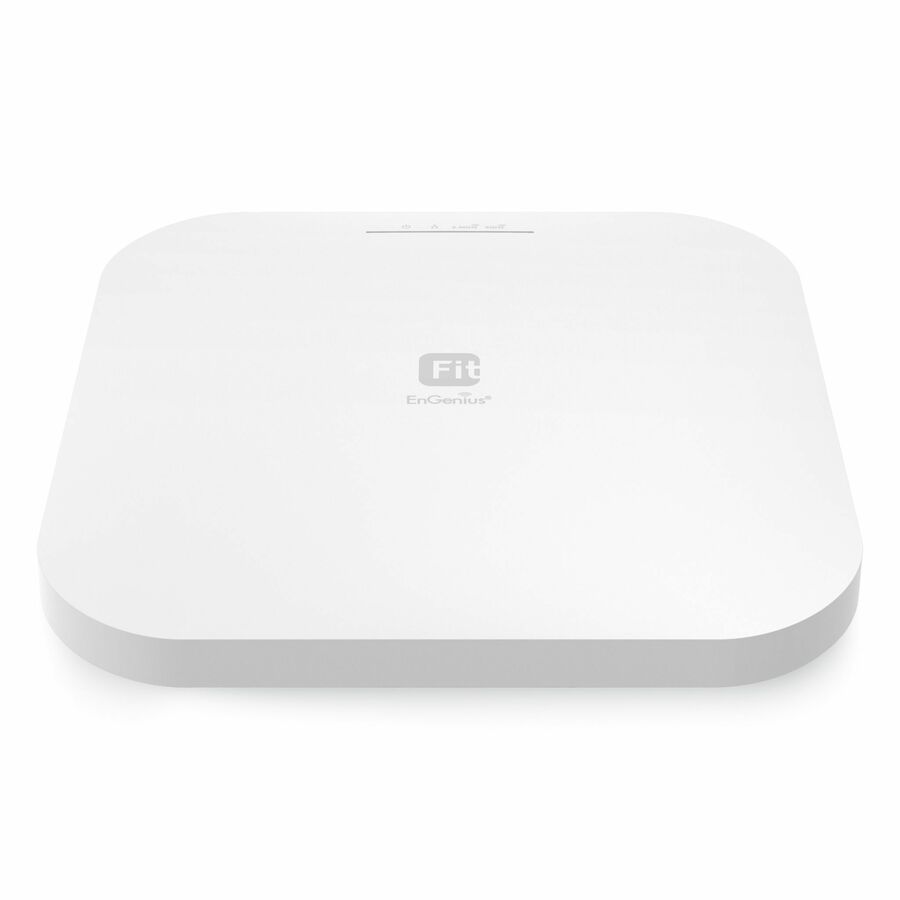

The EnGenius EWS276-Fit access point is Wi-Fi 6 4x4 access point that can be managed using the Fit mobile app, Fit on-premises controller, or Fit cloud management system. The EWS276-Fit supports up to 3.5 Gbps aggregate Wi-Fi speeds, one 2.5 GbE PoE+ port and eight 5 dBi internal antennas. This EnGenius AP has the ability to provide faster speeds, improved coverage, and 250 concurrent connections.
Highlights
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 4x4 antenna
- Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band

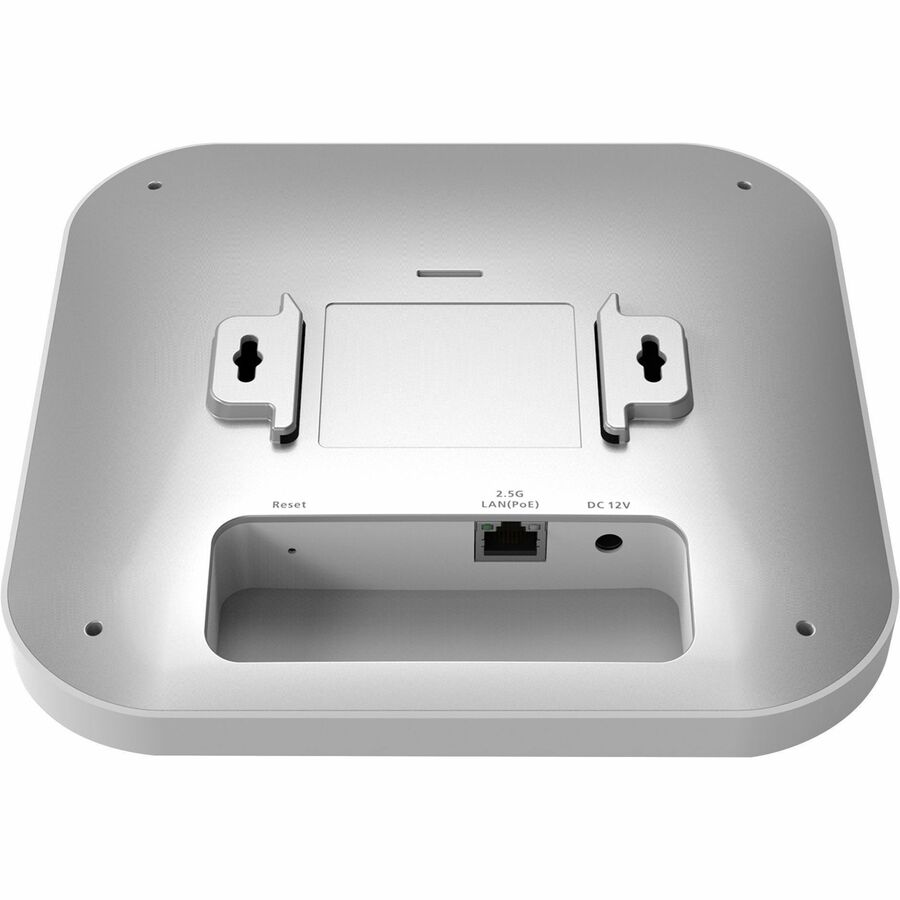

- 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
- Select mobile app, on-premises, cloud lite management options based on network architecture, administrative permissions.
- From anywhere cloud visibility and control
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring, and troubleshooting
- Real-time system metrics, analytics, and remote configurations
- No access point licensing or subscription fees
- Uplink and downlink of OFDMA improves transmission to APs and client devices.
- Target wake time for power-saving of client & IoT devices
- Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices
- BSS coloring for tagging packets with a "color" to differentiate between adjacent basic service sets.
- Spatial reuse identifies color sets via BSS coloring & simultaneously transmits on the same channel, reducing transmission waiting time and contention.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Wireless Access Point |
| Manufacturer Part Number | EWS276-FIT |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 1.26 lb |
| Network Band | Dual Band |
| Communication Protocols | SSH, SNMPv1/v2c/v3 |
| Form Factor | Ceiling Mountable, Wall Mountable |
| Manufacturer | EnGenius Technologies, Inc |
| Product Model | EWS276-Fit |
| Product Name | Fit Wi-Fi 6 4x4 Indoor Wireless Access Point |
| Power Consumption | 17 W |
| Product Line | Fit |
| Wireless Transmission Speed | 3.46 Gbit/s |
| Brand Name | EnGenius |
| Height | 1.3" |
| Width | 8.1" |
| Depth | 8.1" |
| Frequency Band | 2.40 GHz, 5 GHz |
| Environmentally Friendly | Yes |
| Antenna Form Factor | Internal |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/e |
| Encryption Standard | WPA3, WPA2-AES, WPA2-PSK (AES) |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| PoE PD Port | Yes |
| Indoor/Outdoor | Indoor |
| Wi-Fi Generation | Wi-Fi 6 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |

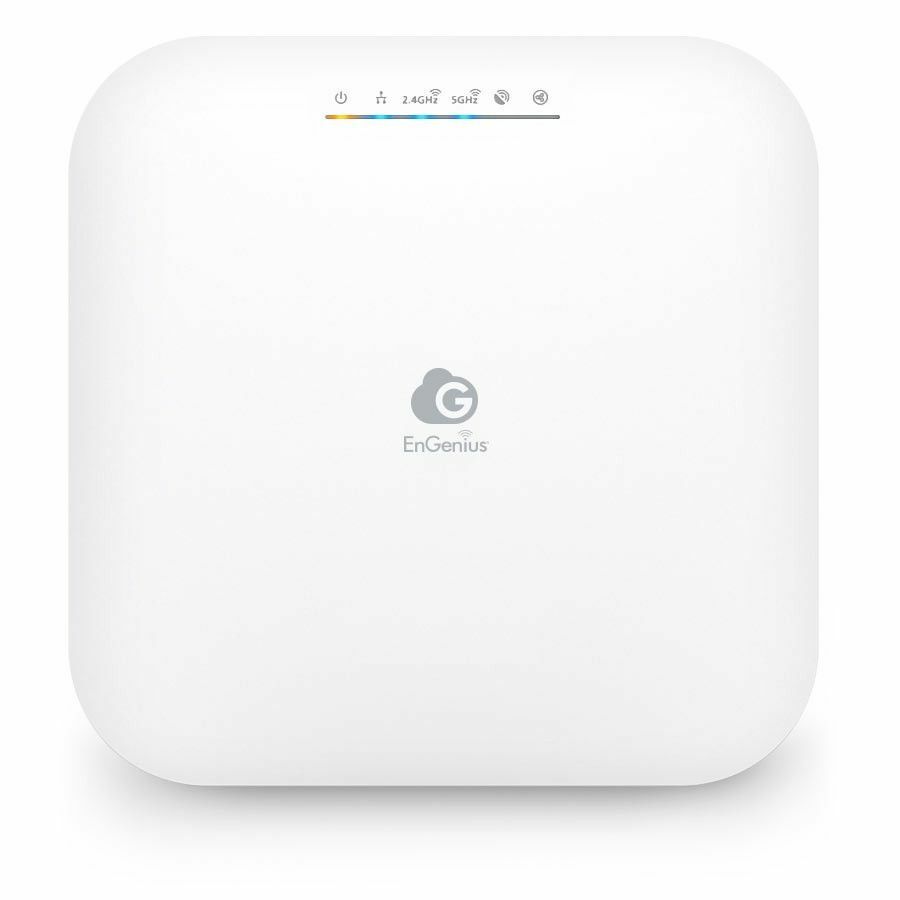

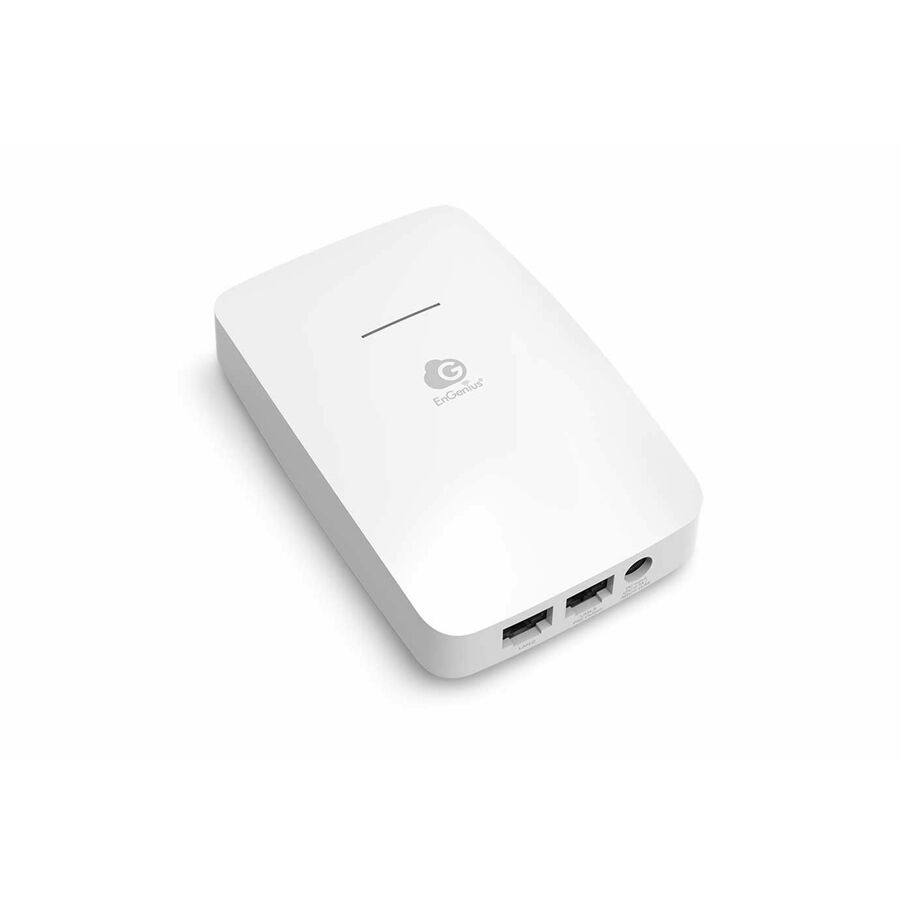

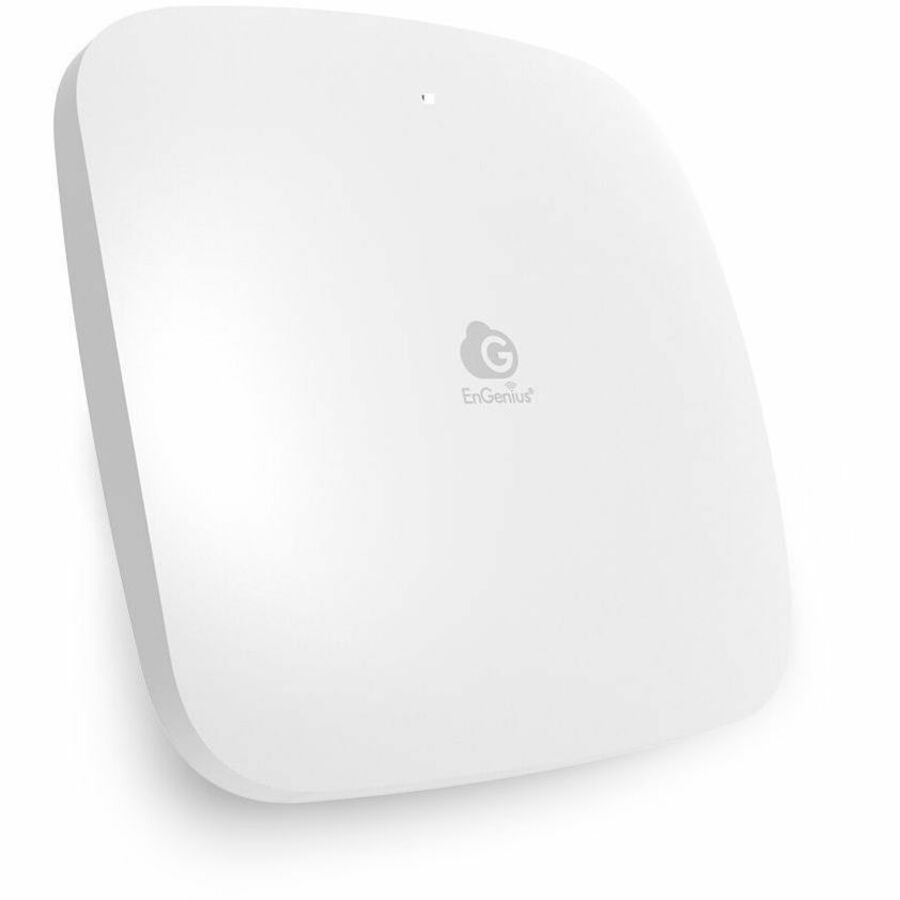

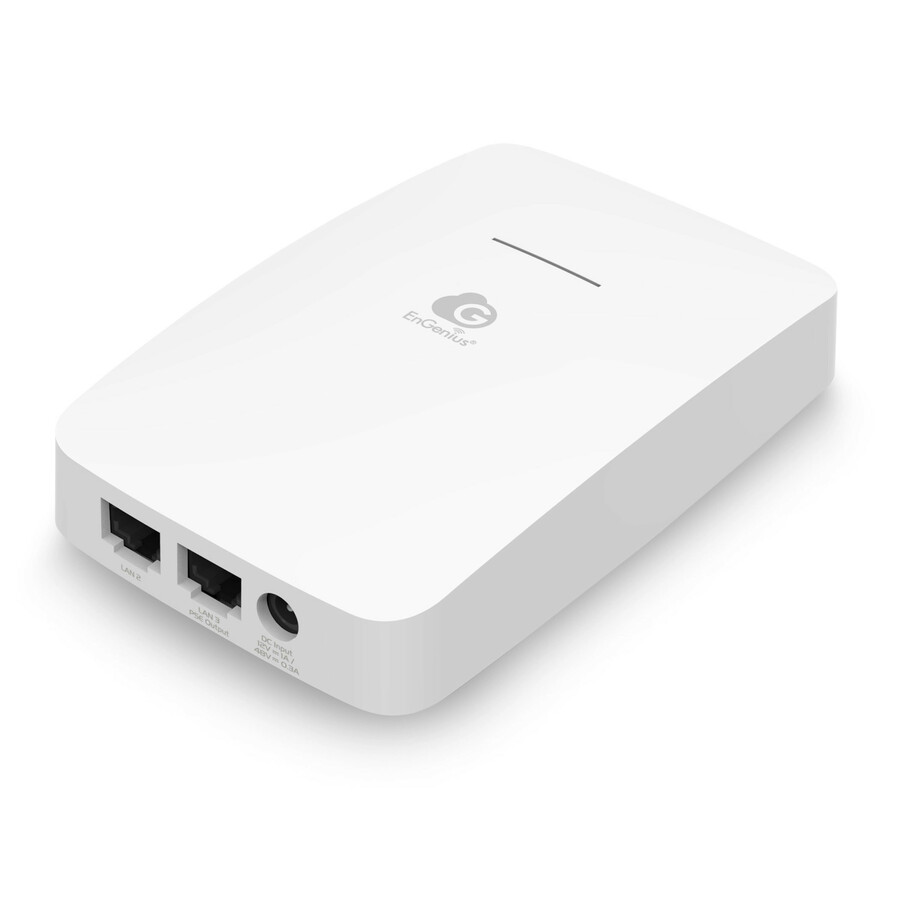

More Wireless Access Points/Bridges from EnGenius Technologies
